Monitoring System Health of Resources

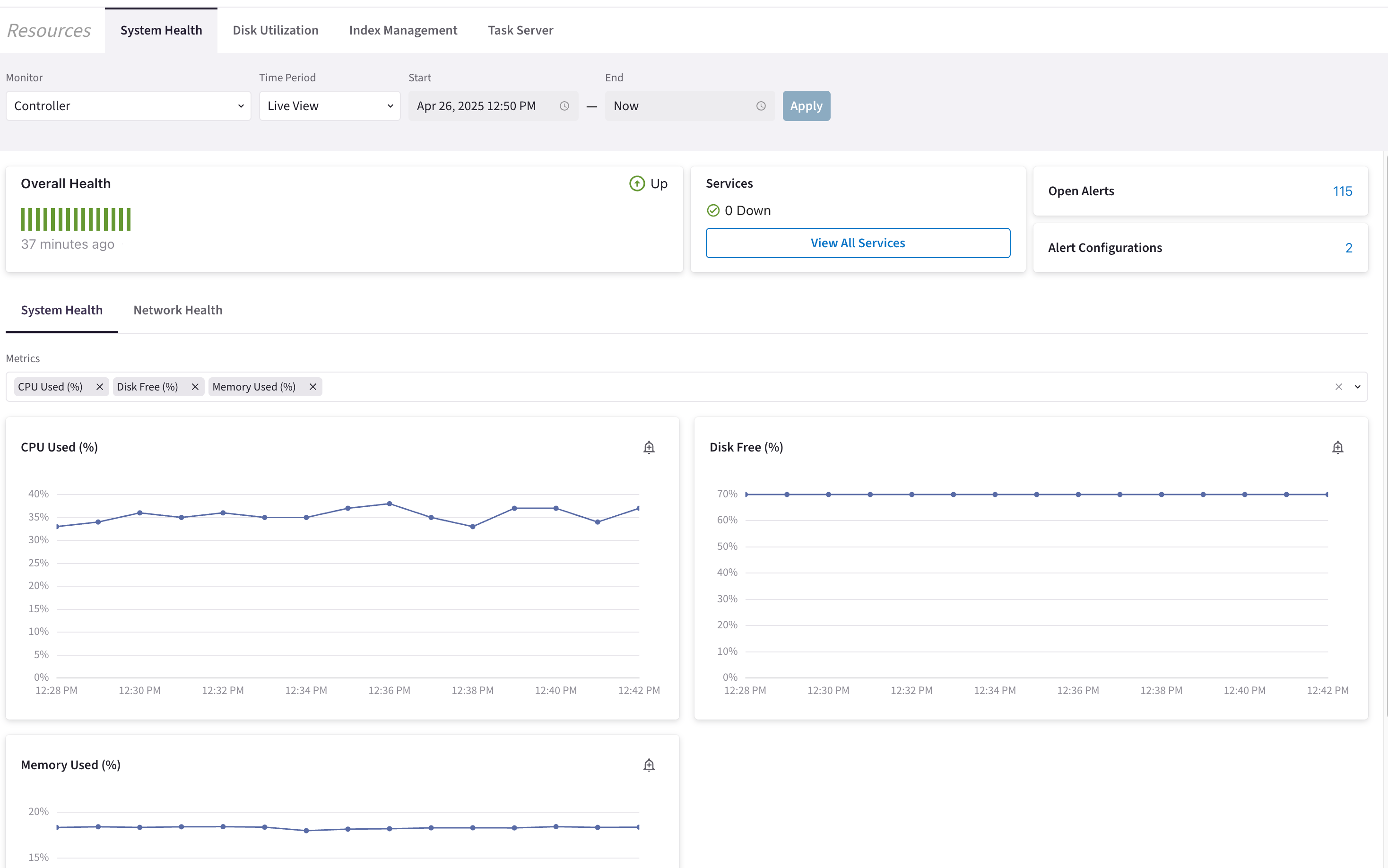

You can view the health of resources in Aviatrix Platform from Settings > Resources > System Health. You can select the resources and metrics you want to see.
From the Monitor field, you can select the resource to view. The resource options include Controller, CoPilot, and CoPilot data disks. Data disks only appear in cluster environments. You can also select the time period and start and end dates for the data you want to view.
Under Services, you can see how many services are in the Down state for the resource you selected. Clicking View All Services displays a list of all services monitored for the resource you selected. You can also restart services from the Services list.
If you selected Controller or CoPilot as the resource, you can also see the total number of Open Alerts and Alert Configurations in your environment. Clicking either total number opens a list with further details. In the Alert Configuration popup, you can also click View in Alert Configurations to be directed to Notifications, where you can see the details for your configured alerts.
CoPilot and CoPilot data disk resources each display a single System Health sub-tab. The Controller has two sub-tabs that allow you to view System Health and Network Health separately.
Clicking in the Metrics field displays a list of metrics related to the resource you selected. Graphs display below the metrics list, providing details about the metrics you selected. CPU Used (%), Disk Free (%), and Memory Used (%) are added by default.
On each graph is an alert icon. Clicking the icon opens a Create Alert Configuration dialog box.
It is recommended to upgrade the size of virtual machines if Aviatrix platform global health alerts are triggered frequently. |
System Health Services
Clicking View All Services opens a dialog box that displays the status of services related to the resource you select in the Monitor field. You can also restart the services from the Services dialog.
When Controller is selected in the Monitor field, the following Controller services display in the Services dialog:
-
CLOUDXD
-
PKI
-
PERFMON
-
RSyslog
-
GlobalConfigDB
-
MongoDB
-
ConduitDaemon
When CoPilot is selected in the Monitor field, the following CoPilot services display in the Services dialog:
-
db
-
etl
-
web
-
CoPilot
-
Cache Server
-
Task Server
-
Update Agent
-
Topology Service
-
Metrics Service
-
CoPilot Udp Tunnel
In a cluster environment, when a CoPilot Data Disk is selected in the Monitor field, the following services display in the Services dialog:
-
db
-
web
-
CoPilot
-
Update Agent
-
Topology Service
-
Metrics Service
-
CoPilot Udp Tunnel
Related Topics
For descriptions of the available metrics, see Metrics Monitored for Aviatrix Resources.
For information about alert notifications, see Notifications (Alerts) About Network Events.
