Transit Gateway to Palo Alto VM-Series Workflow

• VPC1 (with Aviatrix Transit Gateway)
  • VPC1 CIDR: 10.5.0.0/16
  • VPC1 Public Subnet CIDR: 10.5.3.0/24
  • VPC1 Private Subnet CIDR: 10.5.2.0/24
• VPC2 (with Palo Alto Networks VM-series)
  • VPC2 CIDR: 10.0.0.0/16
  • VPC2 Public Subnet CIDR: 10.0.0.0/24
  • VPC2 Private Subnet CIDR: 10.0.1.0/24
• Sample subnet advertised with the help of BGP - 192.168.0.24/32 (loopback interface on PaloAlto)

1. In CoPilot, navigate to Cloud Fabric > Gateways > Transit Gateways.
2. Create a Transit gateway in AWS that will connect to your Palo Alto firewall.
3. To connect the transit VPC GW to Palo Alto, navigate to Networking > Connectivity > External Connections.
4. Click +External Connection.
5. In the Add External Connection dialog, configure the following:

   Field	Value
   Connect Public Cloud to	External Device > BGP over IPsec
   Local Gateway	Select the Transit gateway you created in step 2 above
   Local ASN	Enter the BGP AS Number the Transit Gateway will use to exchange routes with the external device.
   Remote ASN	Enter the BGP AS number configured on the LAN
   Remote Device IP	This is the Palo Alto WAN IP

6. Click Save.

7. Download the configuration.

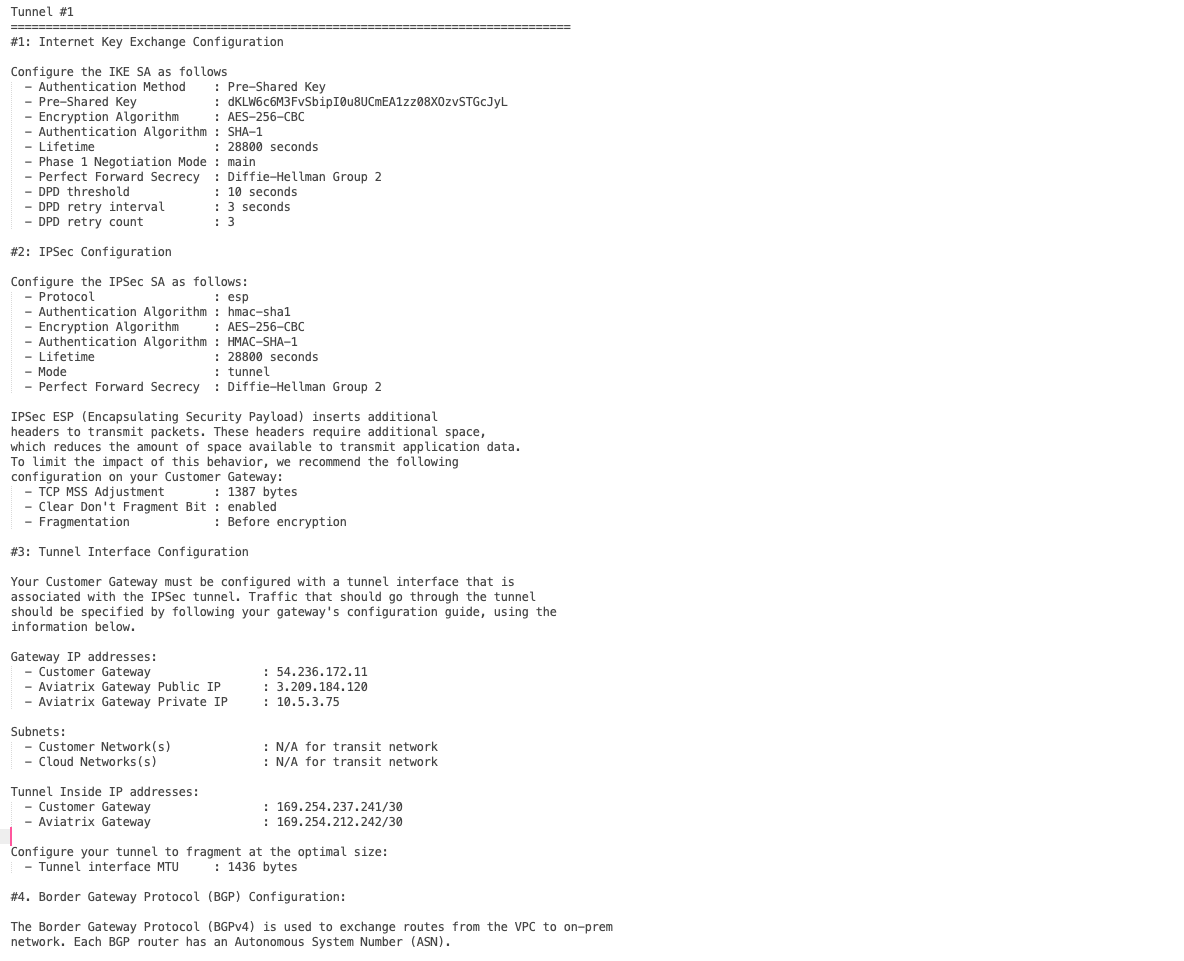

8. Use the information in the downloaded file to configure the router. The following is a sample configuration based on the Site2Cloud configuration above.

​

Configuring the Palo Alto VM-Series Firewall

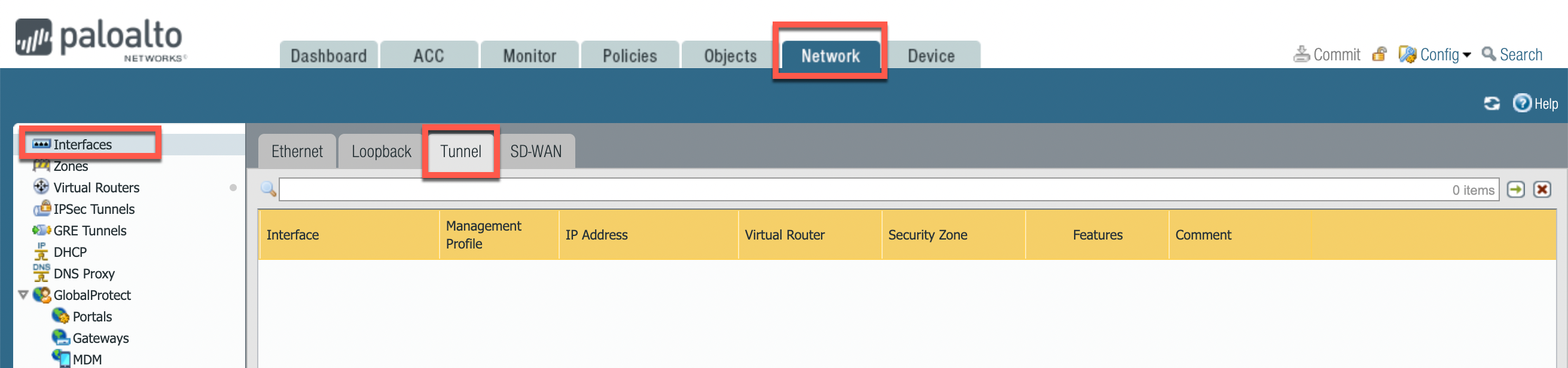

1. Navigate to Network > Interfaces > Tunnel.

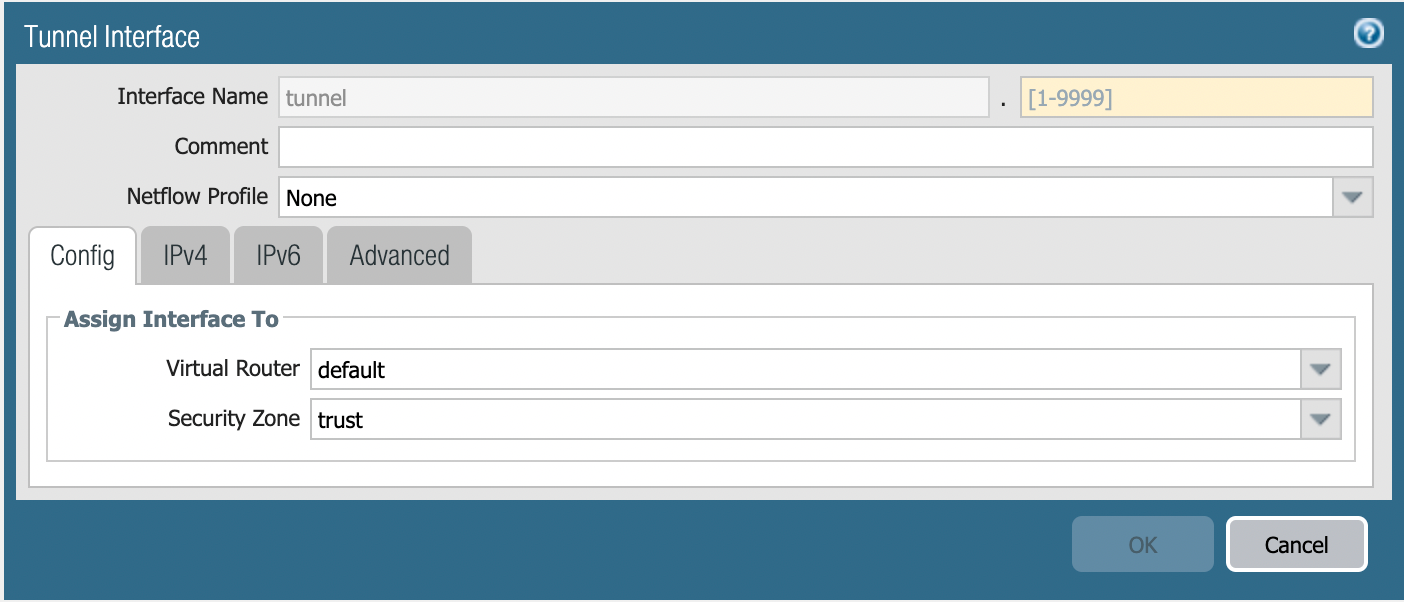

2. Click Add to create a new tunnel interface. In the Tunnel Interface dialog, on the Config tab, assign the following parameters.

   Field	Value
   Interface Name	Type an ID in the yellow field next to Interface Name (for example, 45; this tunnel will then be named ‘tunnel.45’)
   Virtual Router	Select the existing default virtual router
   Security Zone	Select the layer 3 internal zone from which traffic originates

   If the tunnel interface is in a zone different from the one where the traffic will originate, you must create a policy to allow the traffic to flow from the source zone to the zone containing the tunnel interface.

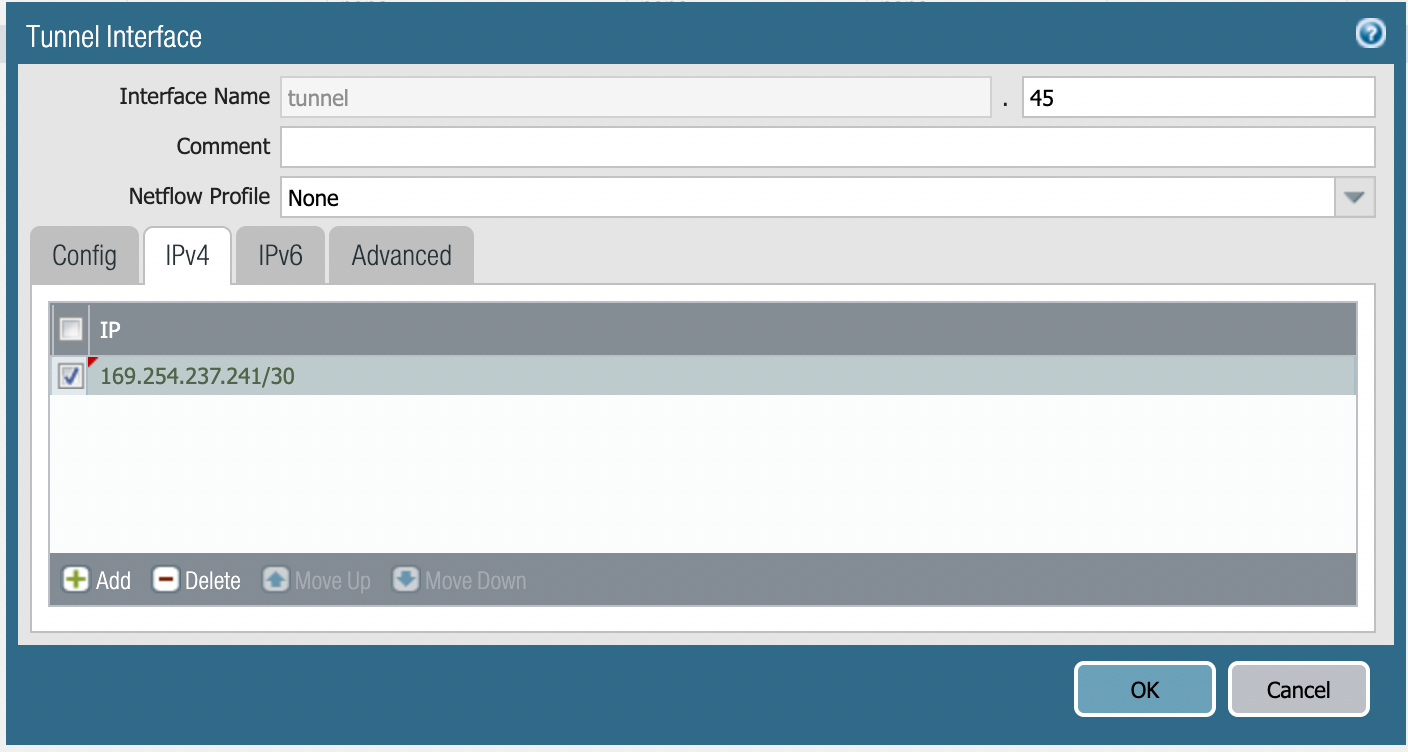

   Click the IPv4 tab and add the tunnel IP address from the configuration downloaded above.
3. Click OK.
4. Navigate to Network > Network Profiles > IKE Crypto.
5. Click Add.

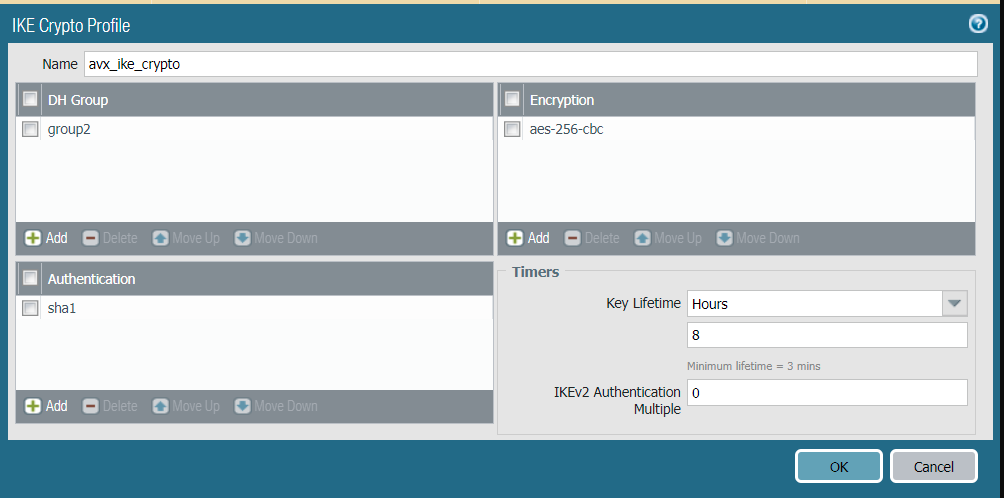

6. In the IKE Crypto Profile dialog, define the IKE Crypto profile (IKEv1 Phase-1) parameters as shown.
7. Click OK.
8. Navigate to Network > Network Profiles > IKE Gateways and click Add.

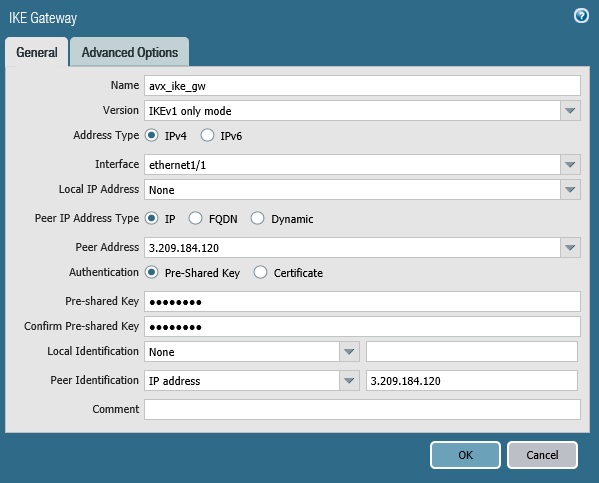

9. In the IKE Gateway dialog, configure the IKE Phase-1 Gateway as shown below. These parameters should match the Site2Cloud configuration downloaded here.

   Field	Value
   Name	avx_ike_gw
   Address Type	IPv4
   Interface	Palo Alto Networks WAN port (ethernet 1/1)
   Peer IP Address Type	IP
   Peer Address	Aviatrix Gateway public IP If using remote private IP, the Peer Address should be the remote private IP while Peer Identification should be the remote public IP.
   Authentication	Pre-Shared Key
   Pre-shared Key / Confirm Pre-shared Key	Key from downloaded configuration
   Peer Identification	IP Address & Aviatrix Gateway public IP

10. On the Advanced Options tab, select the IKE Crypto Profile created in step 6.
11. Click OK.
12. Navigate to Network > Network Profiles > IPSec Crypto.
13. Click Add to create a new profile.

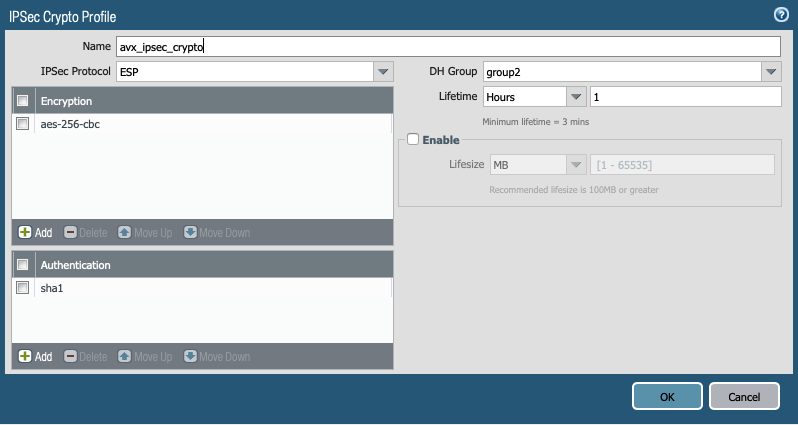

14. In the IPSec Crypto Profile dialog, define the IPSec crypto profile (IKEv1 Phase-2). These parameters should match the relevant values in the downloaded configuration.
15. Click OK.

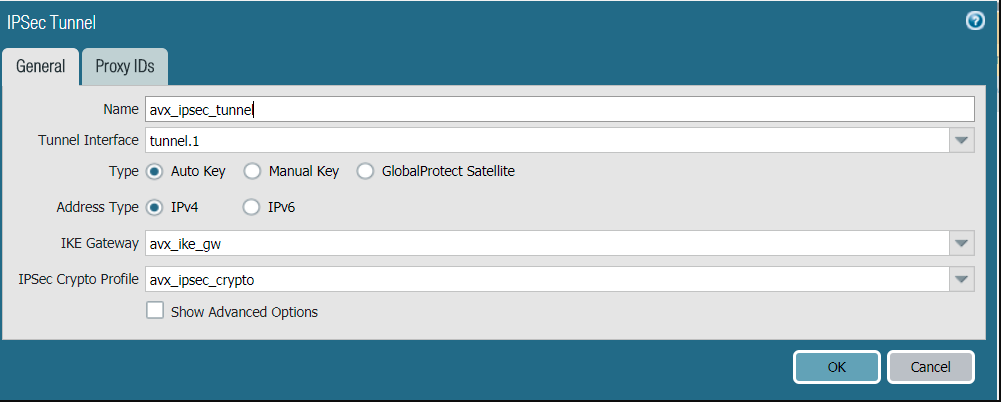

16. Navigate to Network > IPSec Tunnels and click Add to create a new IPSec Tunnel.
17. Configure the General tab as follows:

    Field	Value
    Tunnel Interface	Tunnel interface created in step 3
    IKE Gateway	IKE gateway created in step 9
    IPSec Crypto Profile	IPSec crypto profile created in step 14

    There is no need to configure proxy-id. Commit the configuration. The IPSec tunnel should now be green.

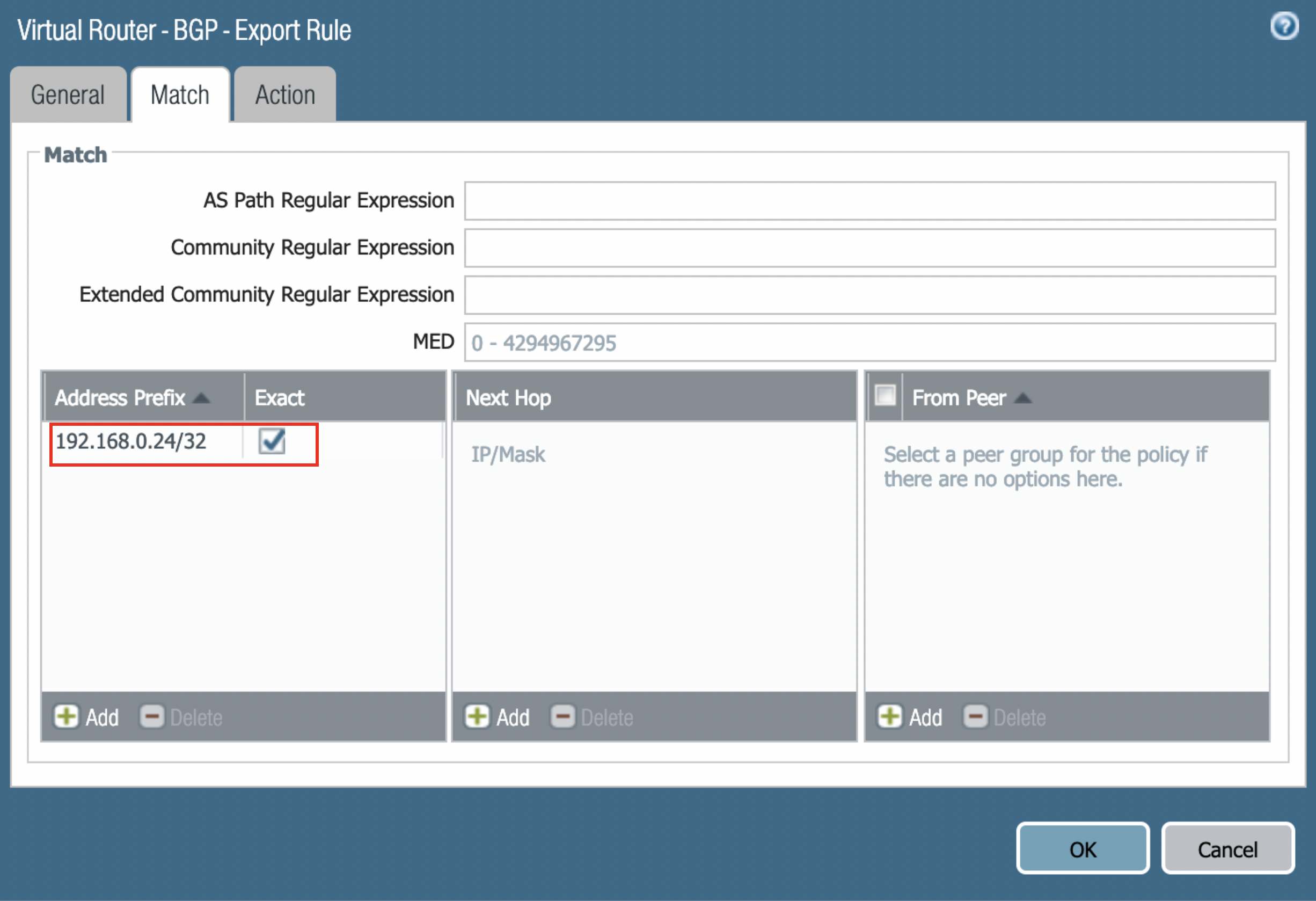

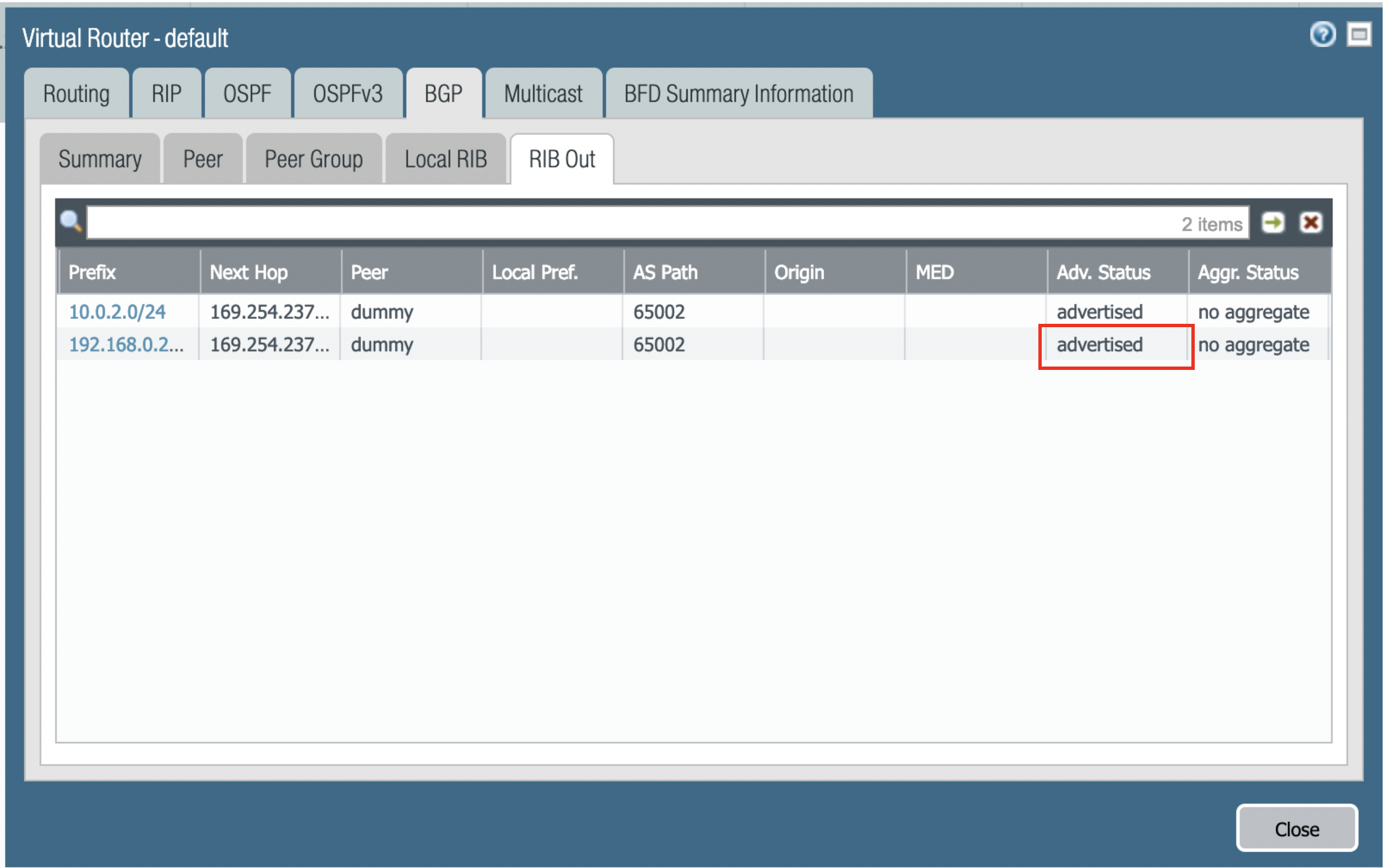

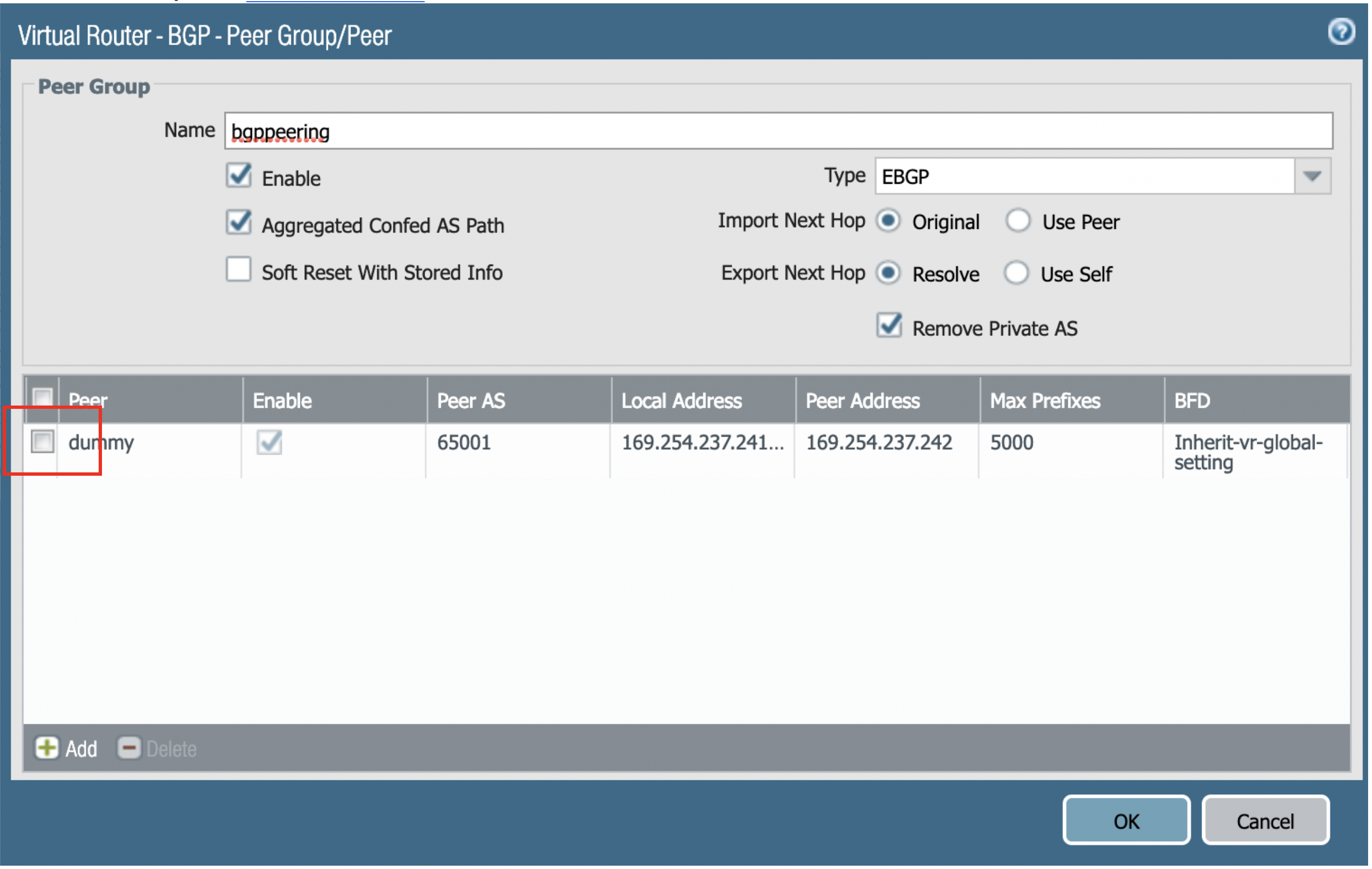

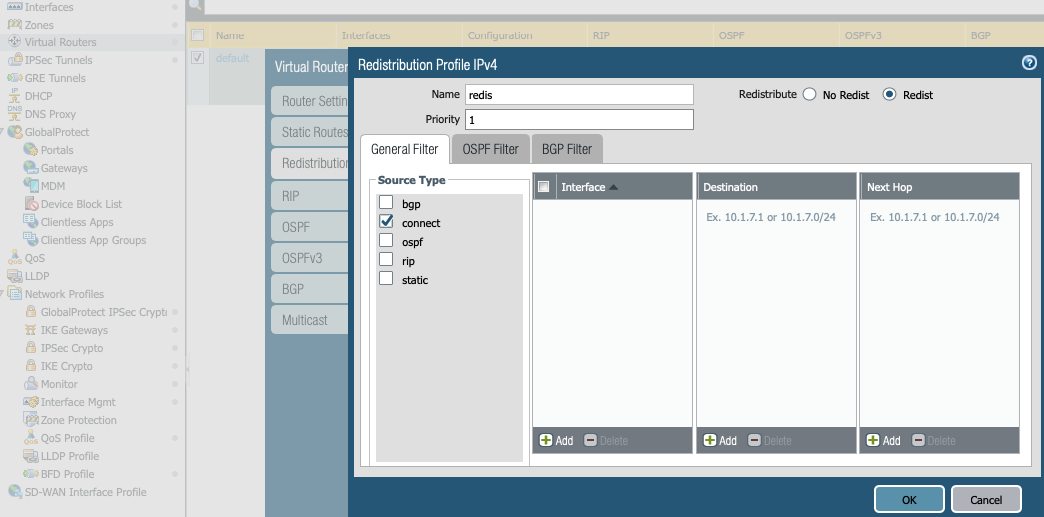

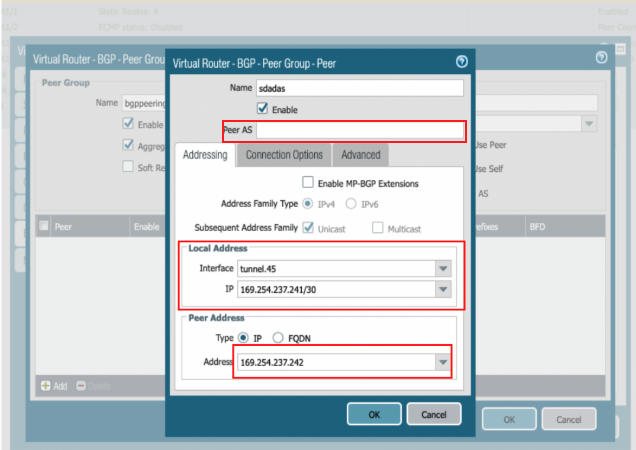

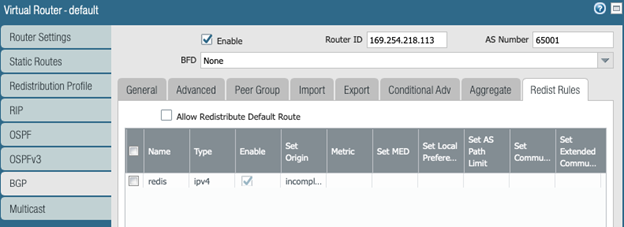

18. Steps to configure BGP: a. Navigate to Network > Virtual Routers. b. Click the ‘default’ link. c. In the Virtual Router - default dialog, click the BGP tab, and then the Peer Group tab. d. Click Add. e. Name the peer group (e.g bgppeering) and then click Add as shown to add BGP peering. f. In the Virtual Router-BGP-Peer Group-Peer dialog, enter the information as shown in the below screenshot. Click OK. g. After everything is created, click OK to commit the configuration. The Router ID is taken from the downloaded config file (it should be the IP address of the tunnel created). h. Click OK. i. Navigate to Network > default > Redistribution Profile. j. On the IPv4 tab, click Add. k. In the Name field, enter ‘redis’. l. Enter a priority. m. Select the connect Source Type to create a redistribution profile. n. Click OK. o. On the Virtual Router dialog, click BGP > Redist Rules. p. Click Add to add the redistribution rule you just created and click OK. q. On the same Virtual Router dialog, navigate to BGP > Export and click Add. r. In the Virtual Router - BGP - Export Rule dialog, add a name in the Rules field, and Enable the Export rule. s. Click Add to add the Peer Group from which the routes will be imported. Select Match and define the options used to filter routing information. t. Click OK. u. After the BGP route has been advertised it looks like the following image. Navigate to Network → More runtime stats → BGP → RIB out.
19. In the AWS portal, configure the VPC Route Table associated with the private subnet of VPC2. Add a route with VPC1 private subnet as the destination and Palo Alto Networks VM LAN port as the gateway.
20. In CoPilot, go to Diagnostics > Diagnostic Tools > BGP Diagnostics.
21. Select the gateway name from the dropdown list.
22. In the Command field, enter the ‘show Ip bgp’ command.
23. Click Run to verify the BGP Routes.
