This document demonstrates how to create a Site2Cloud connection between two VPCs by using a VGW and an Aviatrix gateway. The Aviatrix gateway also serves as a Source NAT device and translates source IPs of traffic initiated from a peering VPC to an IP address selected by users.

​
Environment Requirements

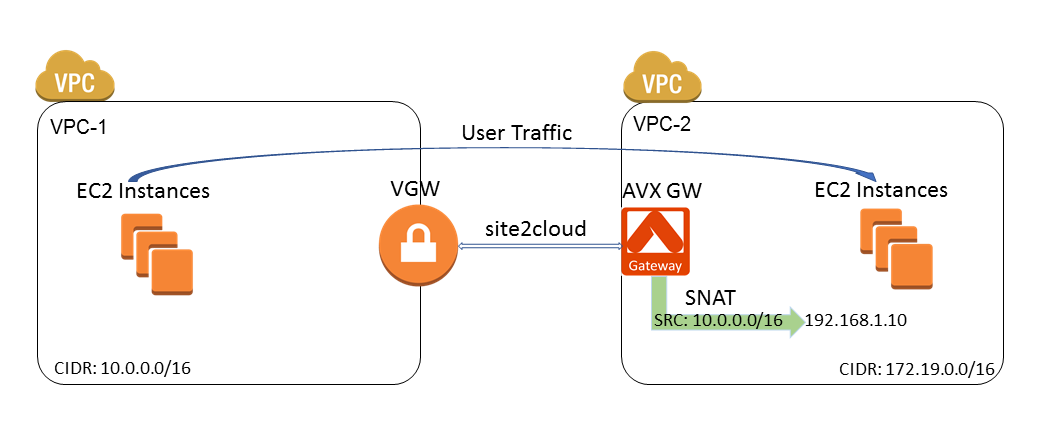

There are two VPCs as illustrated in the diagram below. The VPC-1 CIDR is 10.0.0.0/16 and the VPC-2 CIDR is 172.19.0.0/16. The Site2Cloud connection is between a VGW in VPC-1 and an Aviatrix gateway in VPC-2. s2c-snat You will also configure customized SNAT at the Aviatrix gateway, which translates the source IP of traffic initiated from VPC-1 (10.0.0.0/16) to a user selected IP address (192.168.1.10 in this example). This way, VPC-2 VMs will see all packets from VPC-1 with the same source IP address (192.168.1.10).

​
Steps to Configure Site2Cloud Connection and SNAT

  1. Install an Aviatrix gateway in VPC-2 by following these instructions.
  2. Create an Unmapped external connection between the VGW in VPC-1 and the Aviatrix gateway in VPC-2.
    When creating the connection, select Generic for Remote Device Type.
  3. Update VPC-1 Route Tables at AWS portal to ensure that traffic with VPC-2 (172.19.0.0/16) as the destination takes the VGW as “Target”:

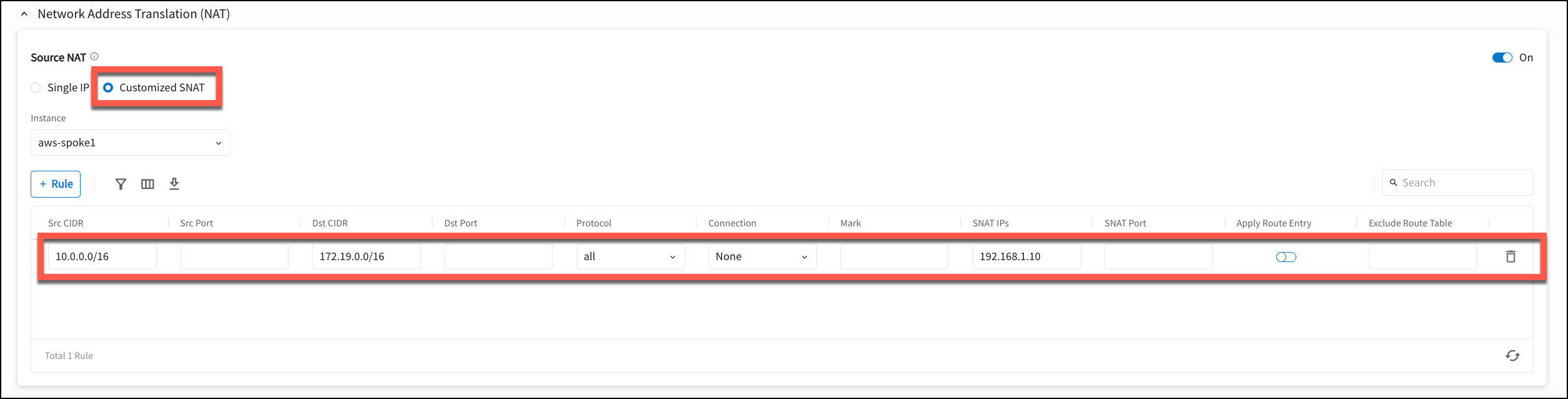

  4. Configure Customized SNAT at the Aviatrix gateway. a. In Aviatrix CoPilot, go to Cloud Fabric > Gateways > Spoke Gateways. b. Select the Aviatrix gateway created in VPC-2. c. On the Settings tab, expand Network Address Translation (NAT) section. d. Set Source NAT toggle On. e. Select Customized SNAT. f. Configure the following SNAT rule. s2c-snat2
    SNAT Port left blank means the gateway preserves the original source port where possible and only remaps it on port collision (within the same port tier; for example, ports 1024+ remain 1024+). This follows the standard Linux kernel SNAT behavior documented in the iptables-extensions man page (SNAT target section). To force dynamic port allocation, specify a port range in SNAT Port.
    g. Click Save. The rule appears in the table. h. Set Apply Route Entry toggle On to commit the rule.

​
Test Site2Cloud Connection and SNAT

Use the following tools to test the connection and verify the source IP NAT to the IP selected.
  • Go to Diagnostics > Cloud Routes > External Connections to verify that the external connection status is Up.
  • Ping from an Ubuntu VM in VPC-1 to another Ubuntu VM in VPC-2.
  • Turn on “tcpdump icmp -n” at the Ubuntu VM in VPC-2. Verify the source IP of the pings is 192.168.1.10.
