Enable SAML App for a group of users in G-Suite using Organization

  1. Follow See Google Idp for SAML Integration to create a SAMLVPN application.

  2. Repeat the following steps to create users in G-suite Google Admin console and leave them under the root organization.

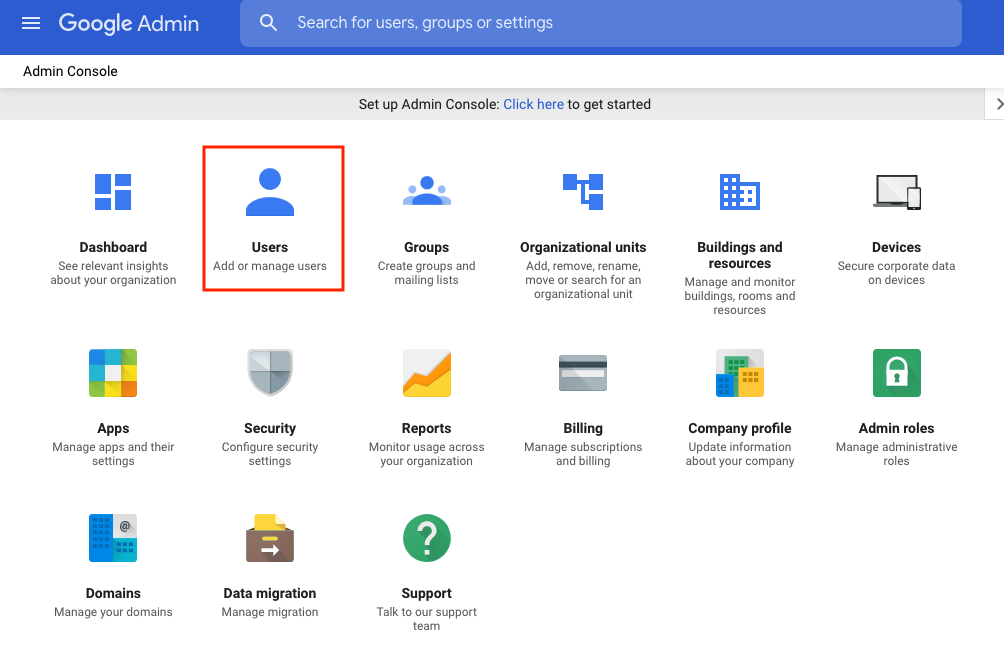

    2.1. Go to G-suite Google Admin console, select Users.

    g-suite-admin-users

    2.2. Click Add new user.

    add-new-user-button

    2.3. Enter user information. In this example, Aviatrix Support is the root organization.

    add-new-user

    2.4. Click DONE.

    new-user-added
  3. Define a sub-organization saml access org within your root organization.

    3.1. At G-suite Google Admin console, select Organizational units.

    g-suite-admin

    3.2. Click + to add a new organization under your root organization.

    manage-org

    3.3 Create a sub-organization, e.g., saml access org.

    create-org
    saml-access-org
  4. Turn on SAMLVPN application for saml access org.

    4.1. Go back to G-suite Google Admin console and select Apps.

    g-suite-admin-apps

    4.2. Select SAML apps.

    apps-settings

    4.3. Select the SAMLVPN App created in step 1.

    saml-vpn-apps

    4.4. Click EDIT SERVICE to enable/disable SAMLVPN app for the selected organization.

    open-SAMLVPN

    4.5. Turn off SAMLVPN for root organization (Aviatrix Support).

    disable-SAMLVPN-rootorg

    4.6. Turn on SAMLVPN for saml access org.

    enable-SAMLVPN-suborg
  5. Assign users to SAMLVPN app by moving users into saml access org.

5.1. Go back to G-suite Google Admin console and select Users.

g-suite-admin-users

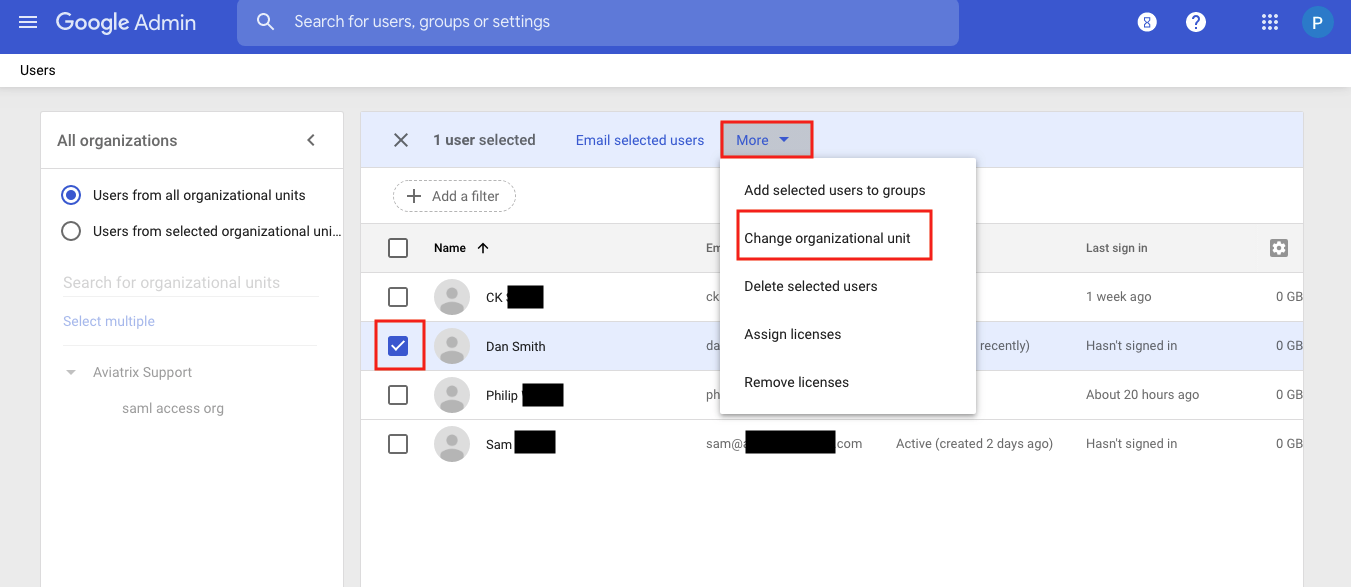

5.2. Select the user for SAMLVPN app (e.g., Dan Smith) and click Change organizational unit.

change-org-button

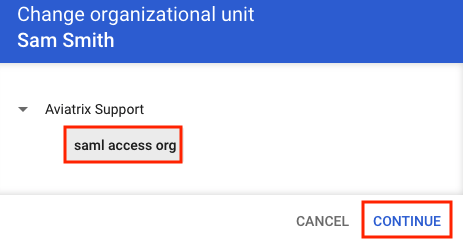

5.3. Select saml access org.

change-org-unit

5.4. Confirm the change.

confirm-org-change

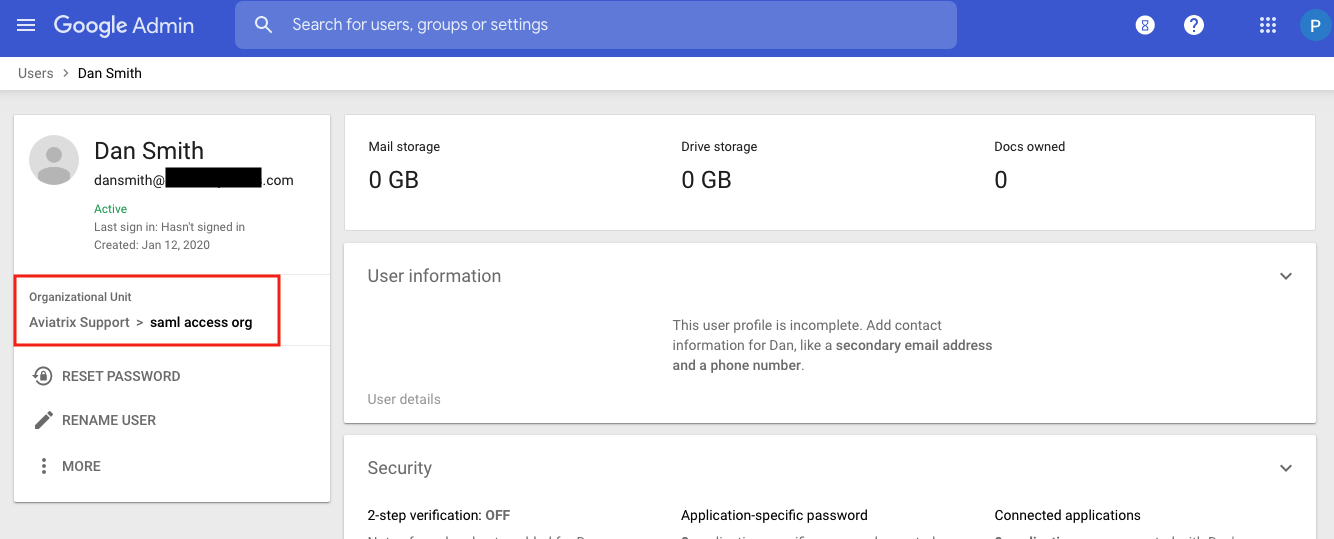

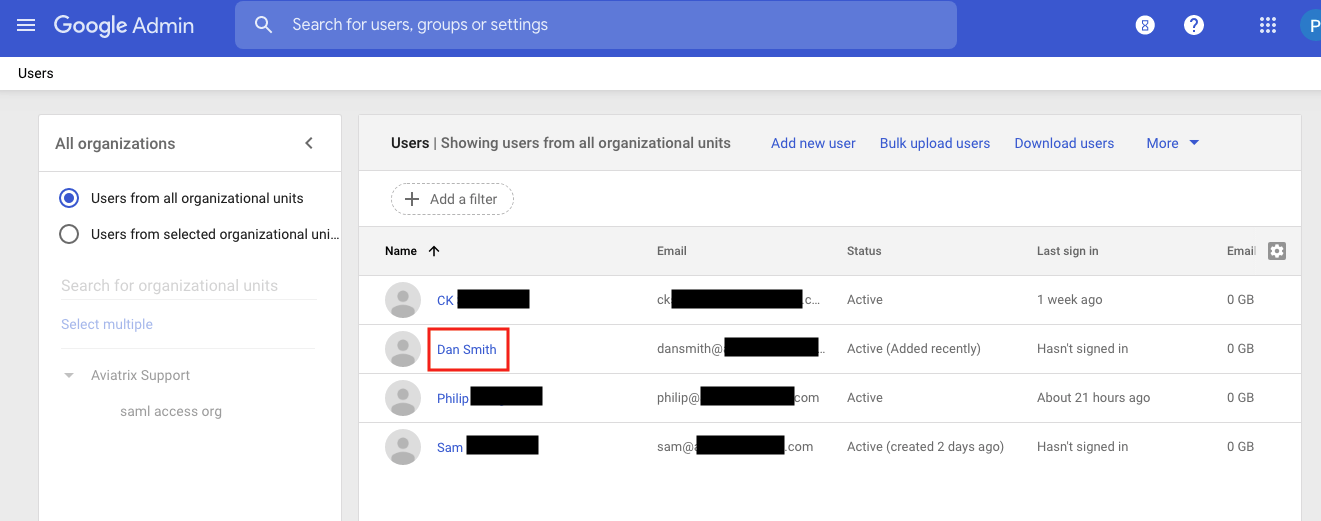

5.5. Review the change.

select-dan-smith
reopen-2-confirm-org
