Using IPv6 to Connect Overlapping VPC CIDRs

The IPv6 Technique

If you have two overlapping VPC CIDRs and need to connect them together, the normal technique is to use SNAT and DNAT to translate the IP addresses.

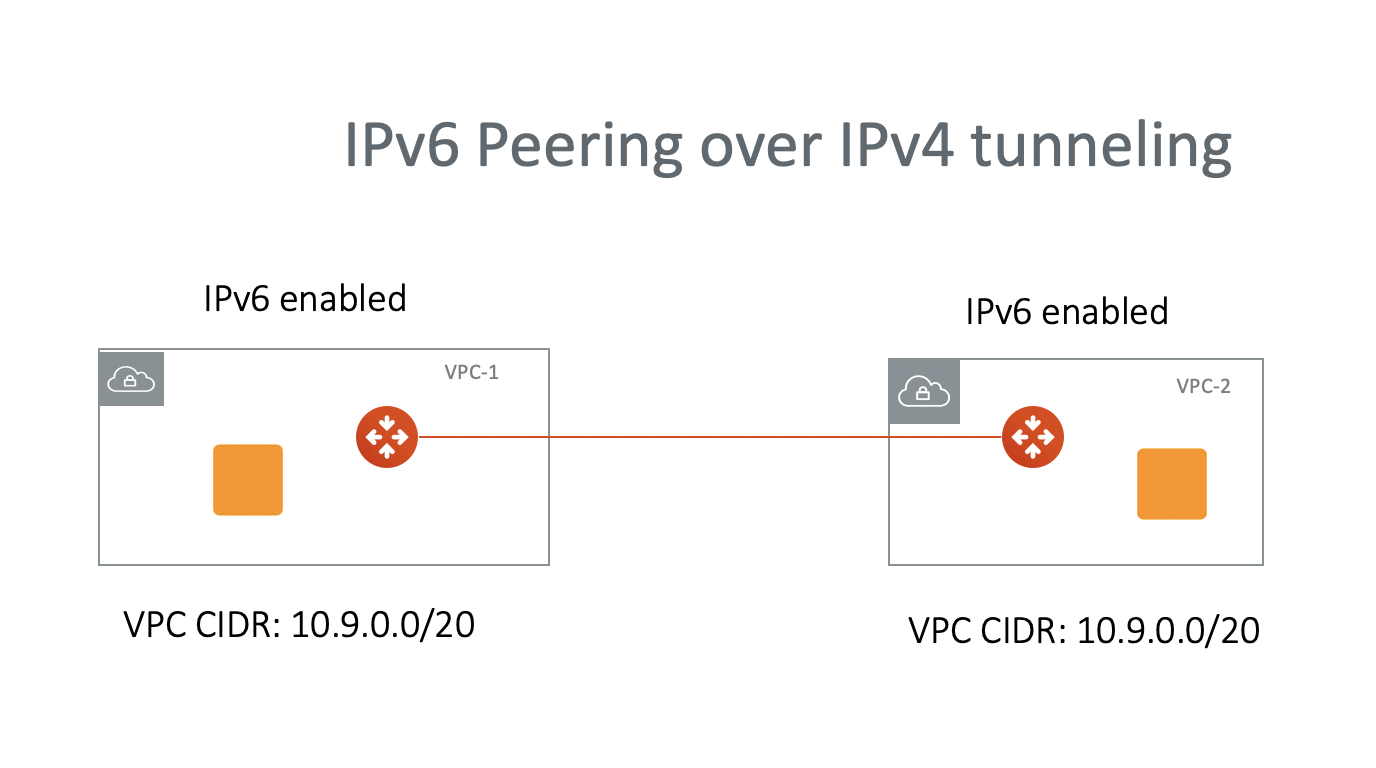

This tech note describes an alternative approach. In this approach, it assumes the EC2 instances are capable of addressing each other with IPv6 addresses. The idea is that even though two VPC CIDRs are overlapping with IPv4 addresses, the IPv6 network address ranges are always unique. If the EC2 instances are capable of communicating with each other with IPv6, then we just need to build a IPv4 tunnel that tunnels IPv6 address. The diagram is shown as below.

ipv6_peering

In the above diagram, both VPC CIDRs are 10.9.0.0/20. The requirement is to have EC2 instances in each VPC to communicate with each other via IPv6 addresses.

Step 1. Launch Aviatrix gateways in each VPC

Login to the Controller. Go to Gateways → Add New to launch a gateway in each VPC.

Step 2. Enable IPv6 on the gateway

Login to the Controller. At the Gateway page, highlight one gateway, click Edit. Scroll down to IPv6, click Enable. Do the same for the second gateway.

When IPv6 is enabled on the gateway, the Controller enables IPv6 on the VPC CIDR (auto assign one), the gateway instance and the subnet where the gateway is launched. You can validate this by login to the AWS Console EC2 and check for both gateway IPv6 address and the associated subnet.

Step 3. Enable encrypted peering

Login to the Controller. Go to Peering → Encrypted Peering → Add New. Select the gateways launched and click OK.

This step builds an IPSec encrypted tunnel between the two gateways, where the tunnel endpoints are IPv4 addresses of the gateways but the tunnel policy is IPv6 for the two VPC CIDRs.

Step 4. Enable IPv6 on EC2 and subnet

4.1 Enable IPv6 on EC2

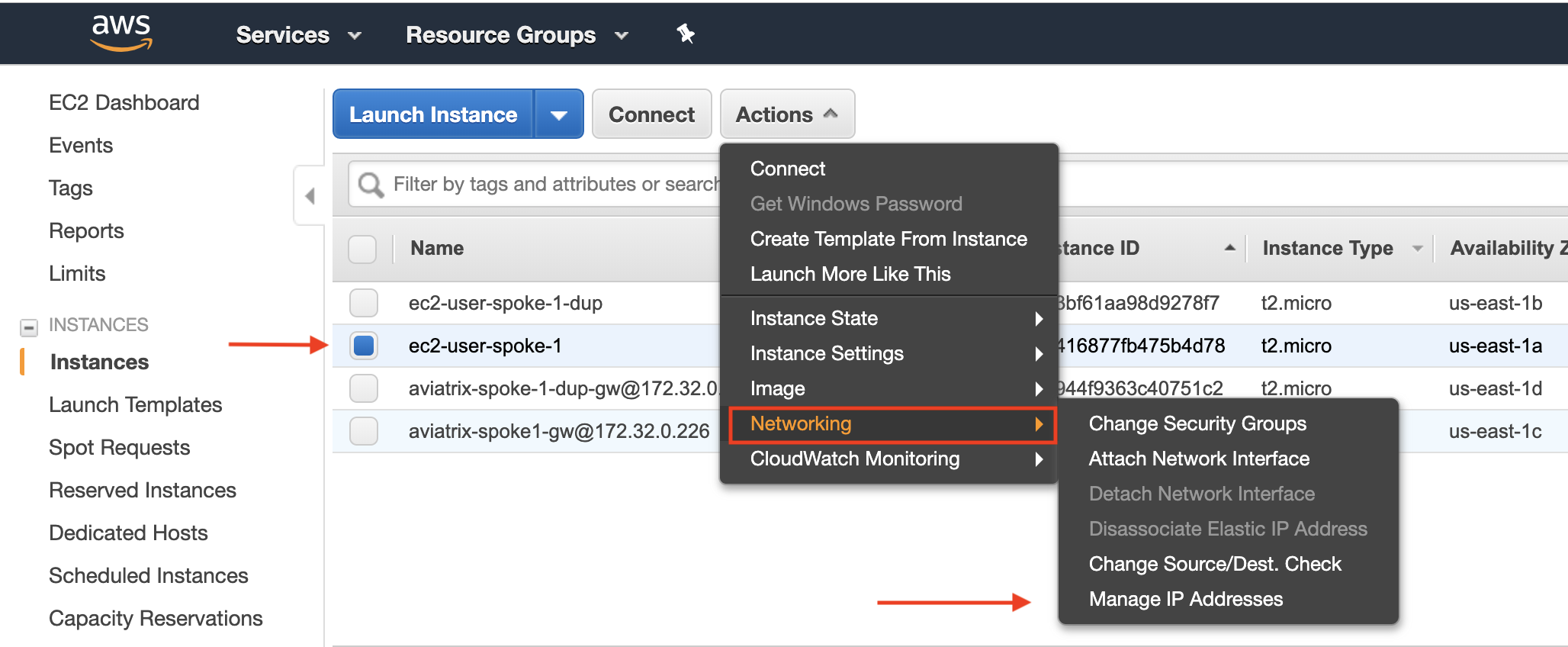

Login to AWS console. Select the instance you want to ping. Click Action → Networking → Manage IP Addresses. Assign a new IPv6 address, as shown below.

ipv6_addr

Repeat the same step for the destination address. Make sure you configure the instance Security Group to inbound allow IPv6 address.

4.2 Enable IPv6 on subnet

Login to AWS console VPC, select the subnet, click Actions → Edit IPv6 CIDRs. Make sure you enter some numbers that are unique.

ipv6_subnet

4.3 Edit EC2 Security Group

Login to AWS console EC2. Select the instance and Edit Security Group to enable inbound IPv6, as shown below.

ipv6_security_group

Step 5. Ping

Use command "ping6" to ping IPv6 address. For example

ping6 2600:1f18:65e5:ce01:100d:bcfa:2aef:1030
