About Decryption CA Certificates and Trust Bundles

The CA certificate is used when you enable TLS Decryption on a policy. The decryption CA certificate (the Aviatrix certificate, or your own) must be distributed to all of your client machines so that signature checks are successful.

Aviatrix strongly recommends replacing the default Aviatrix CA certificate with your own CA certificate.

The certificate must be in .pem format and must be private.

If TLS Decryption is enabled, encrypted gateway traffic is decrypted and inspected, and then re-encrypted. All inspection and policy enforcement occur within the customer’s cloud environment.

You can perform the following actions for CA certificates and trust bundles:

Decryption CA Certificates should be trusted by the Source SmartGroup virtual machines when TLS Decryption is enabled for proxy.

Upload or Replace Your Own Certificate

It is best to upload your own certificate (must be in .pem format), since you likely have this certificate in use throughout your environment.

When you upload a certificate, it replaces the default Aviatrix CA certificate. If you remove a certificate, the Aviatrix default certificate is automatically uploaded.

Ensure that the downloaded file is saved to the appropriate location on your computer, and any client machines involved in your Distributed Cloud Firewall (DCF) configuration.

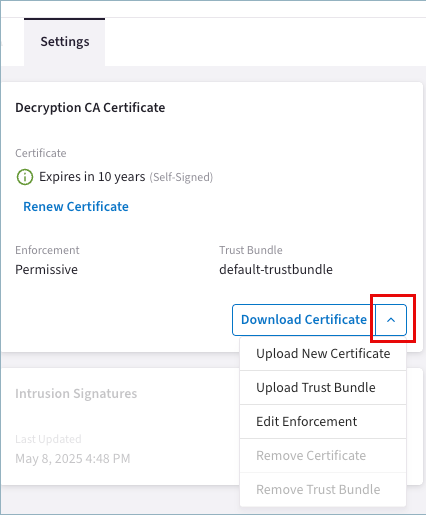

  1. On Distributed Cloud Firewall > Settings > Decryption CA Certificate card, click the More Options arrow next to Download Certificate.

    ca certificate more options menu

  2. To upload or replace a certificate:

    1. Click Upload New Certificate.

    2. In the Upload New Certificate dialog, select the CA certificate to upload.

    3. Select the corresponding certificate key.

      Both fields must be populated.

    4. Click Upload.

  3. To remove a certificate, select Remove CA Certificate from the More Options menu.

Renew the Aviatrix Certificate

You must renew your Aviatrix CA certificate when it is about to expire. This feature is available on the Distributed Cloud Firewall > Settings > Decryption CA Certificate card. The renewal only works for the Aviatrix certificate, not for an uploaded certificate.

When you click Renew Certificate, the certificate renews automatically.

You can also upload your own CA certificate.

Upload, Replace, or Remove a Trust Bundle

A trust bundle is a list of trusted CA certificates. If a gateway terminates the TLS connection and negotiates a new TLS connection to the origin certificate, then the origin certificate must be signed by one of the trusted CA certificates if running in the Strict Enforcement mode.

You can upload a trust bundle that has an expired certificate, but you will see a warning.

When you upload a trust bundle, it replaces the default Aviatrix bundle. If you remove your trust bundle, the Aviatrix default bundle is automatically uploaded.

To upload, remove, or replace a trust bundle (must be in .pem format):

  1. On Distributed Cloud Firewall > Settings > Decryption CA Certificate card, click the More Options arrow next to Download Certificate.

    ca certificate more options menu

  2. To upload or replace a trust bundle, click Upload Trust Bundle, select the .pem file, and click Upload.

  3. To remove the trust bundle, click Remove Trust Bundle on the More Options menu.

Edit Enforcement

Use the Enforcement option to determine how Distributed Cloud Firewall handles origin certificates that are not signed by a trusted Certificate Authority.

Aviatrix strongly recommends changing the enforcement level to Strict.

To edit the enforcement level:

  1. On Distributed Cloud Firewall > Settings > Decryption CA Certificate card, click the More Options arrow next to Download Certificate and click Edit Enforcement.

    ca certificate more options menu

  2. In the Edit Enforcement dialog, select an Enforcement level:

    • Strict: terminate connection for incorrect signatures

    • Permissive: alert, but persist connection for incorrect signatures

    • Ignore: certificate signatures are not checked

Remove a Certificate

To remove a certificate and replace it with your own:

  1. On the Security > Distributed Cloud Firewall > Settings tab, on the Decryption CA Certificate card, click the arrow next to Download Certificate and click Remove Certificate.

  2. When prompted, click Delete to remove the certificate.

  3. Upload your own (private) certificate.

Verify the Decryption CA Certificate

You should check that the CA certificate is imported correctly. The following is one verification method.

  1. Replace the default Decryption CA Certificate with a private decryption CA certificate.

  2. Enable TLS Decryption on the DCF rules to match your traffic.

  3. Import the Decryption CA signer or root CA into your VMs.

  4. Generate traffic for the above rule(s).

  5. To verify that the Decryption CA Certificate chain or root is imported correctly to the VM, navigate to the relevant URL in your web browser.

    If you see 'Untrusted' warnings, you should run through these steps again.

    If the import was successful, you should see the new certificate chain with the Decryption CA as the signer of the website.
