This section provides the purpose, elements, and actions performed on the Traffic & Latencies pages.

​
Purpose

The Traffic page displays network traffic metrics for selected time periods. Use the View Selector to switch between Regions, VPC/VNets, Gateways, and Instances views.

​
Elements

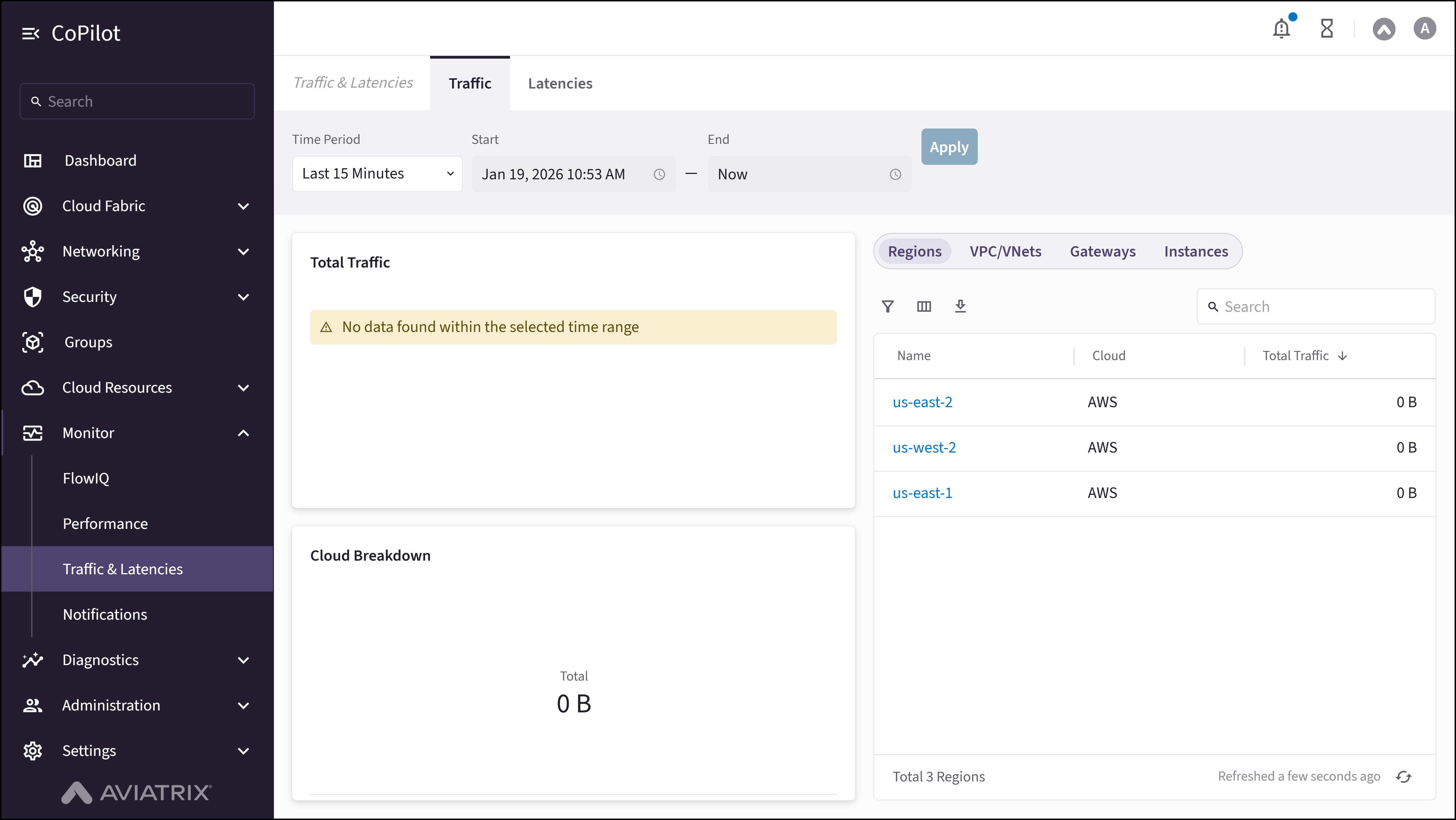

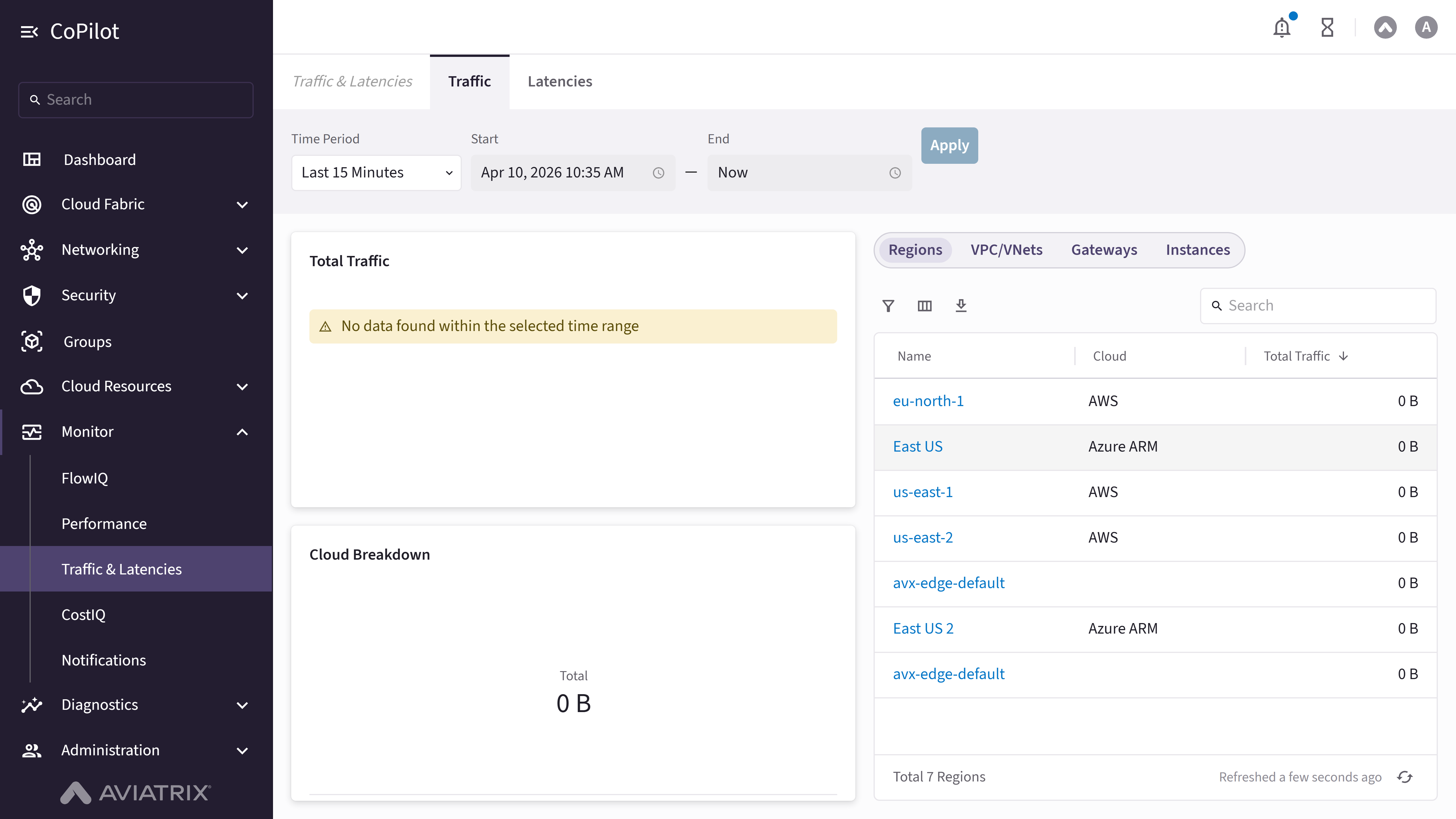

Traffic & Latencies: Traffic
  • Time Period: Dropdown to select time period (e.g., Last 15 Minutes).
  • Start: Date and time picker for start time.
  • End: Date and time picker for end time (can be set to ‘Now’).
  • Apply button: Applies selected filters and displays traffic data.
  • Total Traffic: Card displaying total traffic metric.
  • Cloud Breakdown: Card displaying cloud breakdown metrics.
  • View Selector: Buttons to switch between Regions, VPC/VNets, Gateways, and Instances views.
  • Search: Search box for filtering table content.
  • Show filters button: Opens filter dialog to filter table data.
  • Select columns button: Opens column selection dialog.
  • Export button: Exports traffic data.
  • Refresh button: Refreshes traffic data.

​
Actions

To view traffic metrics by region:
  1. Go to Monitor > Traffic & Latencies > Traffic.
  2. Use Time Period, Start, and End to set the time range. Click Apply.
  3. In the View Selector, select Regions.
  4. Review Total Traffic and Cloud Breakdown and the regions table. Optionally, use Search, Show filters, Select columns, Export, or Refresh.
The table shows Name, Cloud, and Total Traffic per region.
To view traffic metrics by VPC/VNet:
  1. Go to Monitor > Traffic & Latencies > Traffic.
  2. Use Time Period, Start, and End to set the time range. Click Apply.
  3. In the View Selector, select VPC/VNets.
  4. Review the VPC/VNets table. Optionally, use Search, Show filters, Select columns, Export, or Refresh.
The table shows Name, Cloud, and Total Traffic per VPC/VNet.
To view traffic metrics by gateway:
  1. Go to Monitor > Traffic & Latencies > Traffic.
  2. Use Time Period, Start, and End to set the time range. Click Apply.
  3. In the View Selector, select Gateways.
  4. Review the gateways table. Optionally, use Search, Show filters, Select columns, Export, or Refresh.
The table shows Name, Cloud, and Total Traffic per gateway.
To view traffic metrics by instance:
  1. Go to Monitor > Traffic & Latencies > Traffic.
  2. Use Time Period, Start, and End to set the time range. Click Apply.
  3. In the View Selector, select Instances.
  4. Review the instances table (Sent, Received, Total Traffic). Optionally, use Search, Show filters, Select columns, Export, or Refresh.
The table shows Name, Cloud, Sent, Received, and Total Traffic per instance.

​
Parameter Details

Sl. No.CoPilot Parameter NameDescription
1NameShows the name (region, VPC/VNet, gateway, or instance depending on view).
2CloudShows the cloud provider.
3Total TrafficShows total traffic for the row.
4SentShows sent traffic (Instances view only).
5ReceivedShows received traffic (Instances view only).
