Performance

This section provides the purpose, elements, and actions performed on the Performance pages.

Purpose

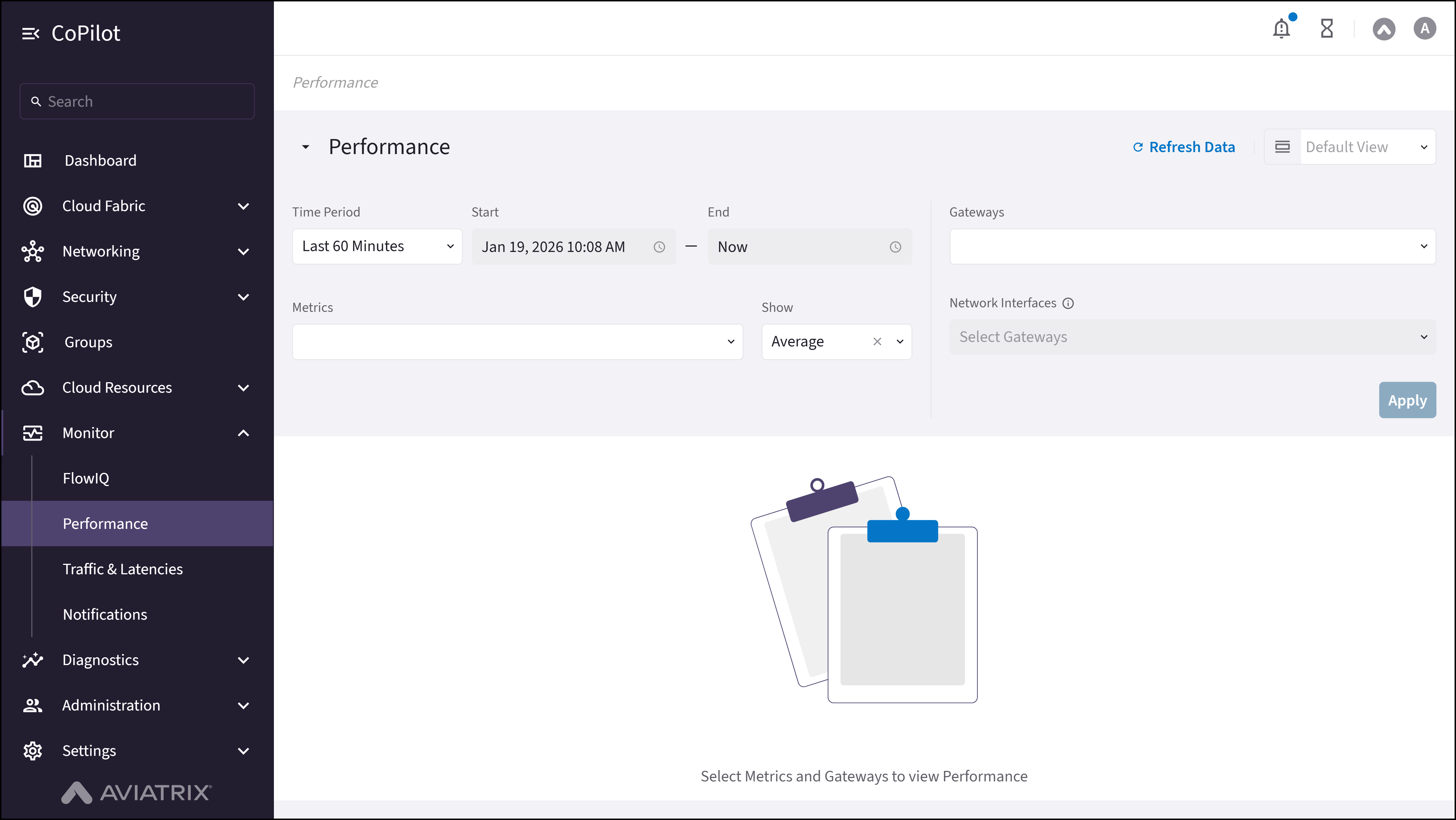

The Performance page displays performance metrics for selected gateways and network interfaces over a specified time period.

Time Period: Dropdown to select time period (e.g., Last 60 Minutes).
Start: Date and time picker for start time.
End: Date and time picker for end time (can be set to ‘Now’).
Metrics: Dropdown to select performance metrics to display.
Show: Dropdown to select aggregation type (e.g., Average).
Gateways: Dropdown to select gateways for performance monitoring.
Network Interfaces: Dropdown to select network interfaces (disabled until gateways are selected).
Default View: Dropdown to select or manage default view settings.
Refresh Data button: Refreshes performance data.
Apply button: Applies selected filters and displays performance metrics.
Placeholder Message: Message displayed when no metrics and gateways are selected: ‘Select Metrics and Gateways to view Performance’.

View Gateway Performance

To view performance metrics for gateways:

Go to Monitor > Performance.
The Performance page appears. Select Metrics and Gateways (and optionally Network Interfaces after gateways are selected).
Use Time Period, Start, and End to set the time range. Use Show to select aggregation type (e.g., Average).
Click Apply to display performance metrics.
Optionally, use Default View to manage view settings or Refresh Data to refresh.

The page displays performance metrics for the selected gateways and time period.

Sl. No.	CoPilot Parameter Name	Description
1	Time Period	Selects time period for performance data (e.g., Last 60 Minutes).
2	Start	Sets start date and time for performance data range.
3	End	Sets end date and time for performance data range (can be set to ‘Now’).
4	Metrics	Selects performance metrics to display.
5	Show	Selects aggregation type for metrics (e.g., Average).
6	Gateways	Selects gateways for performance monitoring.
7	Network Interfaces	Selects network interfaces (disabled until gateways are selected).
8	Default View	Selects or manages default view settings.
9	Refresh Data	Refreshes performance data.
