This guide describes how to connect your AWS account and Kubernetes workloads to AgentGuard so that it can discover your AI workloads.
AgentGuard phase one supports AWS only. Support for additional clouds is planned for the future.
After completing the setup, you can configure either level of visibility as per your requirements:

​
AgentGuard Setup Overview

The AgentGuard setup workflow is as follows:

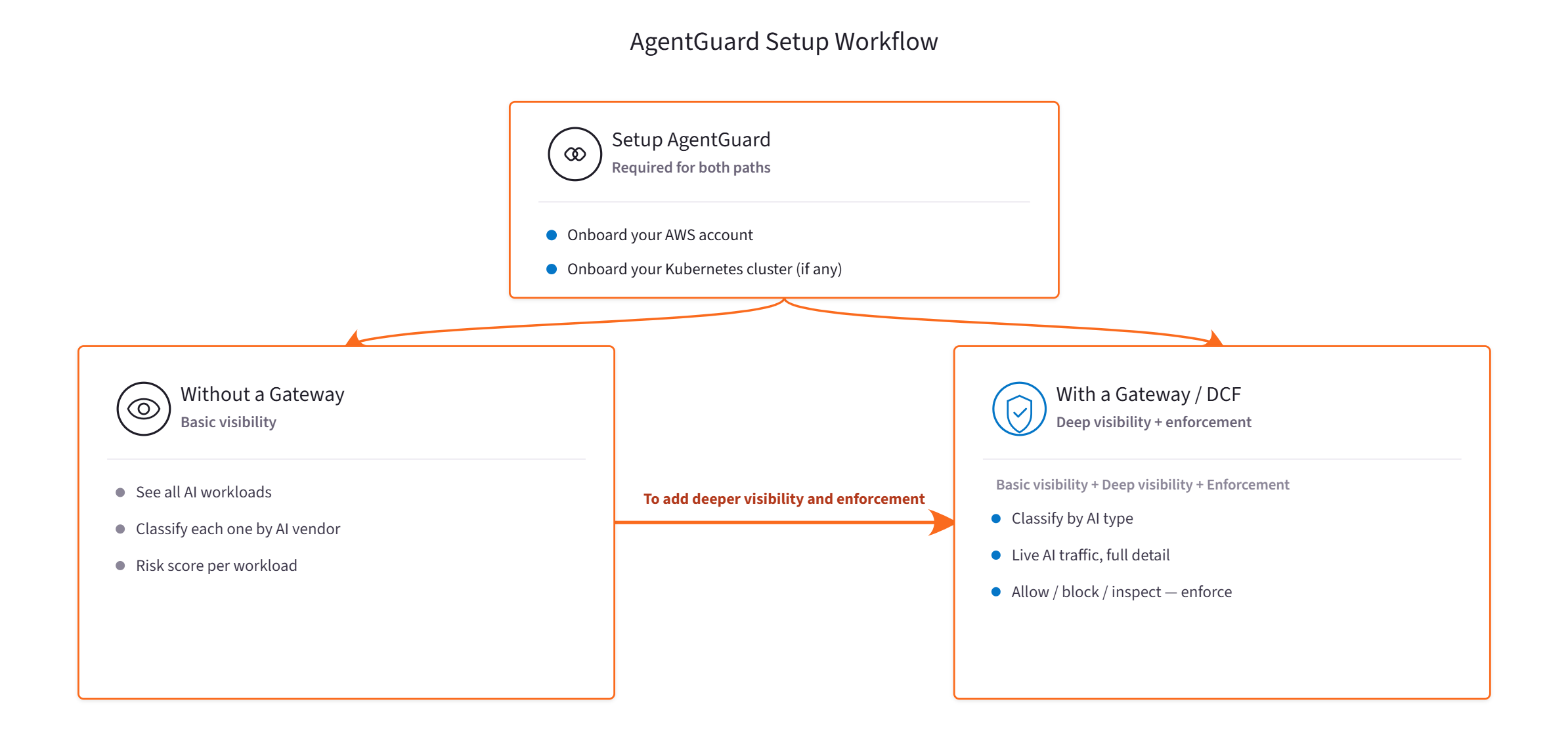

AgentGuard Setup Workflow
  1. Set up AgentGuard - Connect your Cloud account and Kubernetes cluster so that AgentGuard can discover your AI workloads.
  2. Configure the level of visibility - Configure the level of visibility as per your requirements:
    • Without a gateway provides an inventory of every AI workload, a classification by vendor, and a risk level for each workload, with no changes to your network.
    • With a gateway adds full-detail AI traffic analysis and rule enforcement.
You get the deeper visibility and enforcement with a gateway when you require detailed traffic analysis and enforcement.
You can add a gateway at any time for deeper visibility and enforcement.

​
Steps to Set Up AgentGuard

The following steps set up AgentGuard by onboarding your Cloud accounts and Kubernetes clusters so that AgentGuard can discover your AI workloads.

​
Prerequisites

  • Access to Aviatrix Cloud Console at console.cloud.aviatrix.com.
  • An AWS account that you can onboard with an IAM role.
  • The read-only IAM permissions listed in the AWS permissions section.
    AgentGuard phase one supports AWS only. Support for additional clouds is planned for the future.

​
Step 1: Onboard Your AWS Account

Onboarding connects your AWS account so that AgentGuard can discover your AI workloads. AgentGuard requires read-only access only.

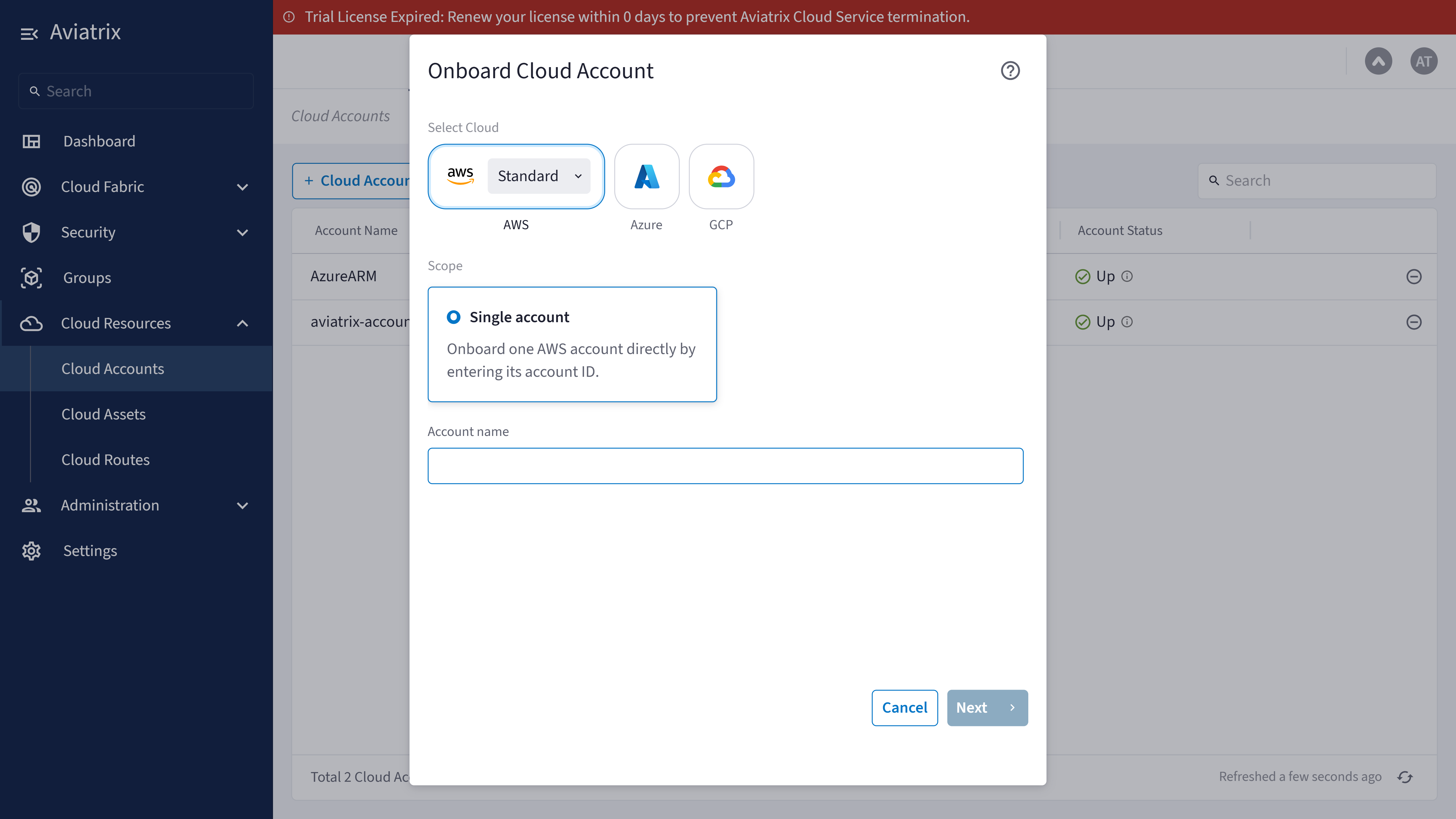

Onboard Your AWS Account
1

Open the onboarding workflow

From the Aviatrix Cloud Console, navigate to Cloud Resources > Cloud Accounts > + Cloud Account.
2

Launch the CloudFormation template

Enter an Account Name, select AWS, then select AWS IAM Role and CloudFormation Script. Click Launch CloudFormation to create the required IAM role in your AWS account, then copy the resulting AviatrixRoleAppARN value and paste it into the AWS Role ARN field in Aviatrix. For the complete onboarding procedure, see Onboard an AWS Cloud Account.
AgentGuard phase one supports AWS only. Support for additional clouds is planned for the future.
3

Validate and onboard

Click Next. When the Account Onboarded message appears, click Onboard.
4

Confirm the account is connected

Confirm that the account shows Status = UP with a recent last sync. Your VPCs and Kubernetes clusters appear automatically under Cloud Assets.
If a required permission is missing, the validation error identifies the specific permission. Add it to the role and validate again.

​
Step 2: Onboard Your Kubernetes Cluster

Complete this step if you run AI workloads on Kubernetes. Onboarding the Kubernetes cluster enables AgentGuard to identify your pods and resolve workloads to names rather than IP addresses.

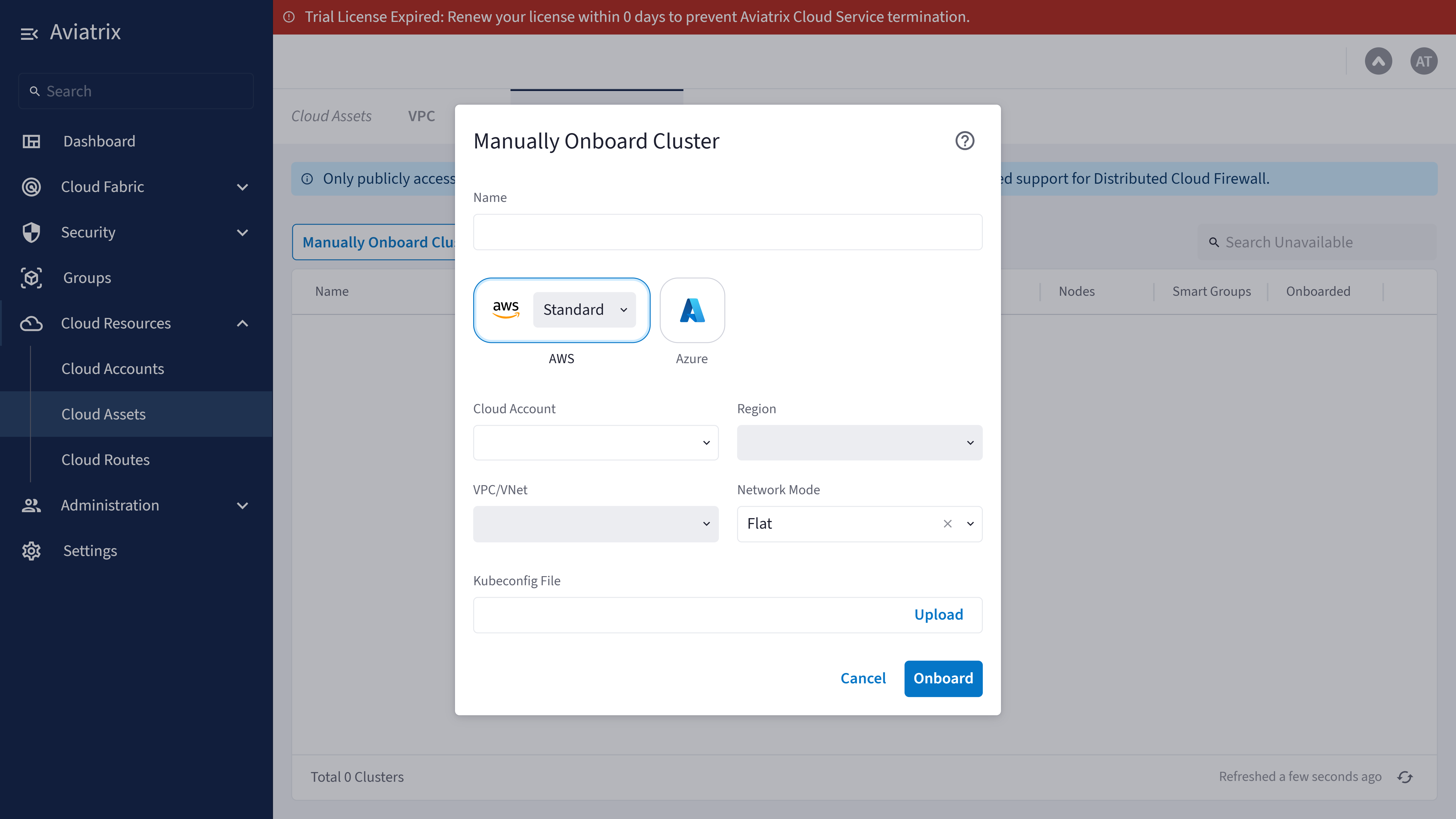

Manually Onboard Cluster dialog showing cloud provider selection, cluster name, cloud account, region, VPC/VNet, network mode, and a kubeconfig file upload field
1

Locate the cluster

From the Aviatrix Cloud Console, navigate to Cloud Assets > Kubernetes Clusters and wait for your cluster to appear with Status = Not Onboarded.
2

Install the Aviatrix Helm chart

Select your cluster, then click Onboard Cluster. Install the Aviatrix Helm chart in the cluster, using the install commands shown in the dialog. This step is required for every onboarding method.
3

Choose an onboarding method and onboard

Choose Terraform, Command Line, or Upload Kubeconfig File, and follow the instructions shown for that method. Select the checkbox confirming that you installed the Helm chart (and, for Terraform or Command Line, that you ran the generated script), then click Onboard.
4

Verify that pods are discovered

Confirm that Onboarded = Yes and that the pod count is greater than zero. Open the Pods view and confirm that your AI client pods appear by name — for example, an Ollama, Claude, Bedrock, or GitHub client pod.

​
AWS Permissions (Read-Only)

AgentGuard requires the following read-only permissions on the onboarded role.

​
Troubleshooting

Confirm that the AWS Role ARN pasted into Aviatrix matches the AviatrixRoleAppARN value from the CloudFormation stack Outputs tab, and that the CloudFormation stack reached CREATE_COMPLETE. The validation error identifies any missing permission.
Confirm that the account is UP, then confirm that the role has the eks:ListClusters and eks:DescribeCluster permissions. Clusters appear under Cloud Assets > Kubernetes Clusters after the account syncs.

​
Next Steps

Setup is complete when the account shows Status = UP and your workloads appear under Cloud Assets. Refer to the following for the level of visibility that matches your requirements:
