This section provides the purpose, elements, and actions performed on the Cloud Routes pages.

​
Purpose

The Gateway Routes page shows gateway routes information including gateway status, tunnel status, and route counts.

​
Elements

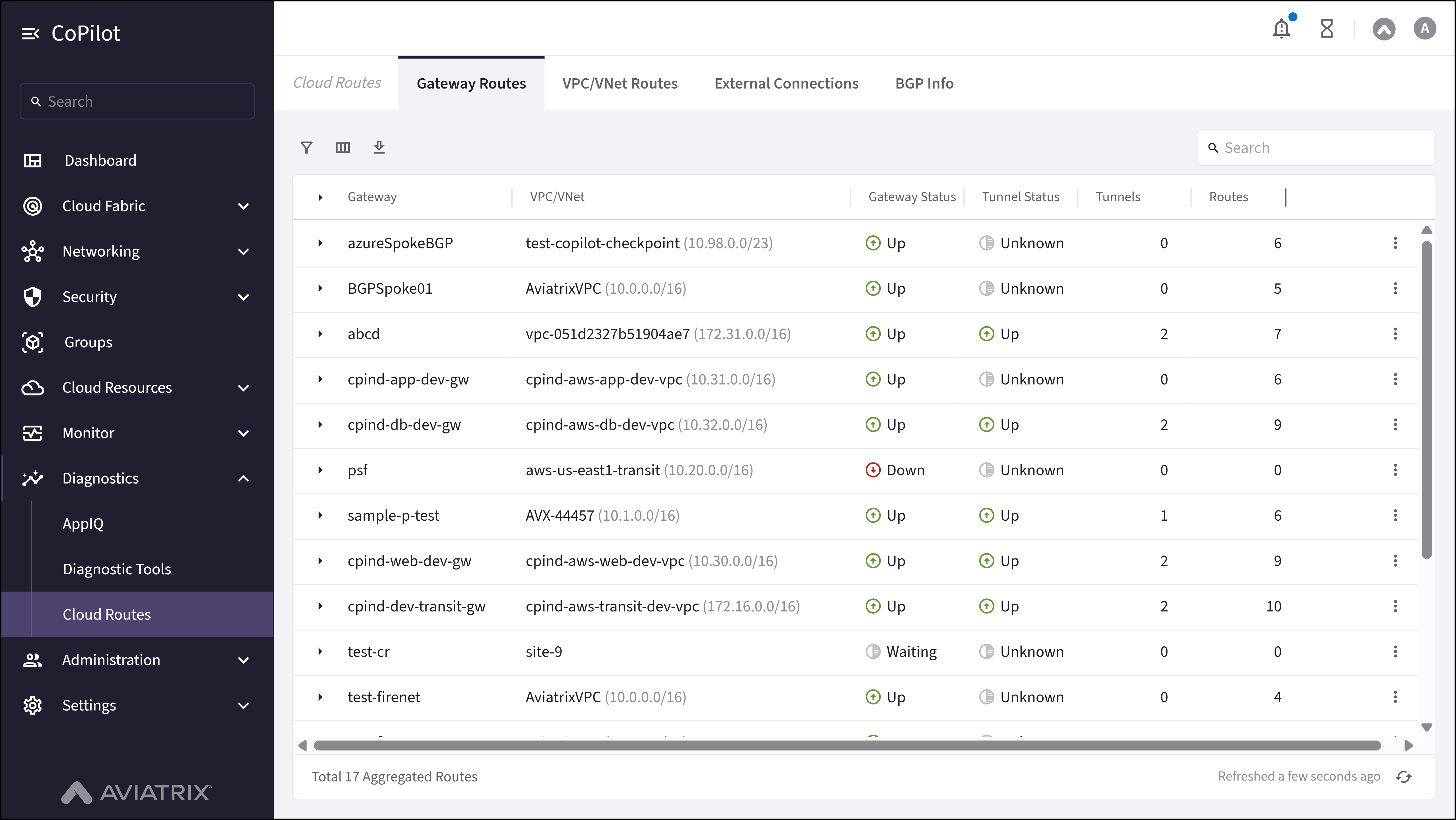

Cloud Routes: Gateway Routes
  • Search box: Search box for filtering table content
  • Filter button: Button to show/hide filters
  • Columns button: Button to select visible columns
  • Export button: Button to export table data
  • Refresh button: Button to refresh table data
  • Total routes counter: Displays total aggregated routes count

​
Actions

To view gateway routes:
  1. Go to Diagnostics > Cloud Routes > Gateway Routes.
  2. The page appears with the table (Gateway, VPC/VNet, Cloud, Region, Gateway Status, Tunnel Status, Tunnels, Routes).
  3. Optionally, use Search, Filter, Columns, Export, or Refresh. Review Total routes counter.
The Gateway Routes table shows gateway routes information for the selected filters.

​
Parameter Details

Sl. No.CoPilot Parameter NameDescription
1GatewayShows gateway name
2VPC/VNetShows VPC or VNet name and CIDR
3VPC/VNet IDShows VPC or VNet identifier
4CloudShows cloud provider
5RegionShows cloud region
6Gateway StatusShows gateway operational status
7Tunnel StatusShows tunnel connection status
8TunnelsShows number of tunnels
9RoutesShows number of routes
