This section provides the purpose, elements, and actions performed on the Cloud Account pages.

​
Purpose

The Cloud Accounts page displays and manages all cloud accounts configured in Aviatrix CoPilot, including AWS, Azure, GCP, and OCI accounts, with their connection status, credentials, and associated resources.

​
Elements

Cloud Account: Accounts
  • + Cloud Account button: Button to add a new cloud account.
  • Cloud Accounts table: Shows a list of all configured cloud accounts from all cloud providers (AWS, Azure, GCP, OCI).
  • Edit button: Button to modify an existing cloud account configuration.
  • Delete button: Button to remove a cloud account.
  • Test Connection button: Button to test the connection to a cloud account.
  • Show filters button: Button to show or hide filter options.
  • Select columns button: Button to select which columns to display in the table.
  • Export button: Button to export cloud account data.
  • Search box: Search box for filtering cloud accounts in the table.
  • Refresh button: Button to refresh the cloud accounts table data.

​
Actions

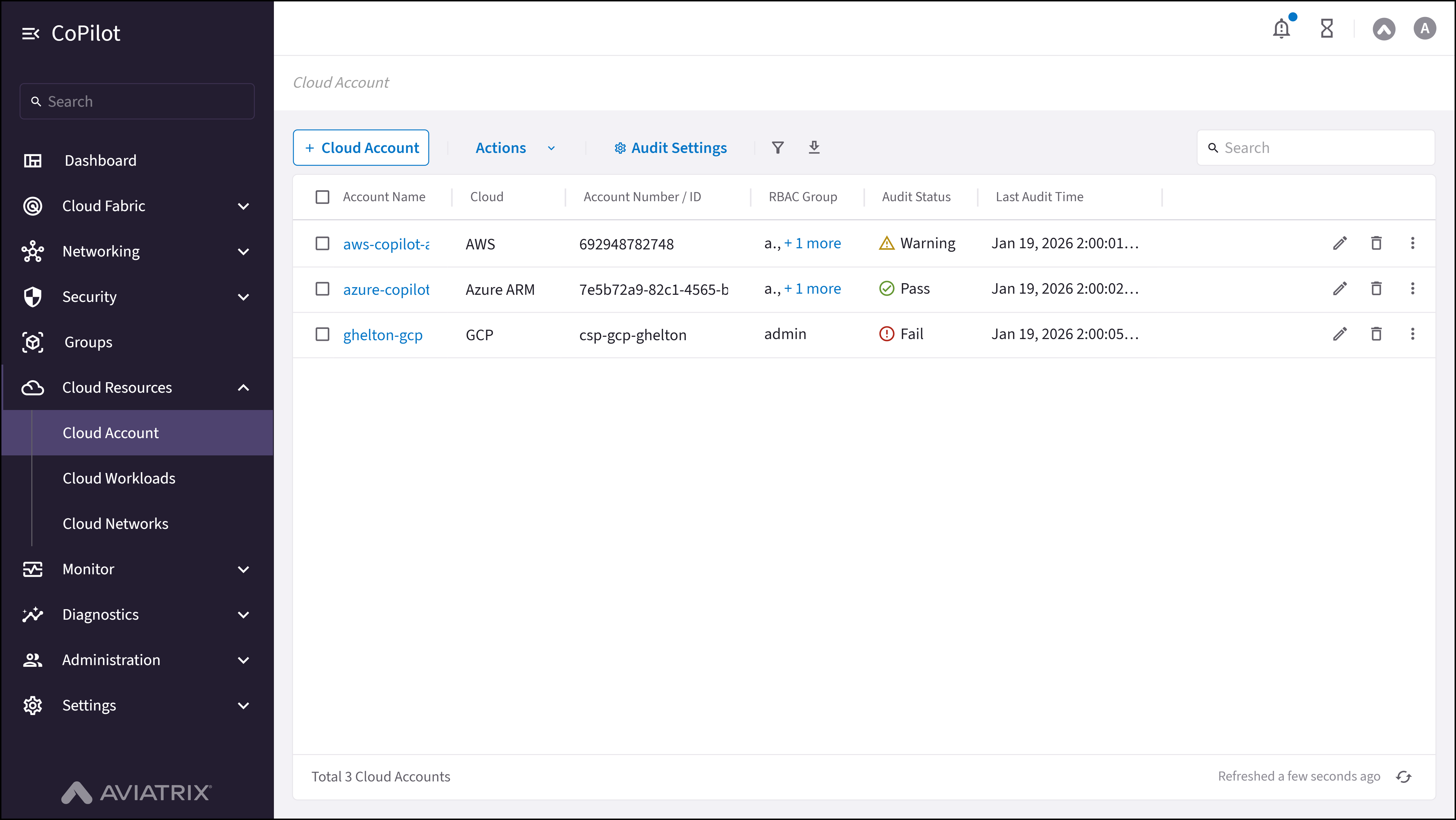

To view cloud accounts:
  1. Go to Cloud Resources > Cloud Account.
  2. The Cloud Accounts page appears with the Cloud Accounts table listing all configured accounts.
  3. Optionally, use Search, Show filters, or Select columns to customize the view.
  4. Optionally, click Export to export data or Refresh to refresh the table.
The table shows Account Name, Cloud, Account Number/ID, RBAC Group, Audit Status, and Last Audit Time.

​
Parameter Details

Sl. No.CoPilot Parameter NameDescription
1Account NameDisplays the name of the cloud account added to the platform.
2CloudDisplays the cloud provider associated with the account.
3Account Number / IDDisplays the unique account number or identifier assigned by the cloud provider.
4RBAC GroupDisplays the role-based access control group assigned to the account.
5Audit StatusDisplays the current audit status of the cloud account.
6Last Audit TimeDisplays the date and time when the account was last audited.

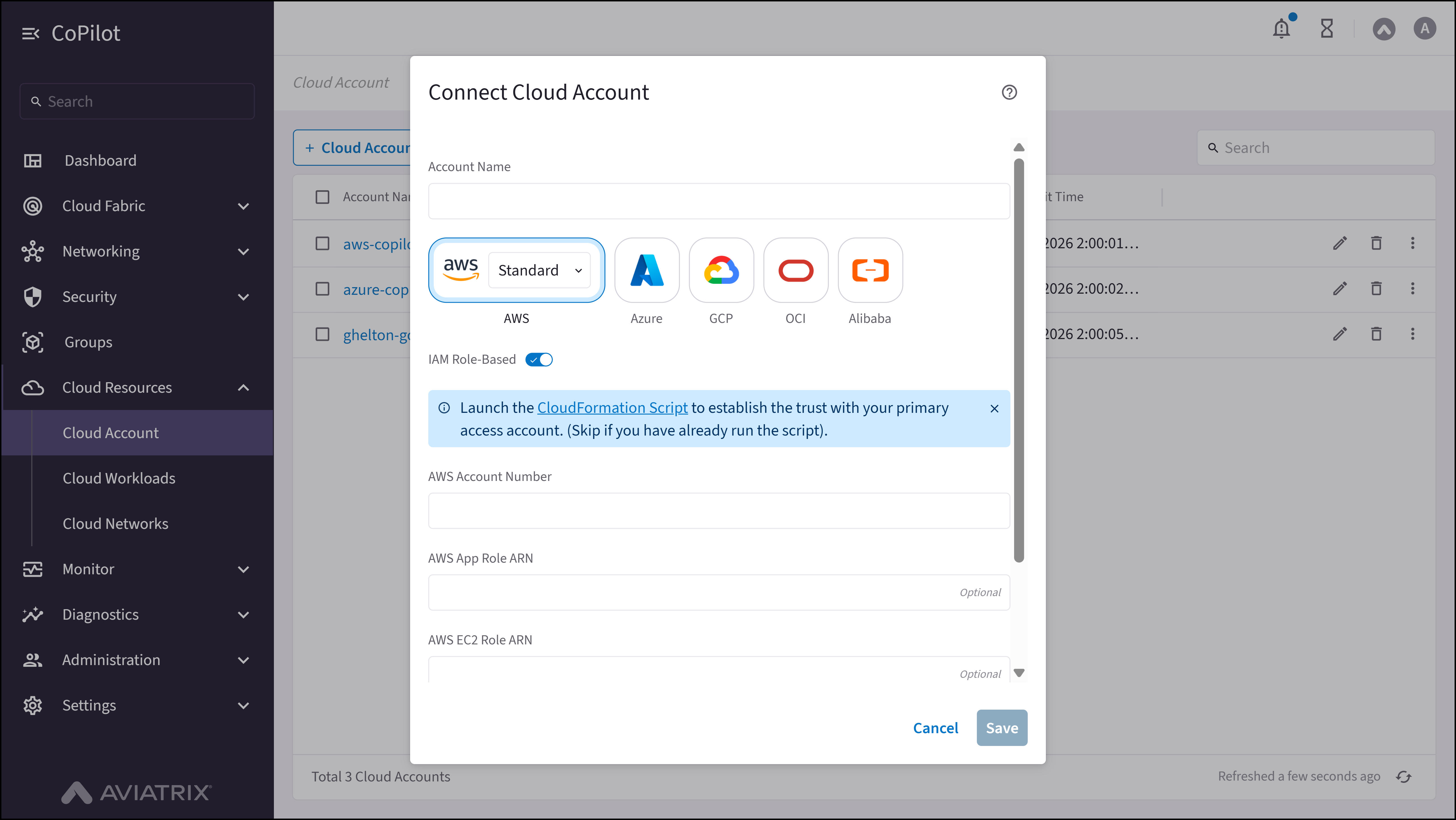

To add a new cloud account:
  1. Go to Cloud Resources > Cloud Account.
  2. Click + Cloud Account.
  3. In the Connect Cloud Account dialog, select Cloud Type, enter Account Name and Account ID, and choose Access Method.
  4. Enter credentials in the Credentials section (varies by cloud type and access method).
  5. Optionally, click Test Connection to verify credentials before saving.
  6. Click Save to add the account or Cancel to close without saving.
The new cloud account appears in the Cloud Accounts table.

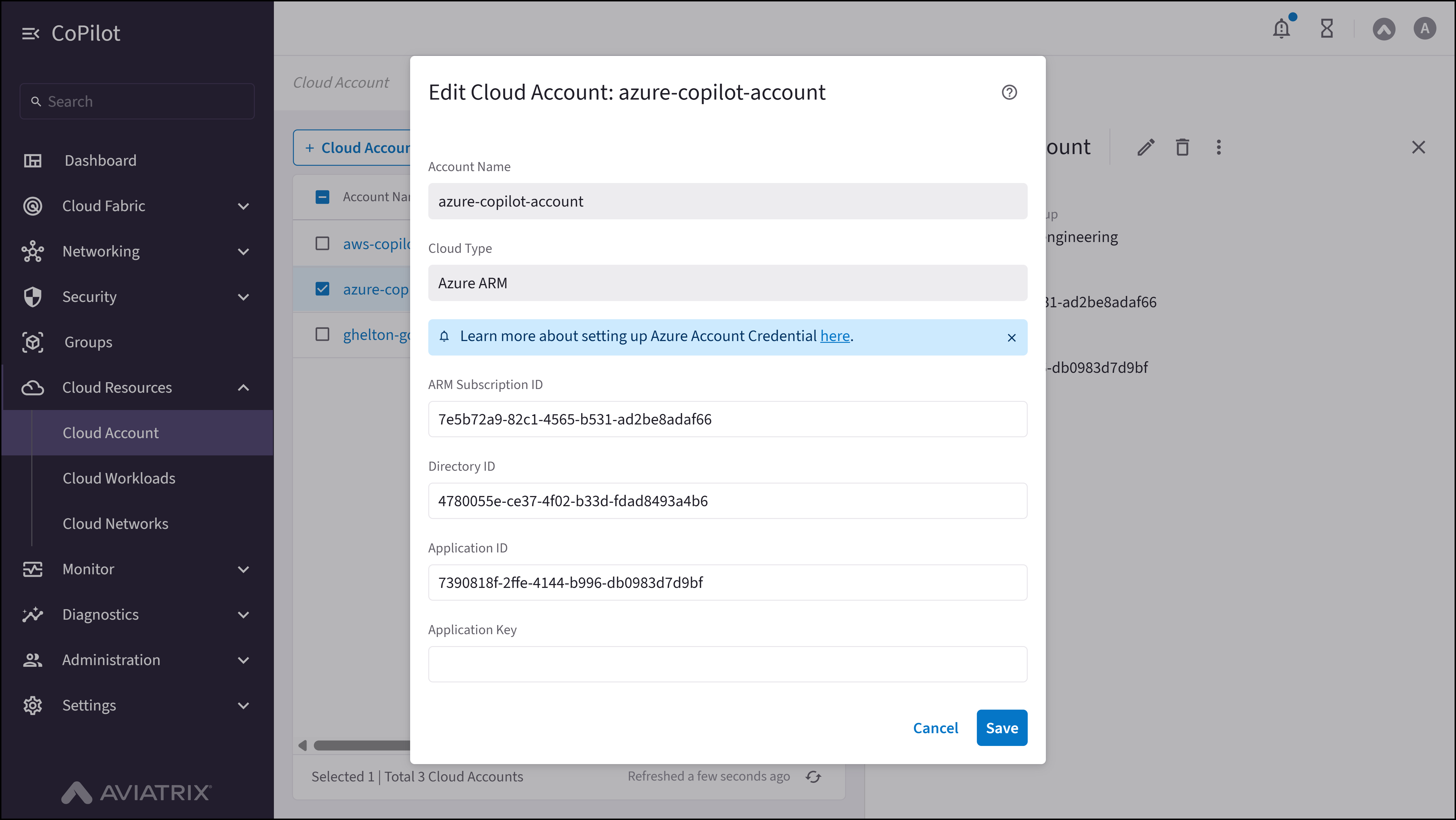

To edit an existing cloud account:
  1. Go to Cloud Resources > Cloud Account.
  2. Locate the account in the Cloud Accounts table and click the Edit button.
  3. In the Edit Cloud Account dialog, update Account Name, Access Method, or Credentials as needed.
  4. Optionally, click Test Connection to verify the updated connection.
  5. Click Save to apply changes or Cancel to discard.
Changes are applied to the cloud account.
To delete a cloud account:
  1. Go to Cloud Resources > Cloud Account.
  2. Locate the account in the Cloud Accounts table and click the Delete button.
  3. Confirm the deletion.
The cloud account is removed from CoPilot.
To test the connection to a cloud account:
  1. Go to Cloud Resources > Cloud Account.
  2. Locate the account in the Cloud Accounts table and click the Test Connection button.
The connection test result is displayed.
