Topology

Purpose

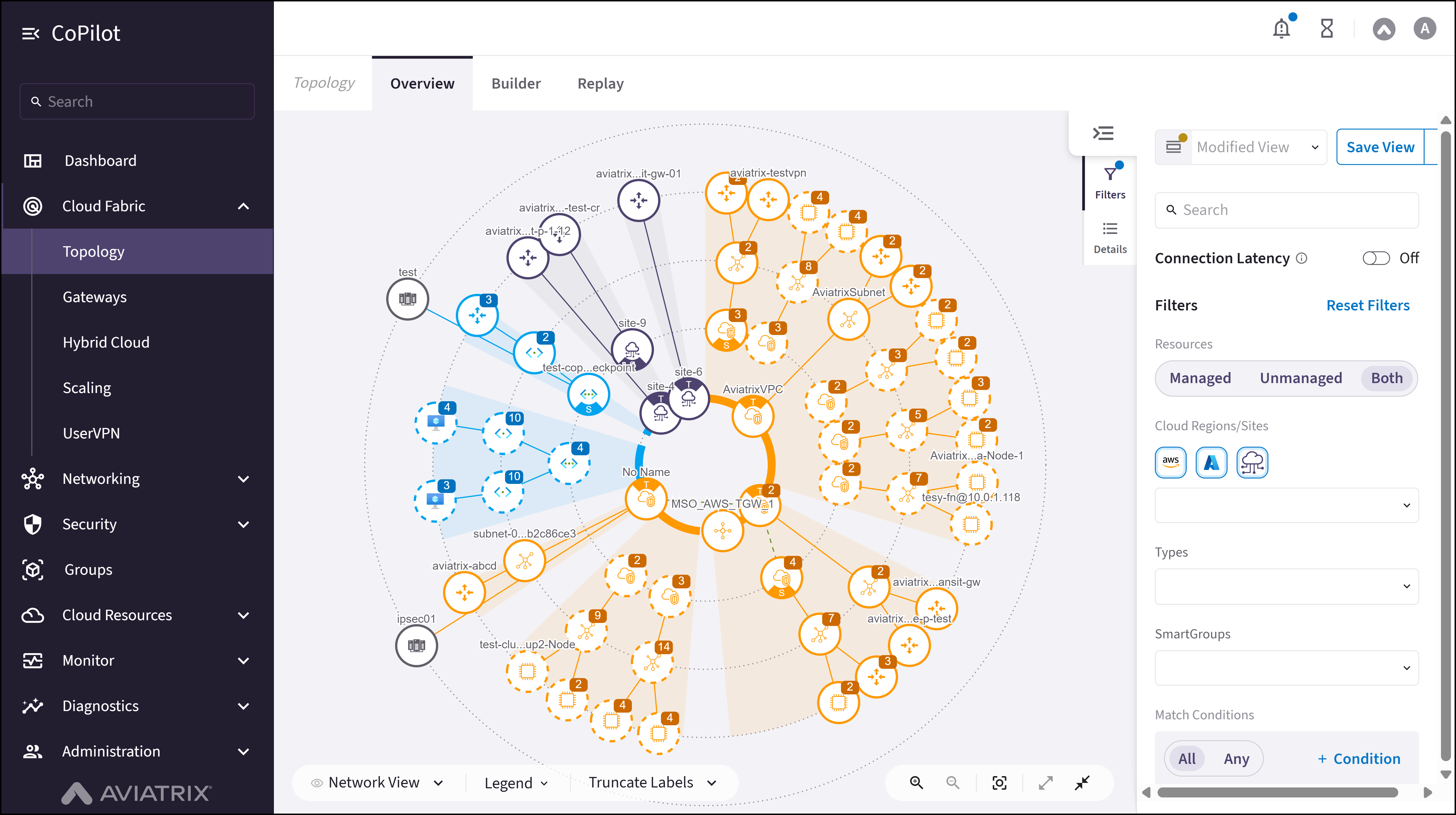

The Overview page shows the entire network topology of the following across all onboarded cloud environments:

Transit Gateway VPCs/VNets
Spoke gateway VPC/VNets
Transit gateway and Spoke gateway subnets
Virtual Machines(VMs)
External Connections (S2C)

Elements

Topology canvas: An interactive map that shows the logical and physical views of the Multi-Cloud Network Architecture (MCNA)
Filter panel: Filters logical and physical views on the topology canvas
Note: Change the view from Geo View to Network View at the bottom-left of the UI to view the filter panel
- Modified View dropdown: Changes the current view on the topology canvas to a previously saved view
- Save View button: Saves the current topology view with applied filters for future reference
- Search box: Searches for resources by name, ID, type, and so on
- Connection Latency: Shows the average latency for the attachments that are part of this connection
- Resources: Filters Aviatrix managed resources, unmanaged resources, and both the managed and unchanged resources on the topology canvas
- Cloud Regions/Sites: Filters resources based on the CSP, regions, and edge sites
- Types dropdown: Filters resources based on the VPC/VNets, subnets, gateways, VMs, and connections
- SmartGroups dropdown: Filters resources based on available SmartGroups
- Match Conditions: Filters resources based on user-defined conditions

Node details panel: Displays the metadata of the selected node on the Topology canvas

Actions

Viewing Topology Overview

To view the topology overview, in Aviatrix CoPilot, click Cloud Fabric > Topology > Overview. The Overview page appears.The following parameters are available on the Details panel on the Overview page:

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Instance ID	Unique identifier for the virtual machine instance.
2	Name	Name of the virtual machine instance.
3	Public IP	Public IP address assigned to the virtual machine instance.
4	Private IP	Private IP address assigned to the virtual machine instance.
5	Public DNS Name	Public DNS hostname for the virtual machine instance.
6	Private DNS Name	Private DNS hostname for the virtual machine instance.
7	Launch Time	Timestamp indicating when the virtual machine instance was launched.
8	Image ID	Identifier of the machine image (AMI/VM image) used to launch the instance.
9	Instance Size	Compute instance size or type (e.g., t3.medium, Standard_D2s_v3).
10	Cloud	Cloud provider where the virtual machine is deployed (AWS, Azure, GCP, OCI).
11	Account	Cloud account name associated with the virtual machine.
12	Region	Cloud region where the virtual machine is deployed.
13	VPC/VNet	VPC or VNet ID where the virtual machine resides.
14	Subnet ID	Subnet identifier where the virtual machine instance is located.
15	Tags	Key-value pairs of resource tags associated with the virtual machine.

Purpose

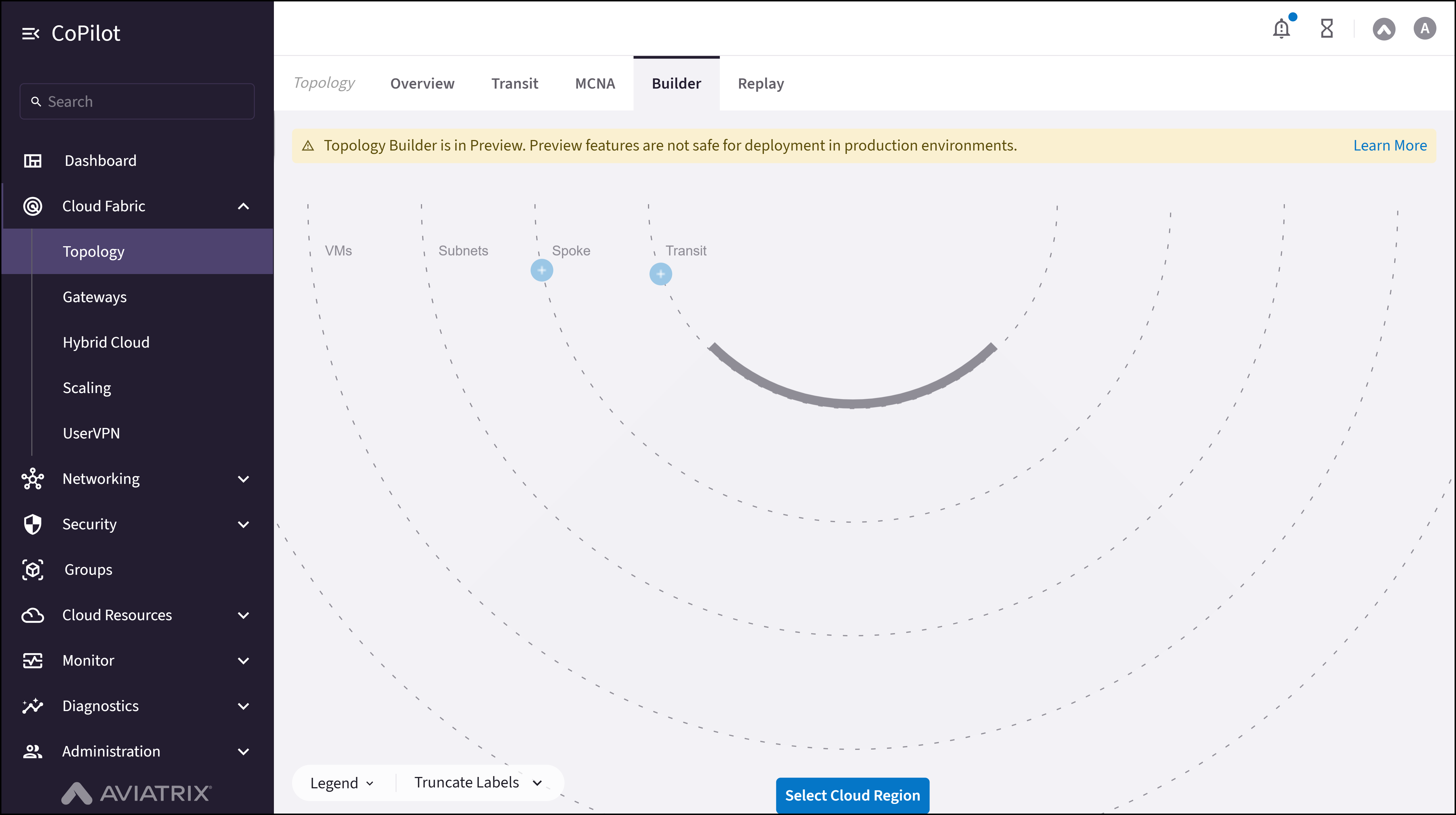

The Builder page builds and deploys Aviatrix gateways based on your design and build constructs plotted visually on a Topology map.

Elements

Builder canvas: Shows the Select Cloud Region button and build progress visualisation canvas
Select Cloud Region button: Opens a pane to select cloud provider, account, and region to build gateways
Add Transit button: Opens a pane to input the Transit gateway details to build
Add Spoke button: Opens a pane to input the Spoke gateway details to build
Deploy button: Starts the deploy process for the built topology
Generate Terraform Script button: Generates a Terraform script to deploy the built topology
Reset button: Clears the current build on the Builder canvas

Actions

Building Topology

To build a topology:

In Aviatrix CoPilot, click Cloud Fabric > Topology > Builder. The Topology: Builder page appears.
Click the Select Cloud Region button to open the Select Cloud Region pane.
Select the cloud provider, account, and region to build the topology.
Click Save.
Click the + Transit or + Spoke button to add a Transit or Spoke gateway to the topology.
Provide the information in the following Parameter Details section.
Click Save.
Click the Deploy button to start the deploy process for the topology.
Click the Generate Terraform Script button to generate a Terraform script to deploy the topology.

A notification appears confirming the deployment of the topology.

Parameter Details

Sl. No.	CoPilot parameter name	Description
	Select Cloud Region
1	Cloud provider	Selects the cloud provider for the Gateway deployment.
2	Account	Specifies the cloud account linked to the selected provider.
3	Region	Selects the region where the Gateway is deployed.
	+ Transit/+Spoke
4	Transit Gateway VPC	Selects or creates a VPC or VNet for the Gateway.
5	Gateway name	Specifies the name of the Gateway.
6	Gateway size	Selects the instance size for the Gateway.
7	High performance encryption	Enables or disables high performance encryption for the Gateway.
8	Instance CIDR	Defines the CIDR block for the Gateway instance.
9	Transit peers	Selects Transit Gateways for peering connections.

Purpose

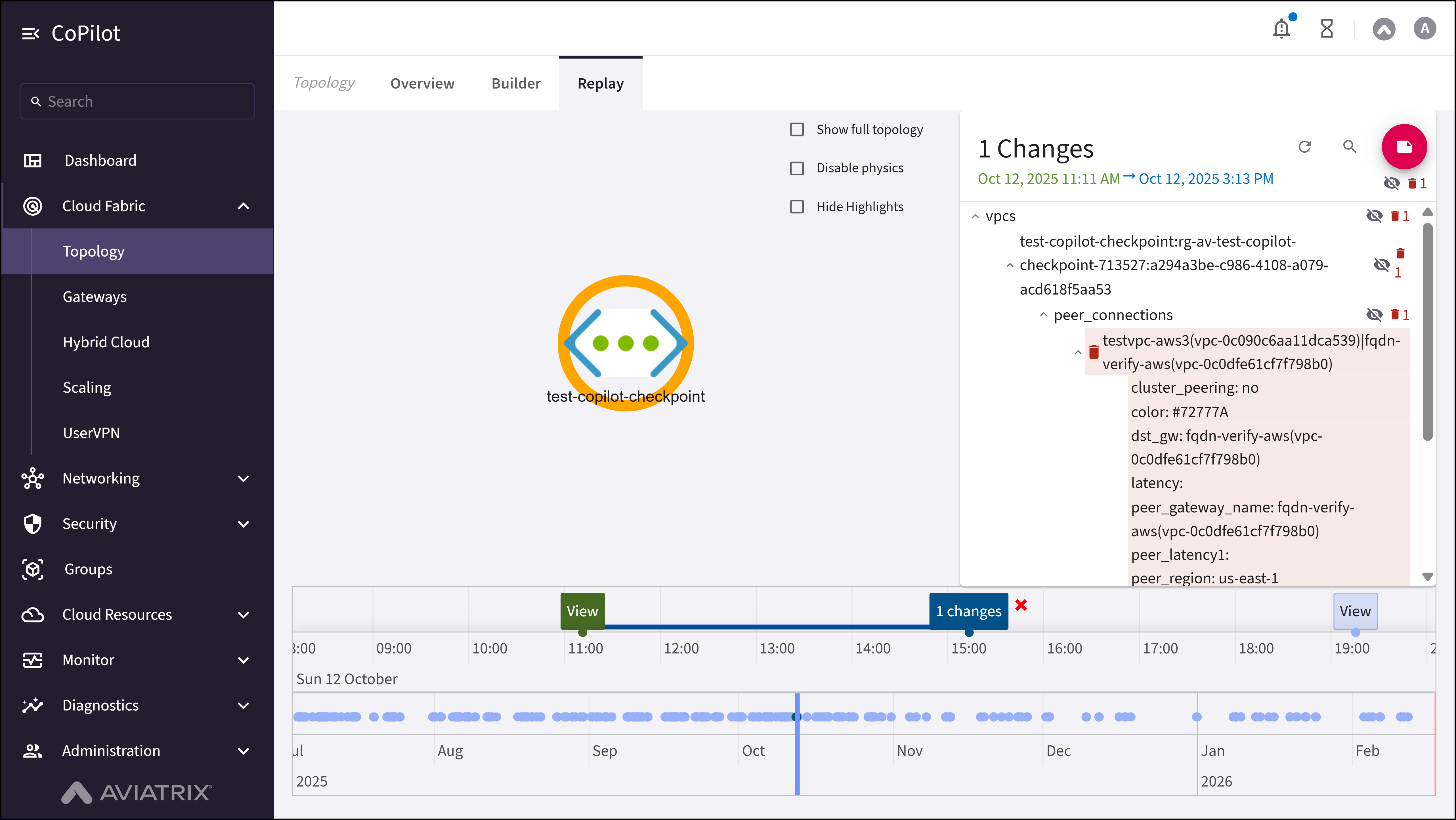

The Replay page shows recent changes to network constructs (route, credential, and other metrics) over time. Use it to see what changed and when.For example, shortly after a problem occurs, and to inspect additions, modifications, and deletions in change sets recorded over the last month.

Elements

Topology Replay canvas: Shows the changes to the network topology over a selected time period
Changes Inspect pane: Shows the name, start time, end time, network constructs associated, and type of each change within the selected time range
Timeline slider: Navigate through historical states and select a time range to view the network changes

Actions

Viewing Replay

To view the recent changes to the network constructs:

Go to Cloud Fabric > Topology > Replay.
The Replay page appears with a topology map, changes details pane, and time series panel; the most recent change set loads by default.
To find changes: use Expand icons in the timeline slider to zoom into a time period, or drag the time-window control lines (blue lines) in the overview timeline to focus on a day or range.
Click a View icon or blue box in the change inspect pane to load that change set onto the map and into the changes inspect pane.
Optionally, use Search in the changes details pane to find a change set by title or note.
In the changes details pane, expand the tree by construct type to see what was added (green), modified (orange), or deleted (red).
Click a construct on the map to bring its change details into focus.
Use the eyeball icon to toggle between only changed data and all data for context.
Optionally, click the red Notes icon to edit the change set title or add a note, then save; you can search by title or note later.
Click AUDIT to open the Audit tab for the change set time period.
To delete a change set, click the red X on its blue box in the timeline slider.
