Hybrid Cloud

This section provides the purpose, elements, and actions performed on the Hybrid Cloud pages.

Overview
Edge Gateways
Devices

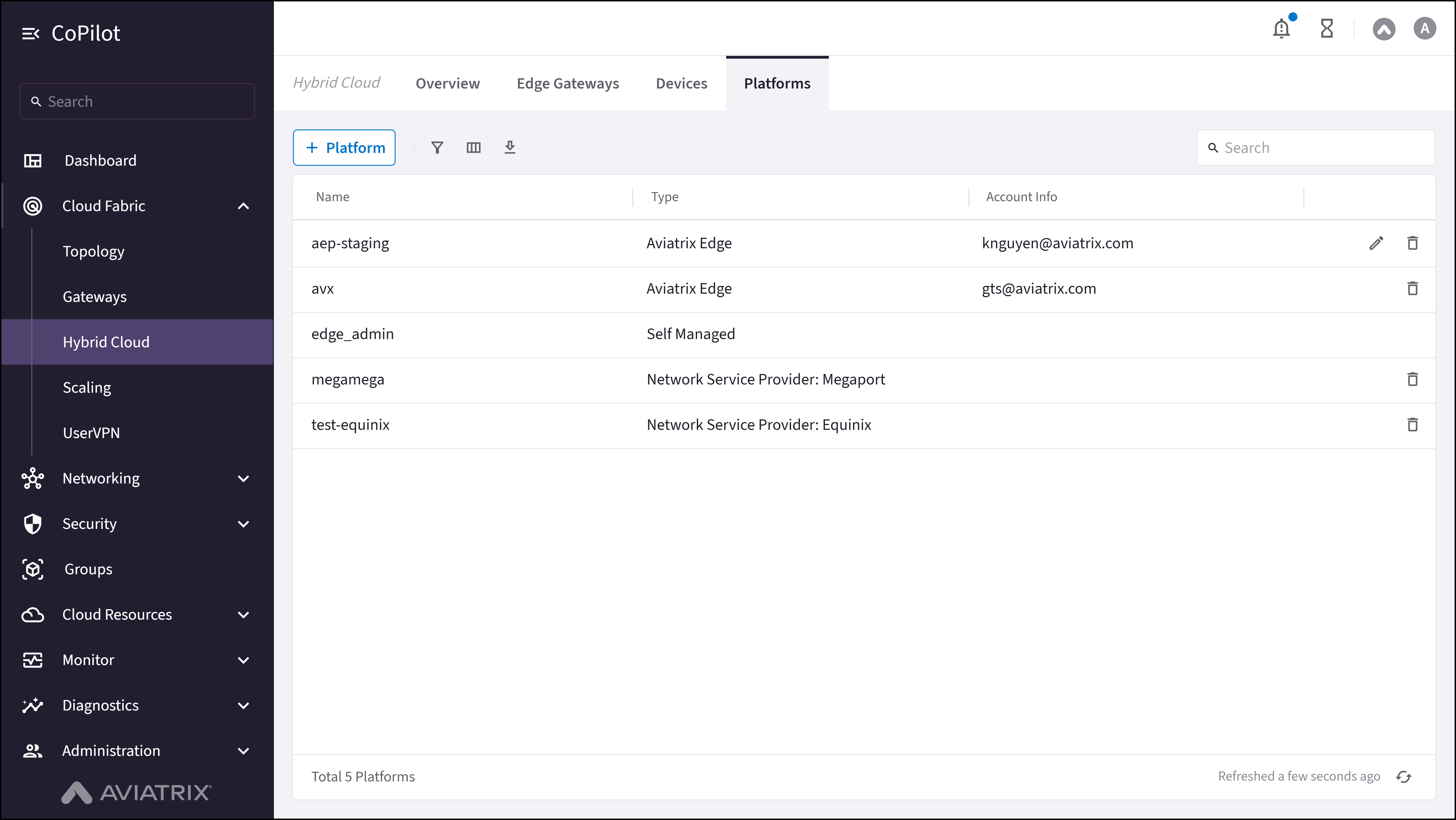

Platforms

Purpose

The Overview page provides a high-level view of hybrid connectivity components, including Edge Gateways, on-prem devices, and integrated platforms for extending Aviatrix networking into private data centers.

Elements

Edge Gateways count: Displays count and health status of deployed Edge Gateways (e.g., “33 Down” indicates 33 Edge Gateways are currently down).

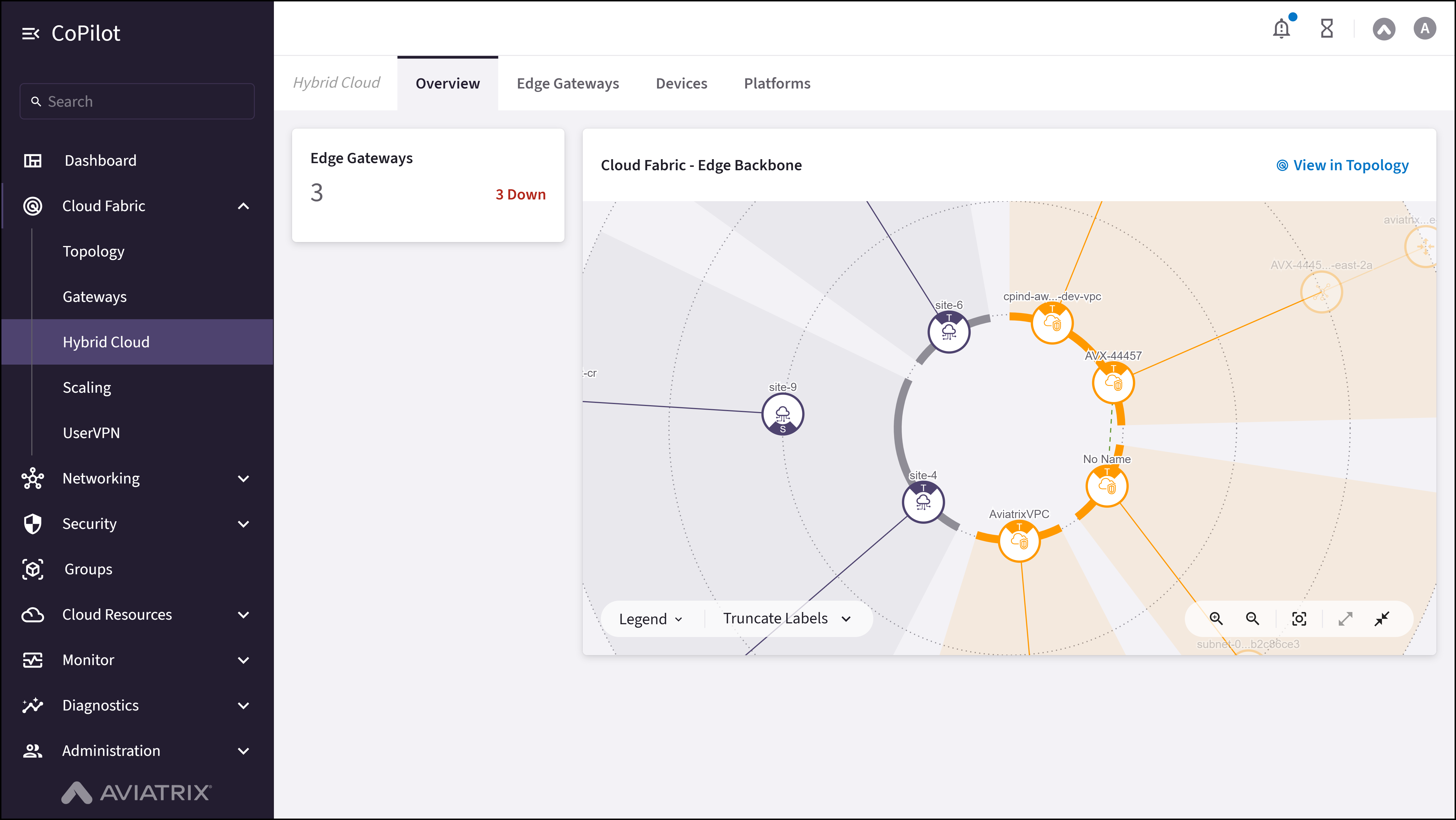

Edge Gateways canvas: An interactive topology map that shows the logical and physical views of Edge Gateways connecting cloud and on-prem environments.
View in Topology button: Opens the Topology canvas focused on hybrid connectivity components.
Legend button: Toggles the display of legend information for the topology map.
Truncate Labels toggle: Controls whether labels on the topology map are truncated or shown in full.

Actions

View Overview

To view the Hybrid Cloud Overview page and hybrid connectivity components:

Go to Cloud Fabric > Hybrid Cloud > Overview.
The Overview page appears with Edge Gateways count, health status, and an interactive topology map showing Edge Gateways, on-prem devices, and platform integrations.
Optionally, switch between logical and physical views on the canvas.
Optionally, click Legend to show or hide legend information.
Optionally, use Truncate Labels to truncate or show full labels on the map.

The Overview page displays the hybrid connectivity components and their status.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Edge Gateways Count	Shows the total number of deployed Edge Gateways and how many are down.
2	Connected Devices	Shows the number of onboarded devices for hybrid connectivity.
3	Platform Integrations	Lists integrated platforms (for example, VMware, Nutanix).
4	Health Status	Indicates the operational health of hybrid components.

View in Topology

To open the Topology canvas focused on hybrid connectivity:

Go to Cloud Fabric > Hybrid Cloud > Overview.
The Overview page appears with the Edge Gateways canvas.
Click View in Topology.

The Topology page opens with the map focused on hybrid connectivity components (Edge Gateways, devices, and platform integrations).

Spoke Gateways

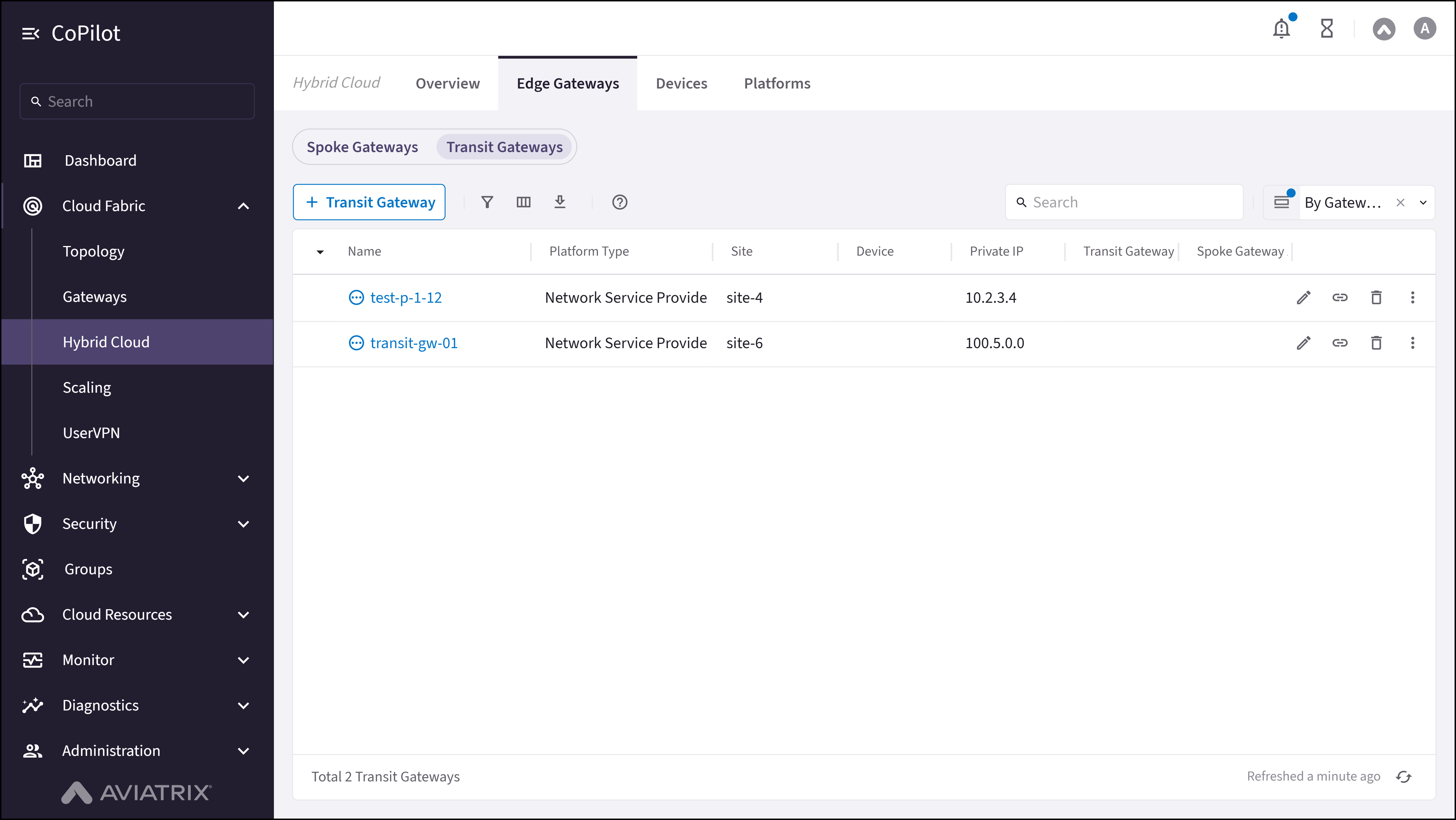

Transit Gateways

Purpose

The Spoke Gateways page shows a table of Edge Spoke Gateways deployed for hybrid connectivity and their configurations and statuses. You can view gateway details, create new Edge Spoke Gateways on AEP, Equinix, Self managed, or Megaport platforms, edit gateway settings, manage attachments, and delete gateways.

Elements

+ Spoke Gateway button: Starts workflow to deploy a new Edge Spoke Gateway.

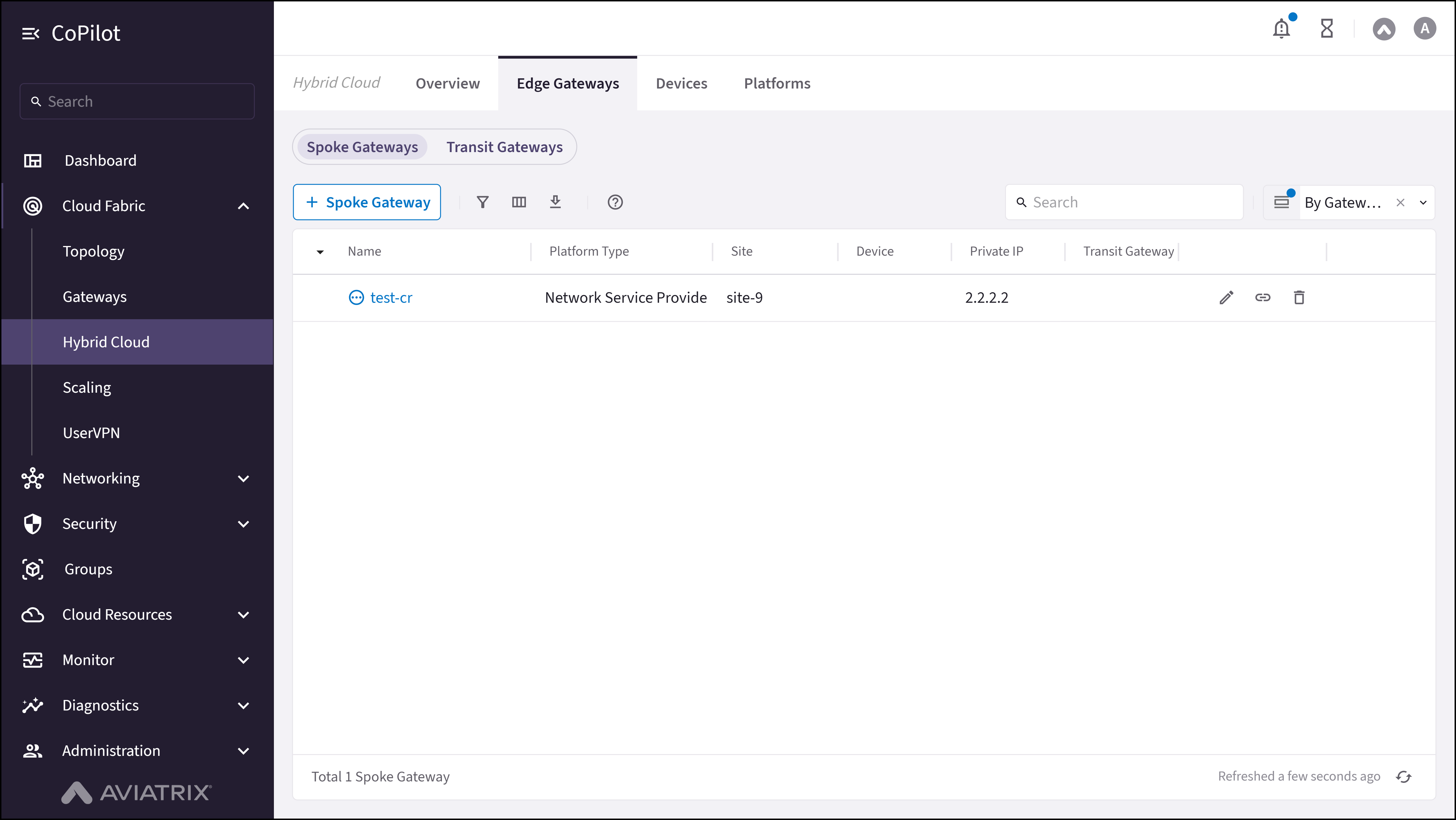

Edge Spoke Gateway table: Displays Edge Spoke Gateway name, Platform type, Site, Device, Private IP, Transit Gateway, and Status.
Edit button: Opens configuration panel to modify Edge Spoke Gateway settings.
Manage Gateway Attachments button: Opens a panel to manage the Edge Spoke Gateway attachments.
Delete button: Deletes the selected Edge Spoke Gateway.
Show filters button: Opens filter options for the table.
Select columns button: Configures visible table columns.
Export button: Exports table data.
Search box: Search box for filtering table content.
Refresh button: Refreshes table data.

Create Spoke Gateway wizard

Step 1: Gateway Configuration: Name, Platform, Site, High availability, Device(s), Gateway Resource Size, ZTP file type.
Step 2: Interface Configuration: WAN, LAN, and MGMT interfaces. See Create Edge Spoke Gateway accordions for platform-specific steps.

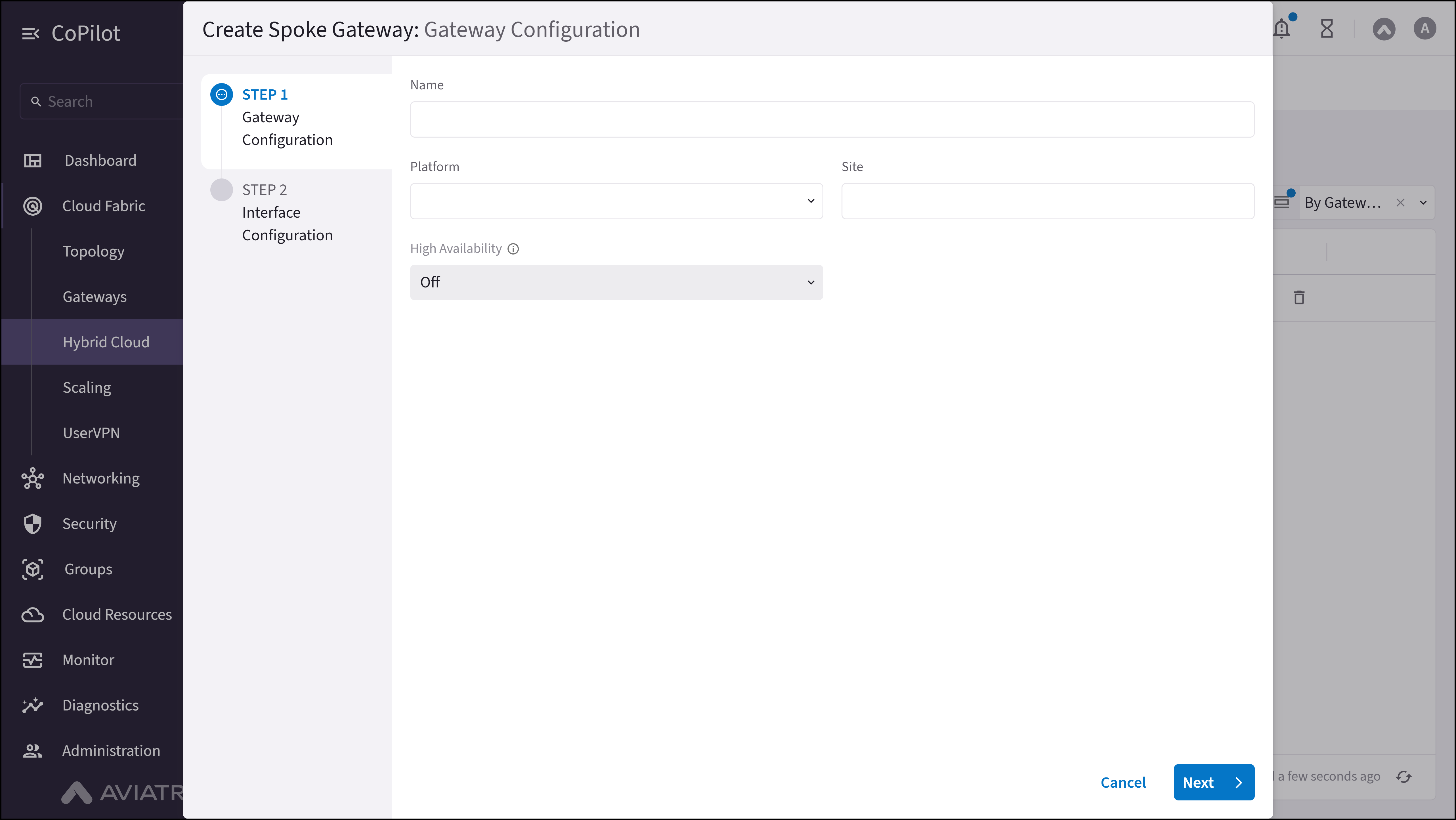

Hybrid Cloud: Create Edge Spoke Gateway - Step 1

Hybrid Cloud: Create Edge Spoke Gateway - Step 2

Actions

View Edge Spoke Gateways

To view the list of Edge Spoke Gateways and their details:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Spoke Gateways.
The Spoke Gateways page appears with a table of Edge Spoke Gateways.
Optionally, use the Search field, Filter icon, Select columns, or Export to find or export data.
Click an Edge Spoke Gateway name to view its details.

The table displays the list of Edge Spoke Gateways with their configurations and status.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Name	Shows the name of the Edge Spoke Gateway.
2	Platform Type	Shows the platform type (AEP, Equinix, Self managed, Megaport) where the gateway is deployed.
3	Site	Shows the site where the Spoke Gateway is deployed.
4	Device	Shows the device associated with the Spoke Gateway.
5	Private IP	Shows the private IP address of the Spoke Gateway.
6	Transit Gateway Attachments	Shows the number or list of attached Transit Gateways.
7	Status	Shows the current status of the Spoke Gateway.

Create Edge Spoke Gateway (AEP)

To create an Edge Spoke Gateway on the Aviatrix Edge Platform:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Spoke Gateways.
A table appears with the list of Edge Spoke Gateways.
Click + Spoke Gateway.
The Create Edge Spoke Gateway wizard appears.
In Step 1: Gateway Configuration, provide Name, Platform, Site, High availability, Primary Device, Secondary Device (if HA), and Gateway Resource Size. Refer to the AEP Parameter Details table.
Click Next.
In Step 2: Interface Configuration, click WAN and configure the WAN interface (Interface, IP assignment, Interface labels, Interface CIDR, Default gateway IP, Public IP).
Click LAN and configure the LAN interface. Optionally, click + VLAN Interface to add VLAN sub-interfaces.
Click MGMT and configure the Management interface.
Click Create or Save.

A notification appears when the Edge Spoke Gateway is created. Verify the gateway creation from the Spoke Gateways table.

Parameter Details

Step 1: Gateway Configuration

Sl. no.	CoPilot Parameter Name	Description
1	Name	Enter a unique name for the edge gateway. The name starts with a letter and uses letters, numbers, and dashes only.
2	Platform	Select the platform account where the edge gateway runs.
3	Site	Enter a name or select from the list that identifies the on-premise location.
4	High availability	Turn Off for primary only. Turn On (Active-Standby) for one active and one standby peering. Turn On (Active-Active) for load sharing.
5	Preemptive	(Active-Standby only) Turn On to switch back to primary when it recovers. Turn Off to stay on standby until manual switchover.
6	Primary Device	Select the edge device for the primary Edge Gateway.
7	Secondary Device	Select the edge device for the secondary (HA) Edge Gateway.
8	Gateway Resource Size	Small (2 vCPU, 4GB), Medium (4 vCPU, 8GB), Large (8 vCPU, 16GB), or X-Large (16 vCPU, 32GB).

Step 2: Interface Configuration

Sl. no.	CoPilot Parameter Name	Description
WAN	Interface, IP assignment, Interface labels, Interface CIDR, Default gateway IP, Public IP
LAN	Interface, IP assignment, VRRP, Support for IPv6, Interface CIDR, IPv6 CIDR, VRRP gateway IP, Default gateway IP, Interface labels
+ VLAN Interface	VLAN ID, VLAN interface CIDR, Default gateway IP, Sub-interface tag
MGMT	Interface, IP assignment, Private network, Egress CIDR (primary), Egress CIDR (secondary)

Step 3: Interface Mapping (View only)

Sl. no.	CoPilot Parameter Name	Description
1	Interface	Shows the logical interface name of the Edge Gateway.
2	Primary Gateway Ethernet Interface	Shows the Linux interface name of the primary Edge Gateway.
3	Secondary Gateway Ethernet Interface	Shows the Linux interface name of the secondary Edge Gateway (HA only).

Create Edge Spoke Gateway (Equinix)

To create an Edge Spoke Gateway on Equinix Network Edge:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Spoke Gateways.
A table appears with the list of Edge Spoke Gateways.
Click + Spoke Gateway.
The Create Edge Spoke Gateway wizard appears.
In Step 1: Gateway Configuration, provide Name, Platform, Site, ZTP file type (cloud-init), and High availability (Off for primary). Refer to the Equinix Parameter Details table.
Click Next.
In Step 2: Interface Configuration, click + WAN Interface and configure the WAN interface. Optionally, turn BGP On and provide BGP parameters for CSP underlay.
Configure the LAN interface and MGMT interface.
Click Create or Save.

A notification appears when the Edge Spoke Gateway is created. You can enable High availability after the primary is created.

Parameter Details

Step 1: Gateway Configuration

Sl. no.	CoPilot Parameter Name	Description
1	Name	Enter a name for the Edge Gateway. The name starts with a letter and uses letters, numbers, and dashes only.
2	Platform	Select the platform account. Create or edit from Cloud Fabric > Hybrid Cloud > Platforms.
3	Site	Select or enter a name that identifies the edge location.
4	ZTP file type	Set to cloud-init.
5	High availability	Set to Off for the primary. Turn On after the primary is created.

Step 2: Interface Configuration

Sl. no.	CoPilot Parameter Name	Description
WAN	Interface, Interface labels, BGP, Interface primary CIDR, Default gateway IP, Public IP. BGP on: Link-local underlay CIDR, Remote ASN, Local LAN IP, Remote LAN IP, Password
LAN	Interface, Interface CIDR, IPv6 CIDR, Default gateway IP, Default gateway IPv6
MGMT	IP Assignment, Private network, Interface CIDR, Default Gateway IP, Primary DNS, Secondary DNS, Egress CIDR (primary)

Create Edge Spoke Gateway (Self managed)

To create an Edge Spoke Gateway on a Self managed platform (VMware ESXi or KVM):

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Spoke Gateways.
A table appears with the list of Edge Spoke Gateways.
Click + Spoke Gateway.
The Create Edge Spoke Gateway wizard appears.
In Step 1: Gateway Configuration, provide Name, Platform (edge_admin), Site, ZTP file type (iso for VMware ESXi; iso or cloud-init for KVM), and High availability. Refer to the Self managed Parameter Details table.
Click Next.
In Step 2: Interface Configuration, configure the WAN, LAN (with optional VLAN interfaces), and MGMT interfaces.
Click Create or Save.

A notification appears when the Edge Spoke Gateway is created.

Parameter Details

Step 1: Gateway Configuration

Sl. No.	CoPilot Parameter Name	Description
1	Name	Enter a name for the Edge Gateway.
2	Platform	Select edge_admin.
3	Site	Select or enter a name that identifies the edge location.
4	ZTP file type	For VMware ESXi select iso. For KVM select iso or cloud-init.
5	High availability	Off for primary. For secondary, select Active-Active or Active-Standby.

Step 2: Interface Configuration

Sl. No.	CoPilot Parameter Name	Description
WAN	IP assignment, Interface labels, Interface CIDR, Default gateway IP, Public IP
LAN	IP assignment, VRRP, Interface CIDR, VRRP gateway IP, Default gateway IP, Interface labels
VLAN	Interface CIDR, VRRP gateway IP, Default gateway IP, Interface labels. VLAN sub-interfaces: VLAN ID, VLAN interface CIDR, VRRP gateway IP, Default gateway IP, Sub-interface tag
MGMT	IP assignment, Private network, Egress CIDR

Create Edge Spoke Gateway (Megaport)

To create an Edge Spoke Gateway on Megaport:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Spoke Gateways.
A table appears with the list of Edge Spoke Gateways.
Click + Spoke Gateway.
The Create Edge Spoke Gateway wizard appears.
In Step 1: Gateway Configuration, provide Name, Platform, Site, ZTP file type (cloud-init), and High availability (Off for primary). Refer to the Parameter Details table below.
Click Next.
In Step 2: Interface Configuration, configure the WAN interface (with optional BGP for CSP underlay), LAN interface, and MGMT interface.
Click Create or Save.

A notification appears when the Edge Spoke Gateway is created. You can enable High availability after the primary is created.

Parameter Details

Step 1: Gateway Configuration

Sl. no.	CoPilot Parameter Name	Description
1	Name	Enter a name for the Edge Gateway. The name starts with a letter and uses letters, numbers, and dashes only.
2	Platform	Select the platform account. Create or edit from Cloud Fabric > Hybrid Cloud > Platforms.
3	Site	Select or enter a name that identifies the edge location.
4	ZTP file type	Set to cloud-init.
5	High availability	Set to Off for the primary. Turn On after the primary is created.

Step 2: Interface Configuration

Sl. no.	CoPilot Parameter Name	Description
WAN	Interface, Interface labels, BGP, Interface primary CIDR, Default gateway IP, Public IP. BGP on: Link-local underlay CIDR, Remote ASN, Local LAN IP, Remote LAN IP, Password
LAN	Interface, Interface labels, Interface CIDR, Default gateway IP
MGMT	Interface, IP assignment, Private network

Edit Edge Spoke Gateway

To edit an Edge Spoke Gateway:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Spoke Gateways.
A table appears with the list of Edge Spoke Gateways.
Locate the Edge Spoke Gateway and click the Edit icon on the row.
The Edit Spoke Gateway dialog appears.
Make the configuration changes needed.
Click Done.

A notification appears confirming the changes to the Edge Spoke Gateway.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Site	Change the edge location identifier.
2	High availability	Enable or change HA mode (Active-Standby or Active-Active) after the primary is created.
3	Interface Configuration	Modify WAN, LAN, and Management interface settings (CIDR, default gateway, VRRP, Public IP).
4	+ Instance	Add HA instances; configure subnet and Public IP for new instances.
5	Jumbo Frame	Enable or disable Jumbo Frame for improved throughput.

Manage Gateway Attachments

To manage Edge Spoke Gateway attachments to Transit Gateways or Edge Transit Gateways:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Spoke Gateways.
A table appears with the list of Edge Spoke Gateways.
Locate the Edge Spoke Gateway and click the Manage Gateway Attachments icon on the row.
The Manage Gateway Attachments panel appears.
In the Transit Gateway or Edge Transit Gateway tab, click + Attachment to add an attachment, or remove attachments as needed.
Provide the attachment details. Refer to the Parameter Details table.
Click Save.

The Edge Spoke Gateway is attached to the selected Transit Gateway or Edge Transit Gateway for encrypted connectivity.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Transit Gateway	Select the Transit Gateway in cloud or Edge Transit Gateway to attach.
2	Local Edge Gateway Interface	Select the WAN interface of the local Edge Spoke Gateway to use for the attachment.
3	Attach Over	Select Private Network or Public Network for the connection.
4	ActiveMesh	Turn On for full mesh peering between local and remote Edge Gateways.
5	Jumbo Frame	Turn On to improve performance for the connection. Applicable for Private network attachments.
6	Number of HPE Tunnels	Single: One tunnel. Maximum: Maximum tunnels based on gateway sizes. Custom: Specify the number. Available for Private network.
7	Customize Route Table Attachment	Turn On to select route tables to attach to the Spoke Gateway.

Delete Edge Spoke Gateway

To delete an Edge Spoke Gateway:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Spoke Gateways.
A table appears with the list of Edge Spoke Gateways.
Locate the Edge Spoke Gateway and click the Delete icon on the row.
The delete confirmation dialog appears.
Read the warning message and confirm the deletion.

The Edge Spoke Gateway is deleted along with its attachments. A notification appears confirming the deletion.

Purpose

The Transit Gateways page shows a table of Edge Transit Gateways deployed for hybrid connectivity and their configurations and statuses. You can view gateway details, create new Edge Transit Gateways on AEP, Equinix, Self managed, or Megaport platforms, edit gateway settings, manage attachments, manage NAT mappings, and delete gateways.

Elements

+ Transit Gateway button: Starts workflow to deploy a new Edge Transit Gateway.
Edge Transit Gateway table: Displays Edge Transit Gateway name, Platform type, Site, Device, Private IP, Transit Gateway, and Status.
Edit button: Opens configuration panel to modify Edge Transit Gateway settings.
Manage Gateway Attachments button: Opens a panel to manage the Edge Transit Gateway attachments.
Delete button: Deletes the selected Edge Transit Gateway.
Actions menu: Manage NAT mappings on the Gateway interface.

Create Transit Gateway wizard

Step 1: Gateway Configuration: Name, Platform, Site, High availability, Device(s), Gateway Resource Size, ZTP file type.
Step 2: Interface Configuration: WAN and MGMT interfaces. See Create Edge Transit Gateway accordions for platform-specific steps.
Step 3: Interface Mapping: Logical-to-physical interface mapping (view only).

Hybrid Cloud: Create Edge Transit Gateway - Step 1

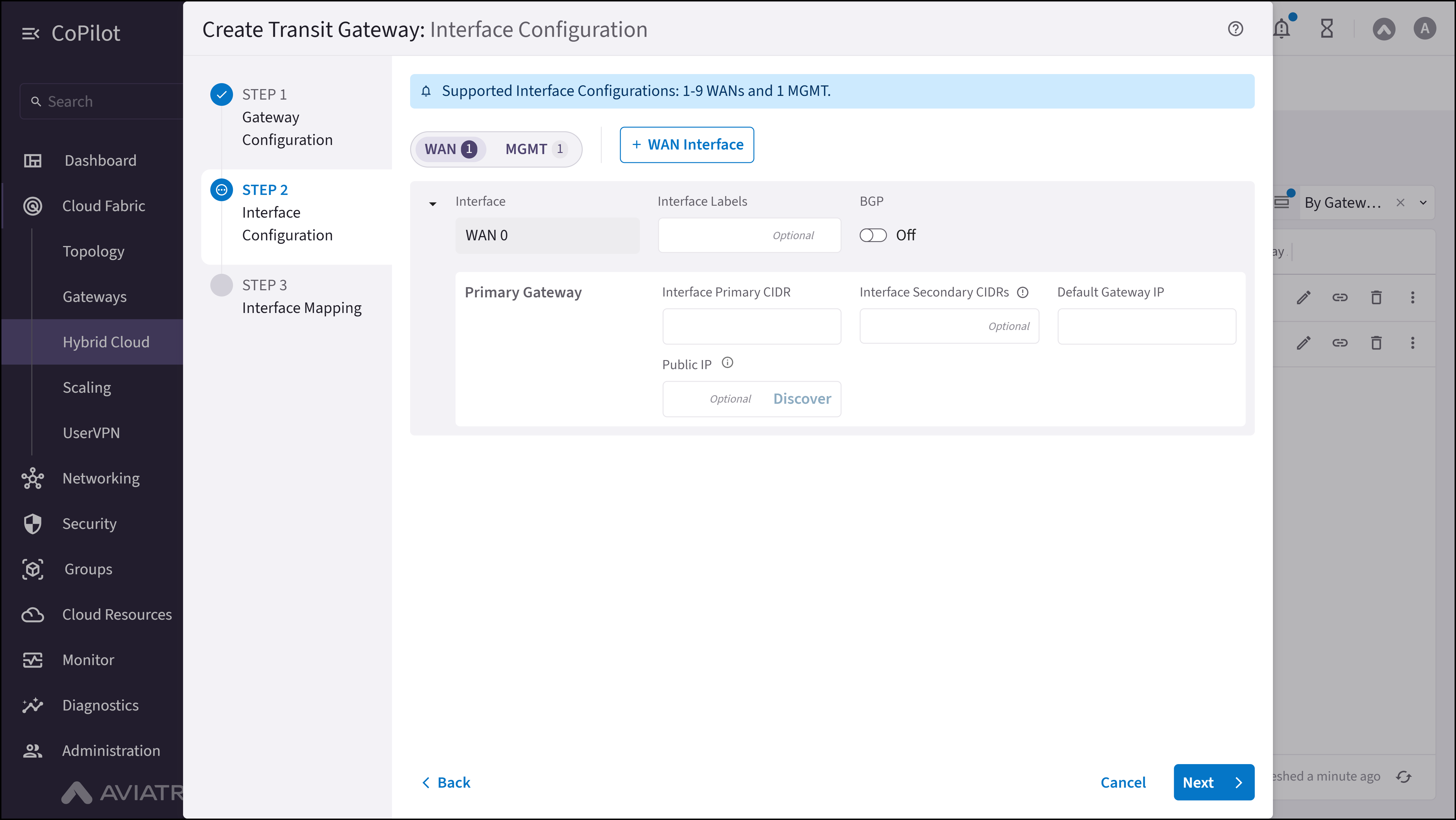

Hybrid Cloud: Create Edge Transit Gateway - Step 2

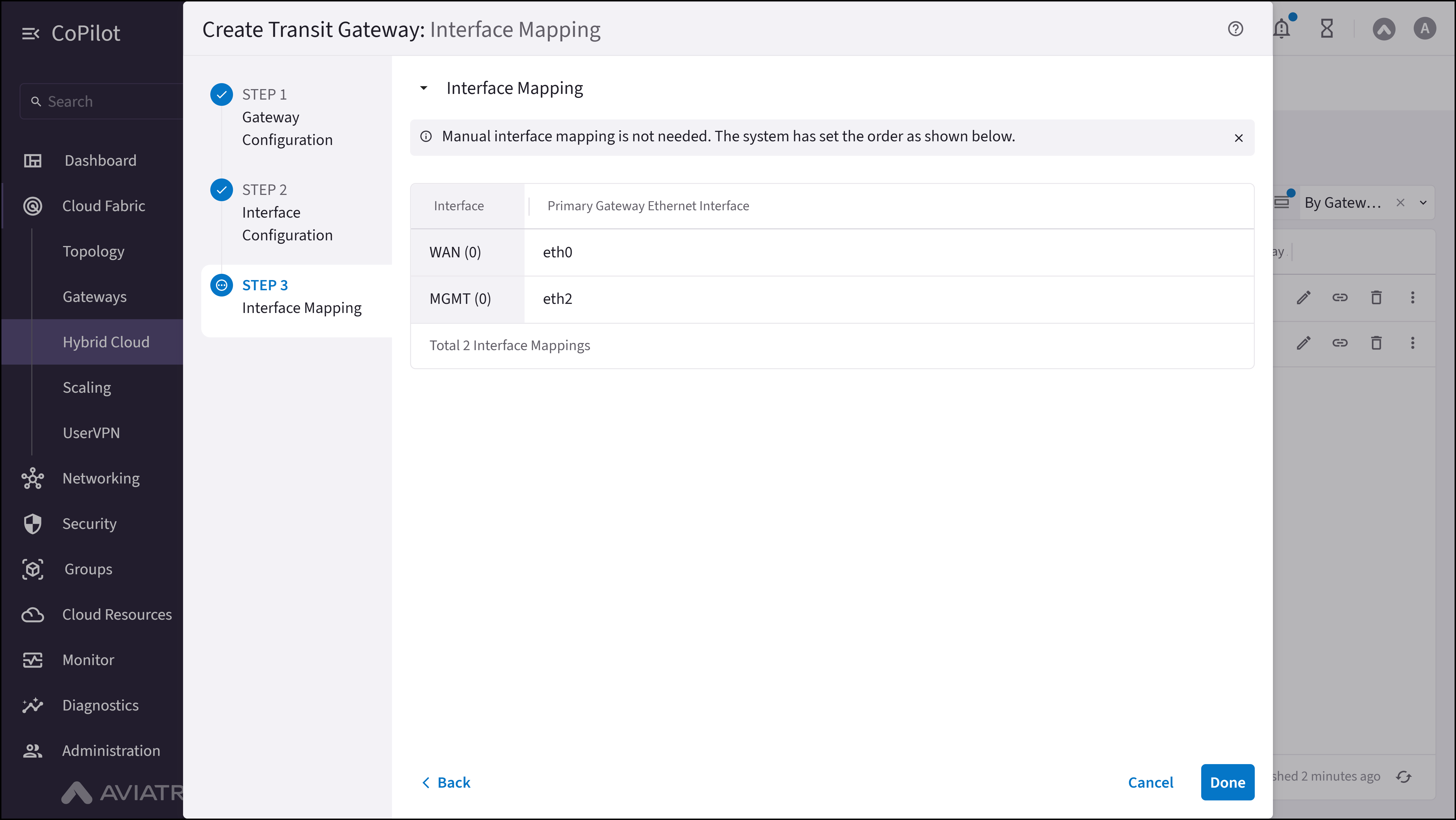

Hybrid Cloud: Create Edge Transit Gateway - Step 3

Actions

View Edge Transit Gateways

To view the list of Edge Transit Gateways and their details:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Transit Gateways.
The Transit Gateways page appears with a table of Edge Transit Gateways.
Click an Edge Transit Gateway name to view its details.

The table displays the list of Edge Transit Gateways with their configurations and status.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Name	The name assigned to the Transit Gateway.
2	Platform Type	Type of platform (AEP, Equinix, Self managed, Megaport) where the Transit Gateway is deployed.
3	Site	Site where the Transit Gateway is deployed.
4	Device	Device associated with the Transit Gateway.
5	Private IP	Private IP address of the Transit Gateway.
6	Transit Gateway Attachments	Number of Transit Gateways attached to the Transit Gateway.
7	Spoke Gateway Attachments	Number of Spoke Gateways attached to the Transit Gateway.
8	Status	Current status of the Transit Gateway.

Create Edge Transit Gateway (AEP)

To create an Edge Transit Gateway on the Aviatrix Edge Platform:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Transit Gateways.
A table appears with the list of Edge Transit Gateways.
Click + Transit Gateway.
The Create Transit Gateway wizard appears.
In Step 1: Gateway Configuration, provide Name, Platform, Site, High availability, Primary Device, Secondary Device (if HA), and Gateway Resource Size. Refer to the Parameter Details table below.
Click Next.
In Step 2: Interface Configuration, click WAN and configure the WAN interface. Optionally, turn BGP On for CSP underlay. Click MGMT and configure the Management interface.
In Step 3: Interface Mapping, review the logical-to-physical interface mapping.
Click Create or Save.

A notification appears when the Edge Transit Gateway is created.

Parameter Details

Step 1: Gateway Configuration

Sl. No.	CoPilot Parameter Name	Description
1	Name	Enter a name for the Edge Transit Gateway. The name must start with a letter and use only letters, numbers, and dashes.
2	Platform	Select the platform account. Create or edit from Cloud Fabric > Hybrid Cloud > Platforms.
3	Site	Enter or select a name that identifies the edge location.
4	High availability	Off for primary only. On (Active-Active) for load sharing across peerings.
5	Primary Device	Select the edge device for the primary Edge Transit Gateway.
6	Secondary Device	Select the edge device for the secondary (HA) Edge Transit Gateway.
7	Gateway Resource Size	Small (2 vCPU, 4GB), Medium (4 vCPU, 8GB), Large (8 vCPU, 16GB), or X-Large (16 vCPU, 32GB).

Step 2: Interface Configuration

Sl. No.	CoPilot Parameter Name	Description
WAN	Interface, IP assignment, Interface labels, BGP, Interface primary CIDR, Interface secondary CIDRs, Default gateway IP, Public IP. BGP on: Link-local underlay CIDR, Local ASN, Remote ASN, Local LAN IP, Remote LAN IP, Password
MGMT	Interface, IP assignment, Private network, Egress CIDR (primary), Egress CIDR (secondary)

Step 3: Interface Mapping (View only)

Sl. No.	CoPilot Parameter Name	Description
1	Interface	Shows the logical interface name of the Edge Transit Gateway.
2	Primary Gateway Ethernet Interface	Shows the Linux interface name of the primary Edge Transit Gateway.
3	Secondary Gateway Ethernet Interface	Shows the Linux interface name of the secondary Edge Transit Gateway (HA only).

Create Edge Transit Gateway (Equinix)

To create an Edge Transit Gateway on Equinix Network Edge:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Transit Gateways.
A table appears with the list of Edge Transit Gateways.
Click + Transit Gateway.
The Create Transit Gateway wizard appears.
In Step 1: Gateway Configuration, provide Name, Platform, Site, ZTP file type (cloud-init), and High availability (Off for primary). Refer to the Parameter Details table below.
Click Next.
In Step 2: Interface Configuration, click + WAN Interface and configure the WAN interface. Optionally, turn BGP On for CSP underlay. Click MGMT and configure the Management interface.
In Step 3: Interface Mapping, review the logical-to-physical interface mapping.
Click Create or Save.

A notification appears when the Edge Transit Gateway is created. You can enable High availability after the primary is created.

Parameter Details

Step 1: Gateway Configuration

Sl. No.	CoPilot Parameter Name	Description
1	Name	Enter a name for the Edge Transit Gateway. The name must start with a letter and use only letters, numbers, and dashes.
2	Platform	Select the platform account. Create or edit from Cloud Fabric > Hybrid Cloud > Platforms.
3	Site	Enter or select a name that identifies the edge location.
4	ZTP file type	Set to cloud-init.
5	High availability	Set to Off for the primary. Turn On after the primary is created.

Step 2: Interface Configuration

Sl. No.	CoPilot Parameter Name	Description
WAN	Interface, Interface labels, BGP, Interface primary CIDR, Interface secondary CIDRs, Default gateway IP, Public IP. BGP on: Link-local underlay CIDR, Local ASN, Remote ASN, Local LAN IP, Remote LAN IP, Password
MGMT	Interface, IP assignment, Private network, Egress CIDR (primary)

Create Edge Transit Gateway (Self managed)

To create an Edge Transit Gateway on a Self managed platform (VMware ESXi or KVM):

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Transit Gateways.
A table appears with the list of Edge Transit Gateways.
Click + Transit Gateway.
The Create Transit Gateway wizard appears.
In Step 1: Gateway Configuration, provide Name, Platform (edge_admin), Site, ZTP file type (iso for VMware ESXi; cloud-init for KVM), and High availability. Refer to the Parameter Details table below.
Click Next.
In Step 2: Interface Configuration, configure the WAN and MGMT interfaces.
In Step 3: Interface Mapping, review the logical-to-physical interface mapping.
Click Create or Save.

A notification appears when the Edge Transit Gateway is created.

Parameter Details

Step 1: Gateway Configuration

Sl. No.	CoPilot Parameter Name	Description
1	Name	Enter a name for the Edge Transit Gateway.
2	Platform	Select edge_admin.
3	Site	Enter or select a name that identifies the edge location.
4	ZTP file type	For VMware ESXi select iso. For KVM select cloud-init.
5	High availability	Off for primary. On (Active-Active) for load sharing.

Step 2: Interface Configuration

Sl. No.	CoPilot Parameter Name	Description
WAN	Interface, IP assignment, Interface labels, BGP, Interface primary CIDR, Default gateway IP, Public IP
MGMT	IP assignment, Private network, Egress CIDR

Create Edge Transit Gateway (Megaport)

To create an Edge Transit Gateway on Megaport:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Transit Gateways.
A table appears with the list of Edge Transit Gateways.
Click + Transit Gateway.
The Create Transit Gateway wizard appears.
In Step 1: Gateway Configuration, provide Name, Platform, Site, ZTP file type (cloud-init), and High availability (Off for primary). Refer to the Parameter Details table below.
Click Next.
In Step 2: Interface Configuration, click WAN and configure the WAN interface. Optionally, turn BGP On for CSP underlay. Click MGMT and configure the Management interface.
In Step 3: Interface Mapping, review the logical-to-physical interface mapping.
Click Create or Save.

A notification appears when the Edge Transit Gateway is created. You can enable High availability after the primary is created.

Parameter Details

Step 1: Gateway Configuration

Sl. No.	CoPilot Parameter Name	Description
1	Name	Enter a name for the Edge Transit Gateway. The name must start with a letter and use only letters, numbers, and dashes.
2	Platform	Select the platform account. Create or edit from Cloud Fabric > Hybrid Cloud > Platforms.
3	Site	Enter or select a name that identifies the edge location.
4	ZTP file type	Set to cloud-init.
5	High availability	Set to Off for the primary. Turn On after the primary is created.

Step 2: Interface Configuration

Sl. No.	CoPilot Parameter Name	Description
WAN	Interface, Interface labels, BGP, Interface primary CIDR, Interface secondary CIDRs, Default gateway IP, Public IP. BGP on: Link-local underlay CIDR, Local ASN, Remote ASN, Local LAN IP, Remote LAN IP, Password
MGMT	Interface, IP assignment, Private network, Egress CIDR (primary)

Edit Edge Transit Gateway

To edit an Edge Transit Gateway:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Transit Gateways.
A table appears with the list of Edge Transit Gateways.
Locate the Edge Transit Gateway and click the Edit icon on the row.
The Edit Transit Gateway dialog appears.
Make the configuration changes needed.
Click Done.

A notification appears confirming the changes to the Edge Transit Gateway.

Manage Gateway Attachments

To manage Edge Transit Gateway attachments:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Transit Gateways.
A table appears with the list of Edge Transit Gateways.
Locate the Edge Transit Gateway and click Manage Gateway Attachments.
The Manage Gateway Attachments panel appears.
Add, edit, or remove Transit Gateway and Spoke Gateway attachments as needed.
Click Done.

The attachments are updated for the Edge Transit Gateway.

Delete Edge Transit Gateway

To delete an Edge Transit Gateway:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Transit Gateways.
A table appears with the list of Edge Transit Gateways.
Locate the Edge Transit Gateway and click the Delete icon on the row.
Confirm the deletion in the dialog.

A notification appears when the Edge Transit Gateway is deleted.

Manage NAT mappings

To manage NAT mappings on the Gateway interface:

Go to Cloud Fabric > Hybrid Cloud > Edge Gateways > Transit Gateways.
A table appears with the list of Edge Transit Gateways.
Locate the Edge Transit Gateway and open the Actions menu on the row.
Select Manage NAT mappings on the Gateway interface.
The NAT mappings panel appears.
Add, edit, or remove NAT mappings as needed.
Click Done.

The NAT mappings are updated for the Edge Transit Gateway.

Purpose

The Devices page shows a table of on-prem devices onboarded for hybrid connectivity. You can view device details, onboard new devices, manage proxy profiles for device onboarding, and edit or delete devices.

Elements

Onboard Device button: Starts workflow to onboard a new on-prem device.
Proxy Profiles button: Opens a window to manage proxy profiles for device onboarding.
Devices table: Displays onboarded device Name, Serial Number, SKU/Model, Status, Status Updated At, and Actions.
Edit button: Opens configuration panel to modify device settings.
Delete button: Deletes the selected device.

Actions

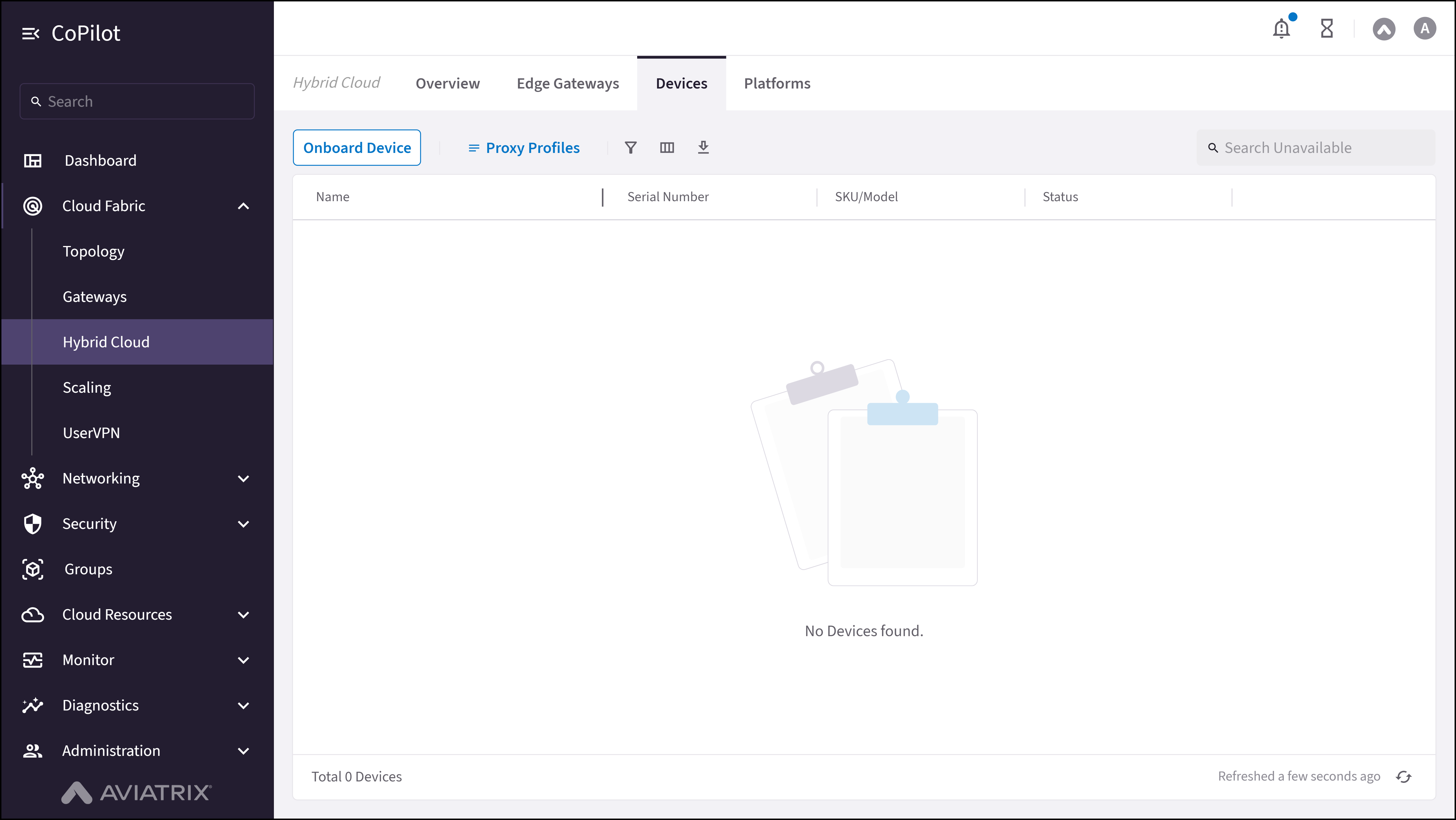

View Onboarded Devices

To view the list of onboarded devices and their details:

Go to Cloud Fabric > Hybrid Cloud > Devices.
The Devices page appears with a table of onboarded devices.
Optionally, use Search, Filter, or Select columns to find or customize the view.
Click a device name to view its details.

The table displays onboarded devices with their configurations and status.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Name	Name assigned to the device.
2	Serial Number	Serial number of the device.
3	SKU/Model	Hardware model or SKU of the device.
4	Device Type	Type of device (physical or virtual).
5	Status	Current connectivity status of the device.
6	Status Updated At	Timestamp of the last status update.

Onboard Device

To onboard a new on-prem device for hybrid connectivity:

Go to Cloud Fabric > Hybrid Cloud > Devices.
The Devices page appears with a table of onboarded devices.
Click Onboard Device.
The Onboard Device wizard or form appears.
Provide Name, Platform, Device Configuration, Serial Number, and interface settings. Refer to the Parameter Details table below.
Optionally, configure a Proxy Profile if the device uses a proxy for internet access.
Click Save or Onboard.

A notification appears when the device is onboarded. The device appears in the Devices table once it connects to the Aviatrix Platform.

Parameter Details

Device Details

Sl. No.	CoPilot Parameter Name	Description
1	Name	A name to identify the edge device.
2	Platform	The Aviatrix Edge Platform account where to onboard the device.
3	Device Configuration	Hardware configuration (e.g., DELL Poweredge 1x E810, DELL Poweredge 2x E810).
4	Serial Number	The serial number of the edge device.

Device Interface Configuration

Sl. No.	CoPilot Parameter Name	Description
1	Physical Interface	The physical interface port.
2	Function	The physical port function: WAN, LAN, or MGMT.
3	DHCP	Off for static IP. On for dynamic IP allocation.

Management Port Configuration (when DHCP is Off)

Sl. No.	CoPilot Parameter Name	Description
1	Interface CIDR	The static IP address of the Management interface.
2	Gateway IP	The Management default gateway IP address.
3	Primary DNS	The primary DNS server IP address.
4	Secondary DNS	Optional secondary DNS server IP address.

Manage Proxy Profiles

To manage proxy profiles for device onboarding:

Go to Cloud Fabric > Hybrid Cloud > Devices.
The Devices page appears.
Click Proxy Profiles.
The Proxy Profiles window appears.
Click + Proxy Profile to create a new profile, or use Edit or Delete on an existing profile.
Provide Name, Transparent Mode, Proxy Server IP, Proxy Port, and optional Proxy Certificate.
Click Save.

Proxy profiles can be associated with the Management interface when onboarding a device. Devices require internet access to communicate with the Aviatrix Platform; use a proxy profile when traffic is routed through a proxy server.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Name	A name for the proxy profile.
2	Transparent Mode	Enable or disable transparent proxy mode.
3	Proxy Server IP	IP address of the proxy server.
4	Proxy Port	Port number for the proxy server.
5	Proxy Certificate	Optional certificate for proxy authentication.

Edit Device

To edit an onboarded device:

Go to Cloud Fabric > Hybrid Cloud > Devices.
The Devices page appears with a table of onboarded devices.
Locate the device and click the Edit icon on the row.
The Edit Device dialog appears.
Make the configuration changes needed (e.g., interface settings, proxy profile).
Click Save.

A notification appears confirming the changes to the device.

Delete Device

To delete an onboarded device:

Go to Cloud Fabric > Hybrid Cloud > Devices.
The Devices page appears with a table of onboarded devices.
Locate the device and click the Delete icon on the row.
Confirm the deletion in the dialog.

A notification appears when the device is deleted. You must remove any Edge Gateways deployed on the device before deleting it.

Purpose

The Platforms page shows a table of integrated platforms for hybrid connectivity and their details. You can view platform details, add new platform accounts (Aviatrix Edge or Network Service Provider), edit platform settings, and delete platforms.

Elements

+ Platform button: Starts workflow to integrate a new platform.
Platform table: Displays integrated platform Name, Type, Account Info, and Actions.
Edit button: Opens configuration panel to modify platform settings.
Delete button: Deletes the selected platform.

Actions

View Platforms

To view the list of integrated platforms and their details:

Go to Cloud Fabric > Hybrid Cloud > Platforms.
The Platforms page appears with a table of integrated platforms.
Click a platform name to view its details.

The table displays integrated platforms with their configurations and integration status.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Name	Name assigned to the platform.
2	Platform Type	Type of platform (Aviatrix Edge, Network Service Provider (NSP), Self Managed).
3	Account Info	Details of the account used for platform integration.
4	Integration Status	Indicates if the platform is successfully integrated.

Add Platform

To add a new platform account for hybrid connectivity:

Go to Cloud Fabric > Hybrid Cloud > Platforms.
The Platforms page appears with a table of integrated platforms.
Click + Platform.
The Add Platform dialog appears.
Enter a name for the account (for example, OnPremises, Equinix, or Megaport).
Select the platform type: Aviatrix Edge for the Aviatrix Edge Platform, or Network Service Provider (NSP) for Equinix or Megaport.
If NSP is selected, choose Equinix or Megaport from the dropdown.
Click Connect.

The platform account is registered. You can use it when deploying Edge Gateways on the selected platform.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Name	A name for the platform account (for example, OnPremises, Equinix, Megaport).
2	Platform Type	Aviatrix Edge: For the Aviatrix Edge Platform. Network Service Provider (NSP): For Equinix Network Edge or Megaport Virtual Edge.
3	NSP Provider	When NSP is selected: Equinix for Equinix Network Edge, Megaport for Megaport Virtual Edge.

Edit Platform

To edit a platform account:

Go to Cloud Fabric > Hybrid Cloud > Platforms.
The Platforms page appears with a table of integrated platforms.
Locate the platform and click the Edit icon on the row.
The Edit Platform dialog appears.
Make the configuration changes needed.
Click Save.

A notification appears confirming the changes to the platform.

Delete Platform

To delete a platform account:

Go to Cloud Fabric > Hybrid Cloud > Platforms.
The Platforms page appears with a table of integrated platforms.
Locate the platform and click the Delete icon on the row.
Confirm the deletion in the dialog.

A notification appears when the platform is deleted. You must remove any Edge Gateways deployed on the platform before deleting it.

Concepts & Architecture

Guides

Reference

Purpose

Elements

Actions

Parameter Details

Purpose

Elements

Actions

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Purpose

Elements

Actions

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Purpose

Elements

Actions

Parameter Details

Parameter Details

Parameter Details

Purpose

Elements

Actions

Parameter Details

Parameter Details

Concepts & Architecture

Guides

Reference

​Purpose

​Elements

​Actions

​Parameter Details

​Purpose

​Elements

​Actions

​Parameter Details

​Parameter Details

​Parameter Details

​Parameter Details

​Parameter Details

​Parameter Details

​Parameter Details

​Purpose

​Elements

​Actions

​Parameter Details

​Parameter Details

​Parameter Details

​Parameter Details

​Parameter Details

​Purpose

​Elements

​Actions

​Parameter Details

​Parameter Details

​Parameter Details

​Purpose

​Elements

​Actions

​Parameter Details

​Parameter Details

Purpose

Elements

Actions

Parameter Details

Purpose

Elements

Actions

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Purpose

Elements

Actions

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Parameter Details

Purpose

Elements

Actions

Parameter Details

Parameter Details

Parameter Details

Purpose

Elements

Actions

Parameter Details

Parameter Details
