Onboarding Kubernetes Clusters

Overview

Onboarding a Kubernetes cluster creates a cluster configuration on the Aviatrix Controller that grants read-only access to discover Kubernetes namespaces, services, pods, endpoint slices, and nodes. This data powers SmartGroup-based security policies in the Distributed Cloud Firewall (DCF), letting you write firewall rules that reference Kubernetes workloads by label, namespace, or service name. Two things must happen before DCF can enforce policy on a cluster:

Grant Controller access to the cluster’s Kubernetes API — the Controller must be able to reach the API server and authenticate with sufficient RBAC permissions.
Register the cluster — tell the Controller which cluster to watch by completing the onboarding workflow in the UI or via Terraform.

Onboarding Paths

Path	When to Use	Supported Clouds
Auto-discovered + CSP credentials	Managed clusters (EKS/AKS) visible on the Kubernetes Clusters tab	AWS, Azure
Auto-discovered + kubeconfig	Managed clusters where the CSP credential path is not viable	AWS, Azure
Manual onboarding	Self-managed, private, or undiscovered clusters	AWS, Azure, GCP
Terraform (full automation)	CI/CD, IaC, multi-cluster at scale	All

The Kubernetes Clusters tab is only visible when DCF is enabled and Kubernetes Resource Discovery is turned on under Groups > Settings. See Kubernetes Resource Discovery for setup instructions.

Prerequisites

Platform Requirements

Before onboarding any cluster, confirm the following:

DCF is enabled. See Enable Distributed Cloud Firewall .
Kubernetes Resource Discovery is enabled under Groups > Settings. See Kubernetes Resource Discovery .
The Kubernetes API server must be network-reachable from the Controller.
- Public clusters: restrict API server access to the Controller’s IP address for security.
- Private clusters: a private network path is required. See Onboarding Private Kubernetes Clusters .
SNAT must be disabled on worker nodes so that pod source IPs are preserved for policy enforcement. See the AWS documentation on external SNAT.
Flat networking is recommended (this is the default for EKS and AKS). Overlay networks have limited SmartGroup support.

When a cluster uses an overlay network, only Service-type SmartGroups are supported. These SmartGroups can only be used as the destination in DCF rules, and they only control connections through the Load Balancer.

IAM Permissions

The Controller’s cloud account must include the following permissions for cluster discovery and node-level enforcement.

AWS
Azure
GCP

Discovery

eks:ListClusters
eks:DescribeCluster
elasticloadbalancing:DescribeLoadBalancers
elasticloadbalancing:DescribeTags

SmartGroup node enforcement

ec2:DescribeSecurityGroups
ec2:DescribeInstances

Discovery

Microsoft.ResourceGraph/resources/read
Microsoft.ContainerService/managedClusters/read
Microsoft.ContainerService/managedClusters/listClusterUserCredential/action

Node enforcement

Microsoft.Compute/virtualMachines/read
Microsoft.Network/networkInterfaces/read
Microsoft.Network/networkSecurityGroups/read

AKS clusters must use Kubernetes RBAC, not Entra ID authentication, for Controller access.

Network Load Balancers must be restricted to private subnets.

Discovery

container.clusters.connect
container.clusters.get
container.clusters.list
container.endpointSlices.list
container.namespaces.list
container.nodes.list
container.pods.list
container.services.list

Node enforcement

compute.instances.get
compute.instances.list
compute.networks.get
compute.subnetworks.get
compute.firewalls.list
compute.securityPolicies.list

GKE clusters can only be onboarded via Terraform. The UI-based onboarding paths do not support GCP.

Kubernetes RBAC

The AWS-managed AmazonEKSViewPolicy grants read access to most Kubernetes resources but does not include nodes. A supplemental ClusterRole is required so the Controller can discover node metadata for SmartGroup enforcement. Create a file called cluster-role.yaml with the following content:

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: view-nodes
rules:
  - apiGroups: [""]
    resources: ["nodes"]
    verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: view-nodes-binding
subjects:
  - kind: Group
    name: view-nodes
    apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: ClusterRole
  name: view-nodes
  apiGroup: rbac.authorization.k8s.io

Apply it to your cluster:

kubectl apply -f cluster-role.yaml

This ClusterRole and ClusterRoleBinding can also be managed as Terraform resources using kubernetes_cluster_role and kubernetes_cluster_role_binding, which is useful for automated or multi-cluster deployments.

Kubeconfig Requirements

When onboarding via kubeconfig file, the file must meet the following requirements:

Allowed verbs: GET, LIST, and WATCH on namespaces, services, pods, nodes, and endpointslices.
No exec-based authentication — the kubeconfig must not rely on exec plugins (such as aws eks get-token) because the Controller cannot execute external binaries.
No create, update, or delete permissions — the Controller only needs read access.
Exactly one cluster, user, and context — multi-context kubeconfig files are not supported.
Inline credential data only — use certificate-authority-data, client-certificate-data, and client-key-data (base64-encoded) rather than file path references (certificate-authority, client-certificate, client-key, tokenFile). The Controller cannot read files from the local filesystem.

Example kubeconfig

apiVersion: v1 kind: Config clusters: - name: my-cluster cluster:

server: https://ABCDEF1234567890.gr7.us-east-1.eks.amazonaws.com
certificate-authority-data:
LS0tLS1CRUdJTi...base64-encoded-ca-cert...LS0tLS1FTkQ= contexts: - name:
my-cluster-context context: cluster: my-cluster user: my-cluster-user users: -
name: my-cluster-user user: client-certificate-data:
LS0tLS1CRUdJTi...base64-encoded-client-cert...LS0tLS1FTkQ= client-key-data:
LS0tLS1CRUdJTi...base64-encoded-client-key...LS0tLS1FTkQ= current-context:
my-cluster-context preferences: {}

Understanding the Access Model

Each cloud provider has its own authentication and authorization layers between the Aviatrix Controller and the Kubernetes API server. Before configuring access, it helps to understand what each layer does and why it is required.

AWS
Azure
GCP

EKS access requires two layers working together:

Layer	Resource	What It Provides
AWS IAM	EKS Access Entry + `AmazonEKSViewPolicy`	Authenticates the Controller’s IAM role to the EKS cluster and grants read access to namespaces, services, pods, and endpoint slices
Kubernetes RBAC	`view-nodes` ClusterRole + ClusterRoleBinding	Grants read access to nodes (not covered by `AmazonEKSViewPolicy`)

The Controller authenticates to EKS by requesting a short-lived STS token on each API call. There is no long-lived credential to rotate.Once both layers are in place, register the cluster so the Controller begins discovering Kubernetes resources.What is the Controller’s IAM role ARN?The Controller authenticates to AWS using the aviatrix-role-app IAM role from the AWS account you onboarded in CoPilot. The ARN follows this format:

arn:aws:iam::123456789012:role/aviatrix-role-app

This is the same IAM role the Controller uses for all AWS API operations (launching gateways, managing route tables, and so on). You can find the role ARN in two places:

CoPilot: navigate to Cloud Resources > Cloud Account and locate the AWS account. The role ARN is listed in the account details.
AWS IAM Console: search for aviatrix-role-app under Roles.

Azure access is simpler than AWS. The Aviatrix service principal calls the Azure Resource Manager API to fetch a kubeconfig via the listClusterUserCredential action. The Controller then uses that kubeconfig to authenticate directly to the Kubernetes API server.Requirements:

The service principal must have the Microsoft.ContainerService/managedClusters/listClusterUserCredential/action permission (included in the permissions listed in Prerequisites above).
The AKS cluster must use Kubernetes RBAC with local accounts, not Entra ID (Azure AD) authentication. If the cluster is configured for Entra-only authentication, the returned kubeconfig contains exec entries that the Controller cannot process and will reject.

Unlike AWS and GCP, Azure credentials are fetched once at client creation time rather than refreshed per-request. If the credential expires, the Controller reconnects automatically when it detects the failure.No additional Kubernetes RBAC configuration is needed for Azure. The kubeconfig returned by the ARM API already contains the credentials the Controller needs to read cluster resources.

GKE access uses OAuth2 tokens from the Aviatrix service account. These tokens are refreshed automatically on each request, so there is no long-lived credential to rotate.Requirements:

The service account must have the container.* permissions listed in the Prerequisites section above.
You must also create Kubernetes RBAC bindings inside the cluster to grant the service account read access to the required resources (namespaces, services, pods, nodes, and endpoint slices).

GKE clusters can only be onboarded via Terraform. The UI-based onboarding paths (auto-discovered and manual) do not support GCP.

Onboarding via Terraform

Terraform provides the most complete and repeatable onboarding path. A single terraform apply can grant Controller access and register the cluster in one step.

AWS (EKS)
Azure (AKS)
GCP (GKE)

EKS requires an EKS Access Entry (IAM layer) and a Kubernetes ClusterRole (RBAC layer), followed by cluster registration. The configuration below handles all three.Requires the aws, kubernetes, and aviatrix Terraform providers configured for the target cluster.

variable "controller_role_arn" {
  description = "Aviatrix Controller IAM role ARN (aviatrix-role-app)"
  type        = string
}

variable "cluster_name" {
  description = "EKS cluster name"
  type        = string
}

data "aws_eks_cluster" "this" {
  name = var.cluster_name
}

# --- Grant Controller access ---

# EKS access entry — authenticates Controller IAM role to the cluster
resource "aws_eks_access_entry" "aviatrix" {
  cluster_name      = var.cluster_name
  principal_arn     = var.controller_role_arn
  kubernetes_groups = ["view-nodes"]
  type              = "STANDARD"
}

# Attach the EKS managed view policy for broad read access
resource "aws_eks_access_policy_association" "aviatrix" {
  cluster_name  = var.cluster_name
  policy_arn    = "arn:aws:eks::aws:cluster-access-policy/AmazonEKSViewPolicy"
  principal_arn = var.controller_role_arn

  access_scope {
    type = "cluster"
  }

  depends_on = [aws_eks_access_entry.aviatrix]
}

# ClusterRole for node visibility (not covered by AmazonEKSViewPolicy)
resource "kubernetes_cluster_role" "view_nodes" {
  metadata {
    name = "view-nodes"
  }

  rule {
    verbs      = ["get", "list", "watch"]
    api_groups = [""]
    resources  = ["nodes"]
  }
}

# Bind the ClusterRole to the "view-nodes" group
resource "kubernetes_cluster_role_binding" "view_nodes" {
  metadata {
    name = "view-nodes"
  }

  role_ref {
    api_group = "rbac.authorization.k8s.io"
    kind      = "ClusterRole"
    name      = kubernetes_cluster_role.view_nodes.metadata[0].name
  }

  subject {
    kind      = "Group"
    name      = "view-nodes"
    api_group = "rbac.authorization.k8s.io"
  }
}

# --- Register the cluster ---

resource "aviatrix_kubernetes_cluster" "this" {
  cluster_id          = data.aws_eks_cluster.this.arn
  use_csp_credentials = true

  depends_on = [
    aws_eks_access_policy_association.aviatrix,
    kubernetes_cluster_role_binding.view_nodes,
  ]
}

The cluster_id must be the full EKS ARN — for example, arn:aws:eks:us-east-2:123456789012:cluster/my-cluster.

If the Aviatrix service principal has the required permissions, no additional access configuration is needed. The Controller authenticates using Azure’s ListClusterUserCredentials API.

data "azurerm_kubernetes_cluster" "this" {
  name                = "my-cluster"
  resource_group_name = "my-rg"
}

resource "aviatrix_kubernetes_cluster" "this" {
  cluster_id          = lower(data.azurerm_kubernetes_cluster.this.id)
  use_csp_credentials = true
}

The cluster_id must be lowercased. Use lower() to normalize the AKS resource ID.

Alternatively, you can onboard using a kubeconfig file — see Custom or Self-Managed Clusters below.

Ensure the Aviatrix service account has the required permissions. GKE uses OAuth2 tokens that are refreshed automatically per request.

data "google_container_cluster" "this" {
  name     = "my-cluster"
  location = "us-central1"
}

resource "aviatrix_kubernetes_cluster" "this" {
  cluster_id          = data.google_container_cluster.this.self_link
  use_csp_credentials = true
}

GKE clusters can only be onboarded via Terraform. The UI and CLI onboarding paths do not support GCP.

Custom or Self-Managed Clusters

For clusters built with kops, kubeadm, k3s, Rancher, or similar tools, provide a kubeconfig and cluster details:

resource "aviatrix_kubernetes_cluster" "custom" {
  cluster_id  = "my-cluster-id"
  kube_config = var.kubeconfig

  cluster_details {
    account_name           = data.aviatrix_account.aws.account_name
    account_id             = data.aviatrix_account.aws.aws_account_number
    name                   = "my-cluster"
    region                 = "us-east-2"
    vpc_id                 = data.aws_vpc.vpc.id
    is_publicly_accessible = true
    platform               = "kops"
    version                = "1.30"
    network_mode           = "FLAT"
    tags = {
      environment = "production"
    }
  }
}

cluster_details argument reference

Argument	Required	Description
`account_name`	Yes	Aviatrix cloud account name
`account_id`	Yes	Cloud account ID (AWS account number, Azure subscription ID)
`name`	Yes	Display name for the cluster
`region`	Yes	Cloud region
`vpc_id`	Yes	VPC/VNet ID. AWS: `vpc-xxx`. Azure: full resource ID.
`is_publicly_accessible`	Yes	Whether the K8s API server is publicly reachable
`platform`	Yes	Free-form string — for example, `kops`, `kubeadm`, `k3s`, `rancher`
`version`	Yes	Kubernetes version string
`network_mode`	Yes	`FLAT` or `OVERLAY`
`project`	No	GCP project ID
`compartment`	No	OCI compartment ID
`tags`	No	Key-value metadata map

Multi-Cluster Automation

Use for_each to onboard multiple clusters in a single apply:

variable "eks_clusters" {
  description = "Map of logical name to EKS cluster name"
  type        = map(string)
}

data "aws_eks_cluster" "clusters" {
  for_each = var.eks_clusters
  name     = each.value
}

resource "aviatrix_kubernetes_cluster" "clusters" {
  for_each            = data.aws_eks_cluster.clusters
  cluster_id          = each.value.arn
  use_csp_credentials = true
}

Onboarding via CoPilot UI

For clusters discovered via cloud APIs, navigate to Cloud Resources > Cloud Assets > Kubernetes Clusters and click Onboard next to the cluster.

AWS (EKS)
Azure (AKS)

The Onboard Cluster dialog offers three options:

Terraform — Displays generated HCL for the EKS access entry and RBAC resources. Copy the script, apply it with terraform apply, check the confirmation box, then click Onboard.

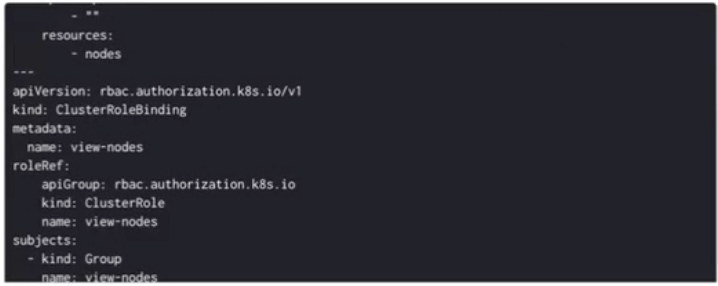

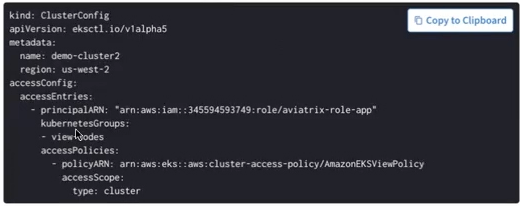

Command Line — Displays generated eksctl YAML and kubectl YAML. Apply both configurations, check the confirmation box, then click Onboard.
Upload Kubeconfig — Upload a kubeconfig file that meets the kubeconfig requirements. Click Onboard.

Options 1 and 2 handle both granting access and registration in one flow. Option 3 assumes the kubeconfig already has sufficient permissions.

Manual Onboarding

Use manual onboarding when the cluster was built with kops, kubeadm, k3s, Rancher, or similar tools, or when the cluster is not discoverable via cloud APIs.

The cluster must reside in a VPC/VNet in a supported cloud (AWS, Azure, or GCP). On-premises bare-metal clusters cannot be onboarded.

Navigate to Cloud Resources > Cloud Assets > Kubernetes Clusters and click Manually Onboard a Cluster.

Field	Description
Name	Display name for the cluster. Becomes part of the generated cluster ID.
Cloud	AWS, Azure, or GCP. Determines which accounts, regions, and VPCs are available.
Account	Cloud account where the cluster resides. Must already be onboarded in CoPilot.
Region	Cloud region.
VPC/VNet	VPC or VNet where the cluster nodes run.
Network Mode	Flat (recommended) or Overlay. Overlay shows a warning about limited DCF support.
Kubeconfig File	Upload a kubeconfig file that meets the kubeconfig requirements.

Click Onboard.

Onboarding via CLI (AWS Only)

If you prefer CLI tools over Terraform, the following methods grant Controller access to an EKS cluster and prepare it for onboarding. After completing any of these methods, register the cluster through the CoPilot UI or Terraform.

eksctl + kubectl

Step 1 — Create the EKS access entry. Save the following as accessentry.yaml, replacing the placeholder values:

kind: ClusterConfig
apiVersion: eksctl.io/v1alpha5
metadata:
  name: CLUSTER_NAME
  region: REGION
accessConfig:
  accessEntries:
    - principalARN: "CONTROLLER_ROLE_ARN"
      kubernetesGroups:
        - view-nodes
      accessPolicies:
        - policyARN: arn:aws:eks::aws:cluster-access-policy/AmazonEKSViewPolicy
          accessScope:
            type: cluster

Apply it:

eksctl create accessentry -f accessentry.yaml

Step 2 — Create the Kubernetes RBAC. Apply the cluster-role.yaml from the Kubernetes RBAC section:

kubectl config current-context
kubectl apply -f cluster-role.yaml

Tool installation:

AWS CLI + kubectl

Step 1 — Create the EKS access entry:

aws eks create-access-entry \
  --cluster-name CLUSTER_NAME \
  --principal-arn CONTROLLER_ROLE_ARN \
  --kubernetes-groups view-nodes \
  --type STANDARD

Step 2 — Associate the EKS view policy:

aws eks associate-access-policy \
  --cluster-name CLUSTER_NAME \
  --principal-arn CONTROLLER_ROLE_ARN \
  --policy-arn arn:aws:eks::aws:cluster-access-policy/AmazonEKSViewPolicy \
  --access-scope type=cluster

Step 3 — Create the Kubernetes RBAC for node access:

kubectl apply -f cluster-role.yaml

Use the cluster-role.yaml from the Kubernetes RBAC section.

CloudFormation + kubectl

CloudFormation can manage the EKS access entry. Save the following as aviatrix-eks-access.yaml:

AWSTemplateFormatVersion: "2010-09-09"
Description: Grant Aviatrix Controller read access to an EKS cluster
Parameters:
  ClusterName:
    Type: String
    Description: Name of the EKS cluster
  ControllerRoleArn:
    Type: String
    Description: IAM role ARN of the Aviatrix Controller (aviatrix-role-app)

Resources:
  AviatrixAccessEntry:
    Type: AWS::EKS::AccessEntry
    Properties:
      ClusterName: !Ref ClusterName
      PrincipalArn: !Ref ControllerRoleArn
      KubernetesGroups:
        - view-nodes
      Type: STANDARD

Deploy the stack:

aws cloudformation deploy \
  --template-file aviatrix-eks-access.yaml \
  --stack-name aviatrix-eks-access-CLUSTER_NAME \
  --parameter-overrides \
    ClusterName=CLUSTER_NAME \
    ControllerRoleArn=CONTROLLER_ROLE_ARN

Then associate the access policy via CLI (CloudFormation may not support AWS::EKS::AccessPolicyAssociation):

aws eks associate-access-policy \
  --cluster-name CLUSTER_NAME \
  --principal-arn CONTROLLER_ROLE_ARN \
  --policy-arn arn:aws:eks::aws:cluster-access-policy/AmazonEKSViewPolicy \
  --access-scope type=cluster

Finally, create the Kubernetes RBAC:

kubectl apply -f cluster-role.yaml

Method comparison:

Method	Tools Required	Manages EKS Access Entry	Manages K8s RBAC	Single Command
Terraform	terraform + AWS/K8s providers	Yes	Yes	Yes (`terraform apply`)
eksctl + kubectl	eksctl, kubectl	Yes	Yes	No (2 commands)
AWS CLI + kubectl	aws CLI, kubectl	Yes	Yes	No (3 commands)
CloudFormation + kubectl	CF, aws CLI, kubectl	Partial (may need CLI for policy)	No	No (2-3 steps)

Post-Onboarding

Verifying Onboarding Status

After onboarding, the cluster status on the Kubernetes Clusters tab transitions through:

Status	Icon	Meaning
No	Gray	Discovered but not onboarded
Onboarding	Orange	Controller is establishing connectivity and beginning resource discovery
Yes	Green	Onboarded and resources are being actively discovered
Fail	Red	Onboarding failed — hover for error details, click Retry

Creating Kubernetes SmartGroups

Once the cluster status is Yes, you can create SmartGroups from Kubernetes resources. Quick creation from the Kubernetes Clusters tab:

Click Create SmartGroup on an onboarded cluster.
Choose One SmartGroup per Namespace or One SmartGroup per Service.
Select the namespaces or services to include.
Click Create.

SmartGroup filter properties:

Property	Description
`k8s_cluster_id`	Cluster ID (ARN for EKS, resource ID for AKS, self_link for GKE)
`k8s_namespace`	Namespace name
`k8s_service`	Service name
Custom K8s node labels	For example, `environment=production`

Service and Label filters cannot be combined in the same SmartGroup rule.

Kubernetes SmartGroups can be used as source or destination in DCF rules like any other SmartGroup.

Editing and Offboarding

Editing a Cluster

You can only edit the name of manually onboarded clusters.

Offboarding a Cluster

Offboarding removes the cluster configuration from the Controller. Resource discovery stops and SmartGroup resources are no longer updated.

CoPilot UI: Click Offboard next to the cluster and confirm.
Terraform: Remove the aviatrix_kubernetes_cluster resource and run terraform apply.

You cannot offboard a cluster that is referenced by SmartGroups. Remove the SmartGroup references first.

Offboarding does not remove EKS access entries, Kubernetes ClusterRoles, ClusterRoleBindings, or any IAM resources. Clean those up separately if they are no longer needed.

Troubleshooting

Symptom	Cause	Resolution
Cluster not appearing on K8s Clusters tab	Discovery not enabled or cloud account missing permissions	Enable K8s Resource Discovery; verify cloud account has required IAM permissions
Onboarding fails with “invalid content”	Kubeconfig is malformed or uses `exec`-based auth	Validate YAML syntax; replace `exec` auth with static token or certificate; ensure file is not double base64-encoded
Onboarded but 0 namespaces/services/pods discovered	Controller cannot reach the K8s API server, or RBAC is insufficient	Verify network path from Controller to cluster API; verify ClusterRole has `get`/`list`/`watch` on required resources
SmartGroup shows no members after onboarding	Resources not yet synced, or cluster uses overlay networking	Wait for initial sync (may take up to 60 seconds); overlay mode limits SmartGroups to Service destinations only
”Overlay Networks have limited support” warning	Network mode is Overlay	Use flat networking if possible; see Platform Requirements
Status shows “Fail” with no useful error	Controller IAM role does not have an EKS access entry	Verify EKS access entry exists for the Controller’s role ARN; verify `AmazonEKSViewPolicy` is associated

Concepts & Architecture

Guides

Reference

Overview

Onboarding Paths

Prerequisites

Platform Requirements

IAM Permissions

Kubernetes RBAC

Kubeconfig Requirements

Understanding the Access Model

Onboarding via Terraform

Custom or Self-Managed Clusters

Multi-Cluster Automation

Onboarding via CoPilot UI

Manual Onboarding

Onboarding via CLI (AWS Only)

Post-Onboarding

Verifying Onboarding Status

Creating Kubernetes SmartGroups

Editing and Offboarding

Editing a Cluster

Offboarding a Cluster

Troubleshooting

​Overview

​Onboarding Paths

​Prerequisites

​Platform Requirements

​IAM Permissions

​Kubernetes RBAC

​Kubeconfig Requirements

​Understanding the Access Model

​Onboarding via Terraform

​Custom or Self-Managed Clusters

​Multi-Cluster Automation

​Onboarding via CoPilot UI

​Manual Onboarding

​Onboarding via CLI (AWS Only)

​Post-Onboarding

​Verifying Onboarding Status

​Creating Kubernetes SmartGroups

​Editing and Offboarding

​Editing a Cluster

​Offboarding a Cluster

​Troubleshooting

​Related Topics

Overview

Onboarding Paths

Prerequisites

Platform Requirements

IAM Permissions

Kubernetes RBAC

Kubeconfig Requirements

Understanding the Access Model

Onboarding via Terraform

Custom or Self-Managed Clusters

Multi-Cluster Automation

Onboarding via CoPilot UI

Manual Onboarding

Onboarding via CLI (AWS Only)

Post-Onboarding

Verifying Onboarding Status

Creating Kubernetes SmartGroups

Editing and Offboarding

Editing a Cluster

Offboarding a Cluster

Troubleshooting

Related Topics
