This section provides the purpose, elements, and actions performed on the Reports pages.

​
Purpose

The Reports page lets you generate reports to understand telemetry, inventory, and health of your managed resources: resource utilization (gateway system and network metrics), inventory (gateways, VPCs, subnets, S2C connections, instances), and FlightCheck health check reports.

​
Elements

Reports: Resource Utilization
  • Resource Utilization: Time period, gateways selection (Gateway Name, Gateway Type, Cloud, Region, VPC/VNet Name, VPC/VNet ID, and per-interface graph options), system and network metrics, report format (group by metric or gateway), Create Report.
  • Inventory Report: Steps for cloud(s), region(s), VPC/VNets, resource type(s), properties, optional filters; Orientation, Document Size, Save As, PDF, TSV, PDF Preview.
  • FlightCheck: Orientation, Document Size, Save As, PDF, TSV, PDF Preview.
  • Back to Reports Dashboard button: Returns to the main Reports page.

​
Actions

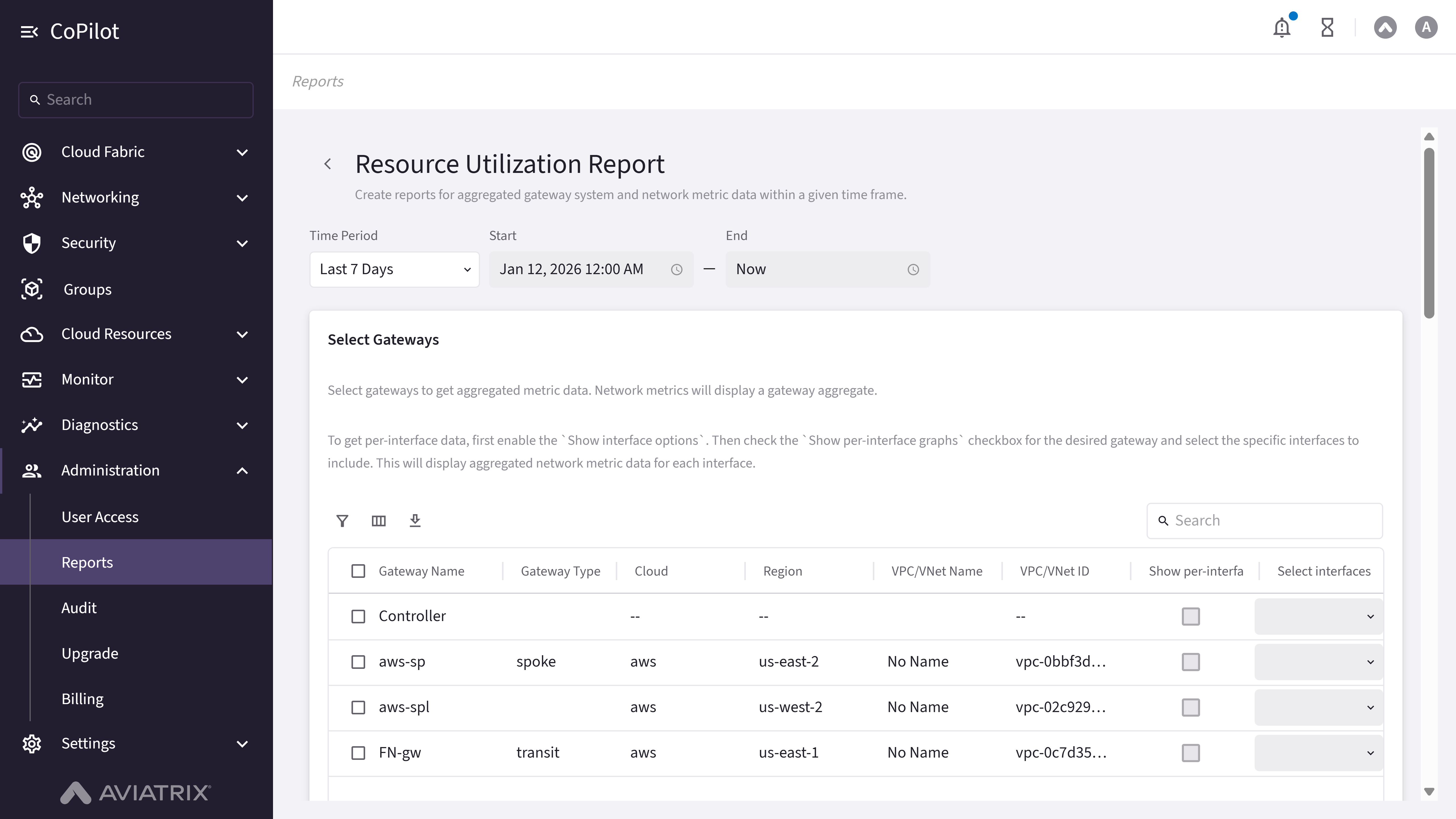

To create a resource utilization report:
  1. Go to Administration > Reports.
  2. Open the Resource Utilization Report flow (e.g., from report type selection).
  3. Set Time Period, Start, and End. In Select Gateways, choose gateways; optionally, check Show per-interface graphs for a gateway and use Select interfaces for per-interface graphs to choose which interfaces to include in per-gateway network metric data. In Select System Metrics and Select Network Metrics, choose metrics. Select Group by metric or Group by gateway. Click Create Report.
The report is generated for the selected time frame and options.

​
Parameter Details

Resource Utilization Report:
To create an inventory report:
  1. Go to Administration > Reports.
  2. Open the Inventory Report flow. Select cloud(s), region(s), VPC/VNets, resource type(s), and properties. Optionally, add filters. Set Orientation, Document Size, and Save As. Click PDF or TSV to export.
The inventory report is generated and can be downloaded as PDF or TSV.

​
Parameter Details

Inventory Report:
To create a FlightCheck health check report:
  1. Go to Administration > Reports.
  2. Open the FlightCheck report flow. Set Orientation, Document Size, and Save As (default: FlightCheck_Report_YYYY_MM_DD). Click PDF or TSV to export.
The FlightCheck report is generated and the PDF preview displays.

​
Parameter Details

FlightCheck:
