Egress

This section provides the purpose, elements, and actions performed on the Egress pages.

Overview
Analyze
Egress VPC/VNets
Transit Egress
FQDN Monitor (Legacy)

Purpose

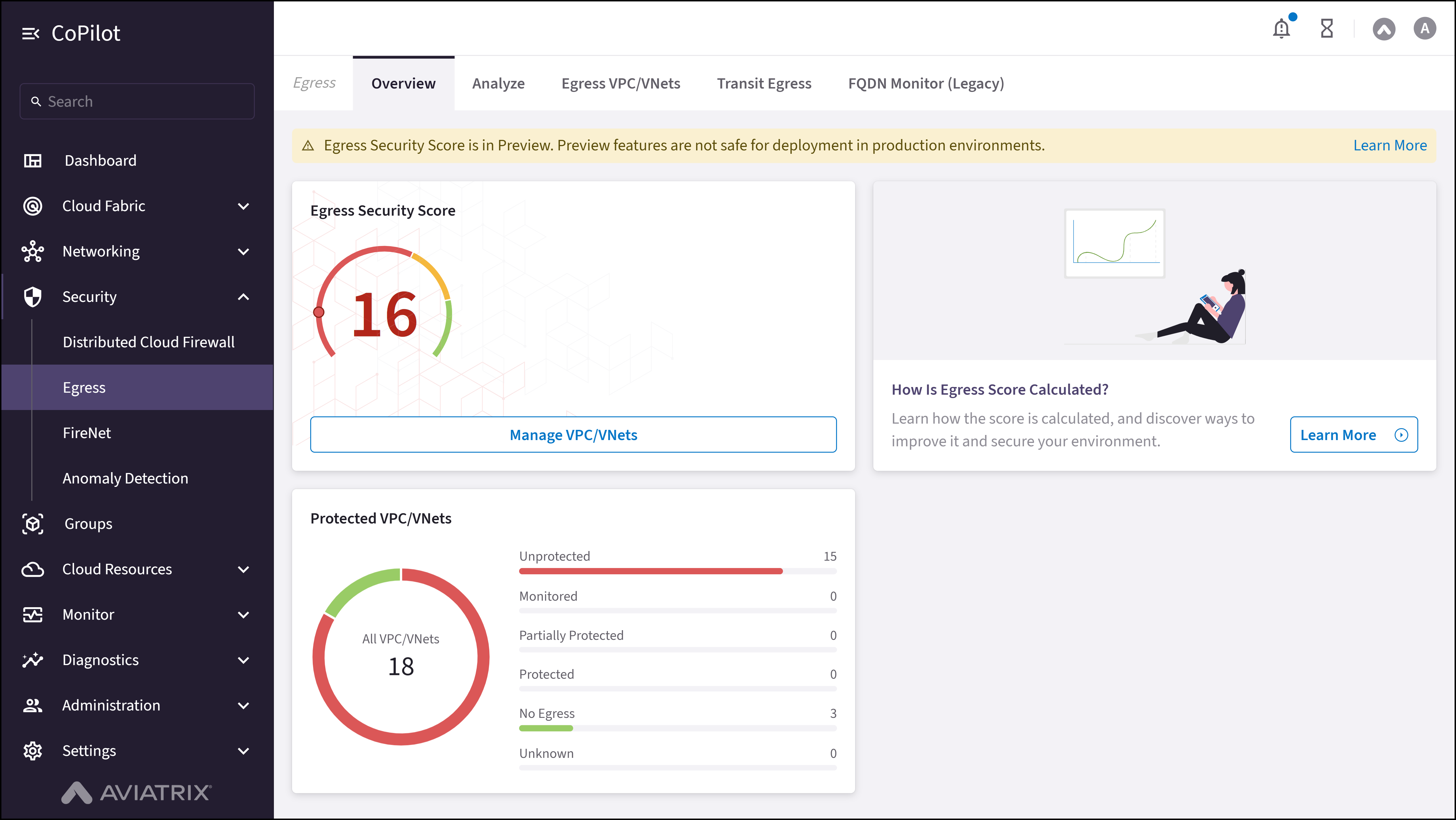

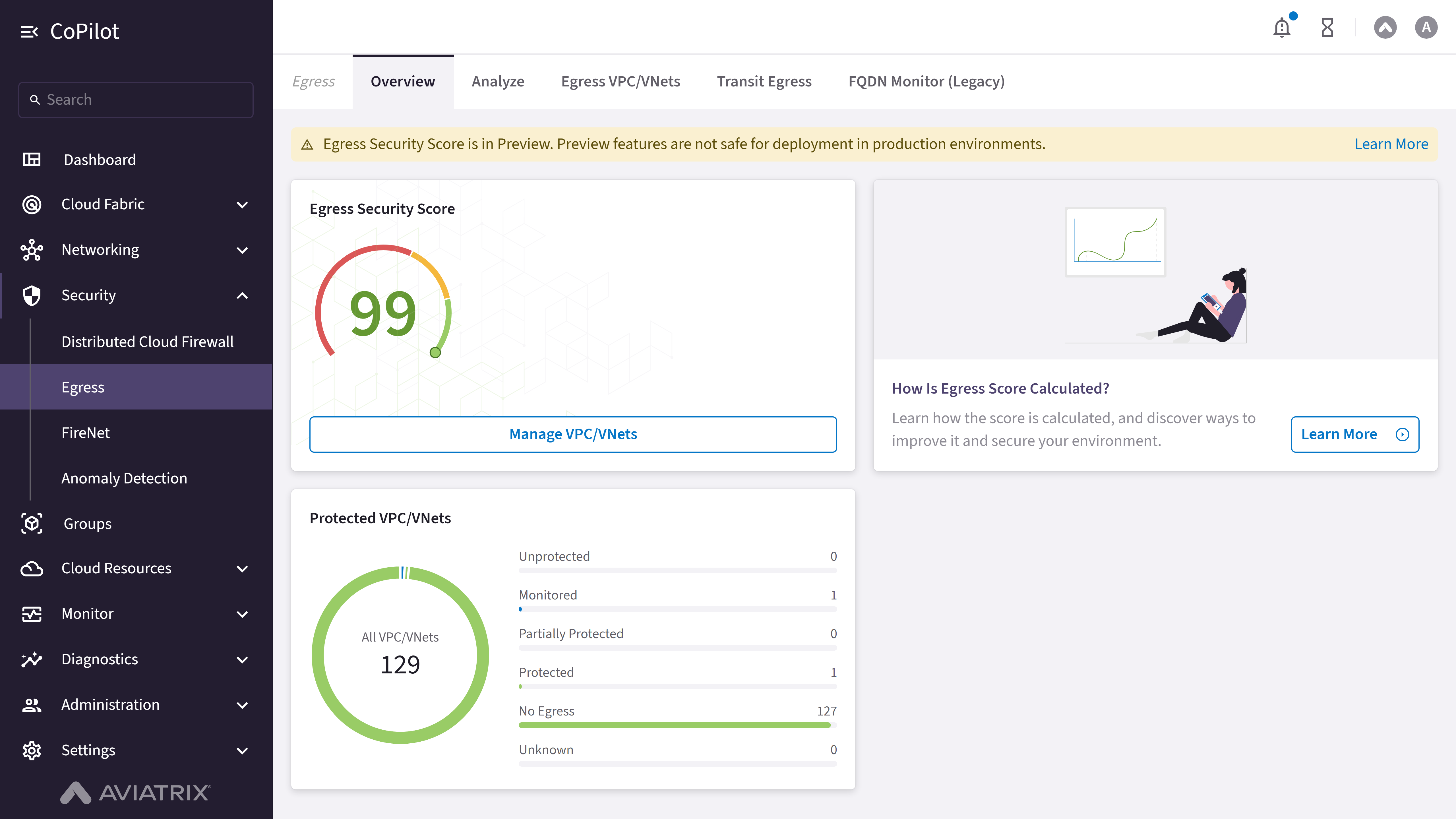

The Overview page shows the Egress Security Score, protected VPC/VNets status, and provides access to manage VPC/VNets configuration.

Elements

Egress Security Score: Information card showing egress security score with gauge visualization.
How Is Egress Score Calculated?: Information card with illustration and description about egress score calculation.
Protected VPC/VNets: Information card showing breakdown of protected VPC/VNets by status.
Progress indicators: Progress bars showing metrics.
Manage VPC/VNets button: Button to navigate to the Egress VPC/VNets page.
Learn More button: Button to access additional information about egress score calculation.

Actions

View Egress Overview

To view the egress security overview:

Go to Security > Egress > Overview.
The Overview page appears with the Egress Security Score, Protected VPC/VNets status, and progress indicators.
Review the egress security score and protected VPC/VNet breakdown.
Optionally, click Learn More to access additional information about egress score calculation.

The Overview provides a summary of egress security posture across your environment.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Egress Security Score	Shows the overall egress security score with gauge visualization.
2	Protected VPC/VNets	Shows the breakdown of protected VPC/VNets by status (e.g., Protected, Unprotected, Monitored).
3	Progress indicators	Progress bars showing metrics related to egress security.

Manage VPC/VNets

To navigate to the Egress VPC/VNets page:

Go to Security > Egress > Overview.
Click Manage VPC/VNets.

The Egress VPC/VNets page opens where you can manage VPC/VNet egress configuration.

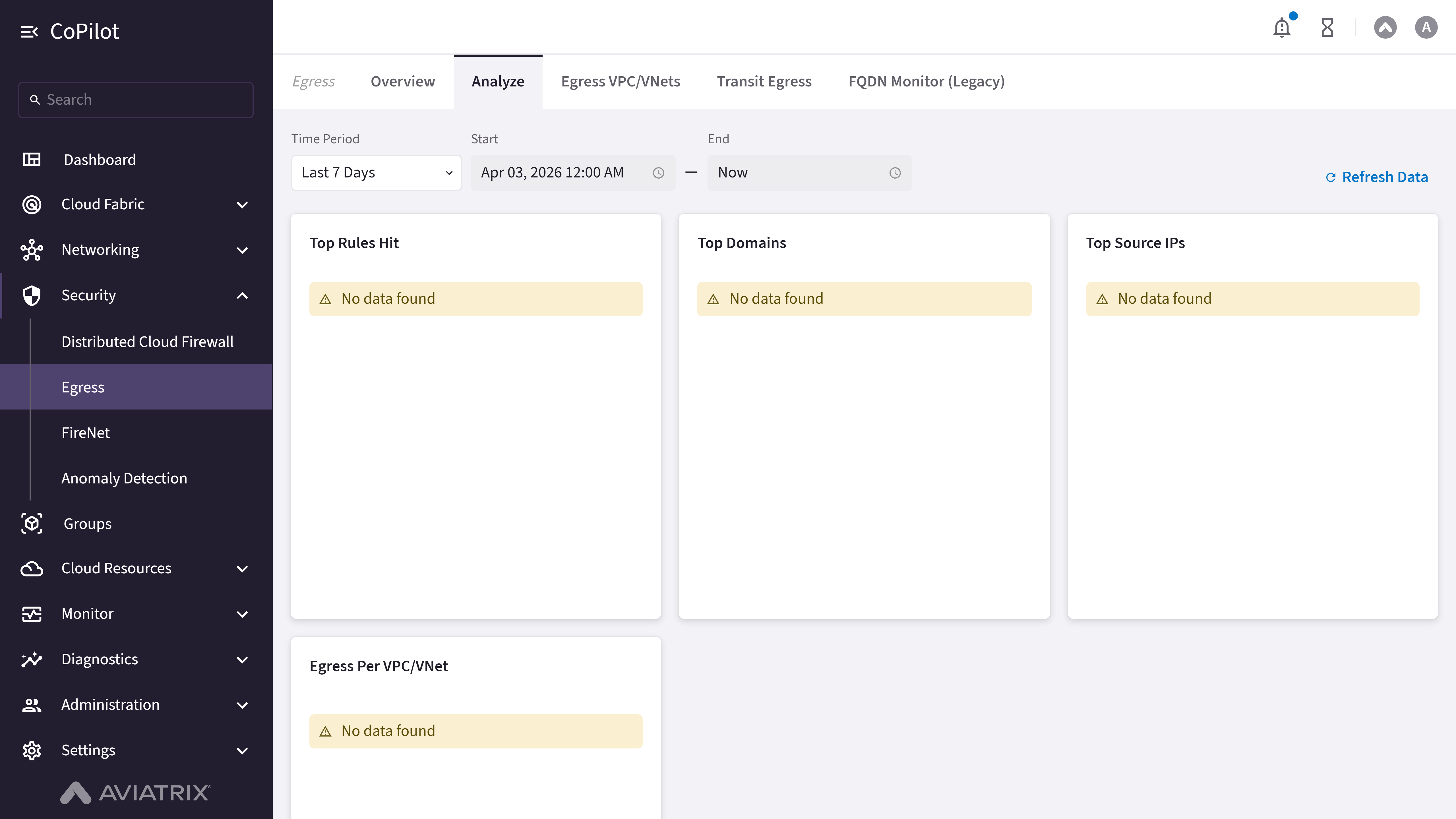

Purpose

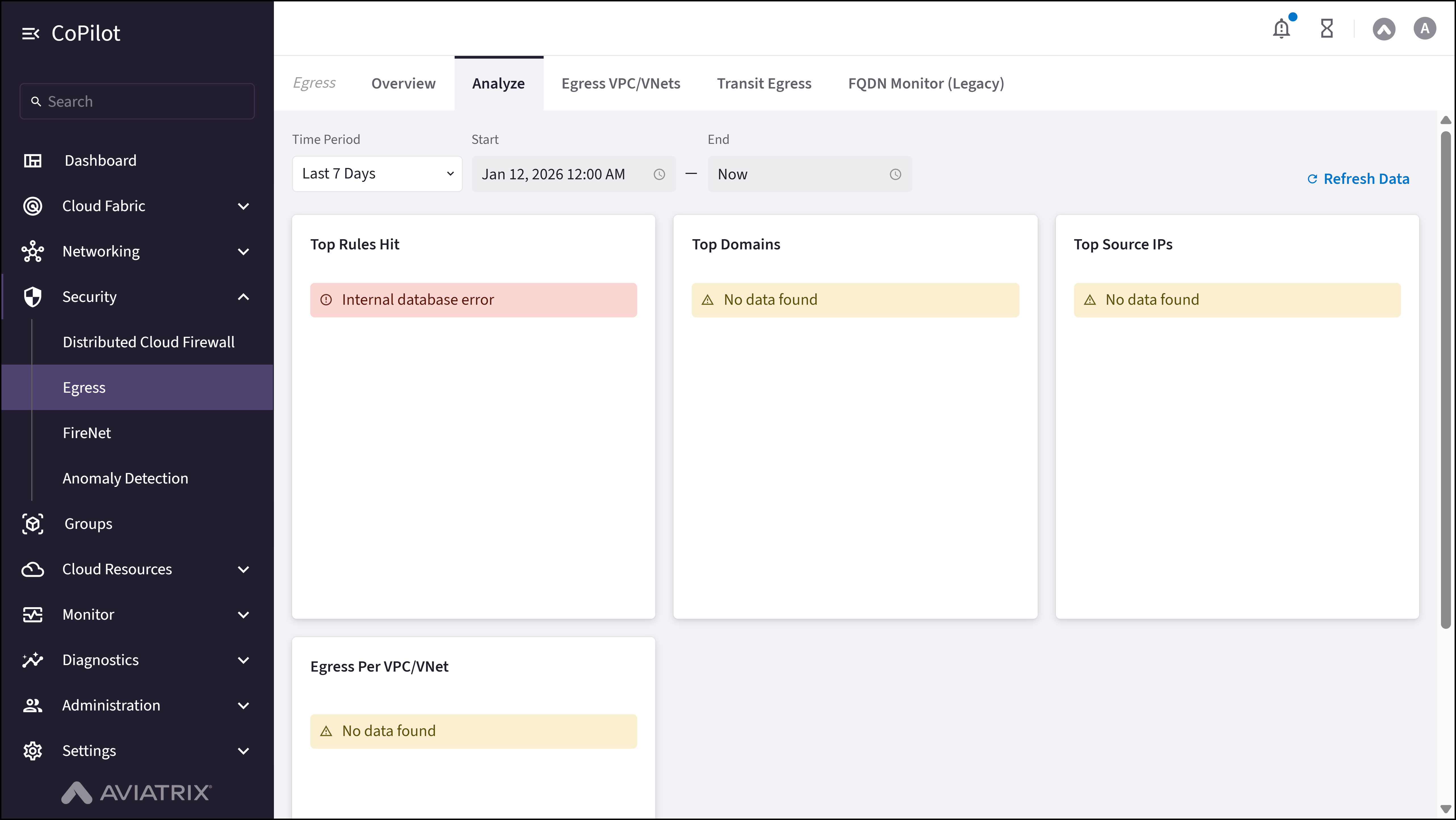

The Analyze page provides analysis of egress traffic patterns, top rules hit, top domains, top source IPs, and egress per VPC/VNet.

Elements

Time Period: Dropdown to select time period for analysis.
Start: Date and time picker field for start time.
End: Date and time picker field for end time.
Top Rules Hit: Analysis section showing top rules hit.
Top Domains: Analysis section showing top domains.
Top Source IPs: Analysis section showing top source IPs.
Egress Per VPC/VNet: Analysis section showing egress per VPC/VNet.
Refresh Data button: Button to refresh the analysis data.

Actions

View Egress Analysis

To view egress traffic analysis:

Go to Security > Egress > Analyze.
The Analyze page appears with Top Rules Hit, Top Domains, Top Source IPs, and Egress Per VPC/VNet sections.
Optionally, use the Time Period dropdown or Start and End fields to select a time range for analysis.
Click Refresh Data to refresh the analysis data.

The analysis helps identify egress traffic patterns and top consumers for security review.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Time Period	Dropdown to select time period for analysis.
2	Start	Date and time picker field for start time.
3	End	Date and time picker field for end time.
4	Top Rules Hit	Shows the top rules hit in egress traffic analysis.
5	Top Domains	Shows the top domains accessed in egress traffic.
6	Top Source IPs	Shows the top source IP addresses in egress traffic.
7	Egress Per VPC/VNet	Shows egress traffic analysis per VPC/VNet.

Purpose

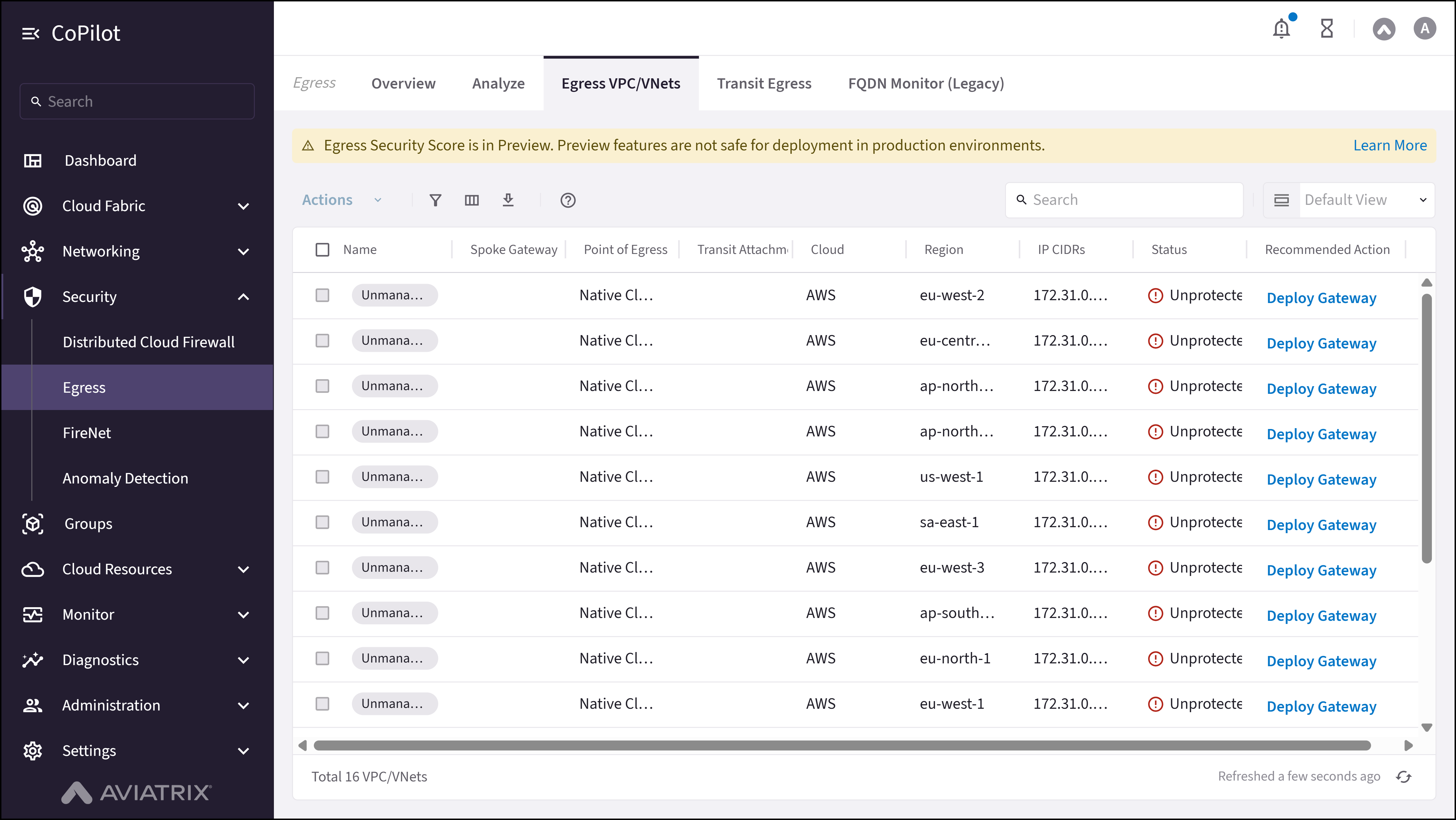

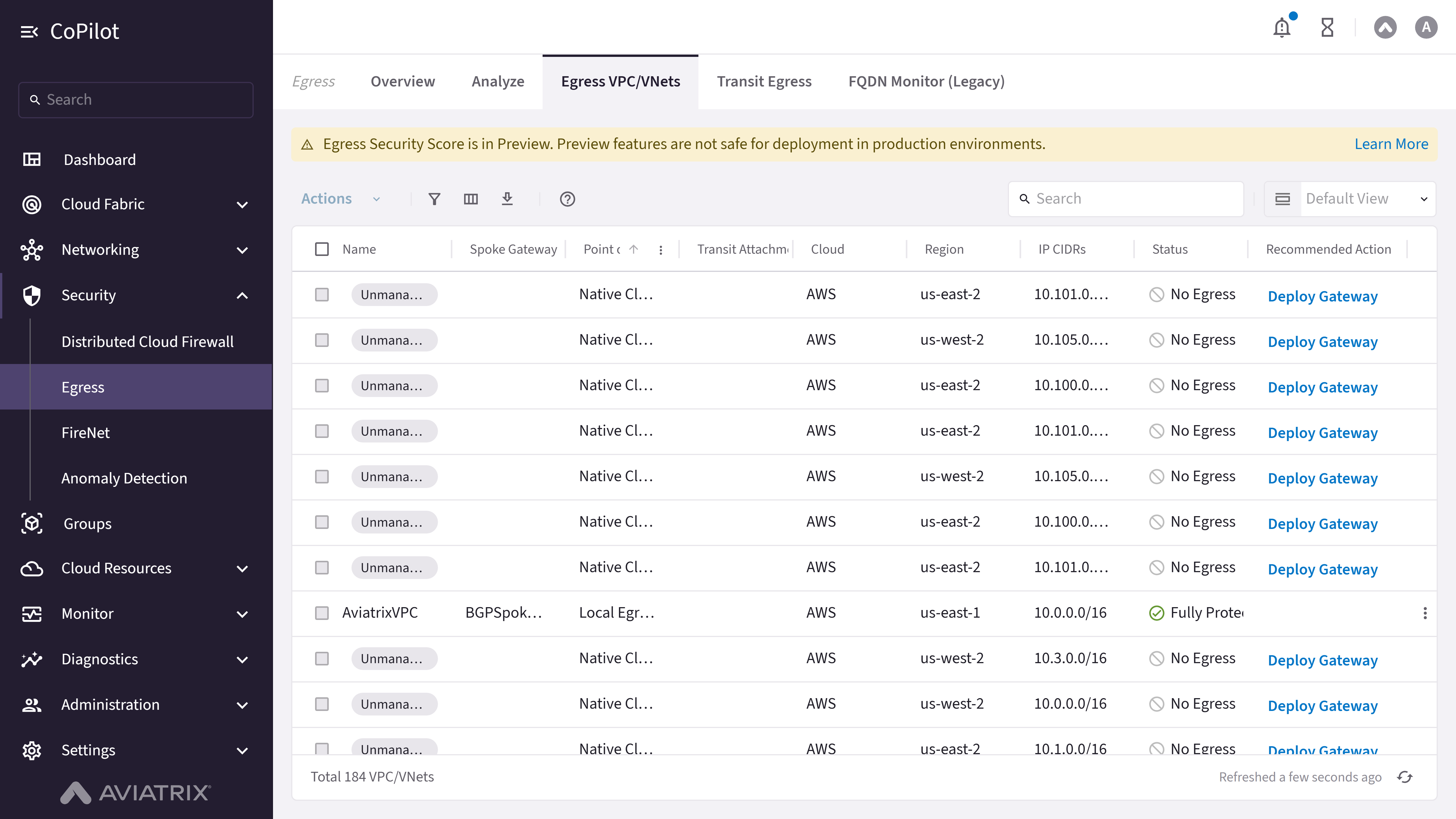

The Egress VPC/VNets page shows a table of VPC/VNets with their egress configuration status, point of egress, and recommended actions.

Elements

Search: Search box for filtering table content.
Default View: Dropdown to select default view.
Filter button: Button to show filters.
Columns button: Button to select columns.
Download button: Button to export data.
Show filters button: Button to display filter options.
Select columns button: Button to customize visible columns.
Export button: Button to export table data.
Deploy Gateway button: Button to deploy gateway for selected VPC/VNet.

Actions

View Egress VPC/VNets

To view VPC/VNet egress configuration:

Go to Security > Egress > Egress VPC/VNets.
The Egress VPC/VNets page appears with the table of VPC/VNets and their egress status.
Optionally, use Search, Filter, Default View, or Columns to customize the view.
Optionally, click Download or Export to export table data.

The table shows egress configuration status, point of egress, and recommended actions for each VPC/VNet.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Name	Shows the VPC/VNet name and management status.
2	Spoke Gateway	Shows the Spoke Gateway associated with the VPC/VNet.
3	Point of Egress	Shows the point of egress configuration (e.g., Native Cloud Egress).
4	Transit Attachment	Shows the Transit Gateway attachment information.
5	Cloud	Shows the cloud provider where the VPC/VNet is located.
6	Region	Shows the cloud region where the VPC/VNet is located.
7	IP CIDRs	Shows the IP CIDR blocks for the VPC/VNet.
8	Status	Shows the protection status of the VPC/VNet (e.g., Unprotected, Protected, Monitored).
9	Recommended Action	Shows the recommended action for the VPC/VNet (e.g., Deploy Gateway).

Deploy Gateway for VPC/VNet

To deploy a gateway for a selected VPC/VNet:

Go to Security > Egress > Egress VPC/VNets.
Locate the VPC/VNet in the table and select it.
Click Deploy Gateway.

The gateway deployment workflow starts for the selected VPC/VNet.

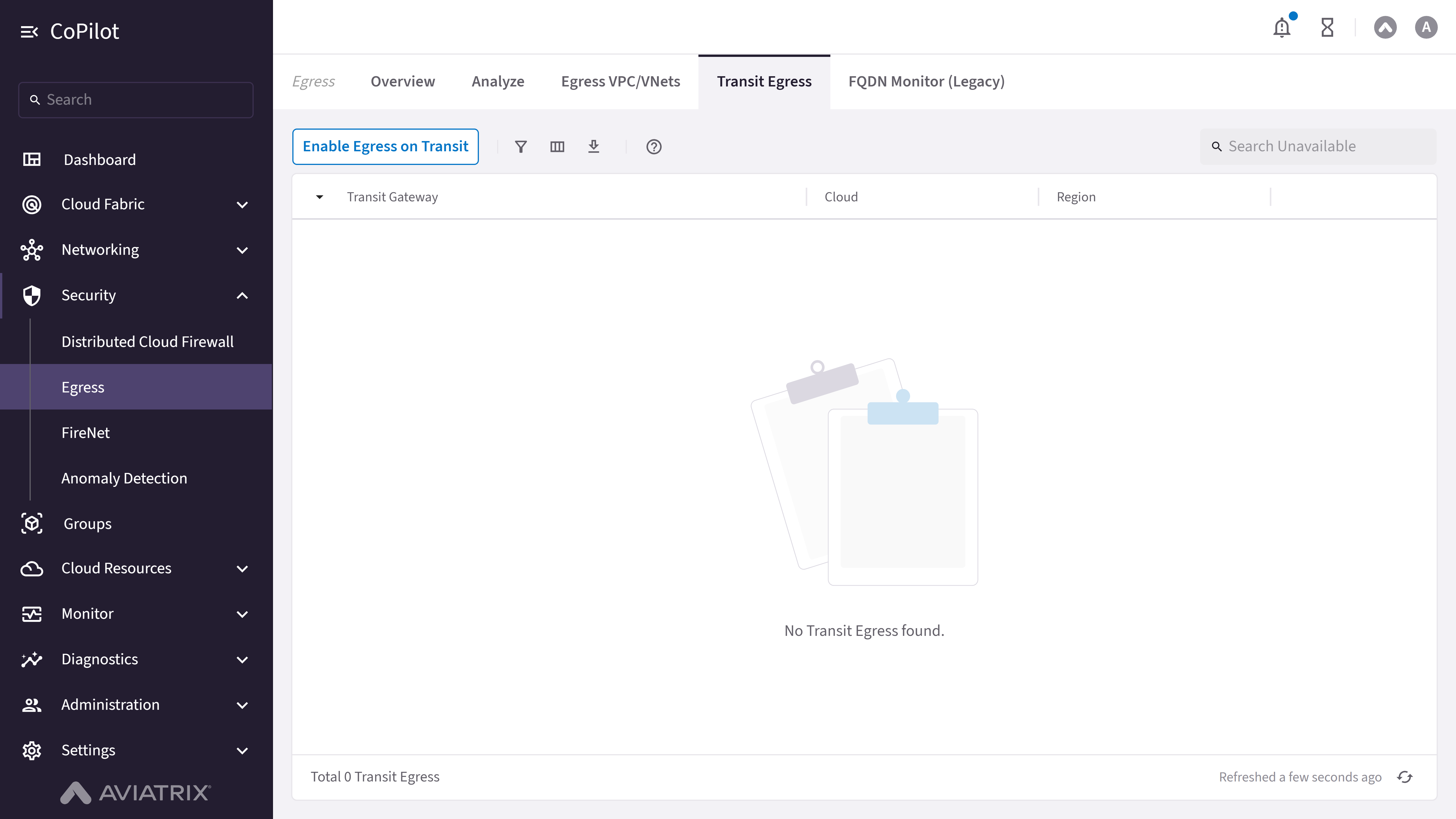

Purpose

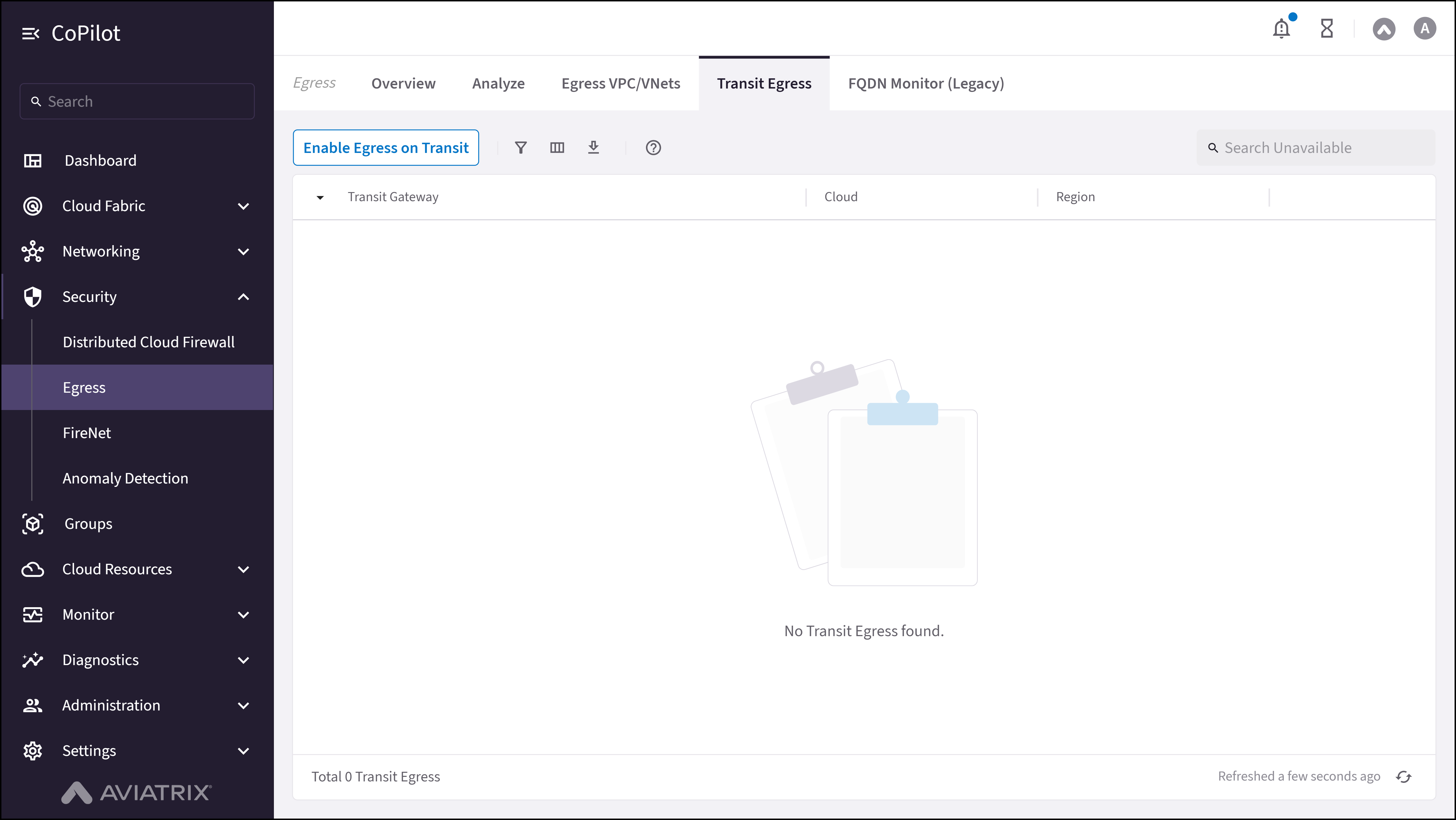

The Transit Egress page shows Transit Gateways configured for egress control and allows enabling egress on Transit Gateways.

Elements

Enable Egress on Transit button: Opens the dialog to enable egress on a Transit Gateway.
Filter button: Button to show filters.
Columns button: Button to select columns.
Download button: Button to export table data.
Search: Search box for filtering the Transit Gateway list.
Transit Egress table: Displays Transit Gateways configured for egress with Type, Cloud, Region, VPC/VNet, Cloud Load Balancer, Firewalls, Inspection, and Egress status.

Actions

View Transit Egress

To view Transit Gateways configured for egress control:

Go to Security > Egress > Transit Egress.
The Transit Egress page appears with the table of Transit Gateways and their egress configuration.
Optionally, use Search, Filter, or Columns to customize the view.
Optionally, click Download to export table data.

The table shows Transit Gateway egress status, inspection settings, and associated resources.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Transit Gateway	Displays the Transit Gateway configured for egress.
2	Type	Displays the gateway type associated with the transit egress setup.
3	Cloud	Indicates the cloud provider where the Transit Gateway runs.
4	Region	Displays the cloud region of the Transit Gateway.
5	VPC/VNet	Displays the VPC or VNet attached to the Transit Gateway.
6	Cloud Load Balancer	Indicates whether a cloud load balancer is associated with egress traffic.
7	Firewalls	Displays the firewall resources used for egress traffic inspection.
8	Inspection	Indicates whether traffic inspection is enabled.
9	Egress	Displays the egress status for the Transit Gateway.

Enable Egress on Transit Gateway

To enable egress on a Transit Gateway:

Go to Security > Egress > Transit Egress.
Click Enable Egress on Transit.
In the dialog, select the Transit Gateway on which to enable egress.
Choose Primary Egress or Secondary Egress and configure Attach Secondary Egress(s) if applicable.
In Launch & Associate Egress Instance(s), configure Egress Instance Size, Attach to Subnet, and add instances with + Egress Instance as needed.
Click Enable to apply the configuration.

Egress is enabled on the selected Transit Gateway. Use Cancel to discard changes and close the dialog.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Transit Gateway	Selects the Transit Gateway on which egress is enabled.
2	Primary Egress	Enables the selected Transit Gateway to provide egress control for attached Spoke Gateways.
3	Secondary Egress	Allows the Transit Gateway to forward traffic to a Primary Transit Egress Gateway for egress control.
4	Attach Secondary Egress(s)	Selects one or more Secondary Transit Gateways to associate with the Primary Egress Gateway.
5	Launch & Associate Egress Instance(s)	Section to create and associate egress instances with the Transit Gateway.
6	Egress Instance Size	Selects the instance size for the egress virtual machine.
7	+ Egress Instance	Adds a new egress instance configuration entry.
8	Attach to Subnet	Selects the subnet where the egress instance is deployed.
9	Cancel	Discards the configuration changes and closes the dialog.
10	Enable	Applies the configuration and enables egress on the selected Transit Gateway.

Purpose

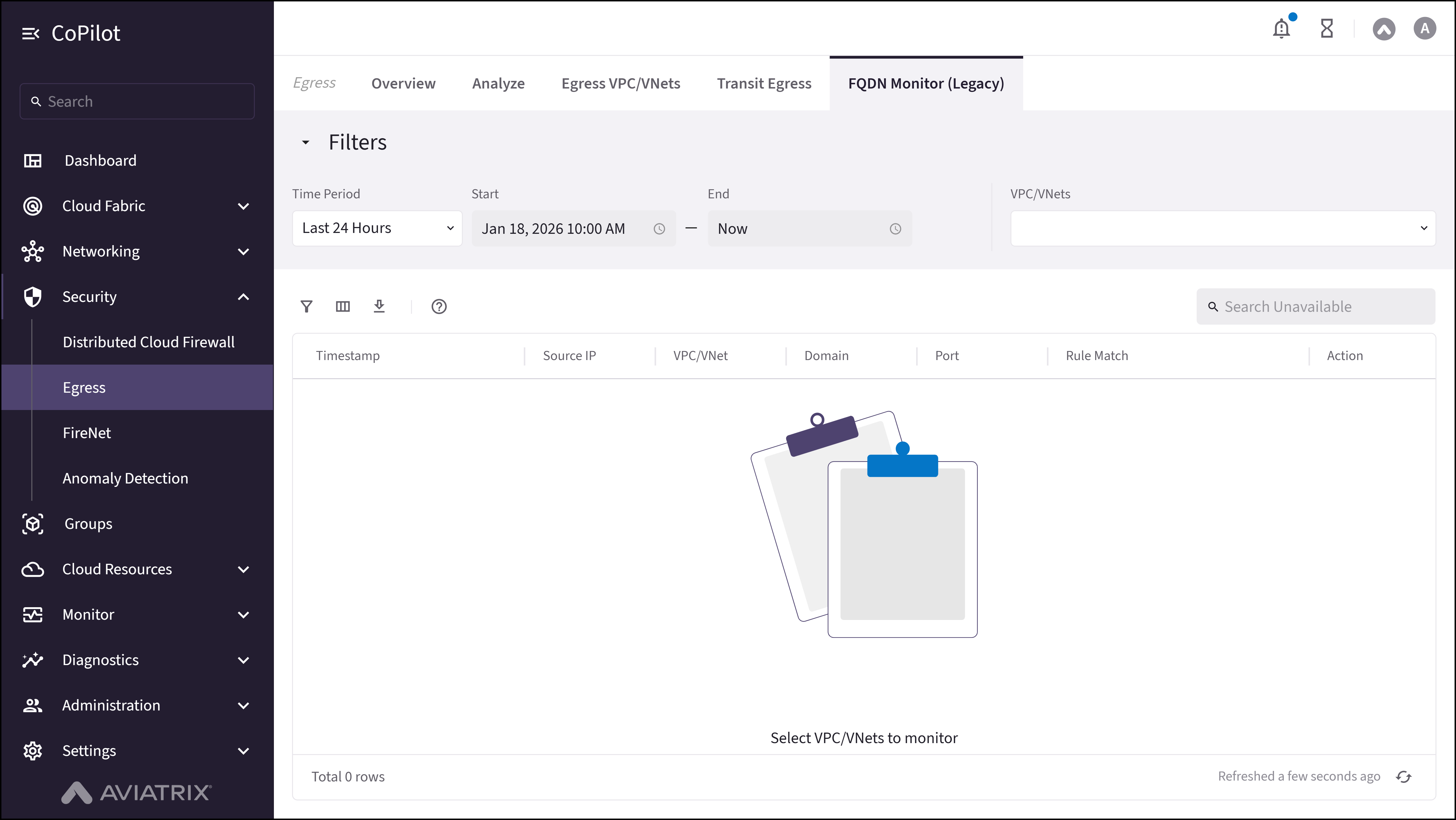

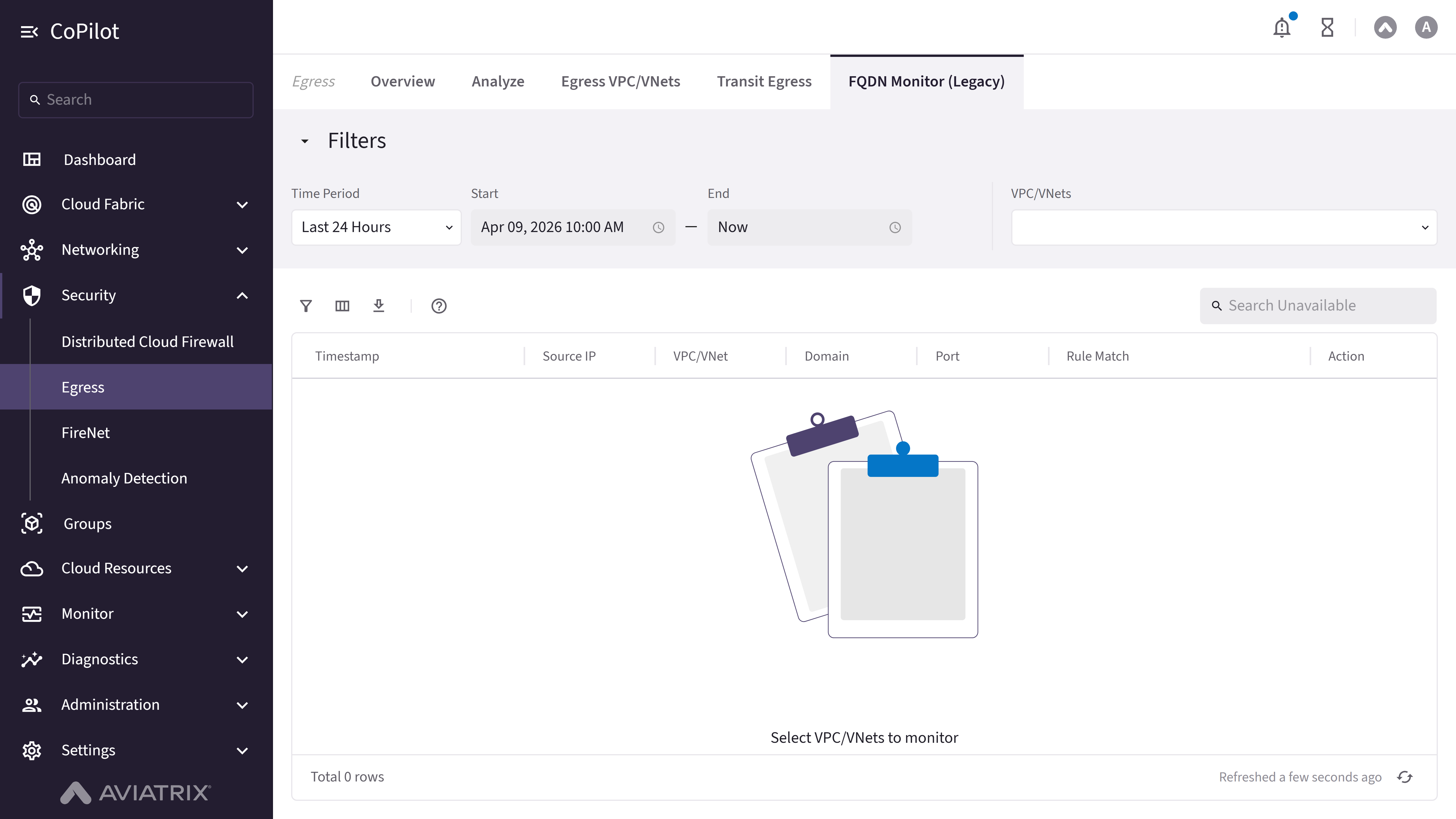

The FQDN Monitor (Legacy) page shows FQDN monitoring data for selected VPC/VNets, including timestamp, source IP, domain, port, rule match, and action information.

Elements

Filters: Collapsible filters section.
Time Period: Dropdown to select time period.
Start: Date and time picker field for start time.
End: Date and time picker field for end time.
VPC/VNets: Combobox to select VPC/VNets to monitor.
Search: Search box (unavailable/disabled).
Show filters button: Button to display filter options.
Select columns button: Button to customize visible columns.
Export button: Button to export table data.

Actions

View FQDN Monitor Data

To view FQDN monitoring data:

Go to Security > Egress > FQDN Monitor (Legacy).
The FQDN Monitor page appears with the monitoring table.
Use Time Period or Start and End fields to select a time range.
Use VPC/VNets combobox to select VPC/VNets to monitor.
Optionally, use Filters, Select columns, or Export to customize or export data.

The table displays FQDN monitoring events with timestamp, source IP, domain, port, rule match, and action.

Parameter Details

Sl. No.	CoPilot Parameter Name	Description
1	Timestamp	Shows the timestamp of the FQDN monitoring event.
2	Source IP	Shows the source IP address of the egress traffic.
3	VPC/VNet	Shows the VPC/VNet where the traffic originated.
4	Domain	Shows the domain name accessed in the egress traffic.
5	Port	Shows the port number used for the egress traffic.
6	Rule Match	Shows whether the traffic matched a rule.
7	Action	Shows the action taken for the egress traffic.
