This section provides the purpose, elements, and actions performed on the Upgrade pages.

Upgrade

Purpose

The Upgrade page helps you keep the Controller and gateways up to date with a rolling selective upgrade process. View controller version information and gateway upgrade requirements, and create or manage upgrade groups so you can upgrade gateways in logical groups and minimize disruption.

Elements

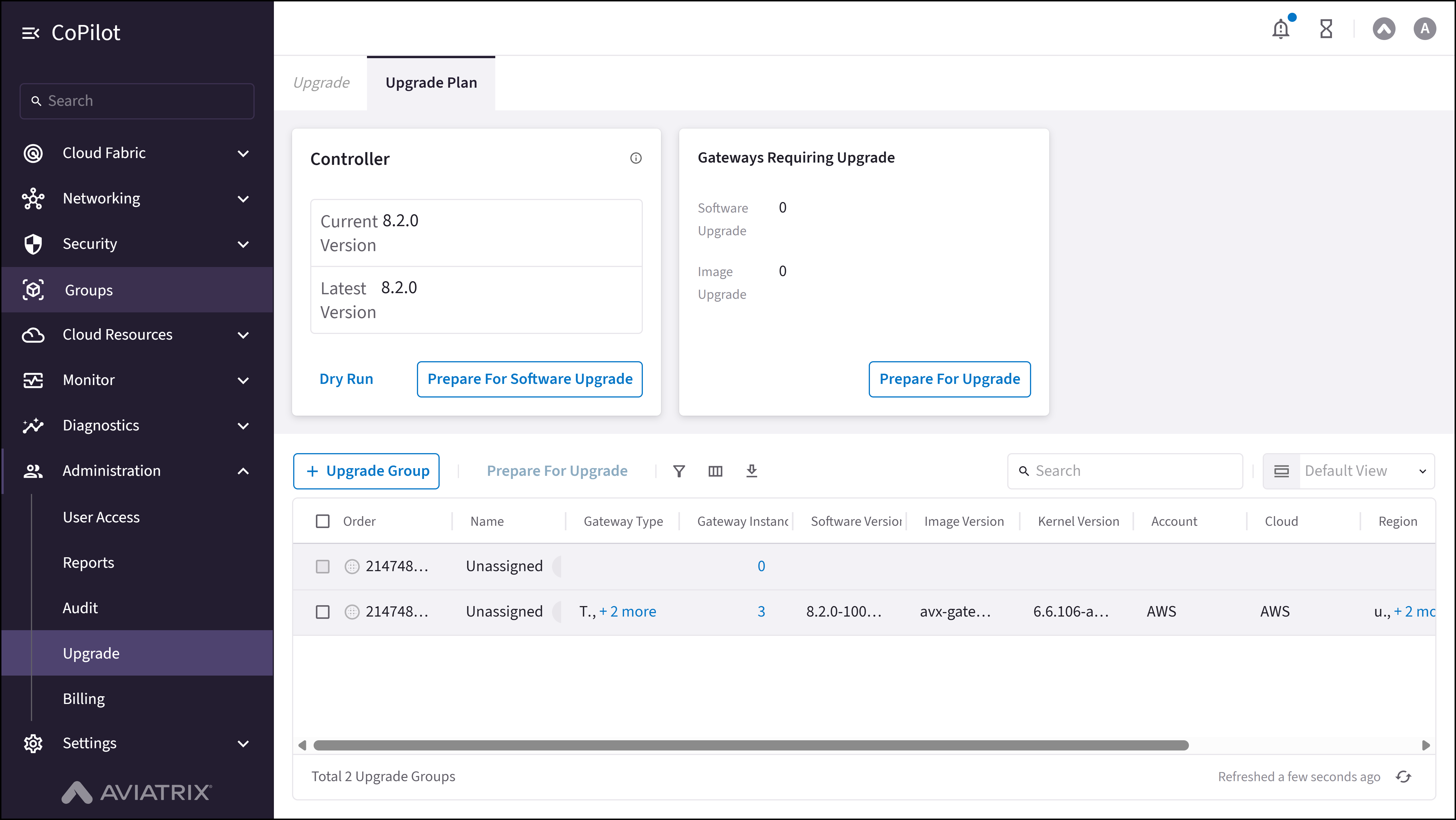

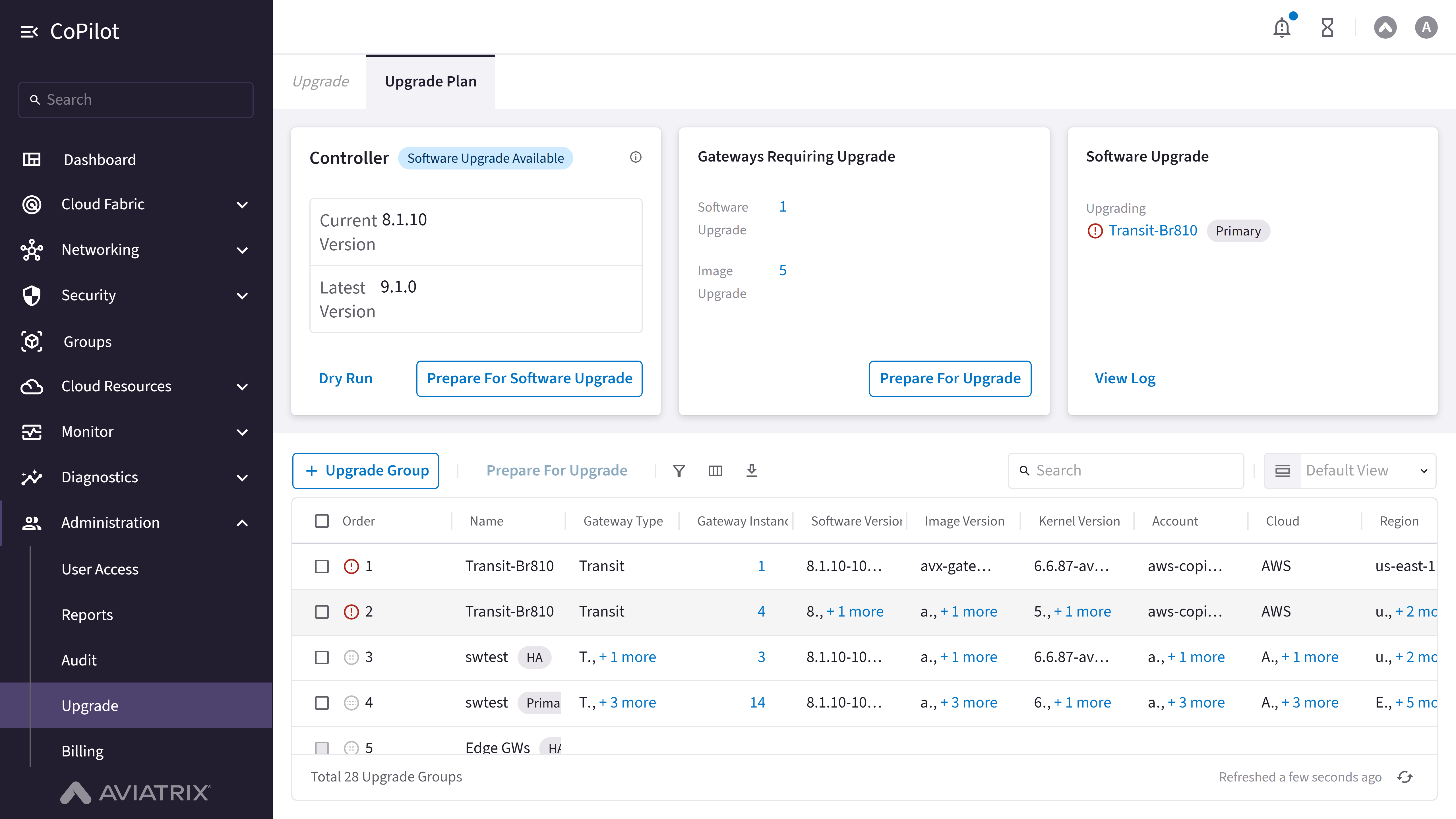

Upgrade: Upgrade Plan

Controller: Controller version information section showing Current Version and Latest Version.
Dry Run: Button to perform a dry run of the upgrade process.
Prepare For Software Upgrade: Button to prepare the controller for software upgrade.
Gateways Requiring Upgrade: Section showing count of gateways requiring Software Upgrade and Image Upgrade.
Prepare For Upgrade: Button to prepare selected gateways for upgrade.
Software Upgrade: Card showing current software upgrade progress.
View Log: Button to view upgrade logs.
Upgrade Group: Button to create a new upgrade group.
Show filters: Button to show filters for the upgrade groups table.
Select columns: Button to select columns for the upgrade groups table.
Export: Export button to download upgrade groups data.
Search: Search box for filtering table content.
Default View: Dropdown to select default view or modified view for the table.
Save View: Button to save the current view configuration.
More Options: Button to access additional view options.
View Gateway Instances: Button to view gateway instances for an upgrade group.

Actions

View Upgrade Plan

To view the upgrade plan:

Go to Administration > Upgrade.
The page appears with Controller version info, Dry Run, Prepare For Software Upgrade, Gateways Requiring Upgrade, upgrade groups table, and Upgrade Group.
Optionally, use Show filters, Select columns, Export, Search, or View Gateway Instances to inspect groups.

The upgrade plan shows controller and gateway upgrade status and upgrade groups.

Parameter Details

CoPilot Parameter Name	Description
Order	Shows the order/priority of the upgrade group in the upgrade plan.
Name	Shows the name of the upgrade group.
Gateway Type	Shows the type of gateway (e.g., Transit, Spoke).
Gateway Instance	Shows the number of gateway instances in the upgrade group.
Software Version	Shows the current software version of gateways in the group.
Image Version	Shows the current image version of gateways in the group.
Kernel Version	Shows the current kernel version of gateways in the group.
Account	Shows the cloud account associated with the upgrade group.
Cloud	Shows the cloud provider (e.g., AWS, Azure, GCP).
Region	Shows the cloud region where gateways in the group are located.
Upgrade Group Status	Shows the current status of the upgrade group (e.g., Pending, In Progress).

Create Upgrade Group

To create an upgrade group:

Go to Administration > Upgrade.
Click Upgrade Group (or + Upgrade Group).
In the dialog, enter a group Name, select matching conditions (Gateway type, cloud, region, account, gateway name, current image version, kernel version; combine with AND or OR), and set group order (e.g., Place Upgrade Group: Above, Below, Top, or Bottom). Click Save.

A notification appears and the new upgrade group is added to the upgrade plan.

Parameter Details

CoPilot Parameter Name	Description
Name	Enter a name for the upgrade group.
Matching conditions	Select criteria: Gateway type, cloud, region, account, gateway name, current image version, kernel version. Combine with AND or OR. Enable Preview to view matching gateways.
Place Upgrade Group (group order)	Select where to place the group: Above, Below, Top, or Bottom relative to existing groups; or set order number.
