Aviatrix SAML Authentication on Microsoft Entra ID IdP

​

Pre-Deployment Checklist

1. The Aviatrix Controller and CoPilot are deployed.
2. You have an Azure account.
3. You have downloaded and installed the Aviatrix SAML VPN client (if you are configuring access to the cloud environment using Aviatrix UserVPN).

​

Aviatrix VPN Client

​

Custom SAML Request Template

<?xml version="1.0" encoding="UTF-8"?>
<samlp:AuthnRequest xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol" ID="$ID" Version="2.0" IssueInstant="$Time" Destination="$Dest" ForceAuthn="false" IsPassive="false" ProtocolBinding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" AssertionConsumerServiceURL="$ACS">
<saml:Issuer xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">$Issuer</saml:Issuer>
</samlp:AuthnRequest>

​

Configuration Steps

1. Create a SAML Endpoint in Aviatrix CoPilot:
   • For controlling user access to Controller and CoPilot: Administration > User Access > Access Management
   • For controlling user access to the cloud environment using UserVPN: Cloud Fabric > UserVPN > Settings
2. Create an Entra ID SAML Application for Aviatrix in the Azure Console.

​

Entra ID Custom SAML Application

“https://<your Controller IP or host name>/flask/saml/sso/<aviatrix_EntraID>”

​

Creating the SAML Endpoint

• Controller/CoPilot access: Cloud Fabric > Administration > User Access > Access Management
• User cloud environment access: Cloud Fabric > UserVPN > Settings

​

Access Management (Controller/CoPilot)

1. At Administration > User Access > Access Management, click +SAML Endpoint and populate the Create SAML Endpoint dialog as follows.

   Field	Description
   Name	Entra ID. This name is later chosen from the login menu when authenticating. You can configure multiple SAML configurations if desired.
   Identity Provider Metadata Type	Select URL
   Identity Provider Metadata URL	https://www.aviatrix.com (temporary, because the IdP is not yet configured; you will change it later).
   Entity ID	Select Hostname
   Access Set By	Controller: if this is selected you need to create a separate SAML endpoint for each permission group you want to grant access to. SAML Identity Provider Attribute: This allows the Identity Provider to control what access is allowed for the authenticated user by sending the “Profile” attribute. If this is selected you can also choose to block empty profiles. When Block Empty Profiles is selected, users without explicitly set permissions are not granted access. If empty profiles are allowed, users who do not have a set profile from the IdP are treated as ‘read_only’ users.
   Custom SAML Request Template	If desired, copy the sample provided in the above section (Custom SAML Request Template). In some instances, your organization may require you to use special administrative accounts for admin access, while using a normal day-to-day account for read_only access. This can pose challenges when your IdP automatically logs you in without prompting for a username and password. Automatic login can be overridden by setting ForceAuthn=“true” in the custom SAML Request Template.

2. Click Save.
3. After saving your configuration, click the icon and select Copy Assertion Consumer Service URL. This is the endpoint that needs to be configured in the IdP.

​

User Cloud Environment Access (UserVPN)

1. At Cloud Fabric > UserVPN > Settings, click +SAML Endpoint and populate the Create SAML Endpoint dialog as follows.

   Field	Description
   Name	EntraID
   Identity Provider Metadata Type	Select URL
   Identity Provider Metadata Text	Identity Provider Metadata URL (https://aviatrix.com; this will be updated with your IdP URL in a later step)
   Entity ID	Select Hostname
   Custom SAML Request Template	Turn this setting on. Copy the Custom SAML Request Template (provided above) into the field. The template is required to connect with Entra ID. If it is not entered, you will receive an error message when testing.

2. Click Save.
3. After saving your configuration, click the icon next to the SAML endpoint and select Copy Assertion Consumer Service URL. This is the endpoint that must be configured in the IdP.

​

Configuring an Enterprise Application in Entra ID (Azure AD) for Aviatrix SAML Authentication

1. Log into your Azure portal and search for ‘Entra ID’ (formerly Azure AD).
2. On the Microsoft Entra ID page, select Enterprise Applications from the left-hand menu.
3. Click +New application.
4. Click Create your own application.
5. Enter a name for the application.
6. Select the Integrate any other application you don’t find in the gallery (Non-gallery) option and click Create.
7. On the application Overview page, click Get started under “Set up single sign on”.
8. Select the SAML single sign-on method.

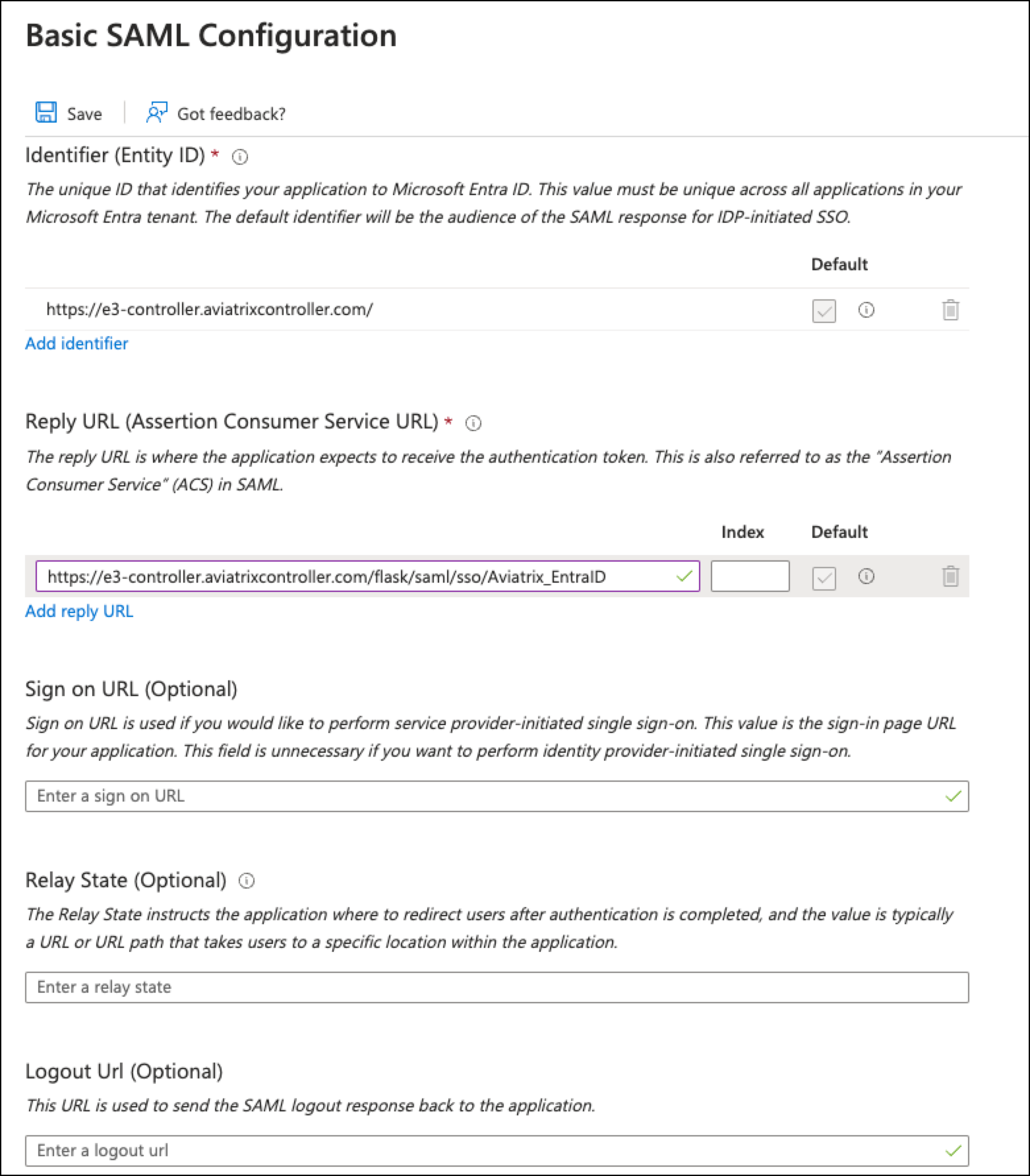

9. On the SAML-based Sign-on page, click Edit next to Basic SAML Configuration. The Basic SAML Configuration page displays.
10. Enter the following information:
    • Identifer (Entity ID): paste the URL of your Controller. If you have additional Controllers, you can add additional identifiers (and configure SAML on the associated CoPilot instance).
    • Reply URL (Assertion Consumer Service URL) field: paste the recently copied Assertion Consumer Service URL that became available after creating the SAML endpoint in CoPilot.
    • The other fields are optional.

11. Save the configuration.

​

Adding Users and Groups

1. Add groups from the Entra ID main menu by selecting Groups (as shown below).

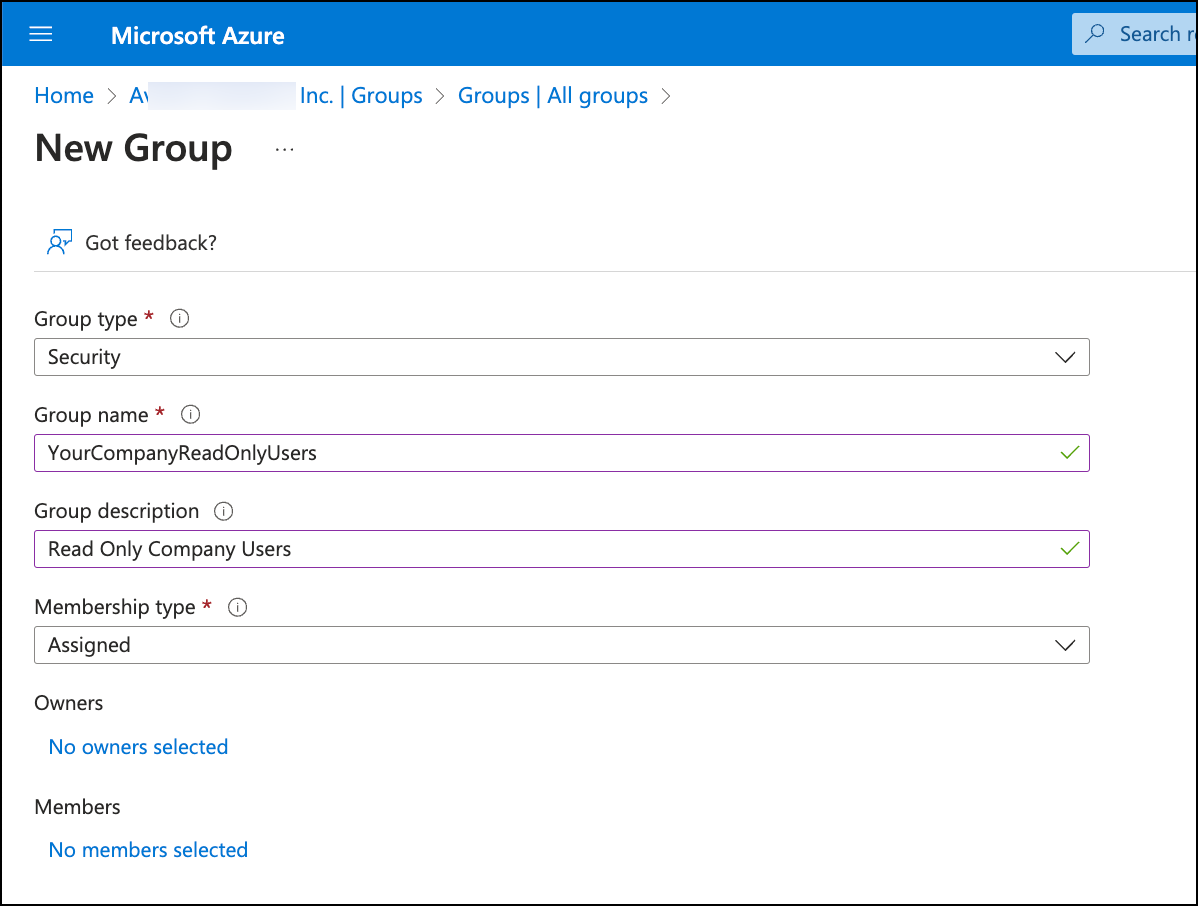

2. On the All groups page, click New Group to create groups that meet your access requirements.

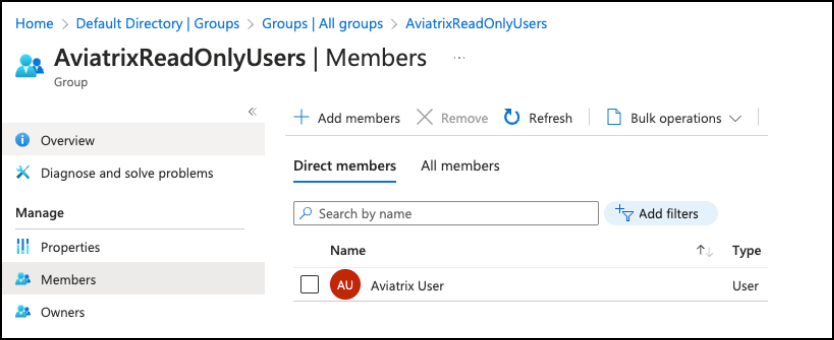

3. After the groups are created, add users to the groups.
4. After the groups and group memberships are created, return to the recently created Enterprise application and assign users to the enterprise application?

​

Adding a Claim for Single Sign On

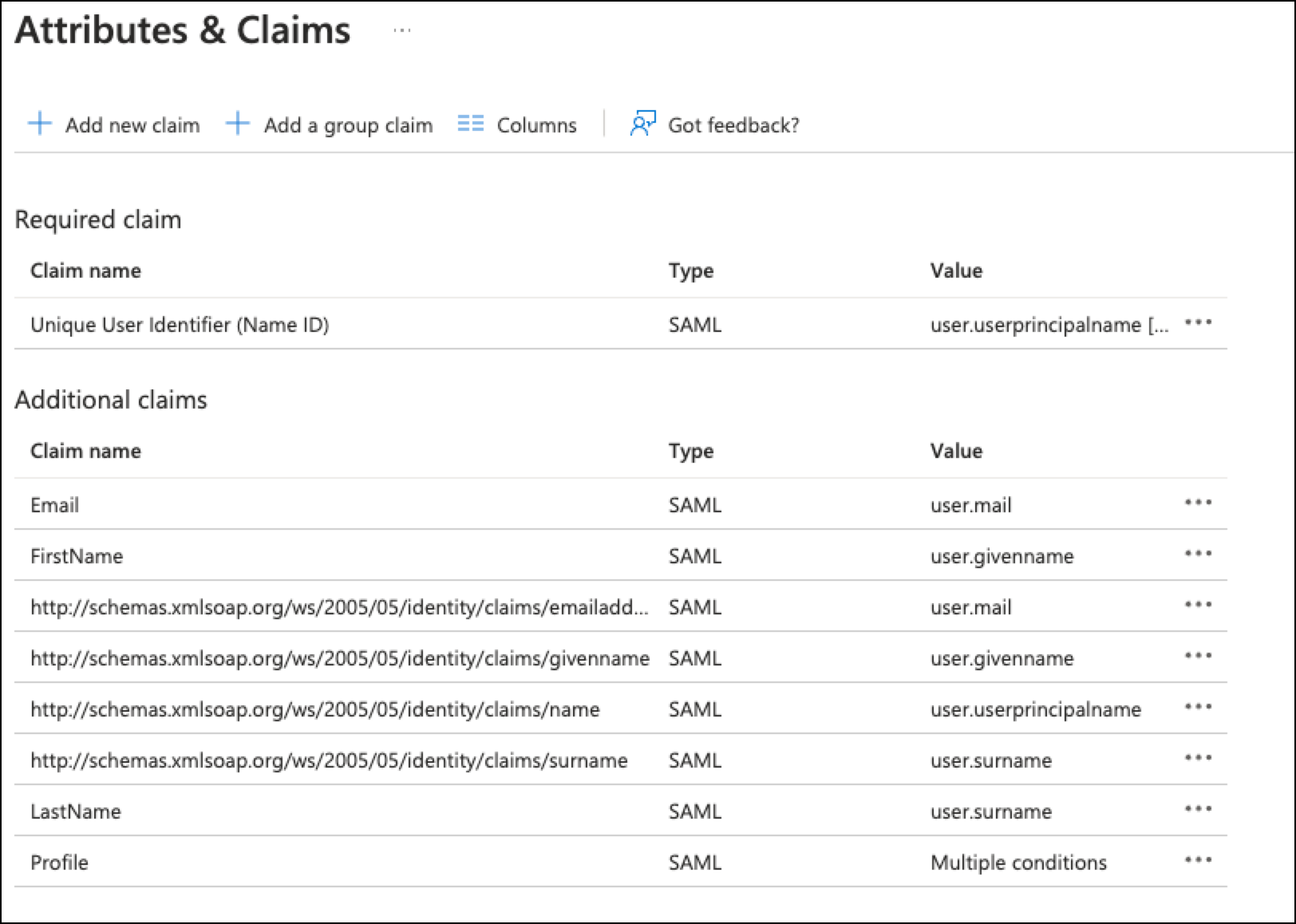

1. Next, on the Enterprise application Overview page, click Set up single sign-on and configure Attributes & Claims.
2. Click Add new claim.
3. Add new claims for the following as per the above screenshot (using the values shown above):
   • Email
   • First Name
   • Last Name
   • Profile

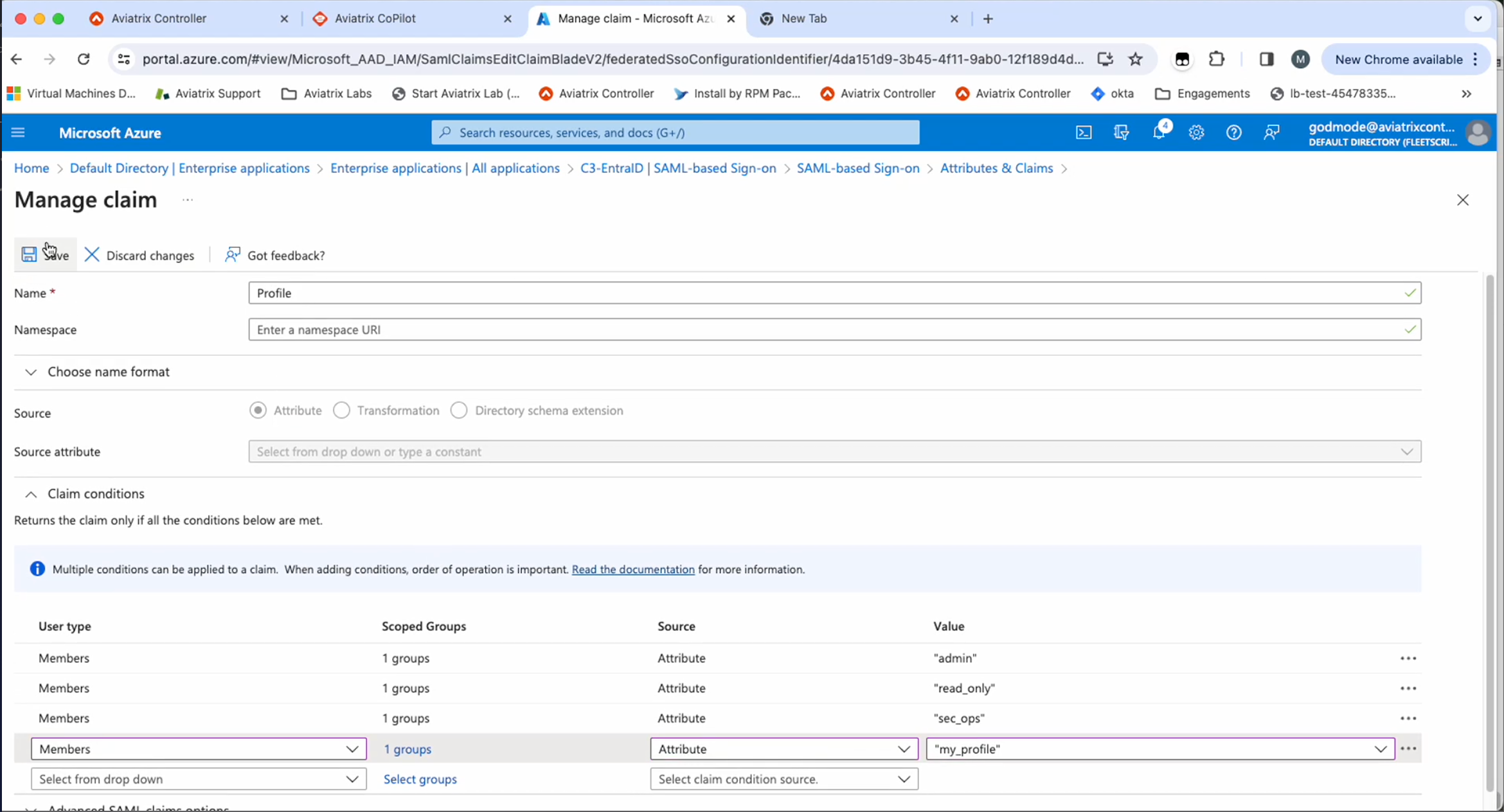

4. In the Profile claim, add conditions similar to the folloiwng for the user groups you created (the below is for example purposes only).

   User Type	Scoped Groups	Source	Value
   Members	AviatrixAdmins	Attribute	admin
   Members	AviatrixReadOnlyUsers	Attribute	read_only
   Members	AviatrixSecOPs	Attribute	sec_ops
   Members	AviatrixUsers	Attribute	my_profile


5. Once you have configured all necessary groups, save the claim configuration.

​

Finishing the Configuration

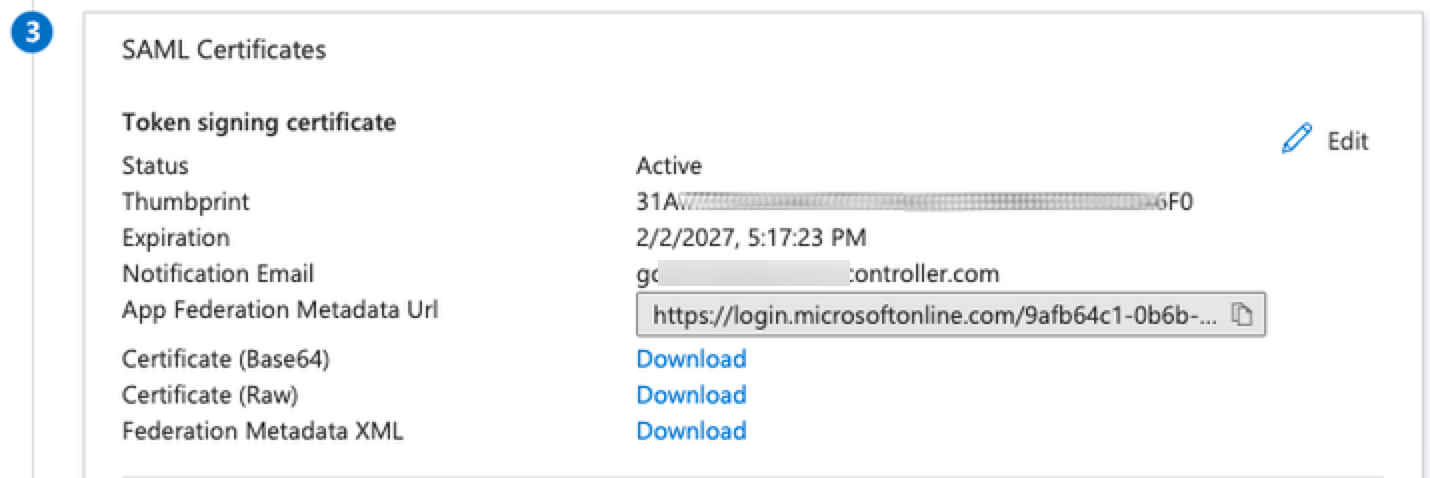

1. Return to the Entra ID Overview page and copy the App Federation Metadata URL.
2. In CoPilot, click the Edit icon for the SAML endpoint you created.
3. Paste the copied metadata into the URL field.
4. Click Save.
5. To validate, click the Test link for the SAML endpoint.
