Overview

Telemetry Export Profiles let you send Aviatrix telemetry to your own external SIEM, observability, or archival systems. Instead of building a separate integration for each telemetry type, you configure one or more Telemetry Export Profiles, and each profile controls what telemetry it forwards, the connection it uses, and where it is sent. Each profile can forward the following telemetry source types:
  • Distributed Cloud Firewall (DCF) security logs
  • Gateway infrastructure metrics
Each profile forwards telemetry using one of the following connection types:
  • OTLP over gRPC, optionally with server TLS
  • OTLP over HTTP, optionally with TLS
Syslog is not a supported export protocol for Telemetry Export Profiles in this release.
A Controller supports a maximum of 10 Telemetry Export Profiles. For the complete field-level breakdown of each connection type’s configuration options, see Telemetry Export Profile Reference.

​
Prerequisites

  • Aviatrix Controller running version 10.1 or later.
  • CoPilot running version 4.35 or later, deployed and connected to the Controller.
  • Administrator access to CoPilot.
  • Network connectivity from Aviatrix Gateways to the destination endpoint (firewall rules and security groups permitting outbound traffic on the destination port).
  • The destination endpoint (SIEM, observability platform, data lake, or compliance archive) ready to receive OTLP/gRPC or OTLP/HTTP traffic, including any required TLS certificates or authentication credentials.
  • Fewer than 10 Telemetry Export Profiles already configured on the Controller.

​
Create a Telemetry Export Profile

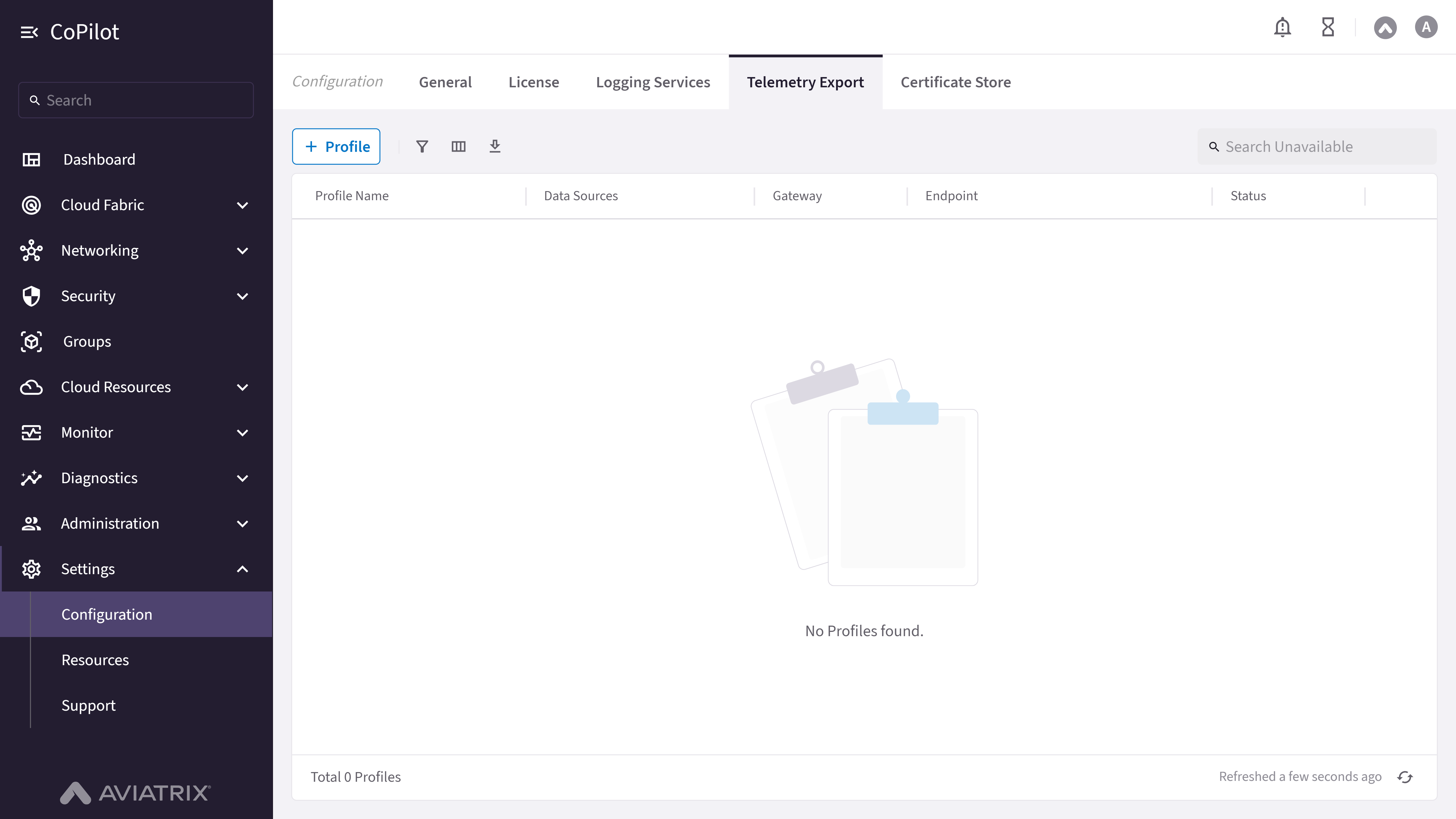

Telemetry Export tab on the Settings > Configuration page, listing configured profiles
1

Open Telemetry Export

In Aviatrix CoPilot, go to Settings > Configuration > Telemetry Export.
2

Start a new profile

Click + Profile.
A Controller allows a maximum of 10 Telemetry Export Profiles. If you have already reached this limit, delete or consolidate an existing profile before creating a new one.
3

Name the profile and select data sources

Enter a descriptive display name. Use a name that identifies the destination system and purpose, for example splunk-dcf-security.Select one or more data source cards for the telemetry this profile forwards:
  • DCF Logs
  • Gateway Metrics
Data sources cannot be changed after the profile is created. To forward a different set of sources, create a new profile.
4

Select the gateway scope

Choose which gateways this profile applies to:
  • All Gateways
  • Gateways by Name — select specific gateways from an autocomplete list (shows VPC/VNet name and region).
  • Gateway by Conditions — match gateways dynamically, for example by region or by a gateway name pattern.
5

Set the forwarding status

Leave Forwarding Status set to On so the profile forwards telemetry once saved, or turn it Off to save the profile without activating it.
6

Select the connection method

On the Connection step, select one of the following methods:The fields available in the remaining steps depend on the method you select. See Telemetry Export Profile Reference for the full field list per method.
7

Configure the destination endpoint

Enter the OTLP Destination URL for your external system, as a URL or in host:port format.Optionally select a CA Certificate file (PEM format) to validate the destination. Leave this blank to use the system CA trust store — a custom CA certificate is only required for destinations using a private or internal CA.
8

Configure custom headers (optional)

Optionally add one or more Custom Headers (for example, an Authorization header carrying a bearer token, or a vendor-specific API key header) to authenticate to the destination. Headers are optional — leave this section empty if your destination does not require them.
Header values added here are not visible again after you save the profile. Add all required headers before saving — you cannot view an existing header’s value later to confirm or copy it.
9

Save the profile

Click Save.

​
Verify That Export Is Flowing

1

Check the profile status

In Settings > Configuration > Telemetry Export, confirm the profile shows a Status of Enabled in the profile table.
Status reflects the profile’s Forwarding Status toggle (Enabled/Disabled), not a live connectivity or health check. Confirm actual data delivery at the destination system itself, as described in the next step.
2

Confirm data arrives at the destination

In your external system (SIEM, observability platform, data lake, or compliance archive), confirm that telemetry from the assigned data sources is arriving as expected.
3

Review for export errors

If telemetry does not appear at the destination, use the profile’s Edit action to review the destination, CA certificate, and header configuration for mistakes.
A dedicated per-profile error or connectivity-status indicator may not be available. Rely on the destination system’s own ingestion logs to confirm delivery.
