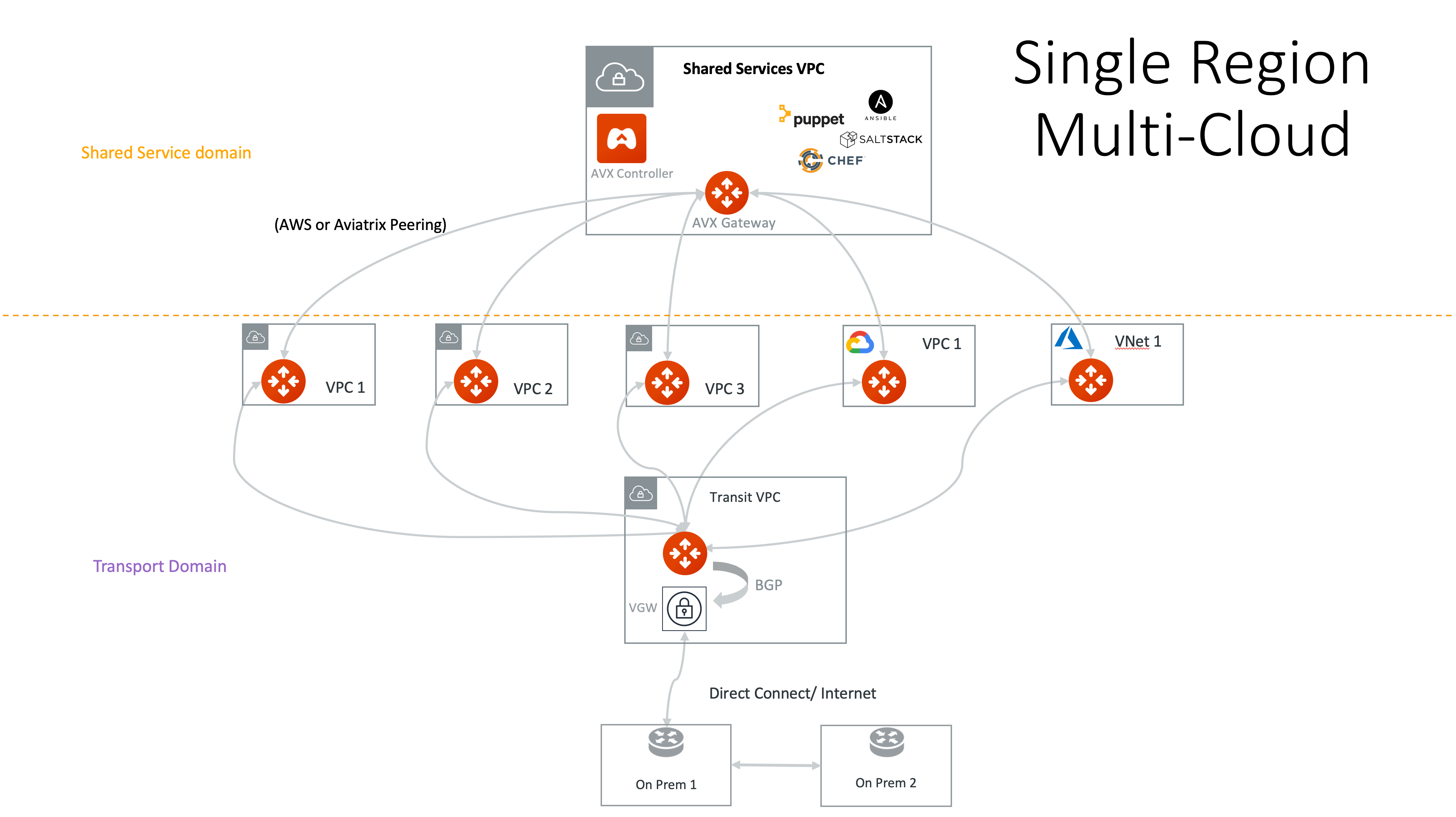

Single-Region Multicloud Transit Network Workflow

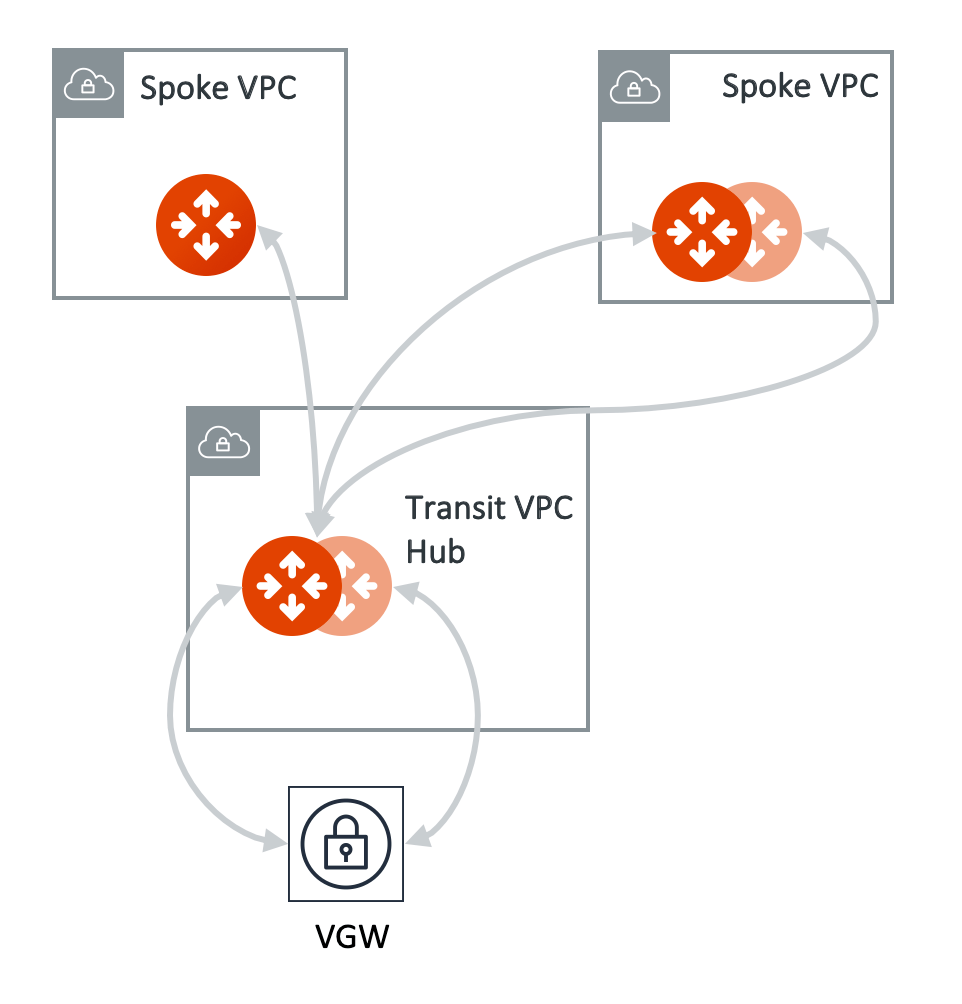

This document provides instructions to build a hub-and-spoke network model across multiple clouds in a single-region with Aviatrix Spoke and Transit Gateways. The hub-and-spoke model consists of an Aviatrix Transit Gateway and a set of Spoke Gateways, as shown in the diagram below. The network traffic flows between the Spoke VPCs through the Transit VPC.

Prerequisites

If you have not launched an Aviatrix Controller, refer to the following Guides for your Cloud Service Provider:

If this is your first time using Aviatrix, make sure to go through the Controller onboarding process and create an Aviatrix account that corresponds to an IAM role.

Identify a VPC or VNet in a region where you want to launch the Transit Gateway, and name it Transit VPC or VNet.

Aviatrix recommends using the Create a VPC tool with the option Transit + FireNet to create a Transit VPC/VNet that has all the necessary subnets and route tables fully populated.

For a Transit network in AWS, see Prerequisites for a Transit Network in AWS.

Create a VGW or reuse an existing VGW.

The VGW should not be attached to the Transit VPC or VNet if you plan to launch Transit Gateway in the same VPC or VNet. This VGW can be attached to a different VPC or VNet if this VPC or VNet CIDR is different from the Transit VPC or VNet where the Transit Gateway is launched or in a different region and account. This VGW should be connected to on-premises either over Direct Connect or over the Internet.

Configuration Workflow

While the instructions below reference AWS, the workflow applies to any public cloud in which Aviatrix Transit Network is supported.

CoPilot UI
Terraform

Follow these steps to build a single-region multicloud Transit Network:

Create a Primary and Highly Available (HA) Transit Gateway.
Create a Primary and Highly Available (HA) Spoke Gateway.
Attach the Spoke Gateway to the Transit Gateway.

1. Creating a Transit Gateway

To create primary and Highly Available (HA) Transit Gateway instances, provide the Transit Gateway general details, then assign the subnet and IP addresses for the gateway instances.

Navigate to the Transit Gateways

In Aviatrix CoPilot, go to Cloud Fabric > Gateways > Transit Gateways.For quick access, at the top of the navigation panel, type Transit Gateways in the search bar.

Create a Transit Gateway

Click + Transit Gateway and provide the following general information.

Show General Information

Parameter	Description
Name	A name for the Transit gateway. The name must begin with a letter, may include only letters, numbers, underscores, and dashes (excluding special characters or spaces), and must not exceed 50 characters in length.
Cloud	The Cloud Service Provider (CSP) where to create the Transit Gateway. When you select AWS and Azure, you can use the dropdown menu to select Standard or Global, China, or GovCloud.
Account	The cloud access account for creating the Transit Gateway.
Region	The cloud region in which to create the Transit Gateway.
VPC/VNet	The VPC or VNet in the selected region in which to create the Transit Gateway. If the selected Transit gateway will be used in a Transit FireNet workflow, selecting a VPC/VNet that has the Transit + FireNet function enabled means that a particular set of /28 subnets has been created across two availability zones. This function is enabled when the VPC/VNet is created.
Instance Size	The gateway instance size. When selecting Transit Gateway instance size, choose a t2 series for Proof of Concept (POC) or prototyping only. Transit Gateway of t2 series instance type has a random packet drop of 3% for packet size less than 150 bytes when interoperating with VGW. This packet drop does not apply to Spoke Gateway. When selecting the gateway size, note that the size you select affects your IPsec performance. You can change the Transit Gateway size later.
High Performance Encryption	To enable High Performance Encryption (HPE) for the Transit Gateway, set this toggle to On. HPE enables 10Gbps and higher IPsec performance between two single Aviatrix Gateway instances or between a single Aviatrix Gateway instance and an on-premises Aviatrix appliance. You cannot set High Performance Encryption to On or Off after the Transit Gateway is created.
Support for IPv6	To enable IPv6 addressing and routing for the Transit Gateway, set this toggle to On. Fill the Account, Region, and VPC/VNet fields before enabling IPv6 support.
Attach to Transit Gateways	The Transit Gateway(s) to peer with this Transit Gateway.

Advanced Settings

In the Advanced Settings section, set the advanced gateway settings that may apply.

Show Advanced Settings

Parameter	Description
Transit Egress Capability (all clouds except OCI and Alibaba)	To add Transit Egress Capability to this Transit Gateway, set this toggle to On. Transit Gateways that have Transit Egress Capability enabled can have attachments added in the Transit FireNet workflow, or be selectable in the Transit Egress workflow. For Azure and GCP, selecting Transit Egress Capability must occur when the gateway is created. Otherwise, it will not display as an available Transit Gateway in the Transit FireNet or Transit Egress workflows.
Gateway Load Balancer (AWS only)	For AWS, if you enable Transit Egress Capability you can also enable the Gateway Load Balancer option, which creates a load balancer within the selected VPC. If this option is enabled here it will show as On and disabled if you add Transit FireNet to this gateway as part of the Transit FireNet workflow.
Subnet (GCP only)	For GCP, if you enable Transit Egress Capability you must also select a subnet.
BGP over LAN (Azure)	To enable BGP over LAN connections for this Transit Gateway, set this toggle to On. For Azure, also enter the number of BGP over LAN interfaces you need (maximum is eight).
BGP over LAN (GCP)	To enable BGP over LAN connections for this Transit Gateway, set this toggle to On. For GCP, select the subnet on which to apply the BGP over LAN connection. For GCP, you cannot set BGP over LAN to On after the Transit Gateway is created.

High Availability Instances

In the Instances section, assign the subnets and IP addresses for the Transit Gateway instances.

Show High Availability Instances Settings

Parameter	Description
Attach to Subnet	The subnet in which to create the gateway instance. For best practice, select a different subnet in a different availability zone from the other Transit gateway instance.
Public IP	The public IP address of the gateway instance. (AWS only) To allocate a new EIP, leave Public IP as Allocate New Static Public IP.

To create a highly available (HA) gateway instance, click + Instance and assign the subnet and IP address.A Transit gateway supports up to 15 HA gateway instances.The gateway instances are created in active-active mode.

Resource Tags

In the Resource Tags section, you can add custom resource tags for the Transit Gateway.

Click + Resource Tag.
Enter a key to identify the resource and a value for the Key. The Key must be unique.
Click the checkmark icon to add the key:value pair to the resource tags.
Click the Tick button to save it.

Save the Transit Gateway

Click Save.

You can monitor the progress of the gateway creation by going to CoPilot > Monitor > Notifications > Tasks tab. Click the expand arrow next to the gateway name to see the progress.

2. Creating a Spoke Gateway

To create primary and Highly Available (HA) Spoke Gateway instances, provide the Spoke Gateway general details, then assign the subnet and IP addresses for the gateway instances.

Navigate to the Spoke Gateways

In Aviatrix CoPilot, go to Cloud Fabric > Gateways > Spoke Gateways.For quick access, at the top of the navigation panel, type Spoke Gateways in the search bar.

Create a Spoke Gateway

Click + Spoke Gateway and provide the following general information.

Show General Information

Parameter	Description
Name	A name for the Spoke Gateway. The name must begin with a letter, may include only letters, numbers, underscores, and dashes (excluding special characters or spaces), and must not exceed 50 characters in length.
Cloud	The Cloud Service Provider (CSP) where to create the Spoke Gateway. For AWS and Azure, you can use the dropdown menu to select Standard or Global, China, or GovCloud.
Account	The cloud access account for creating the Spoke Gateway.
Region	The cloud region in which to create the Spoke Gateway.
VPC/VNet	The VPC or VNet in the selected region in which to create the Spoke Gateway.
Instance Size	The gateway instance size. When selecting the gateway size, note that the size you select affects your IPsec performance.
High Performance Encryption	To enable High Performance Encryption (HPE) for the Spoke Gateway, set this toggle to On. HPE enables 10Gbps and higher IPsec performance between two single Aviatrix Gateway instances or between a single Aviatrix Gateway instance and an on-premises Aviatrix appliance. You cannot turn High Performance Encryption On or Off after the Spoke Gateway is created.
Support for IPv6	To enable IPv6 addressing and routing for the Transit Gateway, set this toggle to On. Fill the Account, Region, and VPC/VNet fields before enabling IPv6 support.
Attach to Transit Gateway	Select the Transit Gateway to attach to the Spoke Gateway.
Attach to Egress Transit FireNet	Select the Egress Transit FireNet to attach to the Spoke Gateway. This option is only available if an Egress Transit FireNet has been created.

Advanced Settings

In the Advanced Settings section, set the advanced gateway settings that may apply.

Show Advanced Settings

Parameter	Description
BGP (all clouds)	To enable the Spoke Gateway to run BGP connection to external routers and dynamically exchange routes, set this toggle to On.
BGP over LAN (Azure)	To enable BGP connection over LAN: Set this toggle to On. You must set both BGP and BGP over LAN settings to On to enable BGP over LAN connection on the Spoke Gateway. Enter the number of LAN interfaces you need (maximum is eight) for the BGP connection. You cannot delete an interface after the Transit Gateway is created.
Global VPC (GCP)	To connect the Spoke Gateway to a global VPC, set this toggle to On.

High Availability Instances

In the Instances section, assign the subnet and IP address for the Spoke Gateway instances.

Show High Availability Instances Settings

Parameter	Description
Attach to Subnet	The subnet in which to create the Spoke gateway instance. For best practice, select a different subnet in a different availability zone from the other Spoke gateway instances.
Public IP	The public IP address of the gateway instance. (AWS only) To allocate a new EIP, leave Public IP as Allocate New Static Public IP.

To create a highly available (HA) gateway instance, click + Instance and designate the subnet and IP address of the gateway instance.A Spoke Gateway can have up to 15 HA gateway instances.All gateway instances are created in active-active mode.A BGP-enabled Spoke Gateway can have only two HA gateway instances.A Spoke Gateway with Site2Cloud or customized SNAT and DNAT enabled can have only two HA gateway instances.

Resource Tags

In the Resource Tags section, you can add custom resource tags for the Spoke Gateway.

Click + Resource Tag.
Enter a key to identify the resource and a value for the Key. The Key must be unique.
Click the checkmark icon to add the key:value pair to the resource tags.
Click Save.

Save the Spoke Gateway

Click Save.

You can monitor the progress of the gateway creation by going to CoPilot > Monitor > Notifications > Tasks tab. Click the expand arrow next to the gateway name to see the progress.

3. Creating a Spoke to Transit Attachment

To attach a Spoke Gateway to a Transit Gateway:

Navigate to the Spoke Gateways

In Aviatrix CoPilot, go to Cloud Fabric > Gateways > Spoke Gateways.

Manage Gateway Attachment Dialog

In the table, locate the Spoke Gateway you want to attach and click the Manage Gateway Attachment icon on the right side of its row.

Create a Spoke to Transit Attachment

In the Manage Gateway Attachment dialog, click the Transit Gateway tab and then click + Attachment and provide the following information.

Show Spoke to Transit Attachment Settings

Parameter	Description
Transit Gateway	The Transit Gateway to attach to the Spoke Gateway.

In the Advanced section, set the advanced settings that may apply.

Parameter	Description
Customize Route Table Attachment	Enables custom route tables when set to On. From the Select Route Tables dropdown menu, select the custom route table(s) to attach to this Spoke Gateway.
Max Performance	Creates the maximum number of High Performance Encryption (HPE) tunnels for the Transit-to-Spoke attachment when set to On. The number of tunnels that are created depends on the gateway instance sizes. Max Performance option is valid only when both the Spoke and Transit Gateways are launched with HPE enabled and are in the same cloud type. When the Spoke and Transit Gateways are launched in different cloud types, only one tunnel is created (even when HPE is enabled for both the Spoke and Transit Gateway). If Max Performance is Off, only one tunnel is created (even when HPE is enabled for both the Spoke and Transit Gateway). To switch between multiple tunnels or one tunnel, detach and reattach the Spoke Gateway to the Transit Gateway.

To attach this Spoke Gateway to another Transit Gateway, click + Attachment again and provide the attachment details.

Save the Spoke to Transit Attachment

Click Save.

A notification appears indicating that the Spoke Gateway is attached to the Transit Gateway.

Use the Aviatrix Terraform provider to build a single-region hub-and-spoke Transit Network.

Module examples pin terraform-aviatrix-modules/mc-transit and mc-spoke to version {"10.0.1"}. Check the Terraform Registry for newer patch releases before you pin a specific version in your configuration.

Complete the Prerequisites before you begin.The steps to create a single-region hub-and-spoke network are as follows:

Get the Existing VPC Information

Retrieve the details of the existing Transit and Spoke VPCs with the aviatrix_vpc data source block.

data "aviatrix_vpc" "transit_vpc_aws" {
  name = "transit-vpc-aws" # your Transit VPC name for AWS
}


data "aviatrix_vpc" "spoke_vpc_aws" {
  name = "spoke-vpc-aws" # your Spoke VPC name for AWS
}

data "aviatrix_vpc" "spoke_vpc_azure" {
  name = "spoke-vpc-azure" # your Spoke VPC name for Azure
}

data "aviatrix_vpc" "spoke_vpc_gcp" {
  name = "spoke-vpc-gcp" # your Spoke VPC name for GCP
}

Create the Transit Gateway

Create primary and Highly Available (HA) Transit Gateway instances with the mc-transit module. Use the VPC data source block retrieved in the previous step to set the region, cidr, name, vpc_id, gw_subnet, and hagw_subnet fields.The following code snippet is for AWS (cloud = "AWS"). For Azure, GCP, and OCI, set the arguments as per the Aviatrix Terraform provider documentation.

module "mc-transit" {

  source  = "terraform-aviatrix-modules/mc-transit/aviatrix"
  version = "10.0.1"

  cloud   = "AWS"
  region  = data.aviatrix_vpc.transit_vpc_aws.region
  cidr    = data.aviatrix_vpc.transit_vpc_aws.cidr
  account = "aws-account"

  name    = data.aviatrix_vpc.transit_vpc_aws.name
  gw_name = "transit-gw-aws"

  use_existing_vpc = true

  vpc_id = data.aviatrix_vpc.transit_vpc_aws.vpc_id

  gw_subnet   = data.aviatrix_vpc.transit_vpc_aws.public_subnets[0].cidr
  hagw_subnet = data.aviatrix_vpc.transit_vpc_aws.public_subnets[1].cidr
}

Create Spoke Gateway and Attach to Transit Gateway

Create primary and HA AWS Spoke Gateway instances with the mc-spoke module. Use the VPC data source block retrieved in the previous step to set the cloud, name, region, account, transit_gw, use_existing_vpc, vpc_id, gw_subnet, and hagw_subnet fields.Attach the Spoke Gateway to the Transit Gateway with the transit_gw argument.

module "spoke_aws_1" {

  source  = "terraform-aviatrix-modules/mc-spoke/aviatrix"
  version = "10.0.1"

  cloud            = "AWS"
  name             = data.aviatrix_vpc.spoke_vpc_aws.name
  region           = data.aviatrix_vpc.spoke_vpc_aws.region
  account          = "aws-account"

  transit_gw       = module.mc-transit.transit_gateway.gw_name

  use_existing_vpc = true

  vpc_id           = data.aviatrix_vpc.spoke_vpc_aws.vpc_id

  gw_subnet        = data.aviatrix_vpc.spoke_vpc_aws.public_subnets[0].cidr
  hagw_subnet      = data.aviatrix_vpc.spoke_vpc_aws.public_subnets[1].cidr
}

Reuse the Code Snippet for Other Clouds

To create Spoke Gateways and attach them to the Transit Gateway for other clouds, reuse the same code snippet by replacing the AWS specific fields with the other clouds specific fields.For example, for Azure:

module "spoke_azure_1" {

  source  = "terraform-aviatrix-modules/mc-spoke/aviatrix"
  version = "10.0.1"

  cloud            = "Azure"
  name             = data.aviatrix_vpc.spoke_vpc_azure.name
  region           = data.aviatrix_vpc.spoke_vpc_azure.region
  account          = "azure-account"

  transit_gw       = module.mc-transit.transit_gateway.gw_name

  use_existing_vpc = true

  vpc_id           = data.aviatrix_vpc.spoke_vpc_azure.vpc_id

  gw_subnet        = data.aviatrix_vpc.spoke_vpc_azure.subnets[0].cidr
  hagw_subnet      = data.aviatrix_vpc.spoke_vpc_azure.subnets[1].cidr
}

For GCP:

module "spoke_gcp_1" {

  source  = "terraform-aviatrix-modules/mc-spoke/aviatrix"
  version = "10.0.1"

  cloud            = "GCP"
  name             = data.aviatrix_vpc.spoke_vpc_gcp.name
  region           = data.aviatrix_vpc.spoke_vpc_gcp.region
  account          = "gcp-account"

  transit_gw       = module.mc-transit.transit_gateway.gw_name

  use_existing_vpc = true

  vpc_id           = data.aviatrix_vpc.spoke_vpc_gcp.vpc_id

  gw_subnet        = data.aviatrix_vpc.spoke_vpc_gcp.subnets[0].cidr
  hagw_subnet      = data.aviatrix_vpc.spoke_vpc_gcp.subnets[0].cidr
}

Verify and Apply the Configuration

Run terraform plan, review the planned changes, and run terraform apply.

Examples

The following are a few examples of creating a single-region multicloud Transit Network using Terraform.The following examples are for Azure, AWS, and GCP. For OCI and Alibaba, reuse the same code snippet by replacing the Azure, AWS, and GCP specific fields with the OCI and Alibaba specific fields.

Multicloud Transit with Azure Hub and Workload-Aligned Spokes in AWS and GCP

This example reflects a common multicloud pattern: a European business runs its line-of-business app on Azure, keeps regulated customer data on AWS, and uses GCP for analytics. An Azure Transit Gateway in West Europe acts as the hub, and one HA Spoke per cloud carries the workload that best fits that cloud. Aviatrix peers the underlying CSPs transparently, so the three Spokes route to each other through the single Transit Gateway.The CIDRs are aligned on a 10.x.0.0/22 plan so each Spoke can be summarized cleanly toward the on-premises network later. Common tags are applied to every gateway for cost allocation, with a per-cloud tag layered on each Spoke.

module "azure_transit" {

  source  = "terraform-aviatrix-modules/mc-transit/aviatrix"
  version = "10.0.1"

  cloud   = "Azure"
  name    = "transit-azure-weu"
  region  = "West Europe"
  account = "azure-prod"
  cidr    = "10.10.0.0/23"
  instance_size = "Standard_D3_v2"
  tags    = {
              Owner       = "platform-networking"
              CostCenter  = "2042"
              Application = "customer-portal"
            }
}

module "spoke_azure_app" {
  source  = "terraform-aviatrix-modules/mc-spoke/aviatrix"
  version = "10.0.1"

  cloud         = "Azure"
  name          = "spoke-azure-app"
  region        = "West Europe"
  account       = "azure-prod"
  cidr          = "10.20.0.0/22"
  transit_gw    = module.azure_transit.transit_gateway.gw_name
  instance_size = "Standard_D3_v2"
  tags       = {
                Owner       = "platform-networking"
                CostCenter  = "2042"
                Application = "customer-portal"
                Tier        = "app"
              }
}

module "spoke_aws_data" {
  source  = "terraform-aviatrix-modules/mc-spoke/aviatrix"
  version = "10.0.1"

  cloud      = "AWS"
  name       = "spoke-aws-data"
  region     = "eu-west-1"
  account    = "aws-prod"
  cidr       = "10.30.0.0/22"
  transit_gw = module.azure_transit.transit_gateway.gw_name
  tags       = {
                Owner       = "platform-networking"
                CostCenter  = "2042"
                Application = "customer-portal"
                Tier        = "data"
              }
}

module "spoke_gcp_analytics" {
  source  = "terraform-aviatrix-modules/mc-spoke/aviatrix"
  version = "10.0.1"

  cloud      = "GCP"
  name       = "spoke-gcp-analytics"
  region     = "europe-west1"
  account    = "gcp-prod"
  cidr       = "10.40.0.0/22"
  transit_gw = module.azure_transit.transit_gateway.gw_name
}

For OCI or Alibaba, copy any Spoke block and replace the cloud-specific fields (cloud, region, account). All other arguments behave the same way across providers.

Enterprise AWS Hub with Production, Non-Production, and Shared-Services Spokes

This example reflects a common enterprise starting point: a single Aviatrix Transit Gateway in AWS’s N. Virginia region acts as the hub for a payments workload. Production and Non-Production environments live in separate Spoke VPCs so blast radius and change windows can be managed independently. A third Spoke holds shared services such as logging, identity, and CI/CD runners that must be reachable from both environments.All gateways are deployed in HA. High Performance Encryption (insane_mode) is enabled on the Transit Gateway and on the Production Spoke for line-rate encrypted east-west traffic. Common tags are applied to every gateway for cost allocation, and per-environment tags are layered on top of the Spokes.A locals block centralizes the account, region, and base tag set so the same values are not repeated in every module call.

module "transit_aws" {
  source  = "terraform-aviatrix-modules/mc-transit/aviatrix"
  version = "10.0.1"

  cloud       = "AWS"
  name        = "transit-aws-use1"
  region      = "us-east-1"
  account     = "aws-prod"
  cidr        = "10.100.0.0/23"
  insane_mode = true
  tags        = {
                Owner       = "platform-networking"
                CostCenter  = "1001"
                Application = "payments"
              }
}

module "spoke_prod_payments" {
  source  = "terraform-aviatrix-modules/mc-spoke/aviatrix"
  version = "10.0.1"

  cloud       = "AWS"
  name        = "spoke-prod-payments"
  region      = "us-east-1"
  account     = "aws-prod"
  cidr        = "10.110.0.0/22"
  transit_gw  = module.transit_aws.transit_gateway.gw_name
  insane_mode = true
  tags        = {
                Owner       = "platform-networking"
                CostCenter  = "1001"
                Application = "payments"
                Environment = "prod"
              }
}

module "spoke_nonprod_payments" {
  source  = "terraform-aviatrix-modules/mc-spoke/aviatrix"
  version = "10.0.1"

  cloud      = "AWS"
  name       = "spoke-nonprod-payments"
  region     = "us-east-1"
  account    = "aws-prod"
  cidr       = "10.120.0.0/22"
  transit_gw = module.transit_aws.transit_gateway.gw_name
  tags       = {
                Owner       = "platform-networking"
                CostCenter  = "1001"
                Application = "payments"
                Environment = "nonprod"
              }
}

module "spoke_shared_services" {
  source  = "terraform-aviatrix-modules/mc-spoke/aviatrix"
  version = "10.0.1"

  cloud      = "AWS"
  name       = "spoke-shared-services"
  region     = "us-east-1"
  account    = "aws-prod"
  cidr       = "10.130.0.0/22"
  transit_gw = module.transit_aws.transit_gateway.gw_name
  tags       = {
                Owner       = "platform-networking"
                CostCenter  = "1001"
                Application = "payments"
                Environment = "shared"
              }
}

To enforce traffic isolation between Production, Non-Production, and Shared-Services Spokes at the Transit, set enable_segmentation = true on the mc-transit module and place each Spoke in its own Network Domain. See Network Segmentation Secured.

View the Network Topology

You can view the network topology in CoPilot by going to Cloud Fabric > Topology. For more information about using the topology map, see Gaining Visibility into Your Network Topology.

View the Gateway’s Connections and Route Tables

You can view the Spoke and Transit Gateway connections and route table information.

Navigate to the Gateways

In Aviatrix CoPilot, go to Cloud Fabric > Gateways, and select the Spoke or Transit Gateway to open the gateway’s page.

View the Connections of the Gateway

Click the Attachments tab to view the gateway’s connections.

View the Route Tables of the Gateway

Click the VPC/VNet Route Tables tab, then from the Route Table dropdown menu, select a route table to view the routes.

You can peer Transit Gateways to expand your Aviatrix Transit Network across multiple regions and clouds. See Multi-Region Multicloud Transit Gateway Peering Workflow.
You can segment your Aviatrix Transit Network to create network isolation and enhance security. To learn more, see Network Segmentation Secured.
You can connect the Transit Gateway to external devices such as on-premises firewalls and routers to connect to your datacenter. See Connecting the Transit Network to On-Premises.
You can connect the Transit Gateway to an Edge Gateway to extend your Aviatrix Transit Network to the network edge. See Hybrid Cloud Connectivity.
You can automate your multicloud Transit Network configuration by using Terraform. To learn more, see Aviatrix Terraform Namespace.
You can add your cloud accounts to your CoPilot. To learn more, see Cloud Account.

Concepts & Architecture

Guides

Reference

Single-Region Multicloud Transit Network Workflow

Prerequisites

Configuration Workflow

1. Creating a Transit Gateway

2. Creating a Spoke Gateway

3. Creating a Spoke to Transit Attachment

Examples

View the Network Topology

View the Gateway’s Connections and Route Tables

​Prerequisites

​Configuration Workflow

​1. Creating a Transit Gateway

​2. Creating a Spoke Gateway

​3. Creating a Spoke to Transit Attachment

​Examples

​View the Network Topology

​View the Gateway’s Connections and Route Tables

​Related Topics

Prerequisites

Configuration Workflow

1. Creating a Transit Gateway

2. Creating a Spoke Gateway

3. Creating a Spoke to Transit Attachment

Examples

View the Network Topology

View the Gateway’s Connections and Route Tables

Related Topics
