TGW Design Patterns

Many design patterns exist to deploy your network with the AWS Transit Gateway Orchestrator. Here are some examples.

​

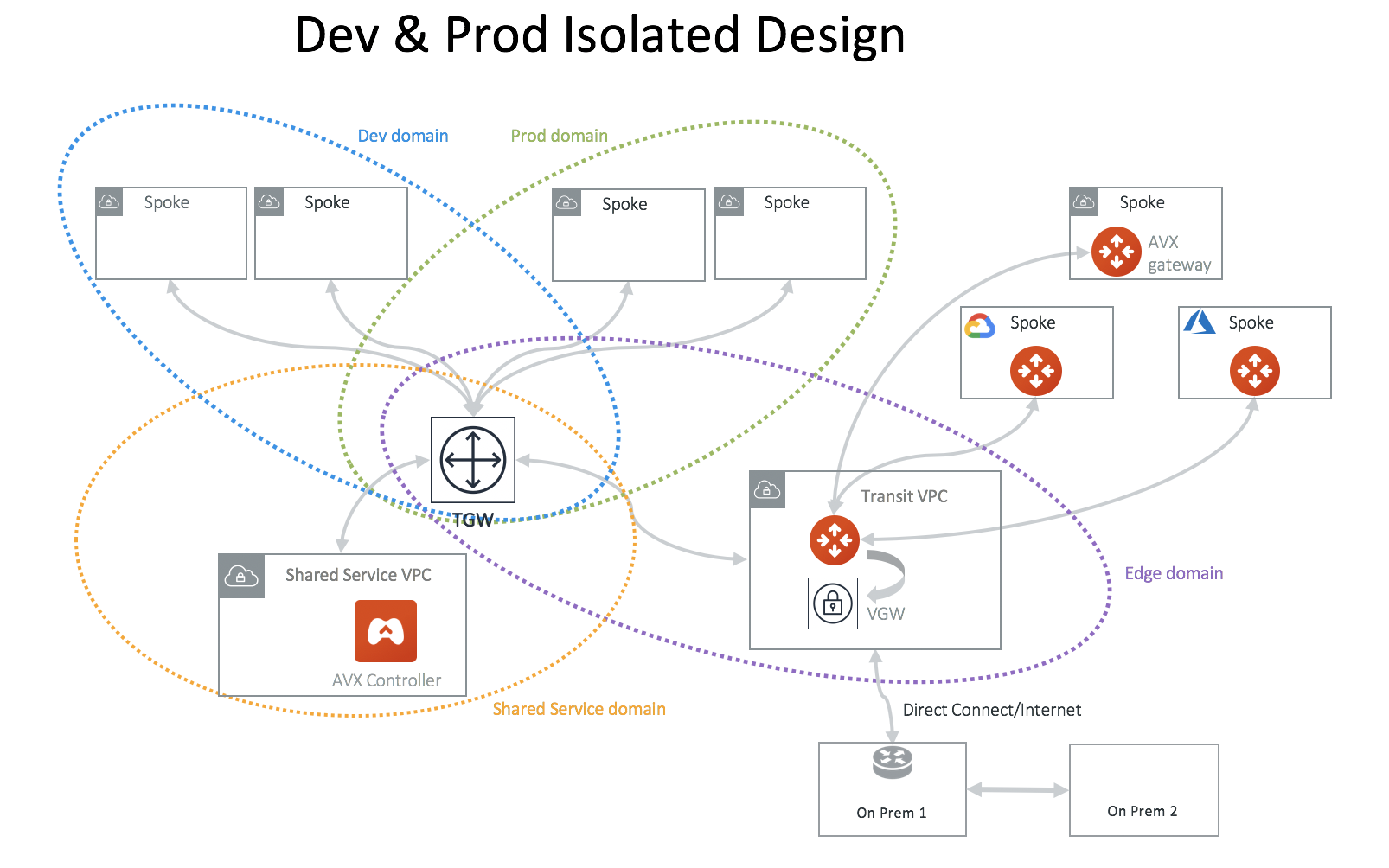

Dev & Prod Isolated Design

If you want to build network segmentation between Dev/QA VPCs and Production VPCs, but require the shared service VPC and on-premise to reach each VPC, consider the diagram below. In this network design, you need to create two custom Network Domains, Dev_Domain and Prod_Domain. At the Plan page Step 2, select Create Custom Security Domain and fill in the information. Make sure you multi-select Shared_Service_Domain and Aviatrix_Edge_Domain for Connect to Security Domains. Apply this step for both Dev_Domain and Prod_Domain.

​

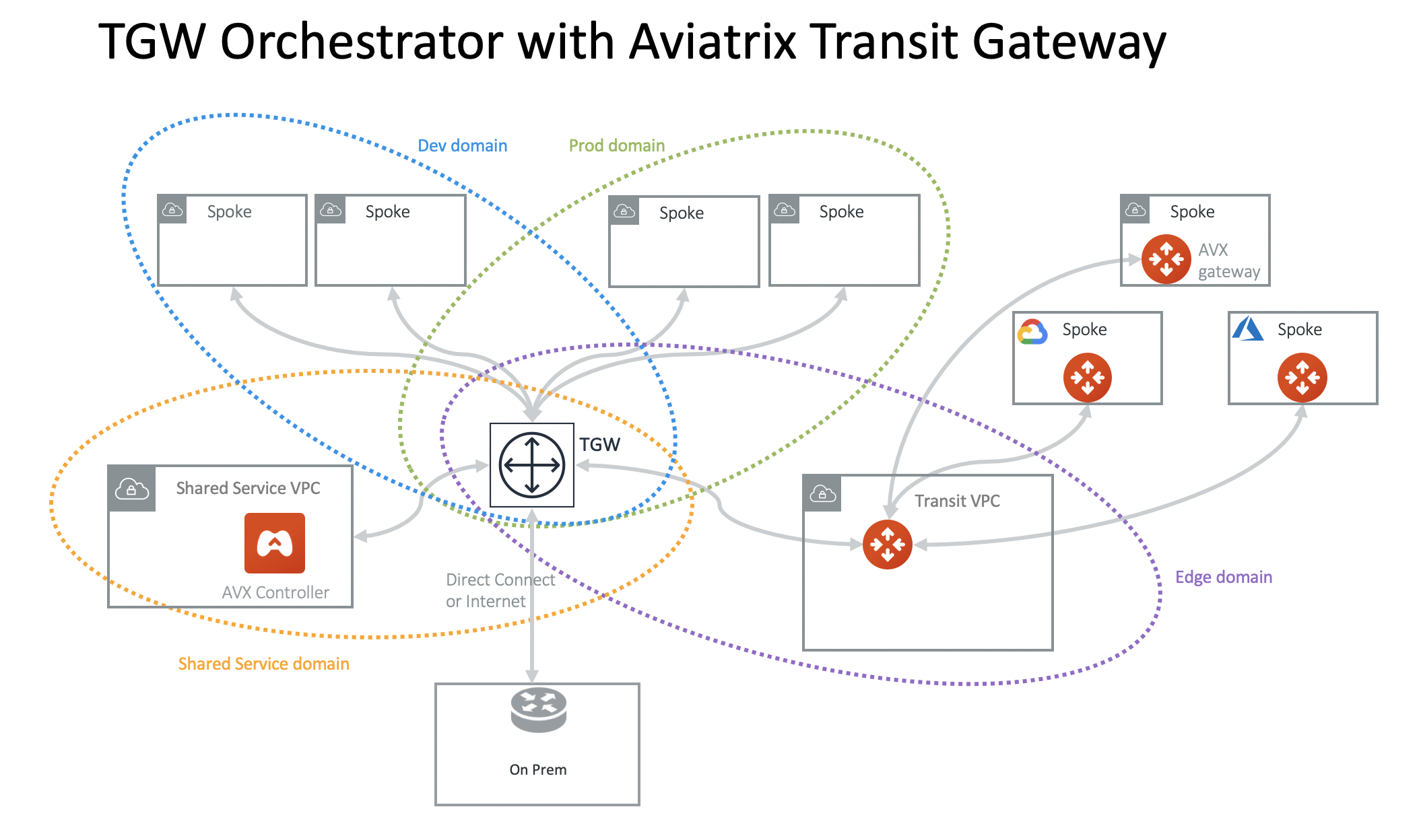

Dev & Prod Isolated Design with TGW Direct Connect or VPN

Aviatrix integrates native TGW Direct Connect and VPN to connect to on-prem while allowing you to connect to multiple cloud as Spoke VPCs.

​

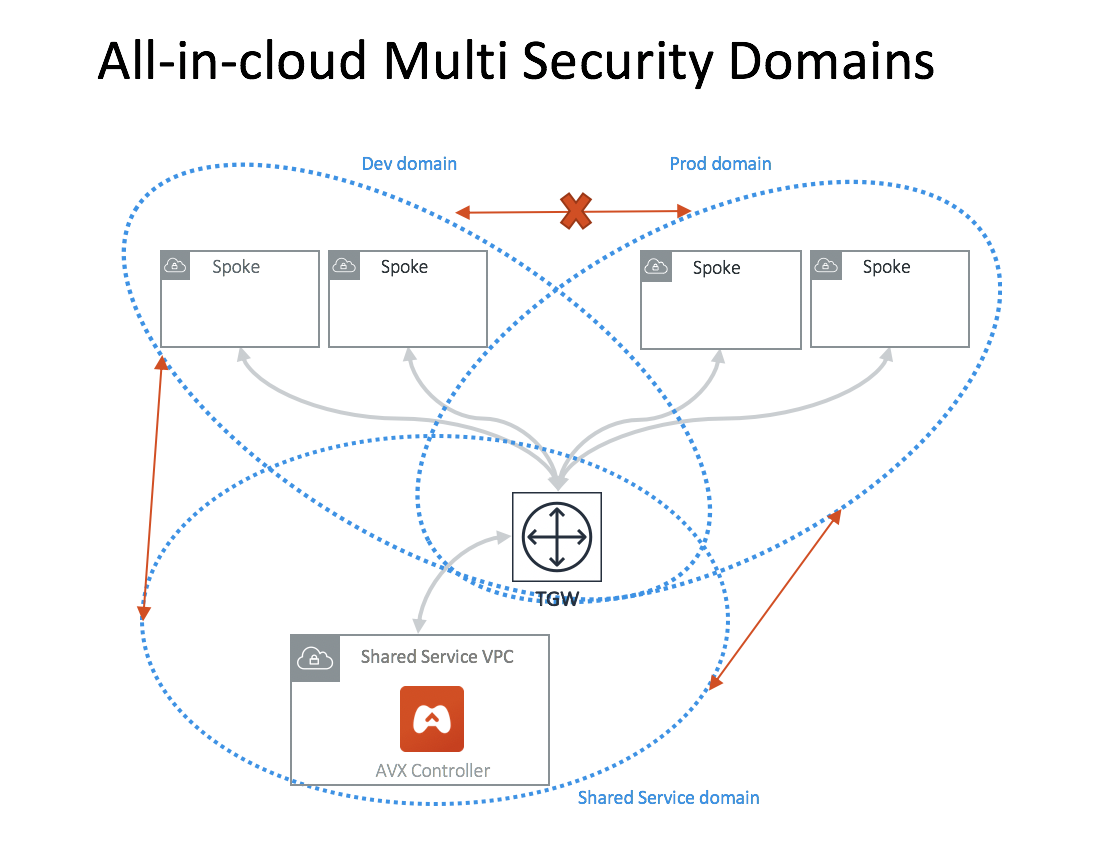

All-in-Cloud with Multi Network Domains

If you are only concerned about VPC-to-VPC segmentation, you can deploy the Aviatrix Controller for an all-in-cloud segmented network, as shown below.

​

Connecting Transit Gateways in Multi-Regions Multicloud

You can use Aviatrix Transit GWs to connect AWS Transit Gateways in multi-regions and multicloud deployment, as shown below.

​

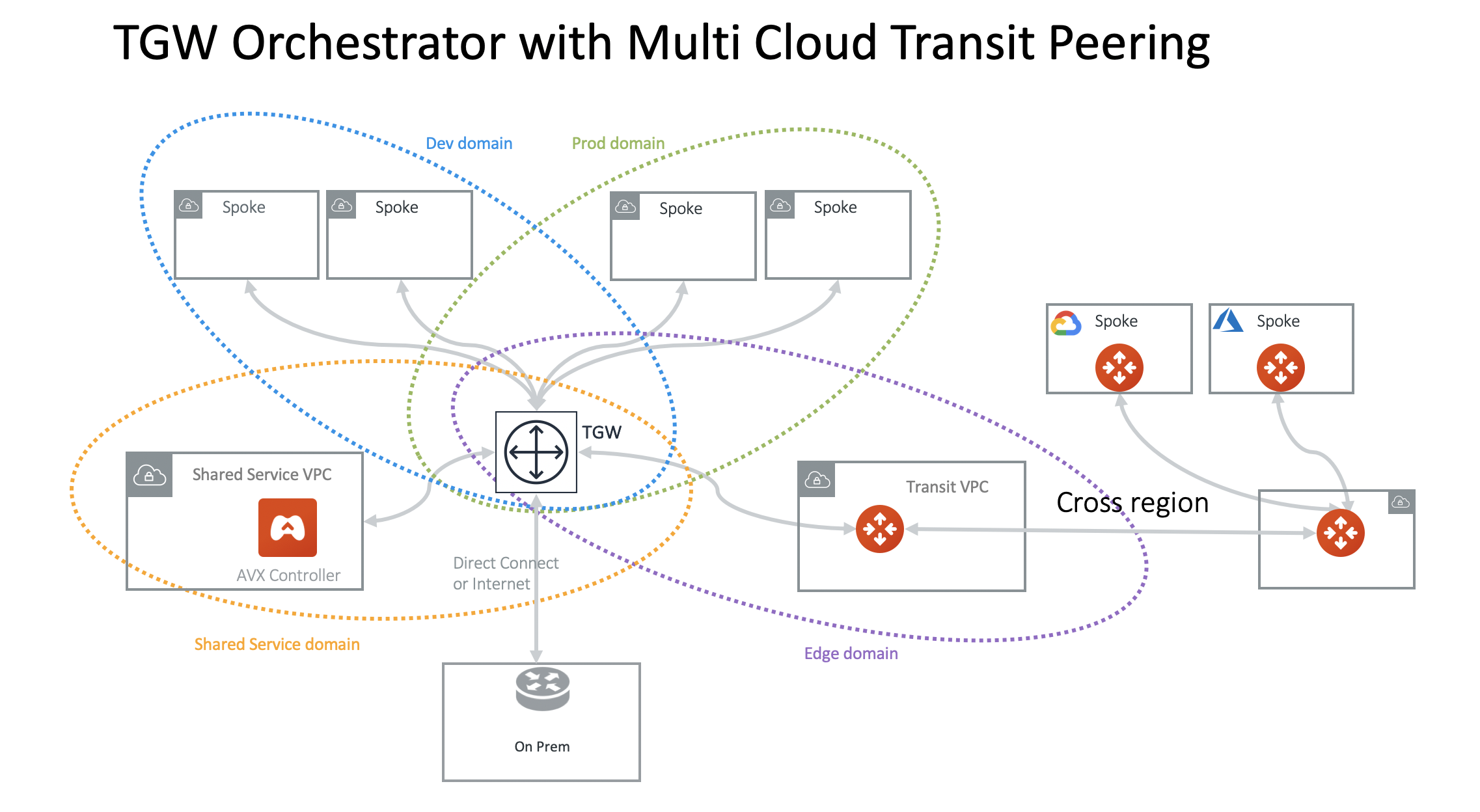

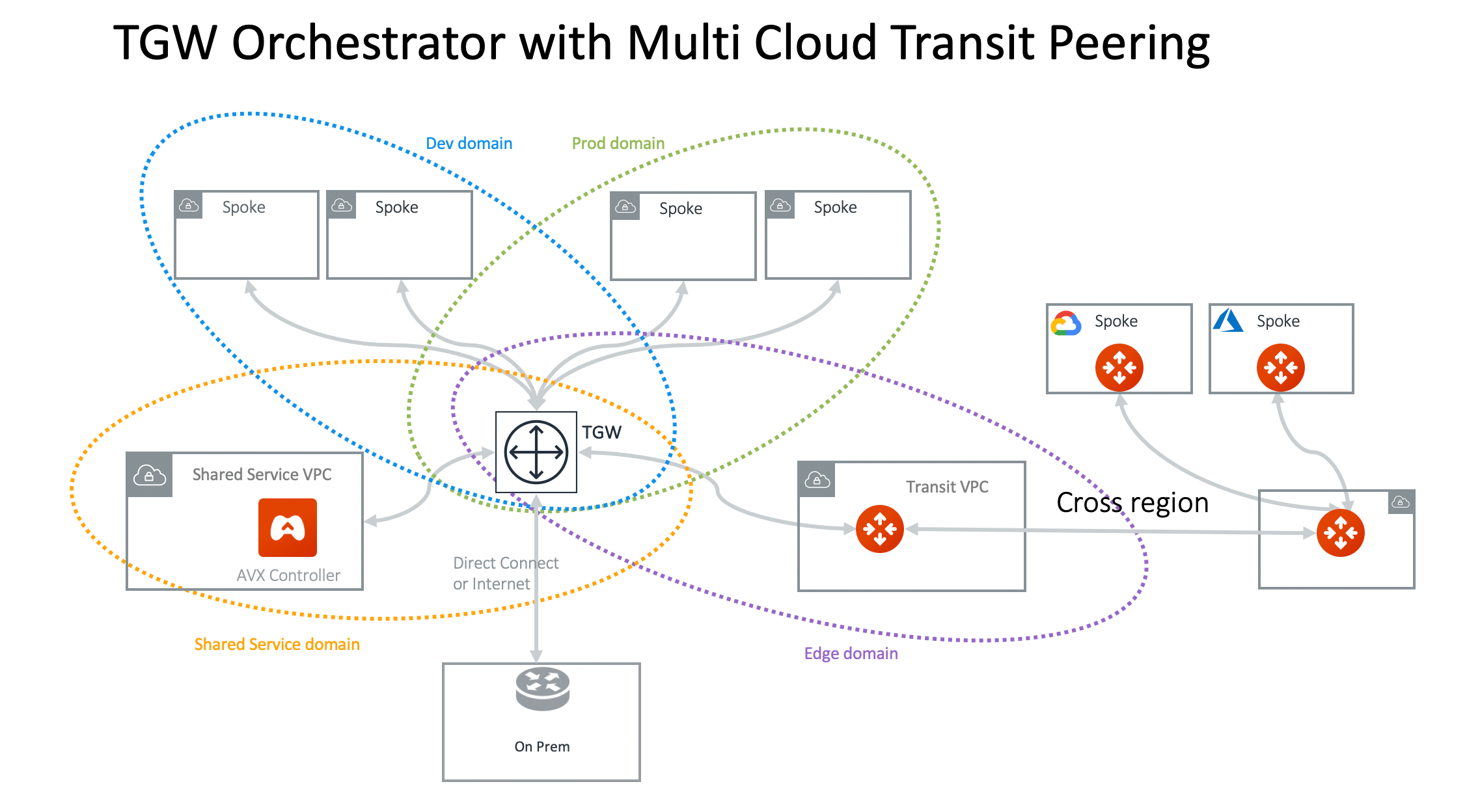

TGW Orchestrator for Cross-Region and Multicloud Spoke

You can extend the TGW to a different region with transit peering and then spokes in a different cloud.

​

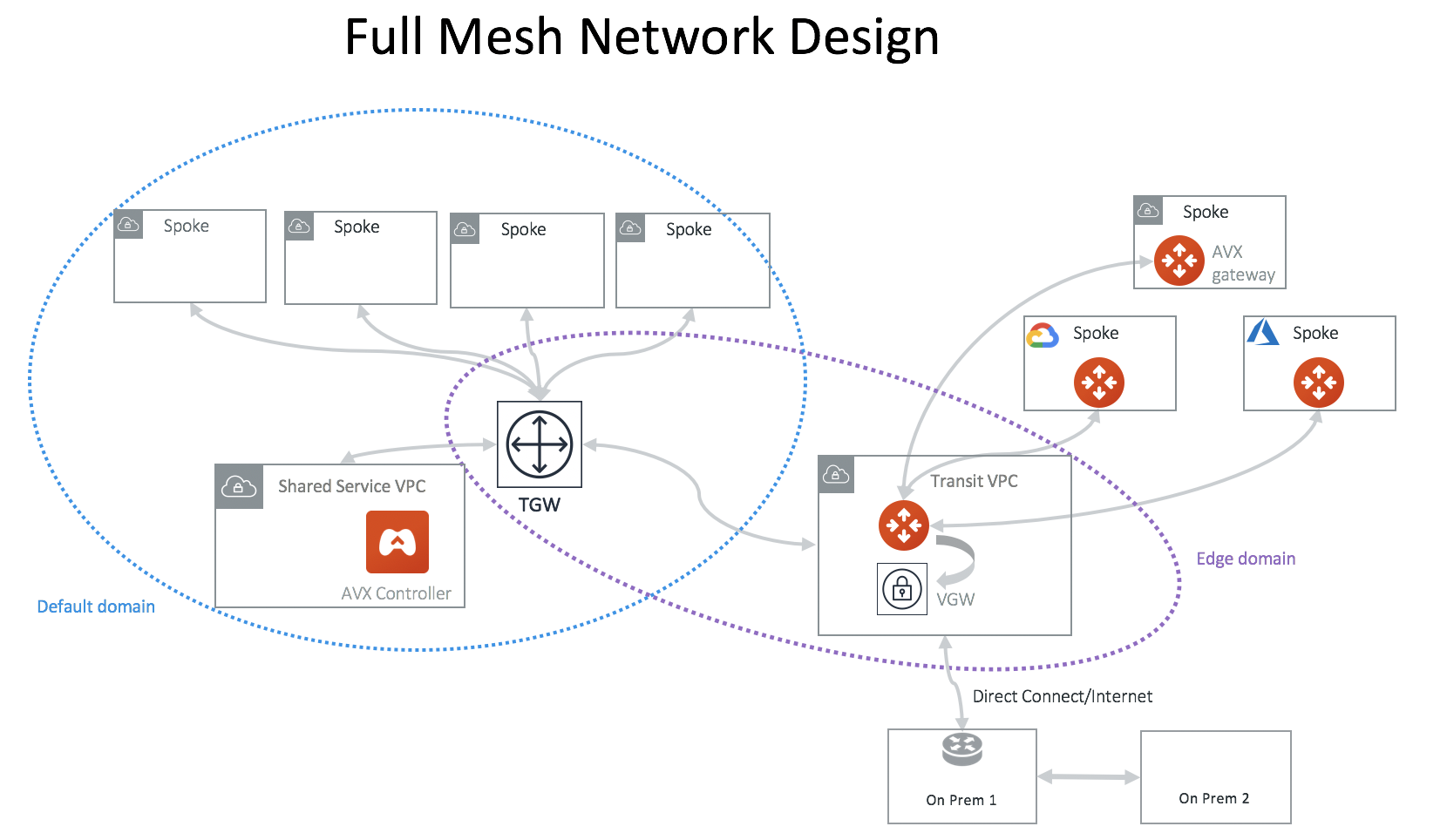

Full-Mesh Network Design

If you like to build a full-mesh network that allows all VPCs and on-prem to communicate with each other, you do not need to create any custom Network Domains. Simply use the built-in Default_Domain and Aviatrix_Edge_Domain for the deployment, as shown below. At Plan page Step 2, select Full mesh network.

​

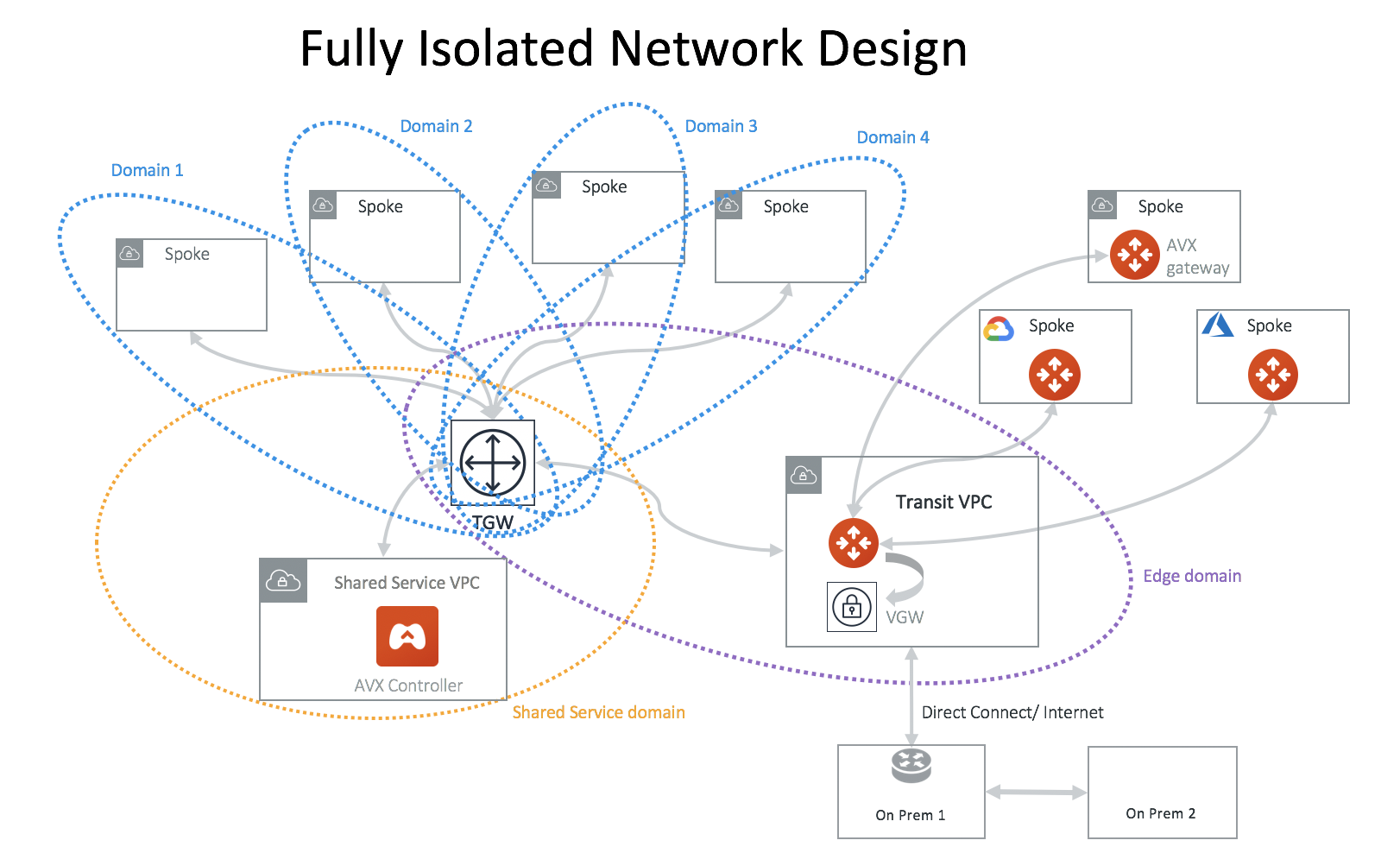

Fully Isolated Network Design - 1

If you would like to build a fully isolated network where no VPCs can communicate with each other except to the shared service VPC and on-prem, you need to create a Network Domain for each VPC and connect each domain to the Shared_Service_Domain. In this network design, you need to create a custom Network Domain for each VPC. If this design does not scale for you, consider the Aviatrix Transit Network workflow where all VPCs are by default isolated to each other.

​

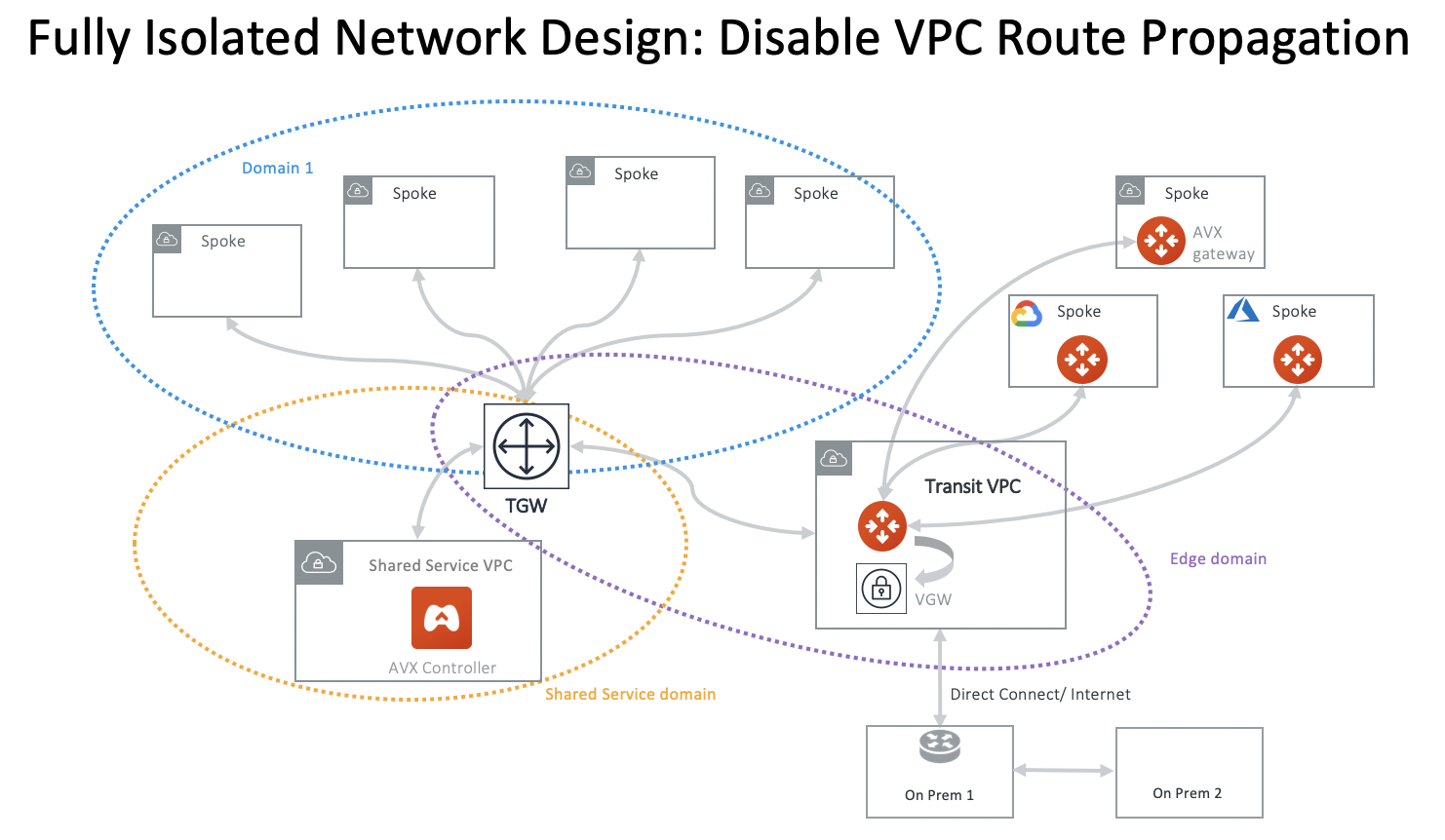

Fully Isolated Network Design - 2

An alternative design for a fully isolated deployment is to have a group of VPCs share one Network Domain but disabling VPC route propagation when attaching a VPC, as shown in the diagram below. The advantage of this design is to keep the Network Domains to a minimum. You can specify connection policies for a domain to communicate with another domain, such as Aviatrix Edge Domain or Aviatrix FireNet Domain, without the VPC in the domain being able to talk to each other.

​

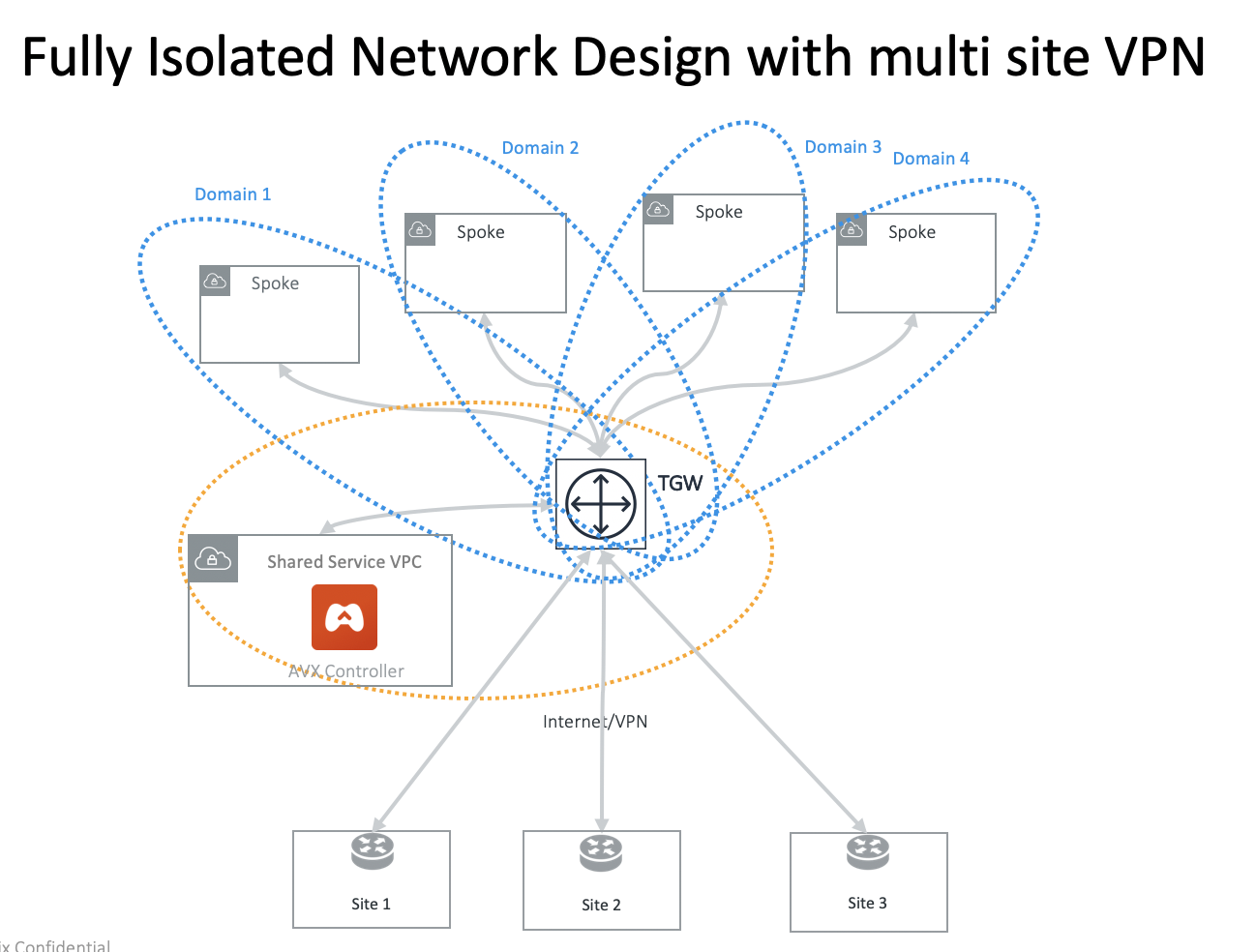

Fully Isolated Network with Multi-Sites VPN

You can use TGW native VPN capability to connect to multi-sites VPN. Since VPN connection is in Default Security Domain, you need to build connection policy for each VPC domain.

​

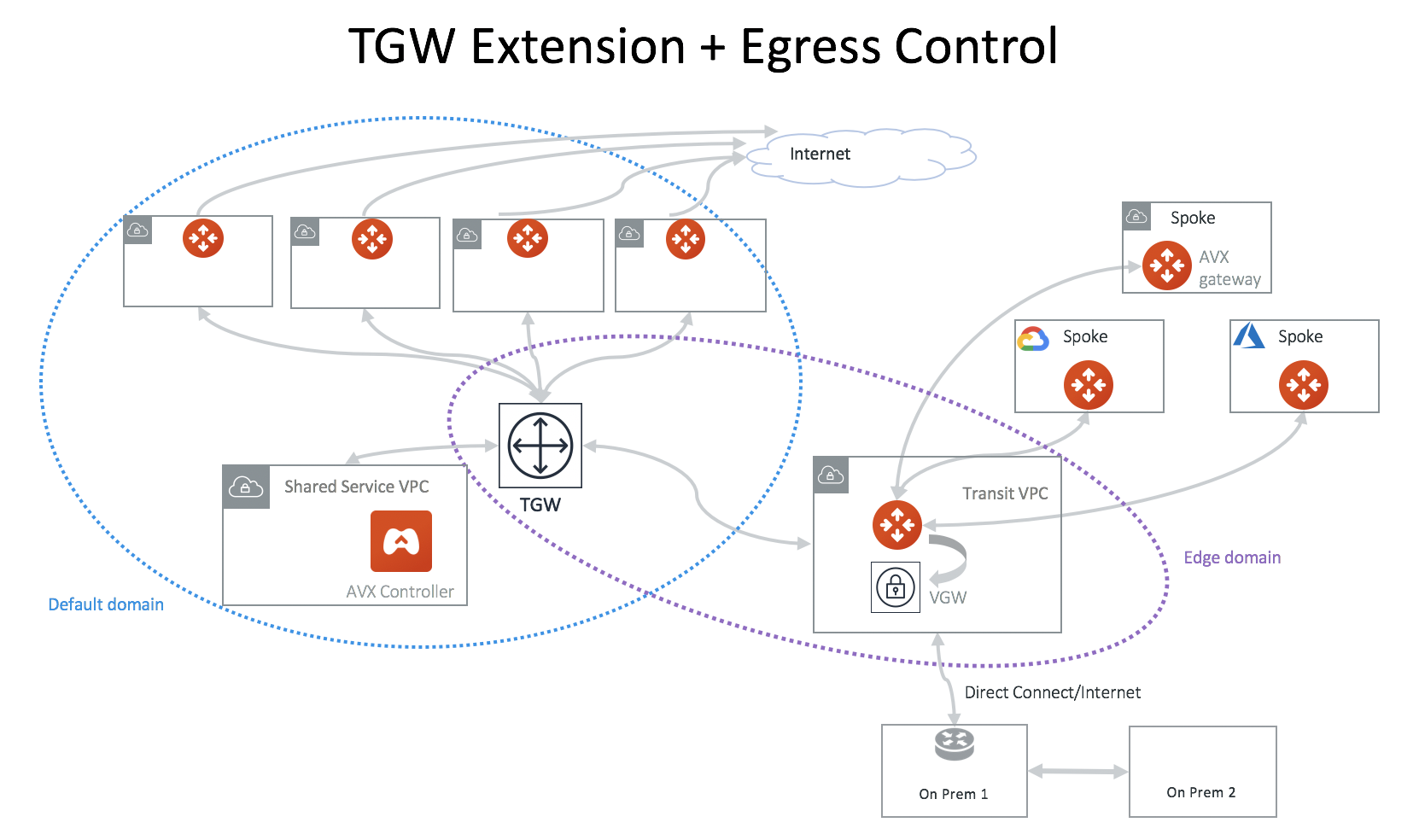

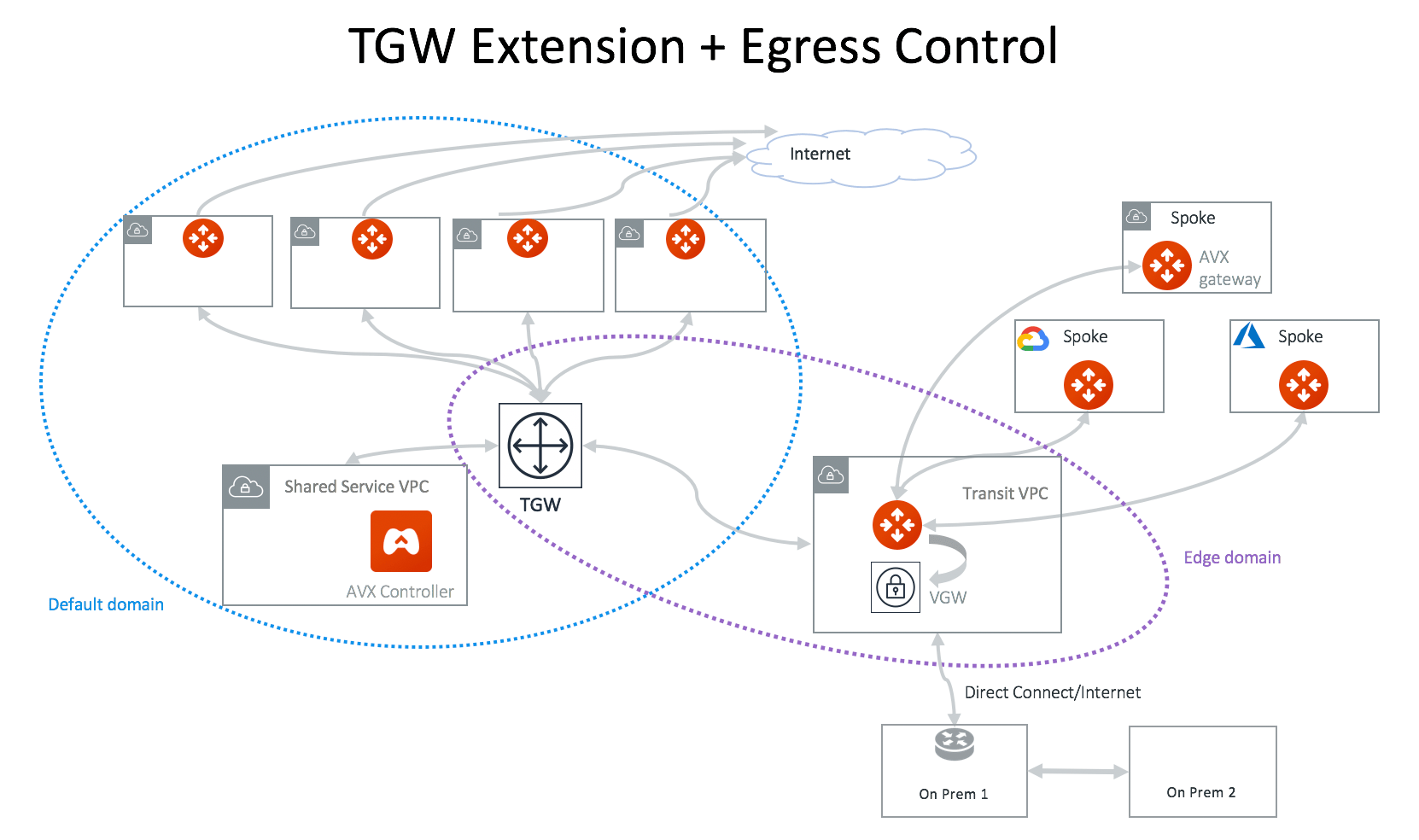

Integrating with Distributed Egress Control Design

For any of the TGW design patterns, you may deploy Aviatrix distributed Egress FQDN (Legacy) in each VPC. In this example, a full-mesh deployment is expanded to include Egress FQDN support, as shown below. You can configure Egress Control Filter , or configure a DCF-based egress solution (preferred) .

​

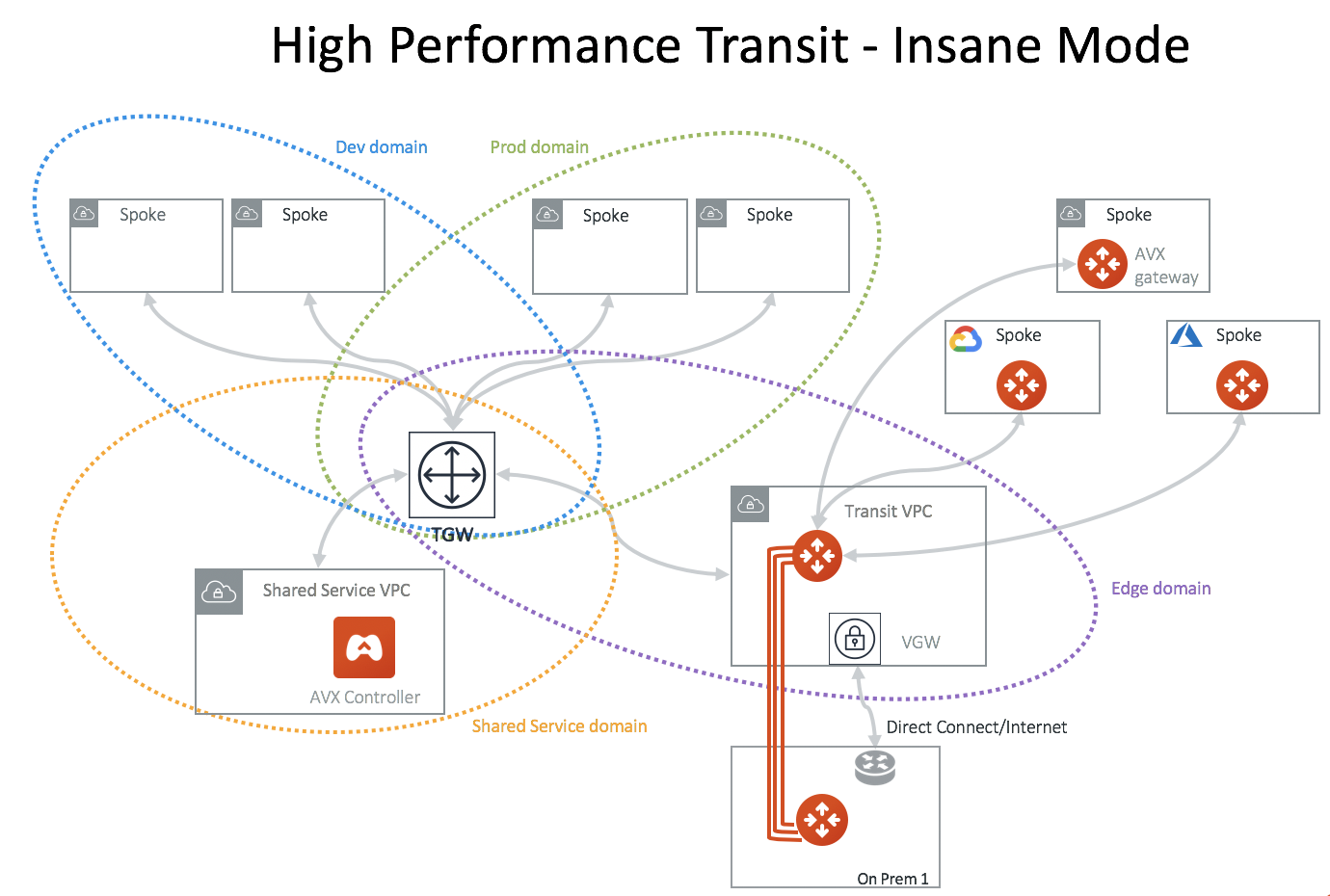

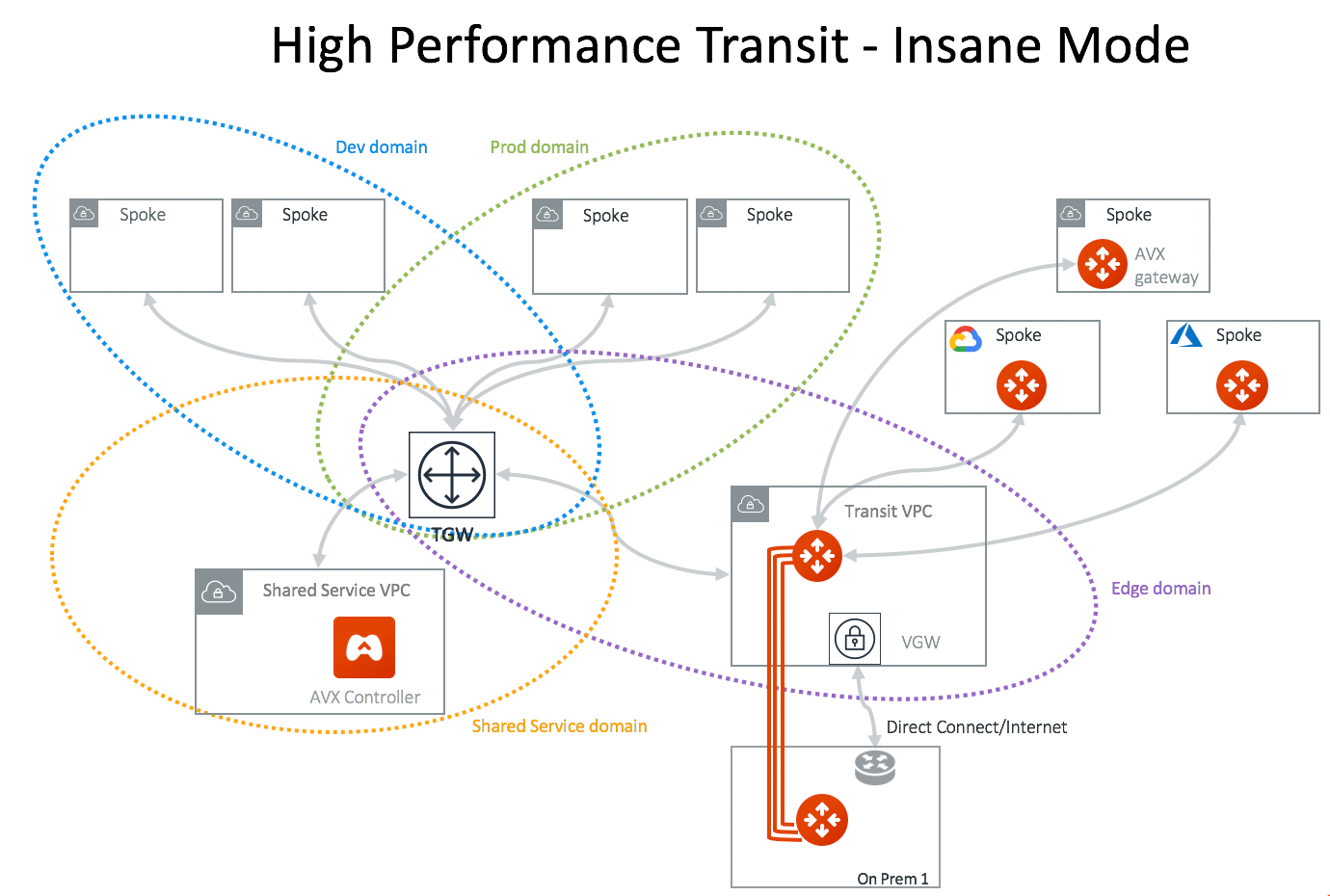

High Performance Transit - High Performance Encryption (HPE) Mode

Deploy an Aviatrix hardware appliance on-prem to achieve 10Gbps Transit Network throughput. Added benefit is that traffic over Direct Connect is encrypted.

​

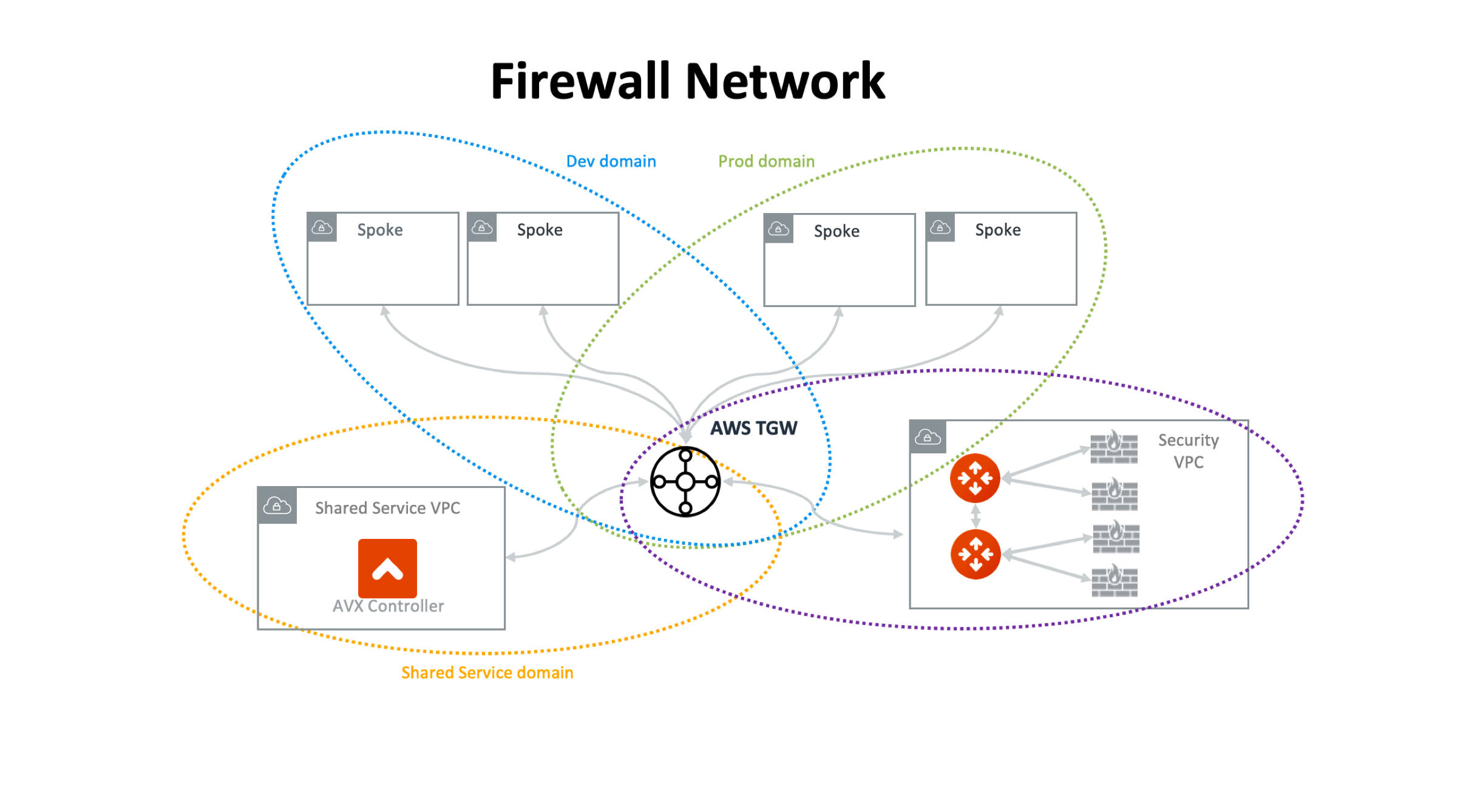

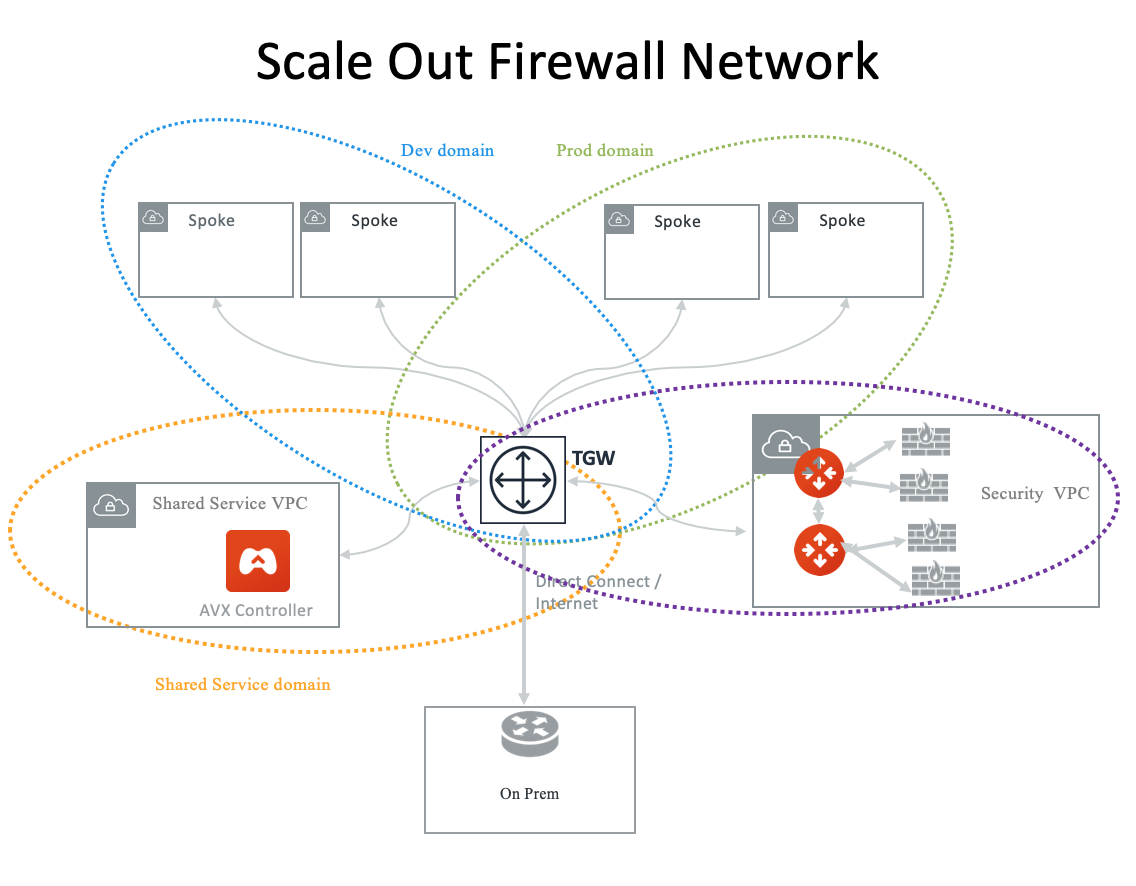

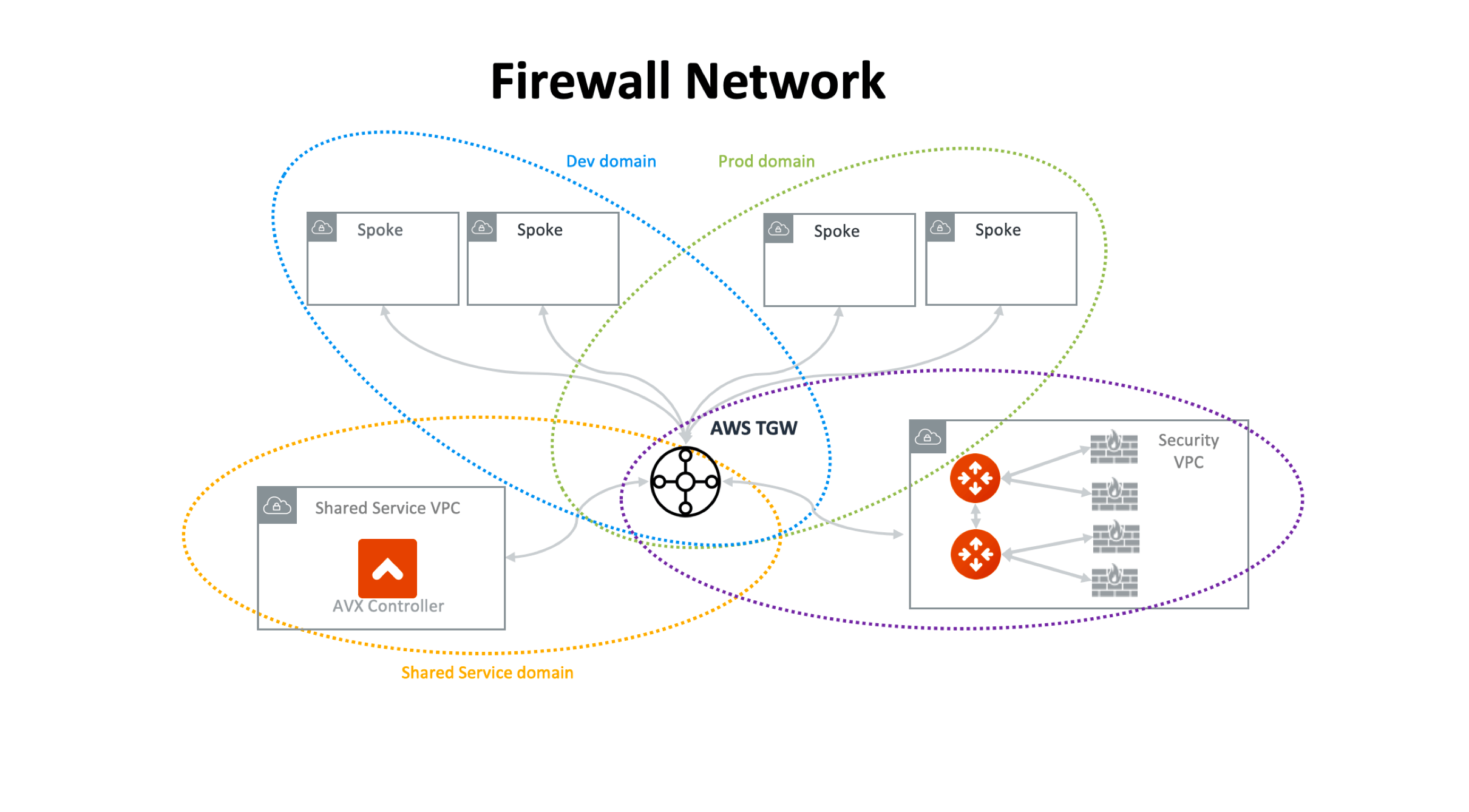

Firewall Network

Simplify and scale your firewall deployment with Aviatrix Firewall Network solution. For more information, see Firewall Network Overview .

​

TGW Native Hybrid Network

Aviatrix supports TGW VPN and TGW Direct Connect for connecting to remote site or on-prem network, as shown in the diagram below.

​

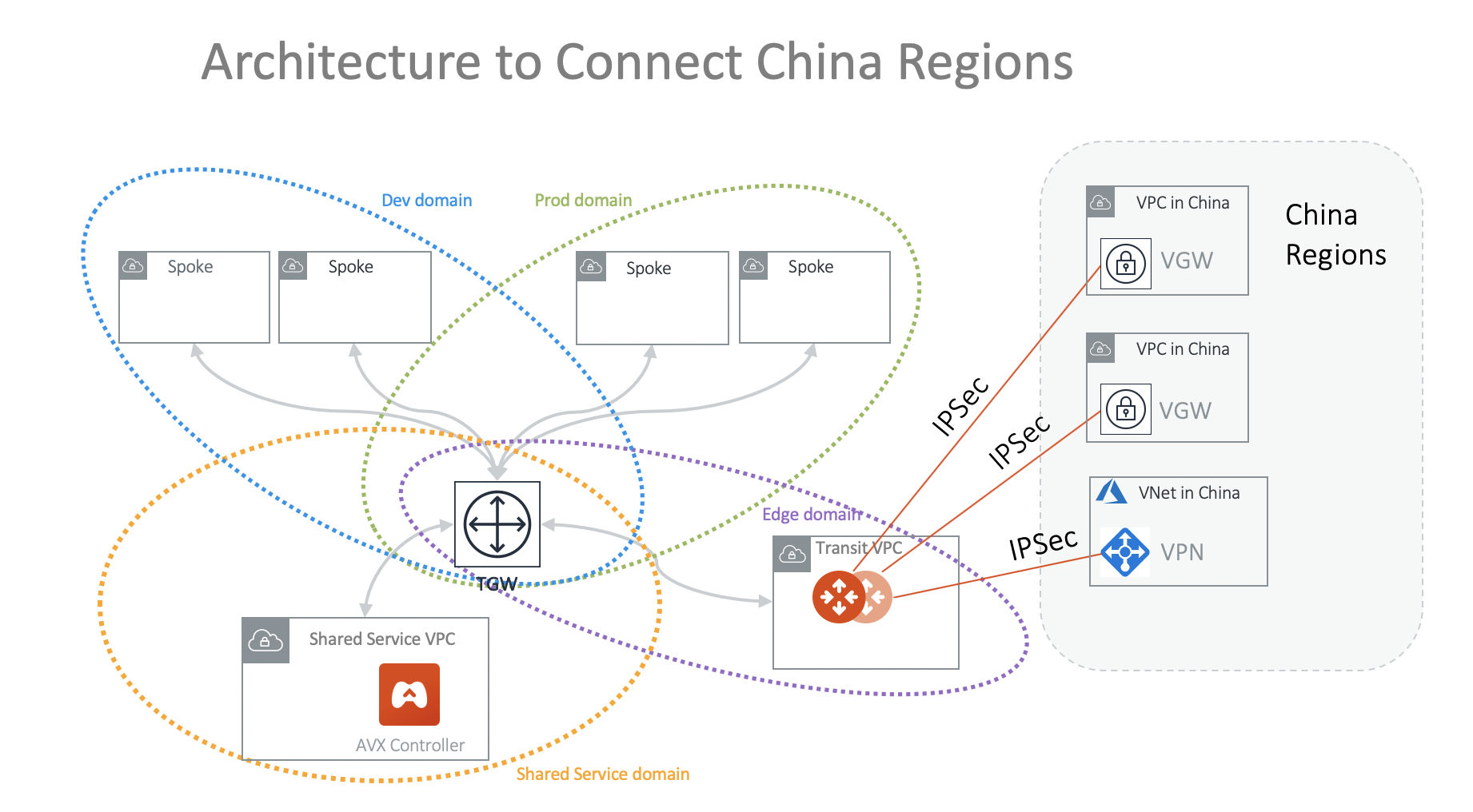

Connecting to China Regions

If the majority of deployment is outside China regions, the best way to connect China region VPC or VNets are to use the cloud native AWS VGW or Azure VPN gateway and connect them to Aviatrix Transit Gateway by IPsec tunnels, as shown in the diagram below. This architecture applies to all other cloud providers that have presence in China regions. On the Aviatrix side, use the option External Devices when making the connection.

​

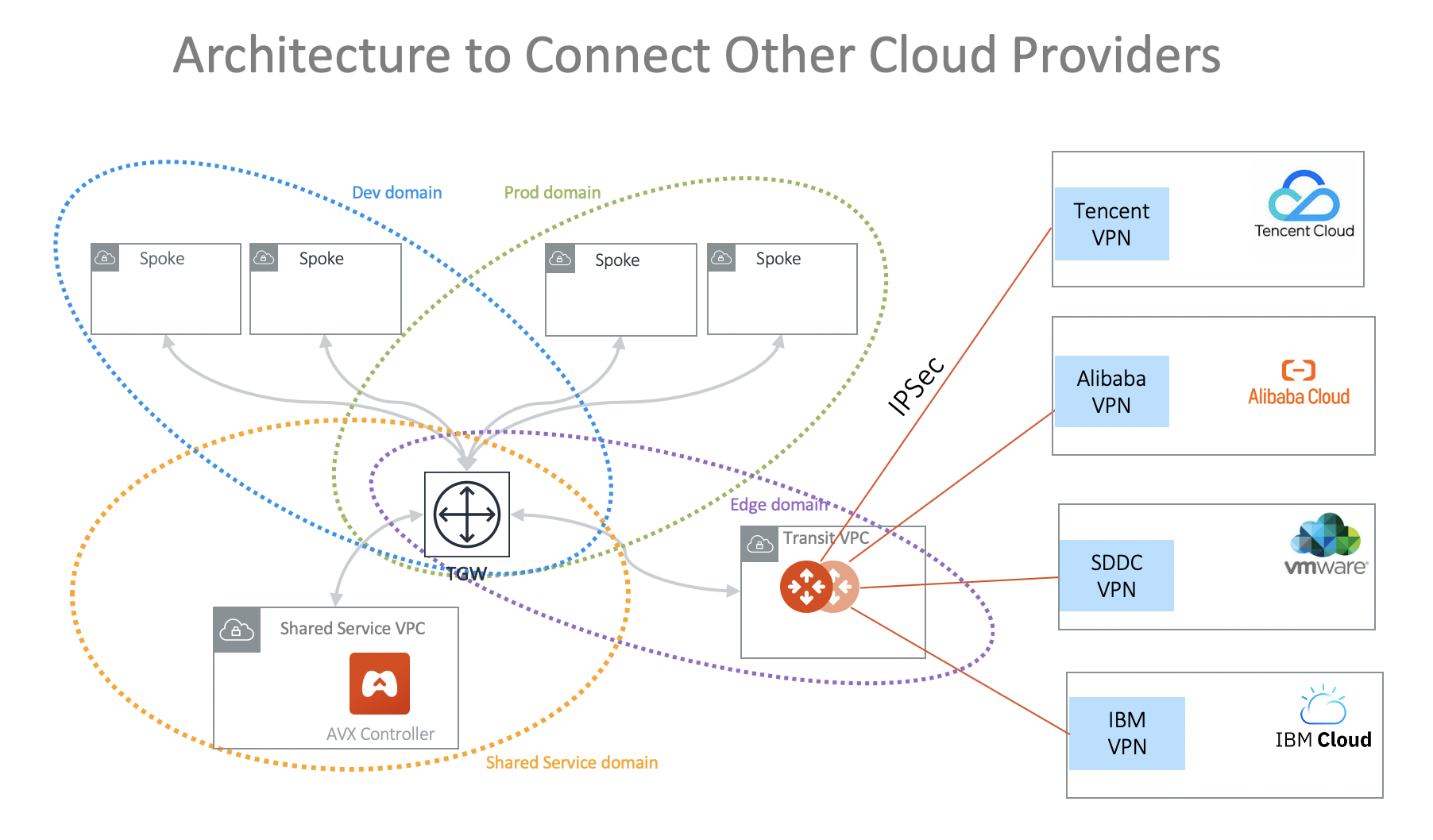

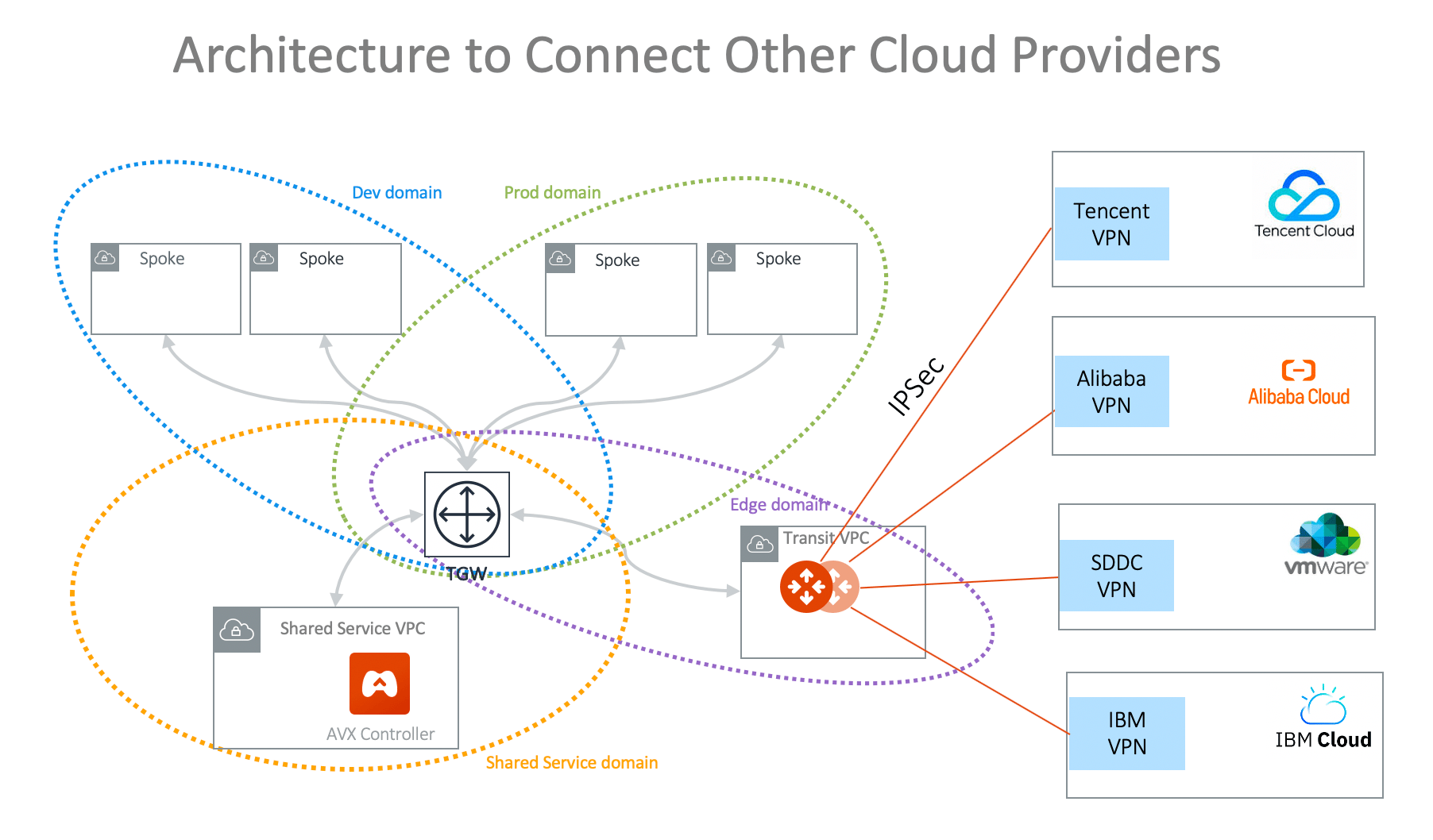

Connecting to Other Cloud Providers

To connect any network of a cloud provider that is not AWS, Azure, GCP, and Oracle Cloud, use the native VPN gateway of these cloud providers to build VPN tunnels to the Aviatrix Transit Gateway to connect to the rest of the deployment, as shown in the diagram below. On the Aviatrix side, use the option External Devices when making the connection.

​

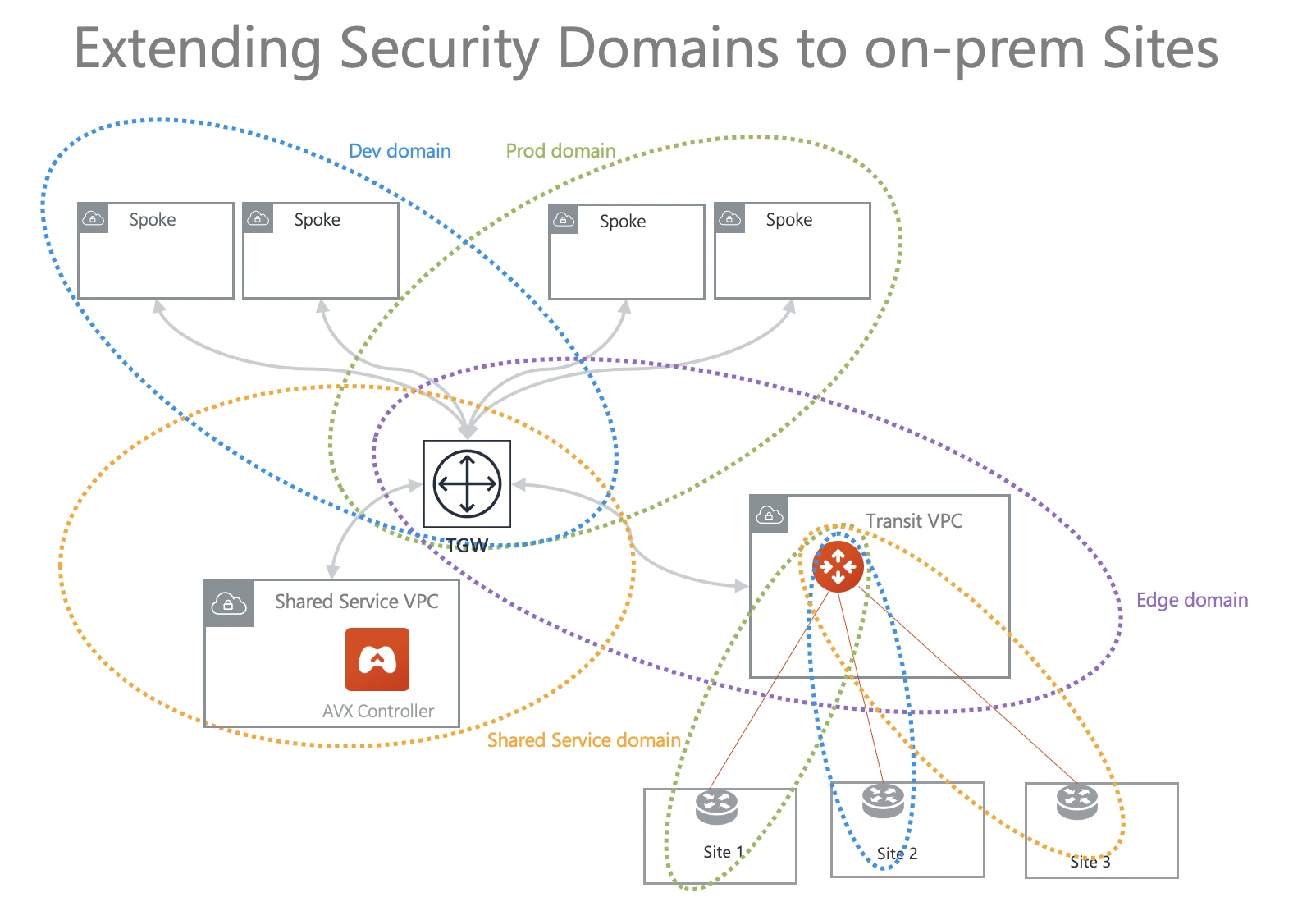

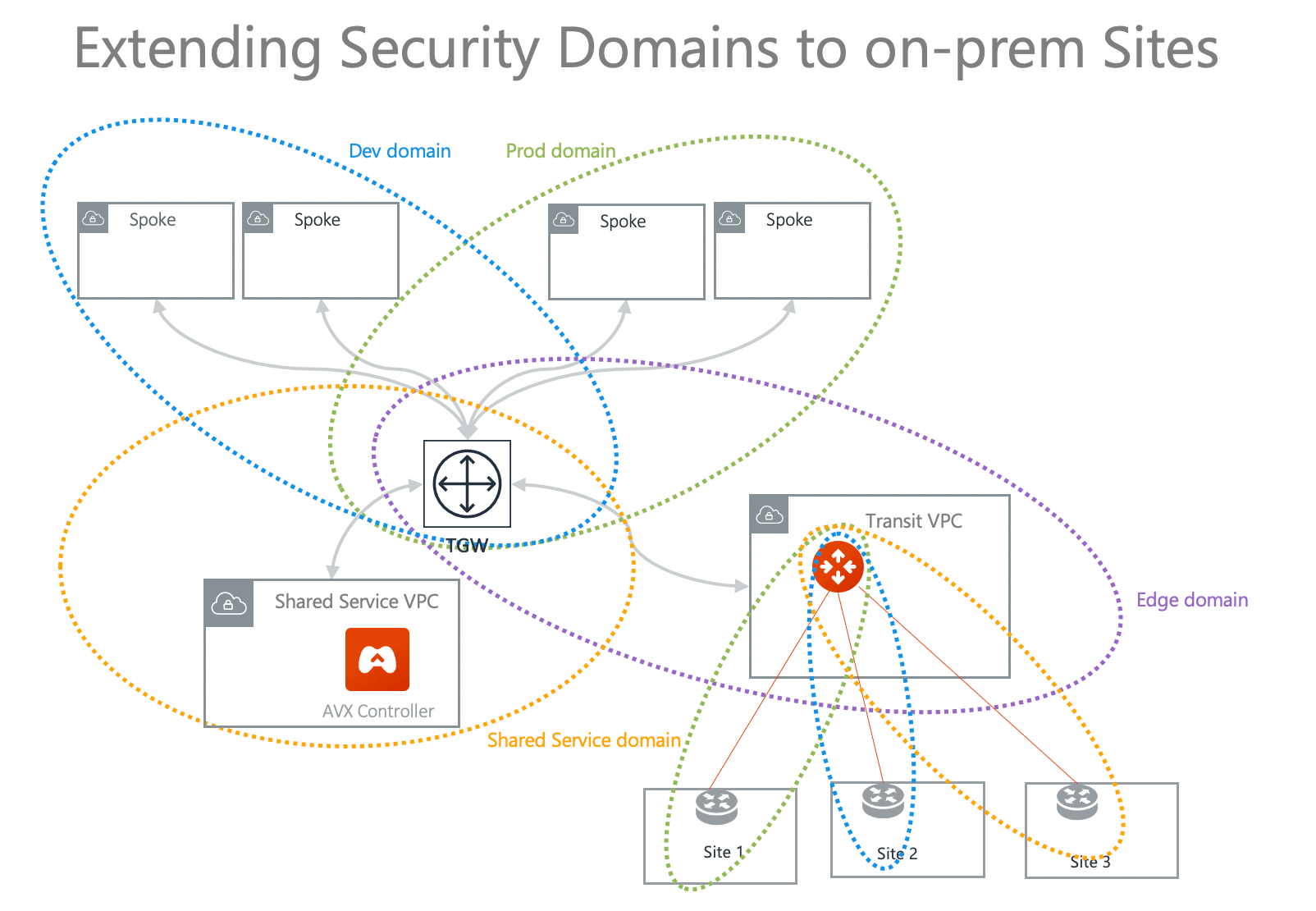

Extending Network Domains to On-Prem Sites

If the Aviatrix Transit Gateway connects to multiple sites over IPsec or GRE tunnels, the Network Domains can be extended to each site as shown below, where Blue Domain in the cloud can only communicate with Site 2, Green Domain can only communicate with Site 1. Routes are only advertised within the domain and data traffic is segmented by the Network Domains.
