Overview

Transparent DCF Protection with AWS Transit Gateway (also called Bump-in-the-Wire, or BITW) lets Aviatrix Distributed Cloud Firewall (DCF) inspect East-West and egress traffic across AWS spoke VPCs without changing the existing AWS Transit Gateway architecture. Aviatrix spoke gateways are deployed inside the user’s VPCs and inserted into the traffic path through automated route programming. There is no Transit Gateway replacement, no re-IP, and no downtime. The Aviatrix Controller programs two sets of route tables in each enrolled spoke VPC: Because the TGW keeps routing context and symmetric flow is enforced at the attachment level, the Aviatrix gateway does not SNAT inspected traffic. The original source IP is preserved in both directions, so security policies and logs see the actual workload IPs, not the gateway address. IP-based application controls (auth, rate-limiting, geo-fencing) keep working. In 9.0, BITW also supports selective egress NAT. The Controller analyzes spoke VPC route tables to find which internet-bound traffic needs NAT, so operators no longer have to maintain large internet CIDR block lists. This works across three or more Availability Zones and supports East-West inspection and egress inspection at the same time.
The AWS NAT Gateway in your egress VPC continues to perform AWS SNAT to its Elastic IP for internet-bound flows. That is expected AWS behavior; the Aviatrix gateway itself does not SNAT.

​
Prerequisites

  • Aviatrix Controller 9.0 or later.
  • Gateway software 9.0 or later.
  • An AWS account onboarded to the Aviatrix Controller.
  • An existing user-managed AWS Transit Gateway with the spoke VPCs already attached.
  • Aviatrix spoke gateways deployed in each spoke VPC you want to enroll for inspection.
  • A dedicated public subnet of at least /28 in each enrolled spoke VPC and Availability Zone for the Aviatrix spoke gateway. AWS reserves 5 addresses per subnet, so a /28 gives 11 usable addresses (one gateway plus headroom).
  • A dedicated TGW attachment subnet of at least /28 in each enrolled spoke VPC and Availability Zone. The TGW attachment ENI must reside in this subnet, and the subnet must have its own route table. It cannot share a subnet or route table with workloads, because the Controller programs return-path routes on this route table to direct traffic through the Aviatrix gateway for symmetric inspection. See Subnet Layout Per Availability Zone.
  • IAM permissions to modify EC2 route tables and security group ingress rules in the enrolled VPCs.
  • DCF policy already configured at the appropriate scope (see DCF Overview ).

​
Subnet Layout Per Availability Zone

Each enrolled spoke VPC must have at least three distinct subnet tiers in every Availability Zone where you want inspection. Two of the tiers are dedicated Aviatrix requirements; the third covers your existing workloads. Workload subnets can vary in number and size to fit your applications. The Aviatrix gateway subnet and the TGW attachment subnet must each be dedicated, separate from workload subnets, and separate from each other.

​
How It Works

​
Symmetric Inspection without SNAT

Stateful firewall inspection requires both directions of a flow to traverse the same firewall instance. AWS TGW preserves routing context across attachments, and Transparent DCF Protection programs both the private subnet route tables and the attachment subnet route tables in each spoke VPC. As a result, outbound and return traffic land on the same Aviatrix gateway in the same Availability Zone, so the gateway can inspect statefully without doing SNAT.

​
Controller Orchestration

When you enable Transparent DCF Protection on a spoke VPC, the Controller runs the following orchestration. If any step fails, all changes are rolled back automatically.
  1. Validates that Aviatrix spoke gateways are deployed in the VPC and eligible for traffic inspection.
  2. Classifies each VPC route table as a private subnet route table, a TGW attachment subnet route table, or a gateway subnet route table.
  3. Updates private subnet route tables so the default route points to the AZ-aligned Aviatrix spoke gateway instead of the TGW attachment.
  4. Updates TGW attachment subnet route tables so return traffic from the TGW flows back through the spoke gateway.
  5. Adds gateway route table entries so the gateway can forward traffic to workload destinations.
  6. Adds gateway security group ingress rules for the workload CIDRs detected in the private route tables.
To change which route tables are enrolled later, resubmit the request. The Controller computes the delta and applies only the necessary changes without disrupting existing inspection routes.

​
Route Table Changes: Before and After

Use the following comparison to validate a spoke VPC’s route tables before enabling Transparent DCF Protection and to verify the Controller’s programming after enablement. The Controller preserves any existing routes it does not manage. Only the entries above are added or updated; other routes on the same tables are left in place.

​
Per-VPC Granularity

Transparent DCF Protection is enabled per-VPC. VPCs attached to the same TGW that are not enrolled keep forwarding traffic unchanged.

​
Default Route Table Selection

By default, every route table in the spoke VPC whose next hop is the TGW attachment is enrolled. All TGW-attached subnets in the spoke VPC are inspected at the same time. To enroll only a subset of the route tables, customize the selection during enablement.

​
Traffic Paths

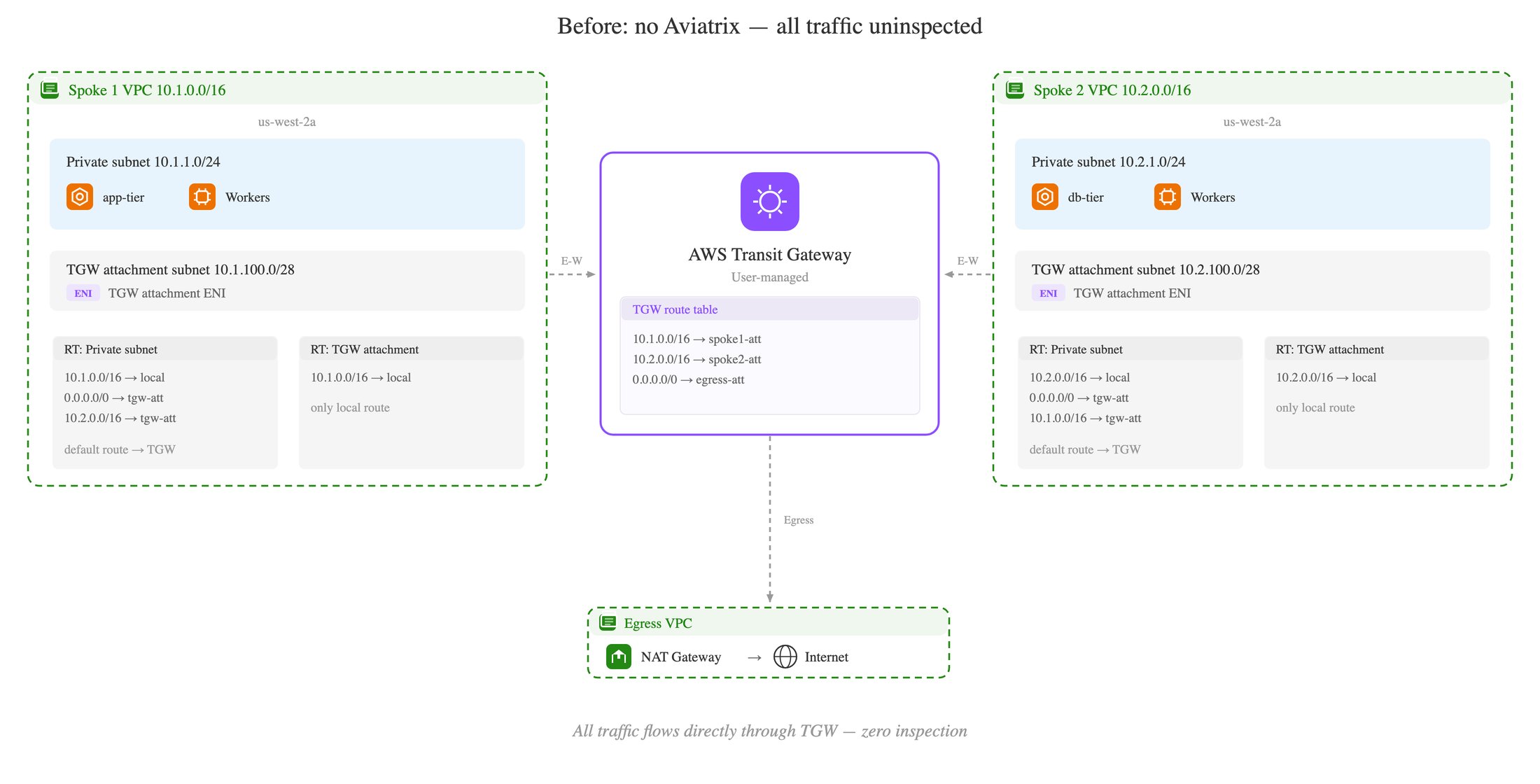

Spoke VPC route tables before Transparent DCF Protection, showing all traffic flowing directly through the Transit Gateway with no inspection

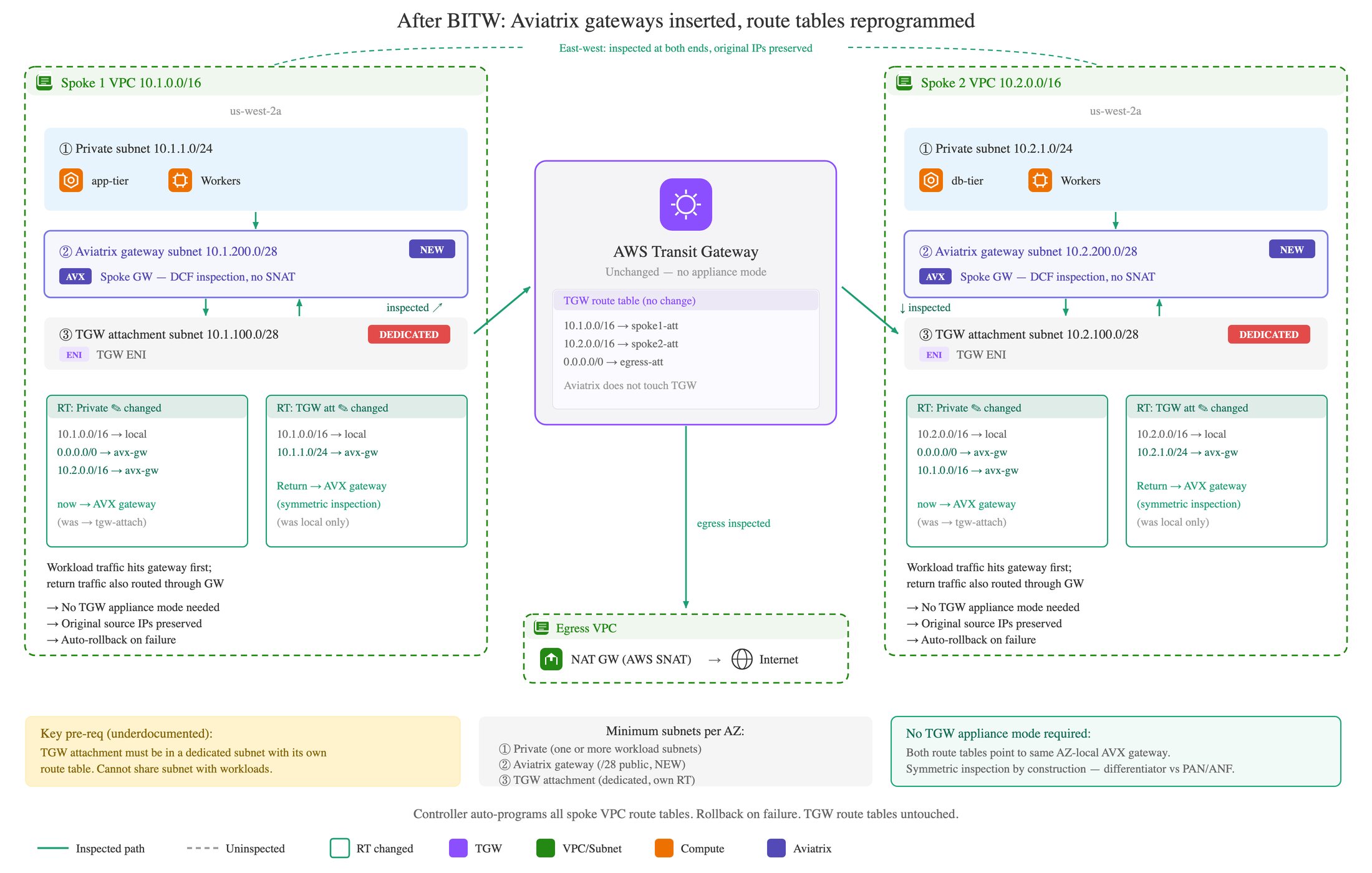

Spoke VPC route tables after Transparent DCF Protection, showing Aviatrix gateways inserted into the private and TGW attachment subnet route tables for symmetric inspection

​
Selective Egress NAT

When egress NAT is enabled, the Controller analyzes each enrolled VPC’s route tables to find which internet-bound CIDRs need NAT, distributes NAT responsibilities across the spoke gateways in the VPC for even per-AZ load, and programs gateway-level NAT for the selected CIDRs. This replaces the older pattern of maintaining a manual list of public CIDRs and works across three or more Availability Zones without the cross-AZ NAT cost.

​
Automatic Failover

If a spoke gateway becomes unhealthy or enters maintenance, the Controller restores the affected route tables to their original TGW attachment next-hop entries. Traffic resumes flowing without inspection until the gateway recovers, at which point the Controller re-applies the inspection routes.

​
Best Practices

​
Gateway Subnet Sizing

Deploy each Aviatrix spoke gateway in a dedicated public subnet of at least /28 in each Availability Zone where you want inspection. Do not co-locate the gateway with workload ENIs.

​
Confirm Subnets Need Inspection

Confirm that all subnets selected for inspection actually need inspection. If a subnet hosts workloads that should bypass the gateway (for example, monitoring agents that talk to a private endpoint by VPC peering), exclude its route table from the enrollment.

​
Limitations

  • AWS only. Transparent DCF Protection is supported on AWS spoke VPCs in 9.0. Azure and GCP are not supported.
  • User-managed Transit Gateway required. Aviatrix does not modify TGW route tables; only spoke VPC route tables are reprogrammed.
  • No Terraform support in 9.0.
  • Brief unprotected window during enablement. While the Controller updates route tables, in-flight flows take the original transit path and are not inspected.
  • Internet egress NAT is performed by the AWS NAT Gateway. The Aviatrix gateway does not SNAT inspected traffic; AWS SNAT to the NAT Gateway’s Elastic IP is unchanged.
